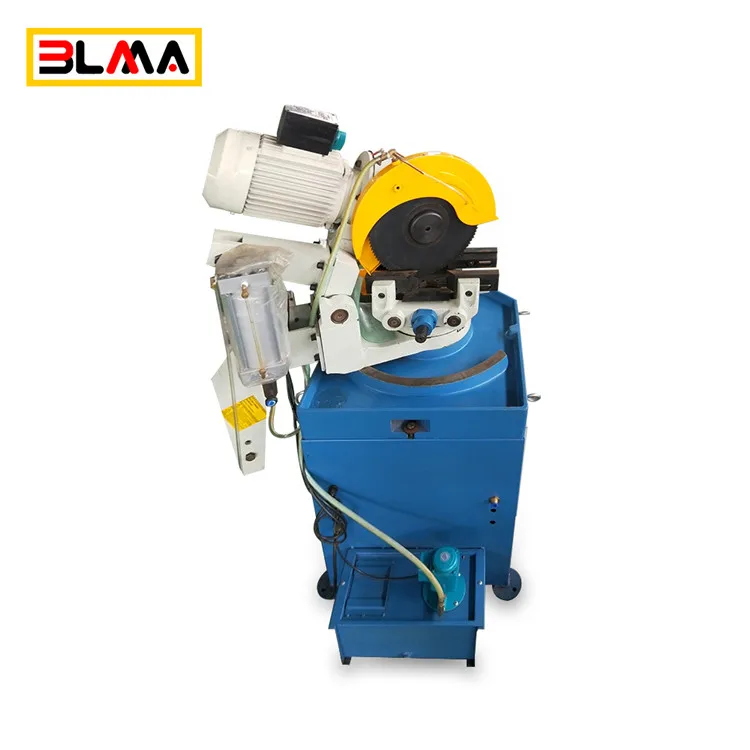

China pipe cold cutting machine cnc pipe profile cutting machine Electric cutting machine

FOB Reference Price:Get Latest Price
$500.00 - $1,600.00 / Sets | 1 Set/Sets pipe cold cutting machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Blma
Model Number:
MC315B
Voltage:
220V/380V
Rated Power:
2/2.4kw
Dimension(L*W*H):
250mmx500mmx500mm
Weight:
210KG
Certification:
CE
Main motor (double speed motor):
2/2.4 kw
A/B axis:
60/120
Blade type:
H.S.S blade
Blade outside diameter:
250/300/315mm
Cooling water pump:
90w
Compressed air pressure:
0.4-0.6 Mpa
Machine weight:
210kg
Machine size:
250mmx500mmx500mm
System:
Pneumatic system
Item:
pipe cold cutting machine cnc pipe profile cutting machine
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 Months
Supply Ability
Supply Ability:
2000 Set/Sets per Month pipe cold cutting machine
Packaging & Delivery
Packaging Details
pipe cold cutting machine: Exported standard wooden case of each set.
Port
Shanghai Port
Lead Time :
Shipped in 20 days after payment received.
Product Description

Main Features

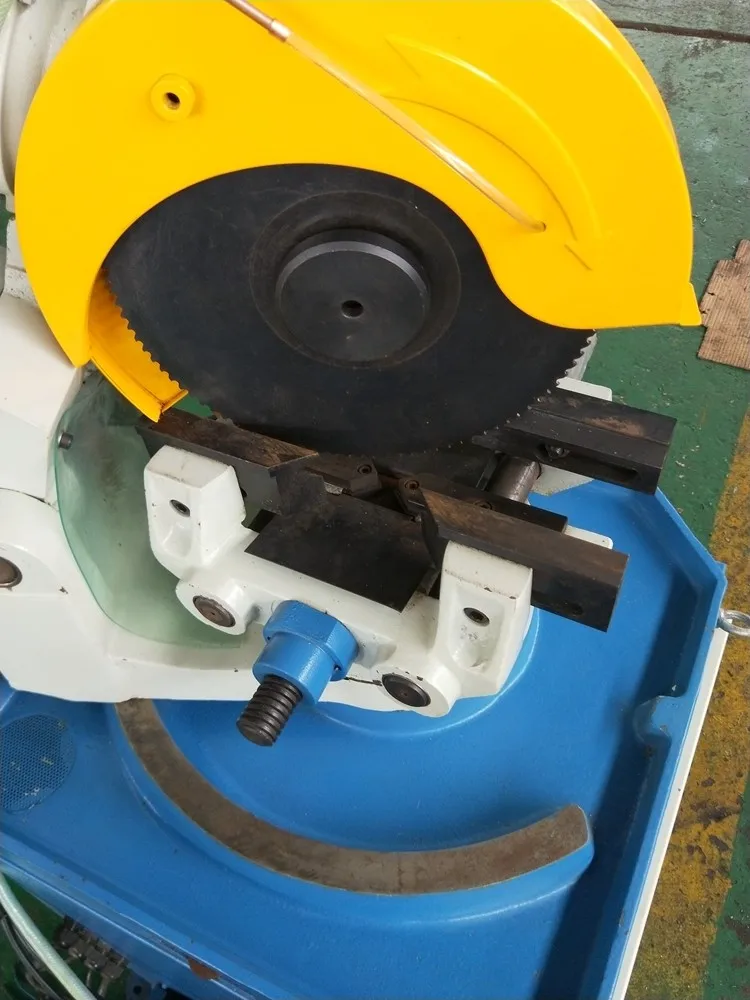

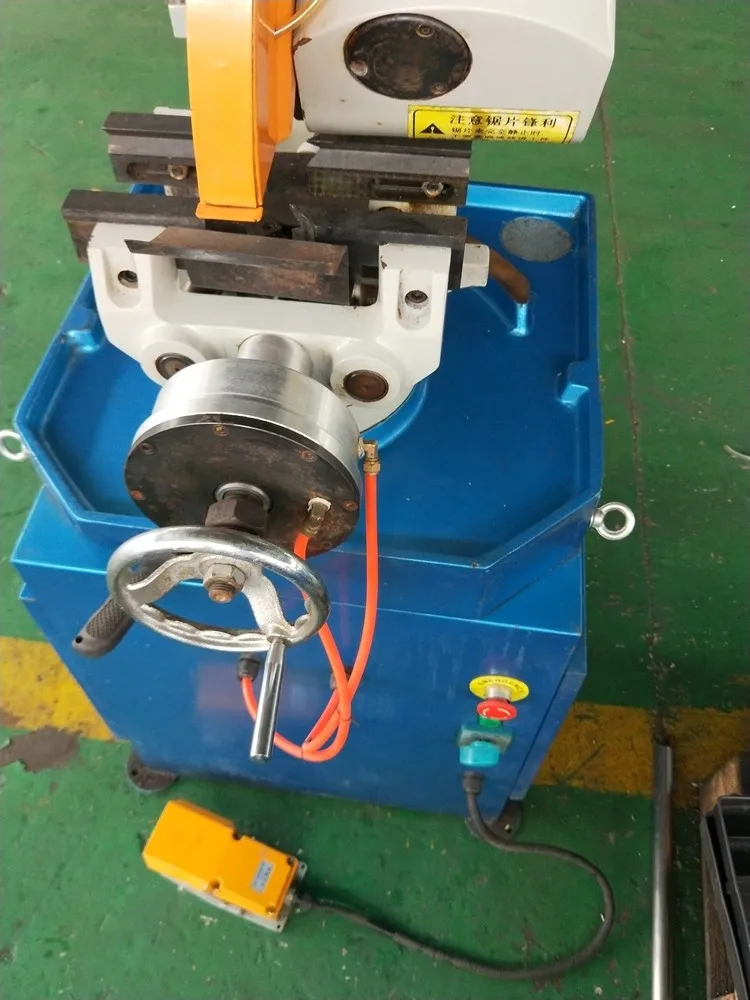

1) The Europe style high-strength machine head makes the cutting speed high, and has no noise free and no raw edge if matched with high-efficiency worm or worm wheel for transmission. Adopting manual operation, the machine head can rotate 45°and the angle score is clear. If equipped with 45°-90-45°post, it will be more convenient to regulate. Besides, it is also equipped with manual bidirectional clamp, automatic cooling system and manual regulating ruler.

2) No raw edge, no powder dust.

3) The double-edge bidirectional clamp makes it work stably. The section is smooth and has no raw edge. It has low noise and low pollution during cutting.

4) The machine can be regulated on the left and the right for angular cut or mill slot. The angle is exact and the pipe is connected perfectly.

5) Cooling pump

The circulating cooling system has large-content oil drum to guarantee the saw blade's life and make the section smooth.

Parameters

Cutting Capacity of pipe cutting machine

Saw Blade Position
90° (mm)
45°(mm)
80x80
60x60
90
70

50
40
55
45
Technical Parameters of MC-315B pipe cutting machine
Item
China pipe cold cutting machine cnc pipe profile cutting machine Electric cutting machine
Main motor (double speed motor)
2/2.4 kw
A/B axis
60/120
Blade type
H.S.S blade
Blade outside diameter
250/300/315 mm
Cooling water pump
90w
Compressed air pressure
0.4-0.6 Mpa
Machine weight
210 kg
FAQ

1. Do you provide any training to make sure our user can operate the machine very well?

1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!

2. How long warranty can you provide?
Our machine warranty is one year,and we use all the stable components with long working life!
And we can also send our technician to do the after-sale service in client's factory!

3.What kind of solution you can offer to make sure your pipe cutting machine can do our job?
1)We will help you confirm the model of our machine according to your offered pipe information.
2)Before you start the order for this big value machine,you can offer your workpiece drawing to us.
We can design the tooling to make your products in our workshop,after you are sure that the workpiece is good,then we can confirm the order finally.
3)You can visit us to check how to bend your product before you start the order.During this period, you can also learn how to use this machine well!

Our Service

Pre-Sales Service

1. We will help you confirm the model of our machine according to your offered pipe information.

2. You are very welcome to see our machine how to work in the factory before you place an order with us.

For Metal CNC Fiber Laser Cutting Machine Price

For Metal CNC Fiber Laser Cutting Machine Price


After-Sales Service

1. Free installation, trial start and adjustment, training.

2. We guarantee machine quality for one year. During this year, if spare parts of the machine were damaged, we can send the components to the customer by DHL, TNT freely.

3. Our factory provide the service for the customer forever, if the customer need operation help,we provide 24 hours on-line reply service.
