Clear heat resistant UV quartz glass plate from factory

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    $10.00
  • >=10 Pieces
    $5.00
Report Suspicious Activity
Overview
Quick Details
Type:
Clear Quartz Plate
Application:
Industry
Thickness:
1-100mm, 3mm-100mm
Shape:
Circular Shape
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Liaison Quartz
Model Number:
Plate 898
Product Name:
Clear heat resistant UV quartz glass plate from factory
Material:
99.9% Pure Quartz
Diameter:
10mm-600mm
Work temperature:
1100 Degrees Celsius
Density:
2.2g/cm3
Package:
Standard Packing
Color:
Clear Transparent
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week Clear heat resistant UV quartz glass plate from factory
Packaging & Delivery
Packaging Details
Standard Packing for Clear heat resistant UV quartz glass plate from factory.
Port
Qingdao/Shanghai
Lead Time :
10-15 days after receiving payment
Product Description

Clear heat resistant UV quartz glass plate from factory

Physical properties
SiO2 :

99.95%

Density :

2.2(g/cm3)

Degree of hardness mosh' scale :

6.6

Coefficient of expansion 25--300℃ ℃-1 ( ×10-6 )

0.58

Melting point:

1732°C

Working temperature :

Under 1100°C

Max temperature can reach in a short time :

1450°C

Acid tolerance:

30 times than Ceramics , 150 times than Stainless steel

Visible light transmittance :

above 93%

UV spectral region transmittance:

80%

Resistance value :

10000 times than ordinary glass

Annealing point:

1180°C

softening point:

1630°C

Strain point:

1100°C

99.95%
Density :
2.2(g/cm3)
Degree of hardness mosh' scale :
6.6
Coefficient of expansion 25--300℃ ℃-1 ( ×10-6 )
0.58
Melting point:
1732°C
Working temperature :
Under 1100°C
Max temperature can reach in a short time :
1450°C
Acid tolerance:
30 times than Ceramics , 150 times than Stainless steel
Visible light transmittance :
above 93%
UV spectral region transmittance:
80%
Resistance value :
10000 times than ordinary glass
Annealing point:
1180°C
Softening point:
1630°C
Strain point:
1100°C
Spectral Transmission at 1.0mm Thickness
nm
220
255
280
315
350
380
590
780
%
89
91
93
93
93
93
93.5
93.4
Chemical Composition, unit: PPM
K+Na
Ca
Fe
Al
Mg
Ti
Ba
Li
Cu
<10
<3
<1.5
<20
<1.0
<3.0
<0.2
<1.0
<0.5

Square type:

100mmx100mmx(thickness 1mm-30mm)
150mmx150mmx(thickness 1mm-30mm)
200mmx200mmx(thickness 1mm-30mm)
200mmx400mmx(thickness 1mm-30mm)
300mmx300mmx(thickness 1mm-30mm)
400mmx400mmx(thickness 1mm-30mm)
Other size can be made according to customers’

detailed requirements.

Circular shape:

Diameter 50mmx (thickness 1mm-30mm )
Diameter 100mmx(thickness 1mm-30mm )
Diameter 150mmx(thickness 1mm-30mm )
Diameter 198mmx(thickness 1mm-30mm )
Other size can be made according to customers’ detailed requirements.

Shape: round, square, rectangular and various shapes are available.     polish/ground/hole

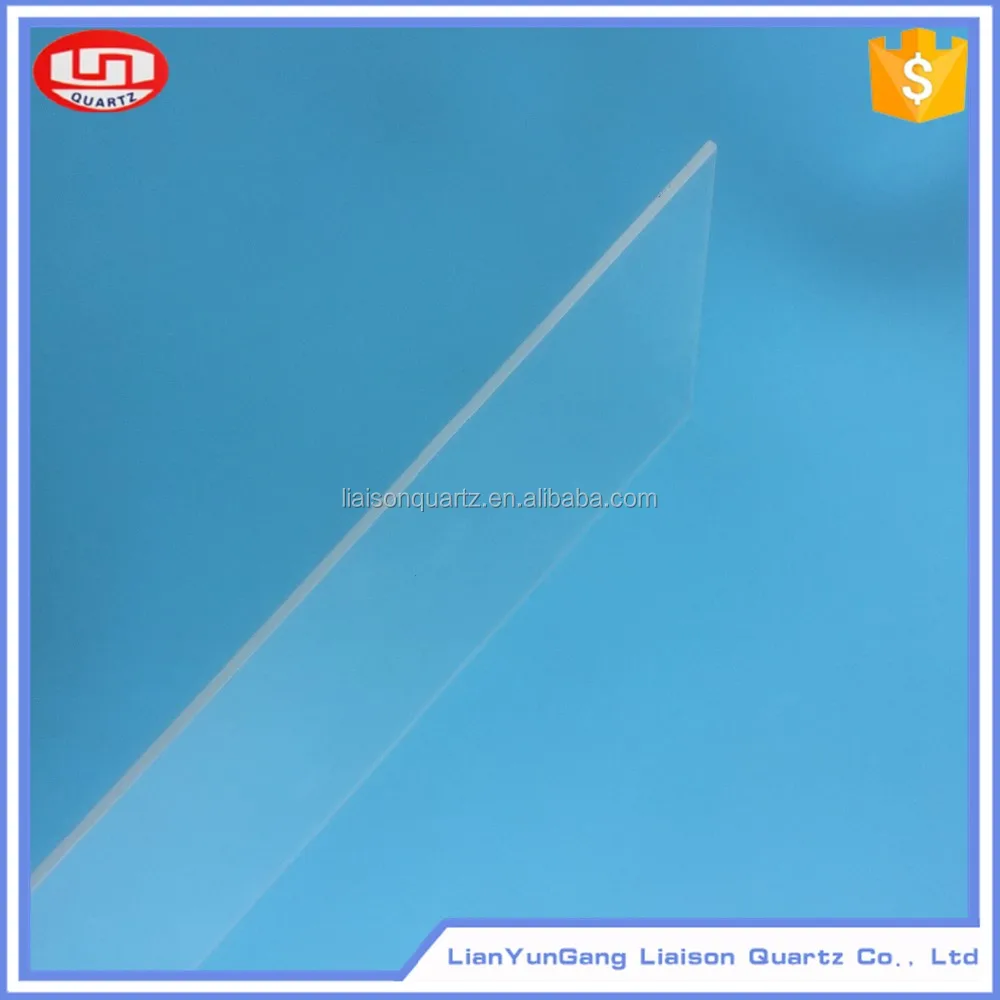

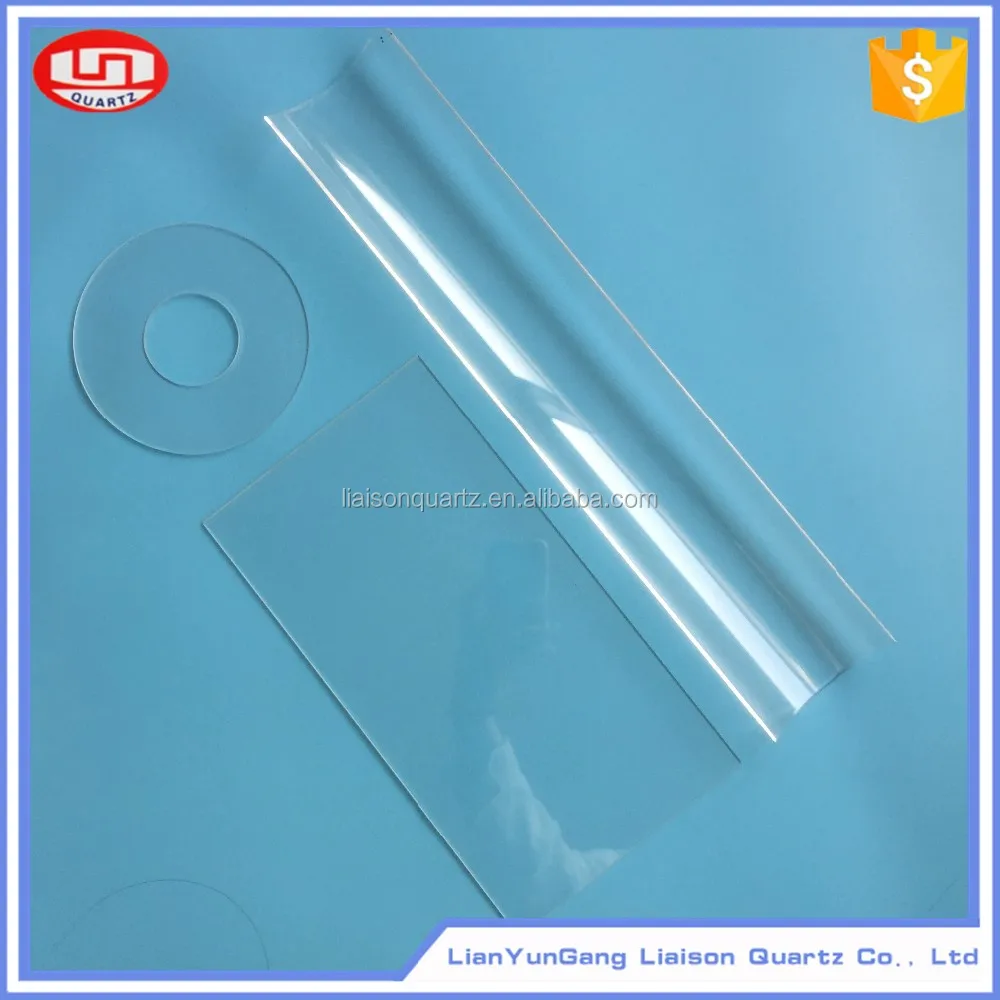

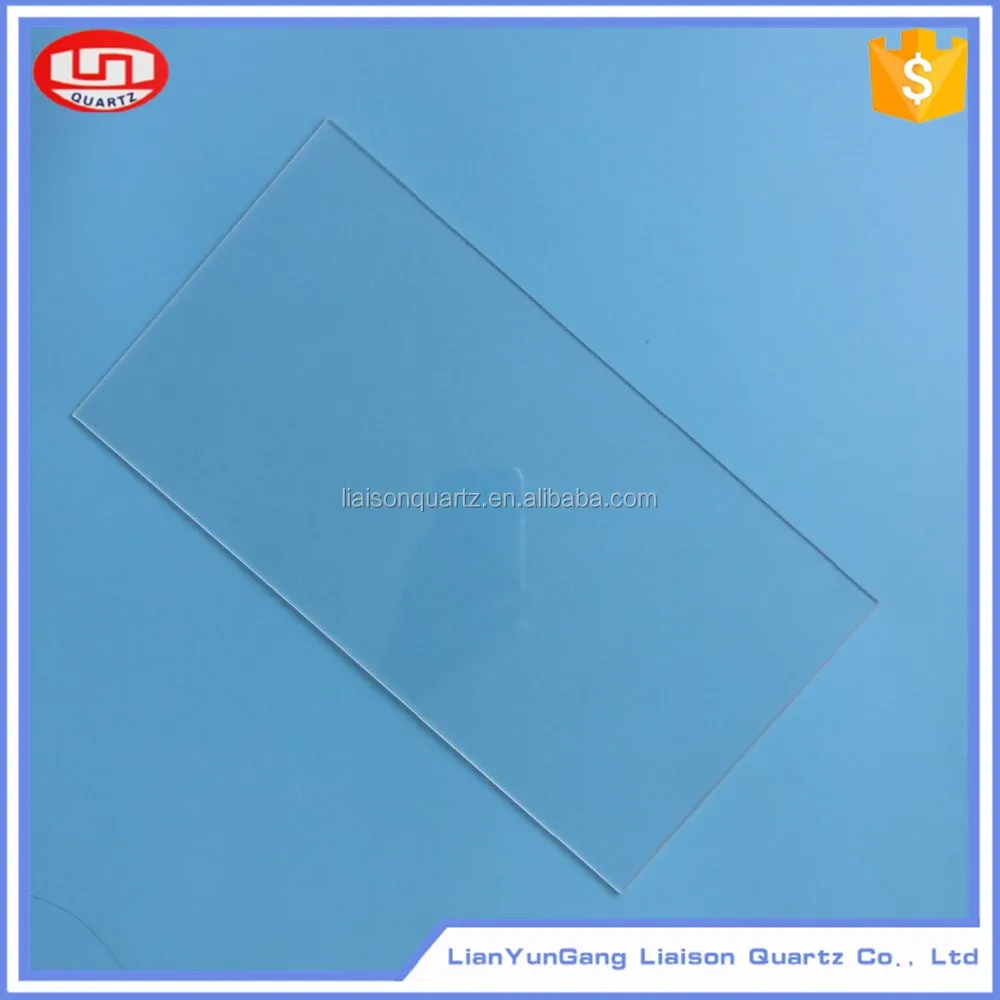

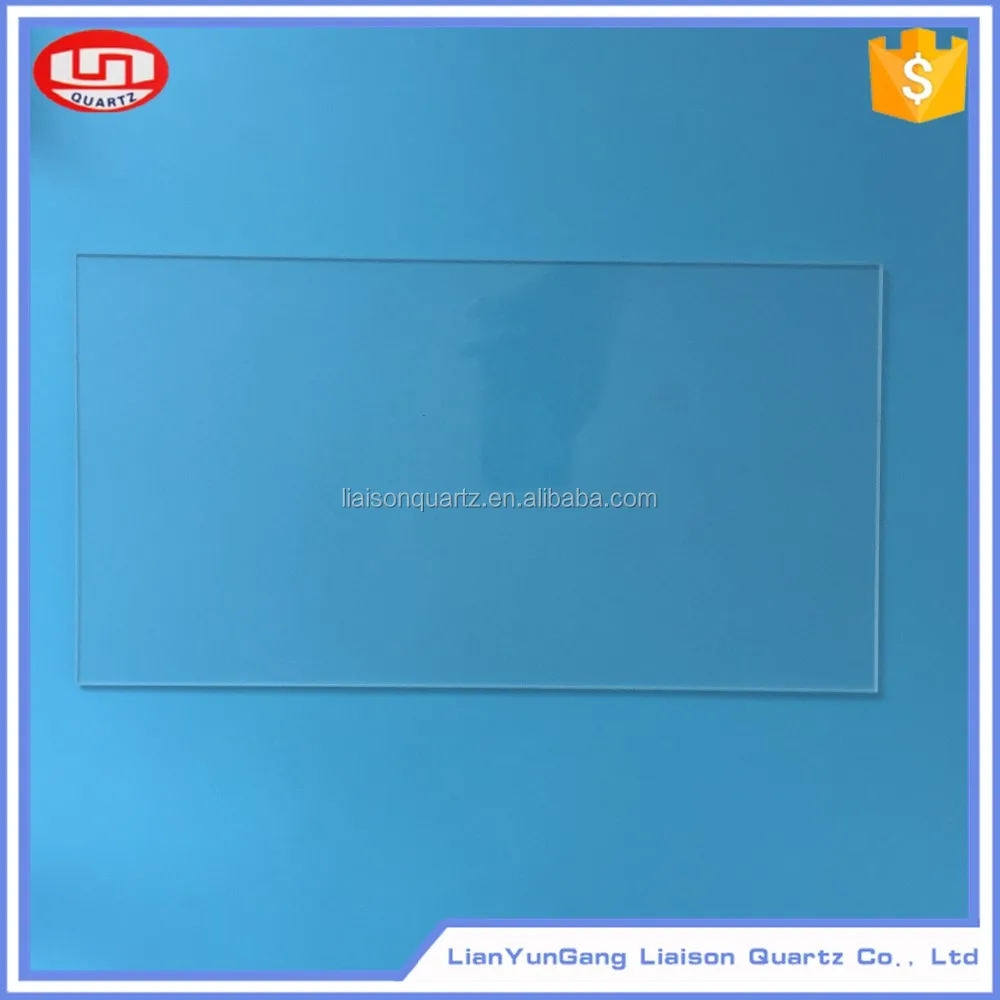

Detailed Images

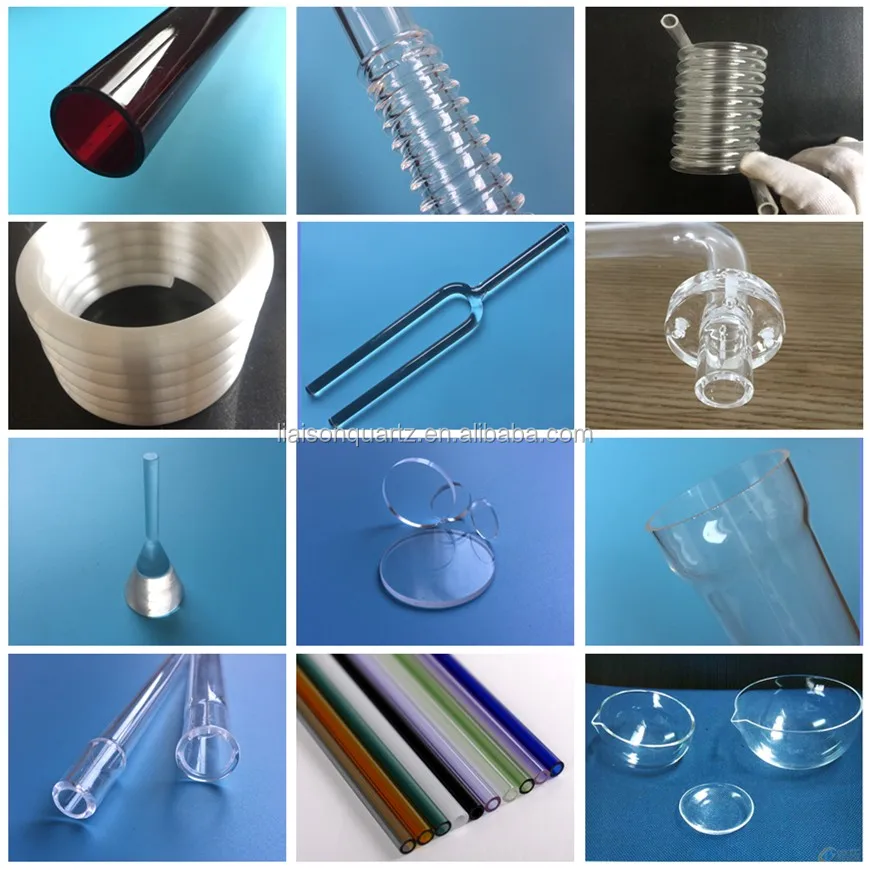

Application of quartz plate: military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, firehole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.
Application of standard clear quartz tube: halogen lamp, mercury lamp, single end lamp,automobile lamp,stage lamp, The thermoelectric boiler, The photocopier lamp, Water treatment lamp casing,quartz ware and pipe.
Application of Ultraviolet quartz tube : Single-ended metal halide lamp,automobile metal halide lamp,G12 metal halide lamp, anti-explosion metal halide lamp, High power stage light and so on.
Application of free ozone quartz tube : Kill germs free ozone light,the material of hospital ,family,and public place Ultraviolet kill germs,and water treatment.
Application of quartz rod : Linear light source products, light guide stick, light pipe, Fiber Lighting, Quartz fiber manufacturing,semiconductor silicon wafer, hollow half round.
Application of film coated quartz heater tube: Instant Hot water heater, Alkaline water purifier, Electrothermal heater, Oven heating, Aquarium heater,Screen Printing, Drying, Sealing, Food Warming, Plastic Forming, Laminating.


Welcome inquiry for high quality and reasonable price
Certifications
Packing & Delivery
FAQ

Q: Are you a factory or trading company?

A: We are a factory.

Q: Where is your factory located? How can I visit there?

A: Our factory is located in Lianyungang, China, about 2hours by air from Shanghai.

Q: What is the material of your products?

A: The material is quartz, SiO2 99.99%

Q: Does your company support "Trade Assurance"?

A: Yes.

Q:What is the payment term?

A:We accept T/T, PayPal, Western Union, L/C.

Q: How about the delivery time?

A:10-15 working day after payment received.
