Compact Dual-Shaft Planetary Vacuum Mixer with Two Containers (150 ml or 50mL or 500mL ) made in China with best price

FOB Reference Price:Get Latest Price
US $3,000-4,000 / Sets | 1 Set/Sets 500mL Planetary Vacuum Mixer (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Mixer Type:
Screw
Product Type:
Smallest Vacuum Mixer with 150mL and 500mL
Application:
lithium battery material mixing
Additional Capabilities:
Dual helical ribbon mixing blades are built on the lid of container
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Gelon
Model Number:
SFM-16
Max. Loading Capacity:
500ml
Voltage:
220V/110V 50/60Hz
Power(W):
200W
Dimension(L*W*H):
330mm *320mm *570mm (L *W * H)
Certification:
CE
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Compact Dual-Shaft Planetary Vacuum Mixer with Two Containers (150 ml)
Capacity:
50mL,150mL ,500mL for customers choose
Rotary Speed:
0-600rpm 500mL Planetary Mixer
Vacuum Pump:
Built-in single stage vacuum pump
Vacuum Level:
Vacuum Level: -0.08~0.09 Mpa
Parameter Contol Panel:
touch screen control allow parameter set:mix speed, mix time, vacuum
Mixing Time:
0 - 600 minute 500mL Planetary Mixer
Mixing Speed:
0 - 600 rpm and 3 variations in 1 setting possible
Net Weight:
70 lbs 500mL Planetary Mixer
Supply Ability
Supply Ability:
1000 Set/Sets per Month 500mL Planetary Vacuum Mixer
Packaging & Delivery
Packaging Details
standard export package 500mL Planetary Vacuum Mixer
Port
Shenzhen, Qingdao
Lead Time :
within 15workng days after payment

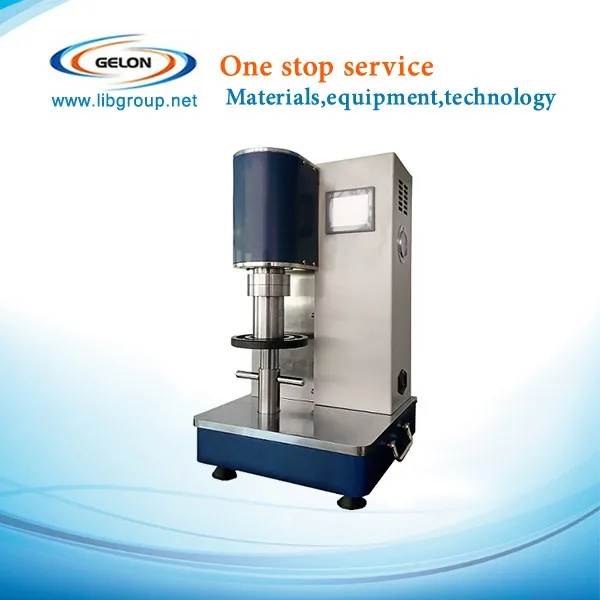

Compact Dual-Shaft Planetary Vacuum Mixer with Two Containers (150 ml) - MSK-SFM-16

SFM-16 is a UL/CSA ready Compact Dual-Shaft Planetary Vacuum Mixer which can mix slurry much more uniform than the single shaft and remove gas bubble more efficiently. It has a built-in pump which can evacuate the mixing container to -0.08 Mpa with three segments programmable mixing speed from 0 - 600 rpm.  It is a high-quality tool for preparing battery electrode paste and various ceramic materials in the research lab.



Voltage Input
Power200W
Rotary Speed0 - 600  RPM
Mixing Container



Vacuum Pump &
Vacuum Level
  • Built-in single stage vacuum pump
  • Vacuum Level: -0.08~0.09 Mpa
Parameter Contol Panel
  • 3.5" Color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off
    • Mixing Time:    0 - 600 minute
    • Mixing Speed:  0 - 600 rpm and 3 variations in 1 setting possible
  • Note:  Max. mixing speed depends on slurry viscosity.  Max.10000 Mpa.s is allowed at 600 rpm.  Lower speed will be required for more sticky slurry
Dimensions330mm x 320mm × 570mm (L x W x H)
Shipping Dimensions18'' x 18'' x 24'' (L x W x H)
Net Weight70 lbs
WarrantyOne year limited with lifetime technical support
Application NotesFor best result, please consider ordering a filter to remove larger particle in slurry ( click picture below to order )



Dual-Shaft Planetary Vacuum Mixer (1).jpgDual-Shaft Planetary Vacuum Mixer (2).jpgDual-Shaft Planetary Vacuum Mixer (3).jpg


Compact Dual-Shaft Planetary Vacuum Mixer with Two Containers (150 ml) - MSK-SFM-16.jpg



500mL Planetary  Mixer.jpg
