CooCoo ultrasonic distance measurement sensor for 2WD intelligent robot programming platform

Feedback Ratings
  • 5-9 Pieces
    US $13.60
  • 10-19 Pieces
    US $13.30
  • 20-199 Pieces
    US $12.90
  • >=200 Pieces
    US $9.90
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order:: 1000 Pieces)
Customized packaging (Min. Order:: 1000 Pieces)

More

Graphic customization (Min. Order:: 1000 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-02S147
Usage:
obstacle avoidance
Theory:
Ultrasonic Sensor
Output:
Digital Sensor
Product name:
CooCoo ultrasonic sensor
Application:
Position Detection
Condition:
100% Original
Measuring range:
1-300cm

Packaging & Delivery

Selling Units:
Single item
Single package size:
150X90X110 cm
Single gross weight:
0.3 kg
Package Type:
Standard package
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 3 To be negotiated

Description

The newest CooCoo ultrasonic sensor of ALSRobot adopts the dual-probe design and is equipped with a high-precisionprocessing chip, which greatly improves the detection distance and precision. The detection distance can be up to 300cm and the precision can be up to 1cm.It can be calibrated automatically within the effective detection range, and the accurate distance of obstacle can be obtained without any manual adjustment.Make your robot feel its surroundings through sonar like a bat.You only need to write a short program in the single-chip computer and CooCoo controller to control the motor operation of the robot according to the distance of obstacles, so that your robot can easily avoid obstacles and realize its function of detection and obstacle avoidance.

Specifications

  • Product name: CooCoo ultrasonic sensor
  • Item code: RB-02S147
  • Brand: ALSRobot
  • Place of origin: China
  • Size: 43.3mm x 55mm (+ / - 0.3mm)
  • Packaging: anti-static bag
  • Fixed holes: M4*1
  • Input voltage: dc5.0v
  • Working current: <20mA
  • Working frequency: 40KHz
  • Operating temperature range: - 10 ℃ ~ + 70 ℃
  • Effective detection distance: 1cm ~ 300cm
  • Detection resolution: 0.5cm
  • Detection error: + / - 0.5%
  • Interface type: RJ25 right button crystal head interface (single line mode)
  • Directivity detection range: directional (horizontal/vertical) 65 degree cone

pictures

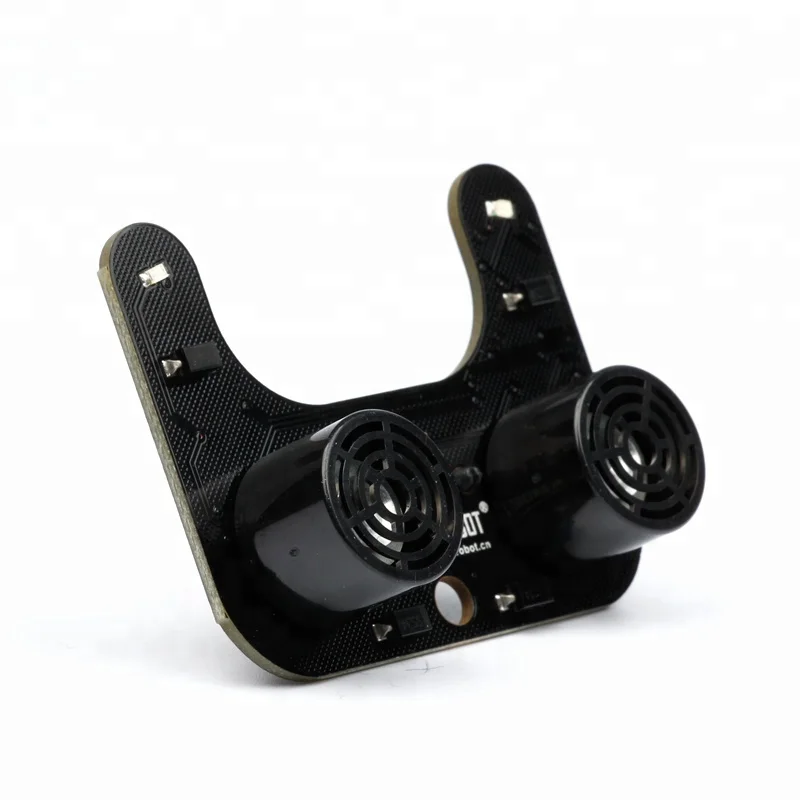

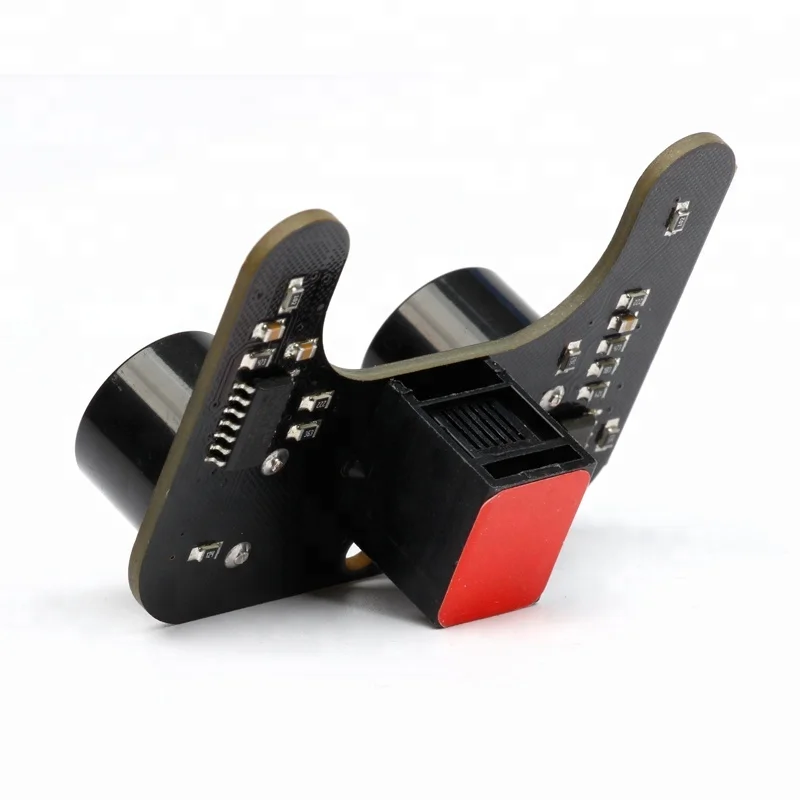

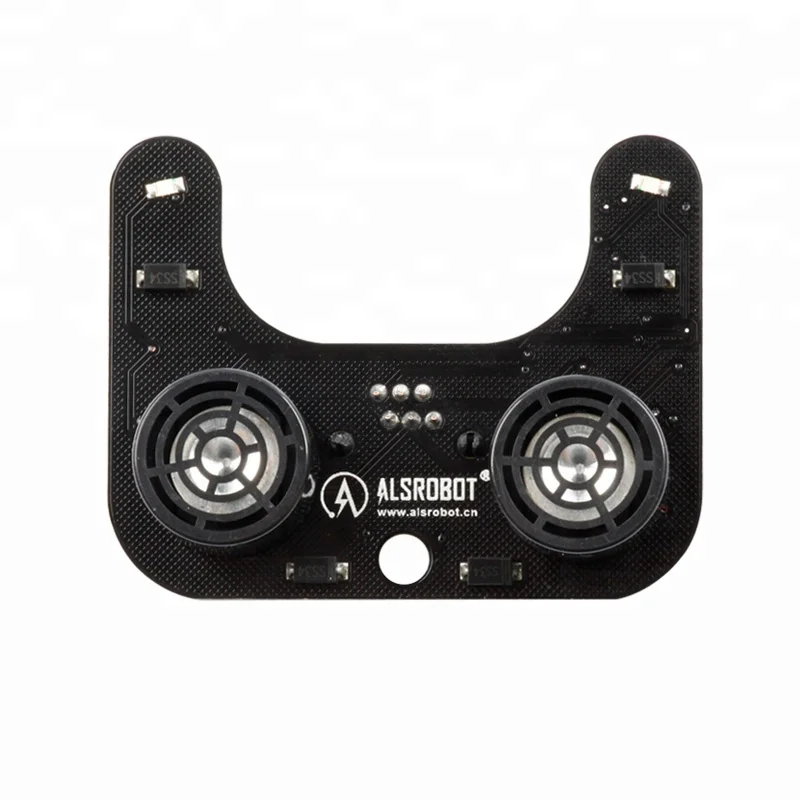

RB-02S147 CooCoo Sensor(1)RB-02S147 CooCoo Sensor(3)RB-02S147 CooCoo Sensor(4)RB-02S147 CooCoo Sensor(5)

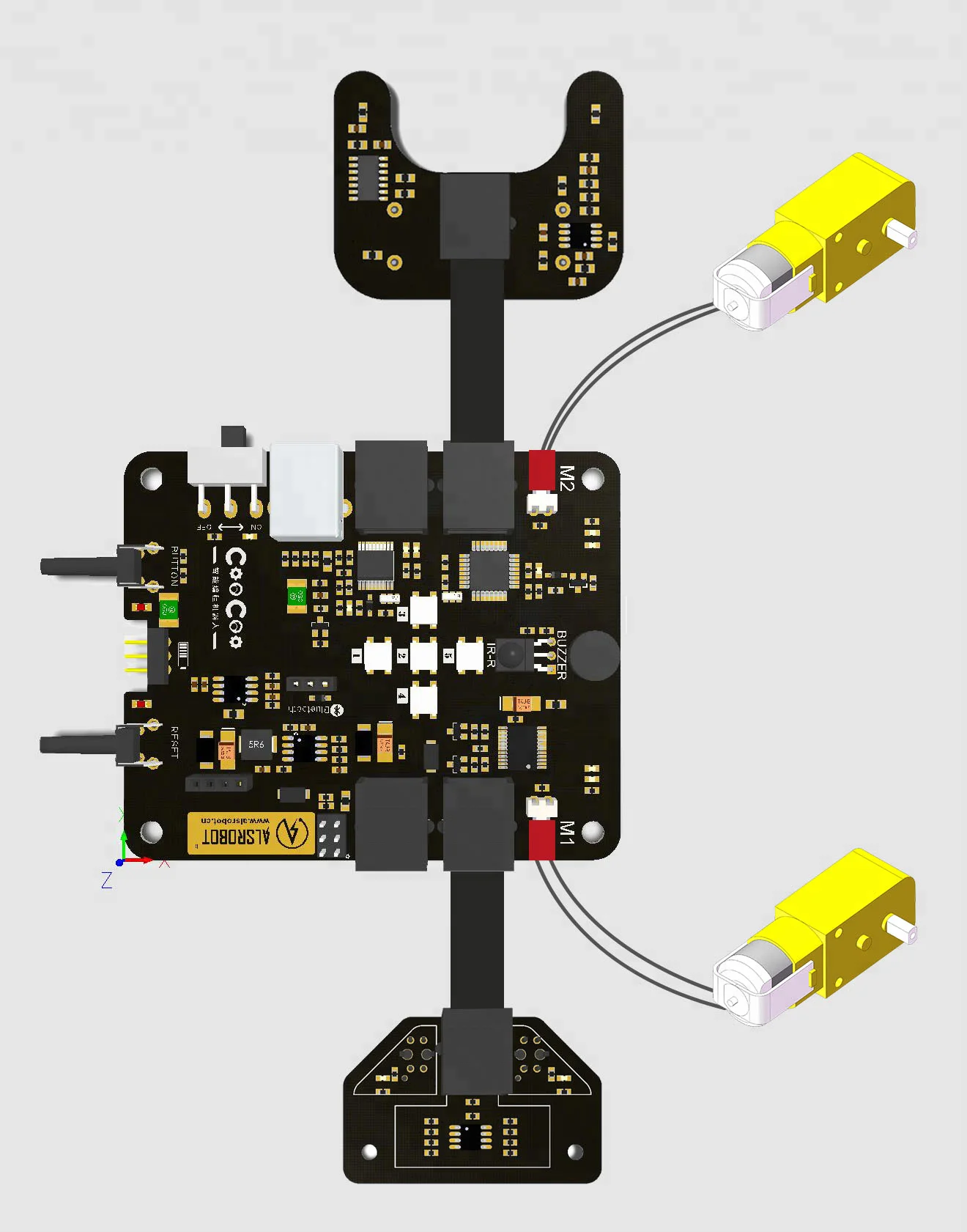

RB-01C144-controller (2)RB-01C144-controller (2)

Position 1 :USB port
Position 2: external port 4, pin A0, A1
Position 3: external port 3, pin A2, A3
Position 4: motor M2 interface, direction control digital D7 pin, speed control digital D6 pin
Position 5: infrared receiver, digital pin D8
Position 6: buzzer, digital pin D12
Position 7: RGB lights, digital pin D13
Position 8: motor M1 interface, direction control digital pin D4, speed control digital pin D5
Position 9: external port 2, pin D9,D10
Position 10: external port 1, pin D2, D3
Position 11: external bluetooth socket
Position 12: reset button
Position 13: power switch

Final Decsription
