Copeland Scroll Compressor Air to Water EVI Heat Pump for Cold Climate 18KW 21KW

FOB Reference Price:Get Latest Price
$200.00 - $2,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Air Source Heat Pump
Installation:
Freestanding
Storage / Tankless:
Storage
Housing Material:
Stainless Steel
Use:
School, staff Quarters, Dormitories, Guest Houses, Hotels
Certification:
CB, CE, CSA, EMC, EMF, GS, LFGB, RoHS, SASO, UL, UR
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SPRSUN
Model Number:
CGK/C-18(L)
Main Heat Source:
Air to water
Compressor:
Panasonic/Copeland/Sanyo
Heating Type:
Cycle heating
COP:
4.0~4.5
Max Outlet Water Temp:
60C
Working Condition:
-20C to 43C
Refrigerant:
R410A/R407C/ R404A
Heating Capacity:
7KW~72KW
Working life:
15 years
HS Code:
8418612090
Supply Ability
Supply Ability:
500 Set/Sets per Month ODM
Packaging & Delivery
Packaging Details
Packing with export standard plywood case with a plastic bag inside.
Port
Guangzhou
Product Description

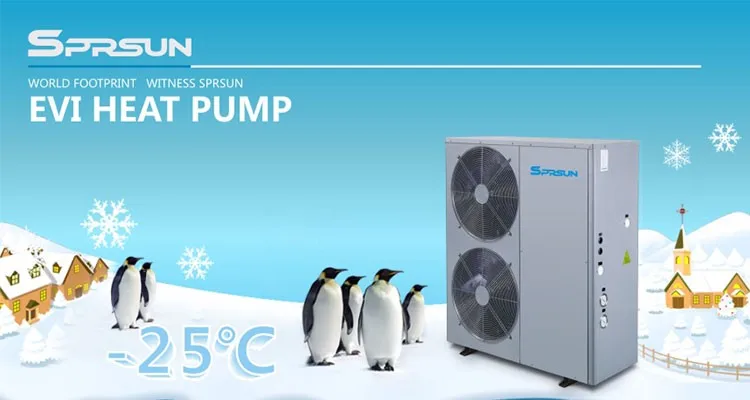

Air to Water EVI Heat Pump for Cold Climate with Copeland Scroll Compressor

Technical Parameters

Model

CGK/C-18 (L)
CGK/C-18 (L)
Power Supply
V
220~240V/50Hz/1ph
380~415V/50Hz/3ph
Heating Capacity
KW
18.6
21.2
Input Power
KW
4.31
4.9
COP

4.32
4.32
Rated Current
A
21.7
9.3
Fan Motor Power
W
90
90
Fan Motor Quantity
Piece
2
2
Water Flow
L/h
3554
4051
Water Pressure Drop
Kpa
≤50
≤50
Net Weight
kg
164
164
Gross Weight
kg
174
174
Noise
db
56
56
Waterproof Grade

IPX4
Electric Shock Proof Grade

I
Pipe Size (internal thread)
mm
25
25
Dimension
mm
1090*480*1260
1090*480*1260
Packing Dimension
mm
1160*500*1410
1160*500*1410

*Rated Working Condition: Heating: air temp (DB/WB): 7℃/6℃, water temp (inlet/outlet): 40℃/45℃;

Cooling: air temp (DB/WB): 35℃/24℃, water temp (inlet/outlet): 12℃/7℃.

EVI air source heat pumps are designed for domestic/commercial hot water and house heating system in cold areas where lowest air temperature is above -25℃.

Efficient and Energy-saving
Air source heat pumps absorb hot energy from the air freely, and the electricity is only used to drive the compressor to pump up the heat from the air. So, it consumes just a quarter of traditional electric heaters, saving a lot of electric costs for users.

Green and Environmental Protection
By using air hot energy and electric energy, there is no harmful gas being discharged during the operation of heat pumps. R407C refrigerant guarantees fluoride-free emission.


Usable All-weather
All weather operation: stable operation without being influenced by any windy, rainy or snowy weather.

Endurable
The Enhanced Vapor Injection (EVI) technology from Copeland compressor with crankcase heater for special cold area, Danfoss electronic expansion valve, Eaton AC contactor and thermal relay and other brand components of the heat pump guarantee high quality and a long lifespan. All of our screws and clips (both external and internal) are stainless steel. The cabinets we are using are made of GALVANIZED STEEL, making them more rust resistant, durable and affordable.

Multiple Controller and Protection
High pressure, low pressure, overheating, overload anti-freezing, phase sequence, discharge temperature, suction temperature and so on. Controlled by multiple controller or by computer (optional)

Linkage Function
External signal on/off function

Guaranteed Safety
Complete isolation of water and electricity avoids electric shock, explosion and poisoning; LCD screen digital controller for automatic operation

Convenient
The EVI heat pump is easy to install in many places, such as garage, balcony, kitchen, etc.

Key Components

Condenser (Copper)

Tube in shell heat exchanger

Evaporator

Hydropilic aluminum foil and internal thread copper pipe heat exchanger

High Pressure Switch

3.6/4.4MPa
3.0/3.4MPa

Compressor

Copeland enhanced vapour injection (EVI) technology scroll compressor

Expansion Valve

Danfoss electronic expansion valve

Low Pressure Switch

0.15/0.56MPa
0.15/0.32MPa

Controller

SPRSUN multiple function controller

AC Contactor & Thermal Relay

Brand: Eaton

4-way Valve

Brand: SANHUA

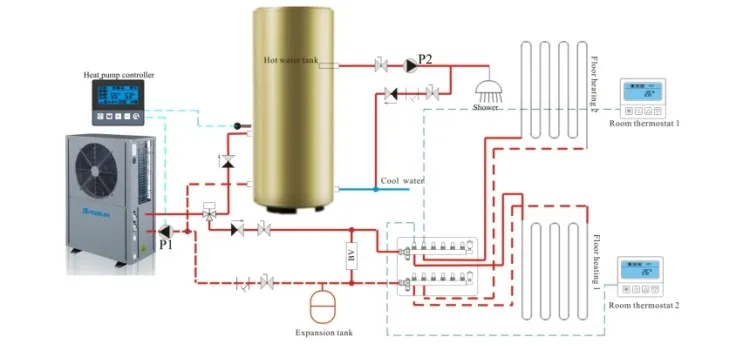

Installation Diagram

Related Products

10KW 12KW EVI Air to Water Heat Pump

US $350 - 2,500/Piece

1 Piece (Min. Order)

37KW 42KW EVI Low Temperature Heat Pump

US $350-3,500/Piece
1 Piece (Min. Order)

Minus 25 Degree EVI Air to Water Heat Pump 77KW

US $350-5,000/Piece
1 Piece (Min. Order)
Our Company

Guangzhou SPRSUN New Energy Technology Development Co., Ltd. has been one of the Top 10 heat pump manufacturers in China since 1999. With a strong R&D center and 6 production lines, we are specialized in producing air to water heat pumps and other high efficient heat pumps for the HVAC market. SPRSUN heat pumps have been exported to all over the world, such as Germany, Britain, Sweden, Serbia, Turkey, Czech, Russia, Vietnam, Australia, South Africa and so on.

Workshop

6 Production Lines & 1 National Standard Heat Pump Testing Lab

Projects Worldwide

Certifications

Our company has passed CE, CCC, CB, ERP, ISO9001 and ISO14001 quality management system certifications, and won the honor of 2015, 2016 & 2017 "Top 10 Brand" in China's Heat Pump Industry.

FAQ

Q1 Are you a manufacturer?

A: Yes, we are a professional heat pump manufacturer since 1999, with experienced and improved R&D, production, sales and service supply.

Q2: What are your main products?

A: Our main products include air source heat pumps, water/ground source heat pumps, swimming pool heat pumps, high temperature heat pumps, EVI heat pumps for cold area and so on.

Q3: How to place an order?

A: Please send us an inquiry or contact us with online service; after receiving your inquiry, we will reply to you with our catalogue, quotation and other information you need.

Q4: Do you provide OEM/ODM customized manufacturing service?

A: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce Europe standard heat pumps under your brand and according to your special needs.

Q5: Can I apply to become your heat pump distributor/reseller?

A: Yes, we are currently looking for more heat pump distributors/resellers across the globe, who can distribute our heat pump products in their local countries.
