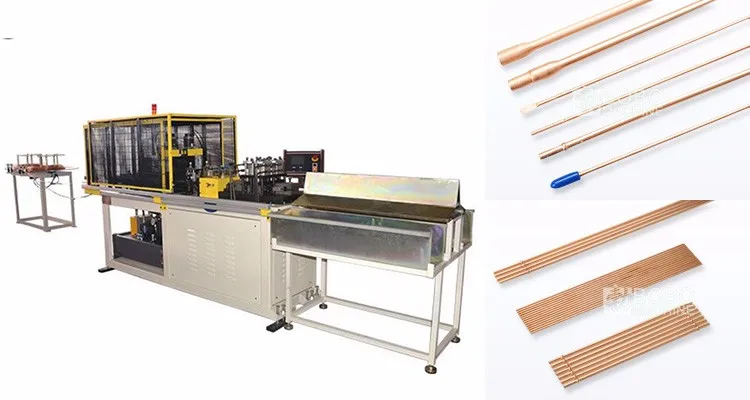

Copper capillary tube pipe cut to length machine with end swaging and beading.

FOB Reference Price:Get Latest Price
$24,800.00 - $29,800.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TKJ
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
BOBO
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Warranty:
1 Year
Machine usage:
Copper capillary tube process
Application:
Air condition capillary tube
Function:
end forming, swaging, beading, flaring,
Diameter:
up to 4.0mm
Power system:
Can be customized
Name:
Copper capillary tube cut to length machine
Supply Ability
Supply Ability:
5 Set/Sets per Month Copper capillary tube cut to length machine with end swaging and
Packaging & Delivery
Packaging Details
Copper capillary tube cut to length machine with end swaging and beading will be shipped in wooden package
Port
Copper capillary tube cut to length machine with end swaging and beading. will be shipped from Shanghai, China,
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

Product Application

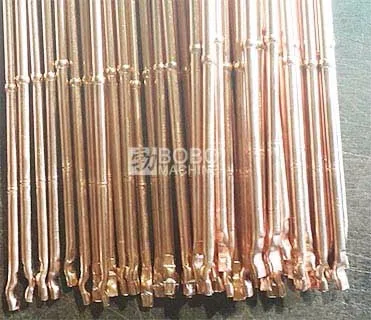

The Copper capillary tube cut to length machine with end swaging and beading is special designed for the capillary tube process, including the straightening, cutting, end forming (beading, bulging, flaring, etc). The cutting can be chipless from coil copper tube, and there is no shrinking or necking on the cutting section.

Main technical data

No.
Parameter
Data
1
Suitable capillary tube diameter
1.8-4.0 mm
2
Max. Capillary tube wall thickness
0.8 mm
3
Cutting quantity in one time
2 pcs
4
Cutting length
>120 mm
5
Feeding method
ball screw feeding
6
Feeding stroke
500mm
7
End forming
swaging, beading, bulging, flaring ... ...
8
Cutting end shrinking rate
no shrinking
9
Air compressure
0.4-0.6 MPa
