Customizable instant soy milk tofu making and tofu press machine at suitable price

  • 1-4 Sets
    $1,020.00
  • >=5 Sets
    $980.00
Model Number:
T-30&Y-1
Type:
Soybean Machinery
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Tiangang
Voltage:
220v, 220V/50HZ
Power(W):
750w
Weight:
68kg
Dimension(L*W*H):
1060*450*1350mm
Warranty:
1 year
After-sales Service Provided:
Online support, No overseas service provided
Boilier Pan Capacity:
40L
Package:
Wooden cases
Heating power:
6kw
Tofu productin:
25kg/h
Dimension:
1060mm/530mm/1350mm
grinder motor:
0.75 kw
Application:
Tofu /soy milk making
Material:
Stainless steel

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X106X135 cm
Single gross weight:
90.0 kg
Lead Time :
Quantity(Set) 1 - 10 >10
Est. Time(days) 20 To be negotiated

T-30   bean curd tofu machine /tofu making machine

soya bean machine

soy milk machine

tofu making machine



Main technical data :







Model

T-30

TG-50

TG-80

TG-100

TG-150

TG-250

Capacity(soaked beans)

5-6KG/HR

10-12KG/HR

15-20KG/HR

20-30KG/HR

40-60KG/HR

80-100KG/HR

heating supply

electric

electric or LPG(NEED CUSTOMIZE)

electric or LPG(NEED CUSTOMIZE)

External steam

boiler, Steam

capacity:>25kg/hr

External steam

 boiler, Steam

capacity:>50kg/hr

External steam

 boiler, Steam

capacity:>80kg/hr

heating power

6kw

12kw

18kw

18KW

36KW

40KW

cooking tank capacity

80L/Hr

120L/Hr

160L/Hr

220L/Hr

600-700L/Hr

1100L/Hr

weight/G.W

55/70kg

105/120kg

130/150kg

140/160kg

250/300kg

420/500kg

Over dimmensions

1060*500

*1350mm

600*1200

*1550mm

680*1690

*1550mm

500*600

*1250mm

1000*1200

*1850mm

1400*1800

*2200mm

Main functions

Beans grinding, okara separating, twice grinding,soymilk cooking





Technical Data

Pressure mode

Tofu Box Size

Forming Quantity

Weight

Size



Y-1

Hand operated

320*420*80mm

A box

30Kg

610*580*1200mm



Y-2

Air compressor

320*420*80mm

A box

50Kg

610*580*1200mm



Y-3

Air compressor

320*420*80mm

Two boxes

120Kg

950*950*1350mm



Customized

Air compressor

According to demand

Six boxes

250Kg

950*3000*1350mm





Description:

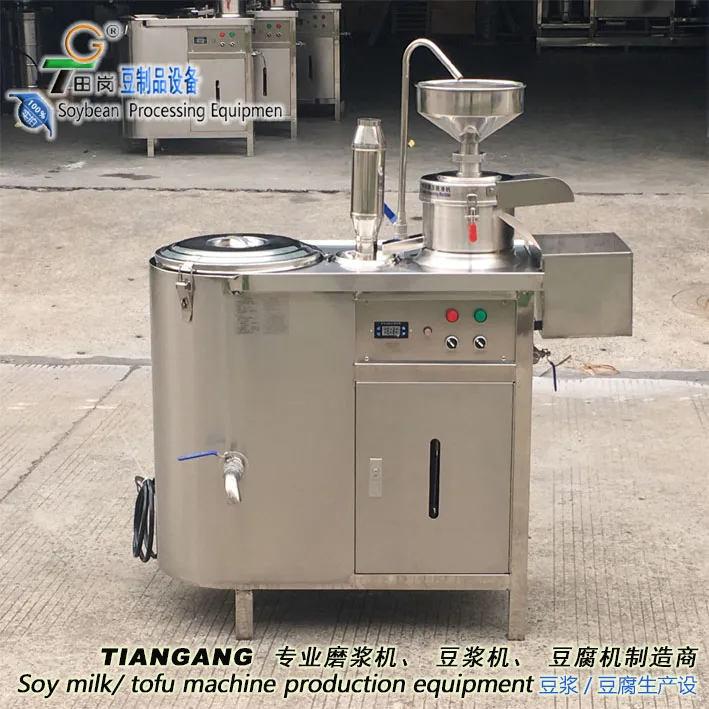

   T-30 electric heating tofu machine, the machine has the advantages of automatic heating boiled pulp, steam bag manual watering, simple and convenient operation, safe, reliable, clean and hygienic, and beautiful appearance. It takes only about 30 minutes to boil from 30kg of soy milk to the boiling point. The soy milk and tofu produced must be equipped with a tofu molding machine. This machine is suitable for shop and is now the ideal equipment for fast-growing hot soy milk, soy milk and tofu in hotels, restaurants, canteens and restaurants.
   The machine is composed of a separate refiner, a slag bucket, a slurry bucket, a steam pack, etc., and the electric control part is controlled by a temperature controller to automatically control the temperature of the boil bucket, and the steam water level is manually controlled by a valve. Firstly, the soaked soybeans are processed by high-speed separation and electrogrinding, and the bean dregs are discharged. The produced soymilk is heated by steam to remove the mash, homogenize the boiled pulp, and the auxiliary materials are defoamed, emulsified, solidified, and shaped to produce nutrient-rich. Bean products



Y-1 HANDY OPERATED PRESS MACHINE


Technique datas:
tofu mould:320*320*80mm
machine size:610*580*1200mm
Weight:20kg





Applications:



The Enterprises and institutions cafeteria, dining room,



breakfast shop, traditional market, supermarket, and so on, business



districts do on the spot presently buy the fresh soybean milk, the peanut



thick liquid  tofu  and so on.
