D71 Series Mould Making ZNC CNC Spark Erosion Manual EDM Machine

  • >=1 Sets
    $9,000.00
Model Number:
D7125/ZNC Manual EDM Machine
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
CNC or Not:
CNC
Condition:
New
Machine Type:
Sinker EDM
Place of Origin:
Jiangsu, China
Brand Name:
HITECH Manual EDM Machine
Voltage:
380V/50Hz or 220V/50Hz or Customize
Dimension(L*W*H):
1350x1120x2043mm
Certification:
ISO,CE
Weight (KG):
1800
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service, Free spare parts, Field installation, commissioning and training, Online support, Video technical support
Key Selling Points:
Long Service Life
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Construction works
Product Name:
D71 Series Mould Making ZNC CNC Spark Erosion Manual EDM Machine
Key Word:
Manual EDM Machine
Worktable Size:
450x250mm
Worktable Travel:
250x150mm
Z-Axis Travel:
200mm
Distance Between Electrode and Worktable:
400mm
Max. Electrode Weight:
50kg
Max. Workpiece Weight:
500kg
Total Weight:
1000kg
Overall Dimensions:
1350x1120x2043mm
Power:
2000
Supply Ability
Supply Ability:
30 Set/Sets per Month Quality Control During Producing the Manual EDM Machine
Packaging & Delivery
Packaging Details
Waterproof Cloth and Wood Case Package for the Manual EDM Machine,for details please view following pictures
Port
Shangh Port for the Manual EDM Machine
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Company Introduction

Mould Making ZNC CNC Spark Erosion Manual EDM Machine

Company Introduction

Taizhou Hitech NC Machine Tool Co.,Ltd is located in Hi-tech Science and Technology Industry Zone of Taizhou City,Jiangsu Province,China.

Main Products

Our company specializes in researching,manufacturing and selling quality EDM machines all over the world.Our products include:

Single cut EDM wire cutting machine

Multicut EDM wire cutting machine

Die Sinking EDM D7132

EDM drill machine

Emery wire cutting machine

Brass wire EDM cutting machine

Main Market

Taizhou Hitech NC Machine Tool Co.,Ltd has build long-term and close cooperation relationships with many foreign friends,covering more than 20 countries,and we are looking forward to more cooperations with friends all over the world and hope our machines can help more friends in their local industry and business market development.

Service and Quality Promise

We always keep our enterprise mission--"Quality Changes The World" in mind.We start our work from each trivial matter and do our best to complete each detail well and offer solid technical service and good service to our customers.

Related Products
Product Description

Main Features☆☆☆☆☆

1) Japan SANYO DC servo motor in Z axis.
2) X,Y axes adopts precise ball screw.
3) Professional database system.
4) High speed 400mm3/min.
5) Surface roughness Ra0.8.
6) Taiwan control system.
7) Germany guideway.PVC coating for wear resistance.
8) SIEMENS,Germany AC contactor.
9) OMRON relay.
10) Japan high frequency power tube.
11) Harbin bearings.P5 grade.
12) Castings,HT250 resin sand.

Die Sinking Forming EDM Machine Introduction

The die sinking EDM D7132 machines are used with impulse electric cabinet.Z axis is driven by Japan SANYO DC servo motor,with Z axis numerical control feature.

X,Y axes adopt precise ball screw,and precision optical grating digital display shows the coordinate which make coordinates have high positioning accuracy.

Electric cabinet of EDM die sinking machine adopts the most advanced industry-specific control board,strong function,good stability,simple operation.

As long as input a few parameters,such as Z axis depth,it will select a set of suitable date from the expert database system that matches the processing,and process from the rough processing to finish once automatically.


Main Parameters of Die Sinking Forming EDM Machine

Item
D7125
D7132
D7140
D7145
D7150
D7160
Worktable size
400x250
500x200
650x400
720x450
800x500
1000x600
Worktank
size
1030x520x320
1030x560x320
1050x630x410
1400x710x410
1450x780x500
1680x850x580
X axis travel
250
320
400
450
500
600
Y axis travel
150
250
300
350
400
450
Z axis travel
240
240+240
250+250
250+250
250+300
250+350
Distance
between
electrode
and
worktable
400
550
650
680
700
800
Max.
workpiece
weight
250
550
750
800
800
1000
Max.
electrode
weight
50
60
70
80
100
150
Machine
 weight
1100
1200
1800
2000
2200
3000
Machine size
1100x1200x2040
1100x1400x2120
1100x1200x2040
1500x1500x2250
1600x1500x2300
1700x1600x2400

Control Cabinet of Die Sinking Forming EDM Machine

Taiwan control system

SIEMENS,Germany AC contactor.
OMRON relay.
Japan high frequency power tube.

High speed:400mm3/min.

Surface roughness:Ra0.8

Workpieces Show of Die Sinking Forming EDM Machine

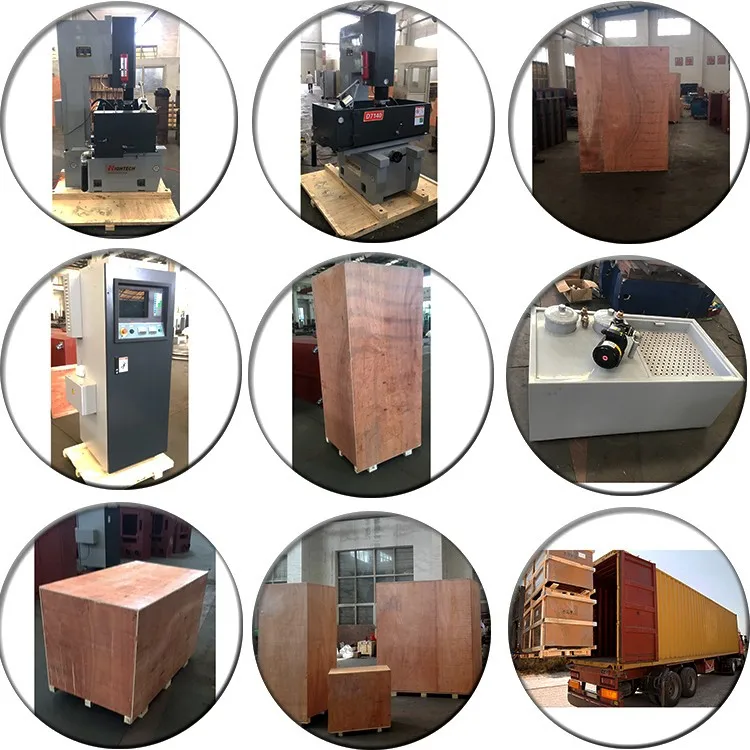

Package Pictures of Die Sinking Forming EDM Machine

Why Choose Us

Certificates

Test Equipments

Trade Assurance Service

One-year Warranty

24 Hours After-sales Service

L/C Acceptable

Pre-sales Service

* Inquiry and consulting support.
* View our factory.
* Offer quotation.

After-sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*Provide all spare parts for life-time.

FAQ

Q:Are you manufacturer?
A:Yes,we are manufacturer of die sinking EDM D7132 machine.Welcome to visit us!

Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!

Q:What information do you need before making quotation?

A:Worktable size or table travel you need.Surface roughness and cutting speed requirements.

Q:What should I do to start a new business in die sinking EDM D7132 machine area?
A:Please contact us immediately,we provide free pre-sales consultant service.

Q:Why choose you?What is the difference between you and other Chinese supplier?
A:We have specialized in this area for over 20 years.Our die sinking forming EDM machines are exported to Russia,India,UAE,South Korea,Canada,Vietnam,Thailand,Mexico,Turkey and etc.

You can get higher quality product & better professional service from Hitech with same price.


Q:I`m worried about after-sales service!

A:Warranty is one year.

Any parts damaged during warranty will be replaced for free!

We provide spare parts for life time at cost price.

Electrical parts such as boards and servo drives,we`ll provide them for life time as well at cost price.

Our engineers are available to service overseas!


Q:How do I get in contact with you?


Wechat/Whatsapp:+8618936786832

Skype:sophie_hitech

Telephone:+86-523-86892269

Fax:+86-523-86892368
