DIN 7081 borosilicate plain gauge glass 250X34(30)X17mm

$6.65 / Piece | 20 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Samples - $0.10 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Aohong
Model Number:
Plain
Model Number:
Transparent plain
Material:
Borosilicate pyrex glass
Size:
A1~A9, B1~B9, or according to customer`s request
Color:
Clear
Thickness:
17mm
Tempeature:
260~550℃
Product name:
Transparent plain gauge glass
Application:
Using on fluid level gauge
Service:

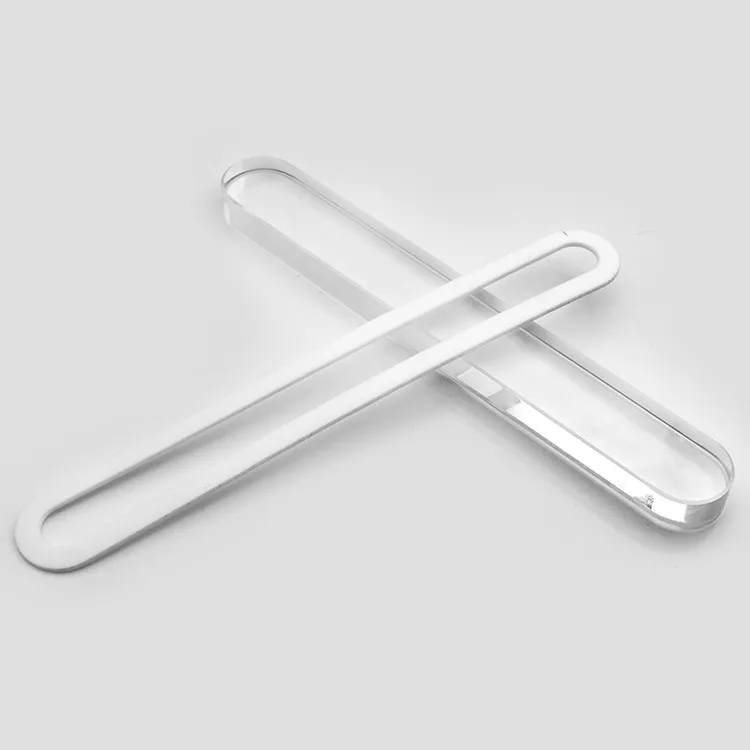

Printing,gaskets,packaging
MOQ:
10pcs

Packaging & Delivery

Selling Units:
Single item
Single package size:
30X3.5X2 cm
Single gross weight:
0.35 kg
Package Type:
White paper box for each piece, 50 pieces in one carton, or as customer`s requirements.
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(days) 7 To be negotiated

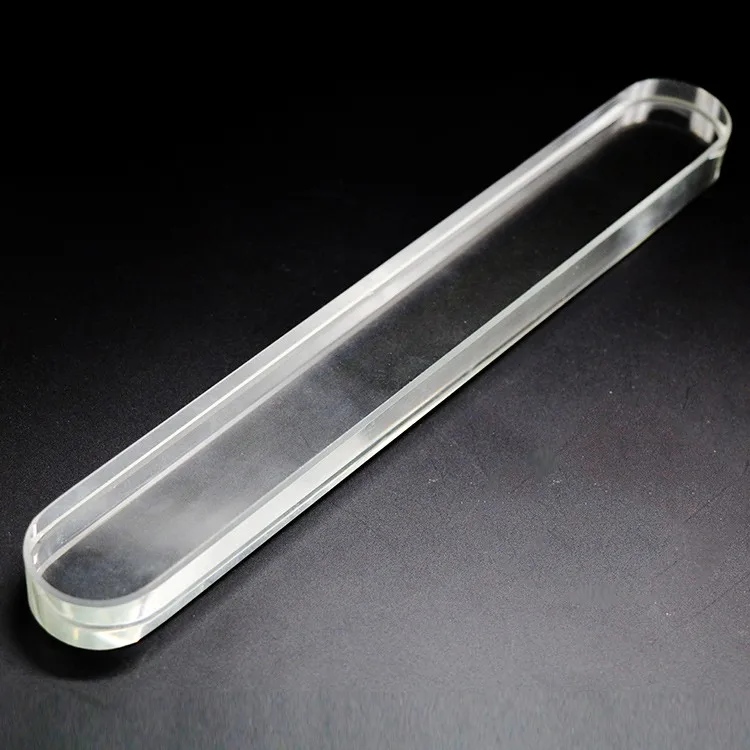

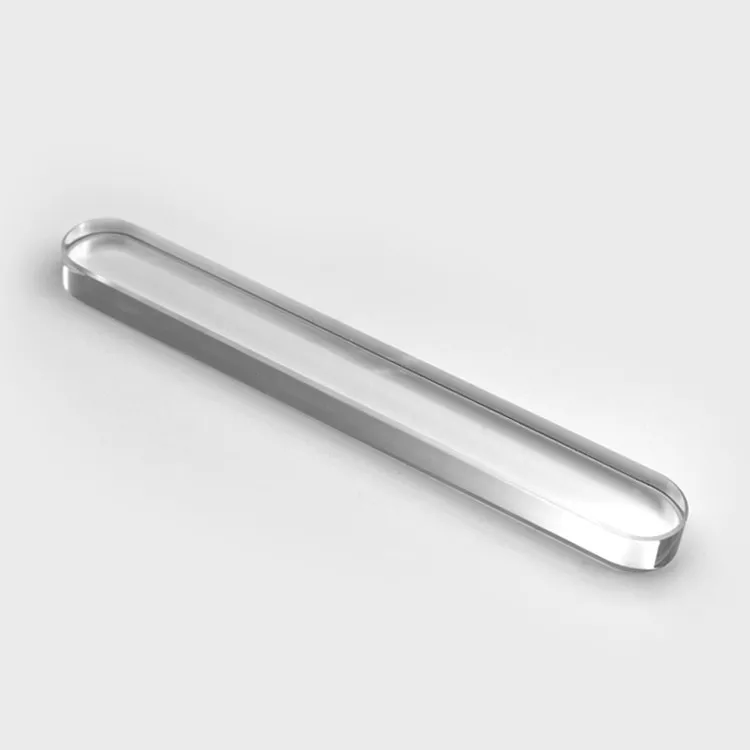

Product Description

Transparent glasses are also manufactured from "extra-hard" borosilicate glass. The surfaces on both sides are finely smooth and ensure optimal transparency.

Now we have two kinds manufacturing technique:

1.One is as same with reflex Gauge Glasses, use molds to make the semi-finished products, afterwards, ground and polish the two side to ensure optimal transparency. By this manufacturing technique, the definition isn't good.


2.The other manufacturing technique is: At first, we manufacture 17mm thickness glass sheet, then cut the glass sheet according the detailed size and polish the side face for the smooth. This manufacturing technique glass is very clear, but the goods cost is higher.It can be used with all media except steam at service conditions up to 6MPa and temperatures up to 260 °C.








Detailed Images
Other Products

Reflex glasses is made from tempered borosilicate glass, it can be used with all media at service conditions up to 4MPa and temperature up to 430 °C.

The side facing the medium chamber is provided with molded grooves set at 90°angles. The moulding process increases the resistance of the glass grooves to wear; the skin which the glass attains during moulding gives it maximum smoothness and hardness.This makes it extremely resistant to the attack of boiler water.

It is used on level gauge of boiler for water position. It is also named: Reflex Gauge Glass, Sight glass, Reflex Glasses, Reflex sight glass, Spares For level Gauge.

Our Company

Hengshui Aohong Technology Co., Ltd. is an industrial company with an integration of industrial production and trade.

Our company specializes in producing sealings gasket sheets,thermal insulation cloths, rope, tape, level gauge glasses (plane, reflex),etc.

All of our products sell well in both domestic and international markets.

OUR TEAM




Packing & Delivery

Packing detail:White paper box for each piece, 50 pieces in one carton, or as customer`s requirements.

Delivery detail:Shipped within 7 days after payment


Our Service

*We are a high-tech enterprise with more than 20 years' experience,a company intergrating industry and trade.

*We are equipped with the most advanced production equipment and the most complete testing instruments.

*Outstanding Technical guidance.

*Professional service teams,24 hours of rapid response.

FAQ

Q: Are you factory, or only a trading company?

A: Factory, and our factory is located in Wangtong town, Jing county, Hengshui, Hebei

Q:Could I get some samples, and how?

A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also ok(such as DHL).

Q: Can you give me some discount?

A: Usually the discount depends on the quantity. However we can discuss it.

Q: What's the payment terms?

A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is open for discussion.
