DIN3352 F4 / EN 1171 PN10/PN16 Non-Rising Stem Resilient Seated Gate Valve

Feedback Ratings
$31.26 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Samples - $31.26 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanxi, China (Mainland)
Brand Name:
SOLID
Model Number:
din3352 f4 gate valve
Application:
General
Material:
Casting, Ductile Iron
Temperature of Media:
Medium Temperature, NBR≤80°C,EPDM≤120°C
Pressure:
Medium Pressure
Power:
Manual
Media:
Water, water
Port Size:
DN100
Structure:
Gate
Standard or Nonstandard:
Standard
Dimensions:
DN100
Connection type:
EN 1171,DIN3352,EN 1074-1 and 2
Design Standard:
DIN3352
Stem type:
non-rising stem
Working Pressure:
PN25
Flange:
DIN2501 PN25

Packaging & Delivery

Selling Units:
Single item
Single package size:
110X110X110 cm
Single gross weight:
12.4 kg
Package Type:
wooden case
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 1 >1
Est. Time(days) 5 To be negotiated

DIN3352 F4 / EN 1171 PN10/PN16 Non-Rising Stem Resilient Seated Gate Valve

Product Description

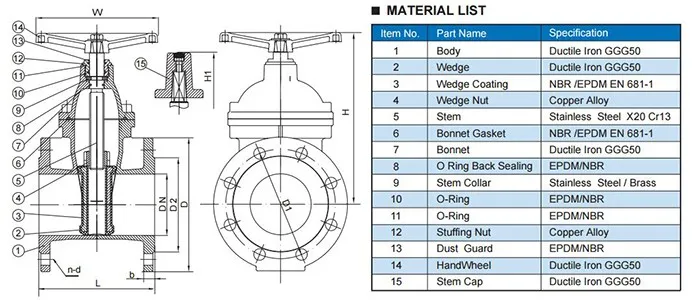

Features:
Bolted Bonnet Replaceable O-ring
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC



Technical Specification:
Valve design according to EN 1171,DIN3352,EN 1074-1 and 2

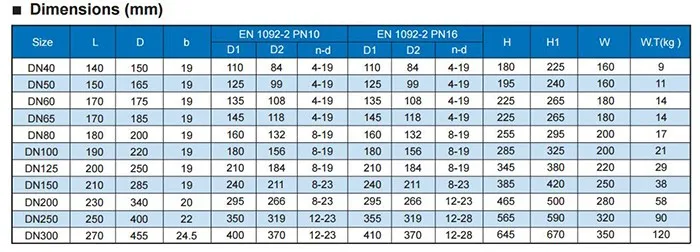

Face to face dimensions according to EN 558-1 Series 14, DIN3202 F4 Standard flange drilling to EN 1092-2,ISO 7005-2
Hydraulic test according to EN 12266,ISO5208
Shell test pressure: 24 bar ,Seat test Pressure: 17.6 bar





Detailed Images



Packaging & Shipping





Related Products



Our Services

Sample Room

Our Certificate

Company Information

We are one of the leading manufacturers of ductile iron pipe,pipe fittings,dismantling joints,flanged adaptors, couplings, valves, water meter,manhole covers,steel flanges , steel pipe,steel pipe fitting,PVC pipe,PVC pipe fitting,PE pipe,PE pipe fitting,rubber O-rings, , fasteners, pumps, motor shells and other castings and forgings. Our products are made according to different standards, such as ISO2531, EN545, EN14525, ISO4422, ISO7005, DIN3352, BS5163, DIN3202, BS2494, BS4504, EN124 and other relevant ISO, EN, BS, DIN and ANSI standards. Moreover, our products have been selling well in European, Middle East, Southeast Asian, South African and South American countries for more than 10 years. We can also make the castings and forgings according to customers' drawings or samples. Presently, we are looking forward to your inquiries and to establishing long term cooperation relationship based on mutual benefits.

FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.



6. Which price terms could accepted?
A: FOB,CIF all acceptable.
