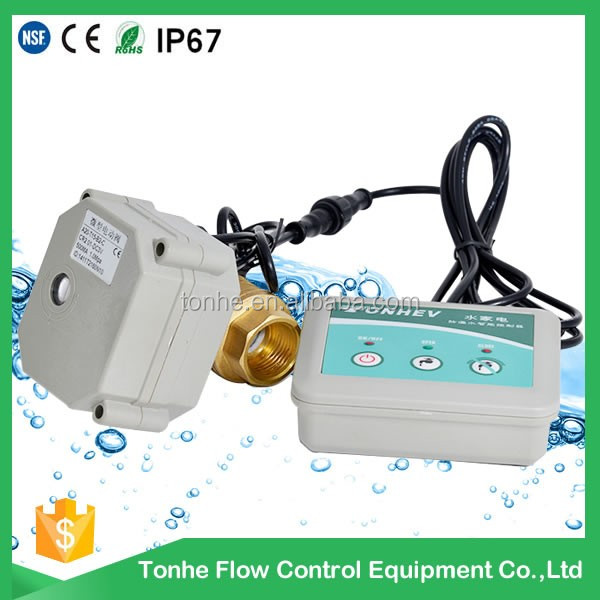

DN20 CR201 with indicator brass sensor water leak detection system

Feedback Ratings
  • 1-9 Pieces
    US $37.00
  • 10-99 Pieces
    US $36.00
  • >=100 Pieces
    US $35.80
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Power:
Manual
Material:
Brass
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
DN15 1/2''
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
water leak detection
Brand Name:
Tonhe
Application:
General
Type:
C type
Certificate:
CE, NSF61,Rohs, IP67
Body material:
PVC
Color:
Customer's Request
Torque:
4 N.m
Voltage:
3VDC (2 . AA, 5 batteries)
Working current:
Typically 0.015mA, max 300.0mA
Open/close time:
≤15 Sec
Seal Material:
EPDM & PTFE
Product name:
DN20 CR201 with indicator brass sensor water leak detection system

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X13X9 cm
Single gross weight:
0.8 KG
Package Type:
15pcs/carton
Lead Time :
2
Product Description
DN20 CR201 with indicator brass sensor water leak detection system
DN20 CR201 with indicator brass sensor water leak detection system

wireless temperature sensor electric brass ball valve water leak detection  detector



Functions and Features

Valves close automatically when leakage, and alarm.

* Power Supply with 2 AA, 5 batteries.

Automatically alarm when power is lower, and valve close eight hours later

* Controller panel has three keys ( power key, valve on key , valve off key ) and three indicator lights ( power indicator, on - off indicator)

* Easy to install.

* Suitable for water purifiers, protective faucet, washing machine, filter or water softener and other equipment as leakage protection.

* Sensing controller is fully sealed, moisture-proof design, improve the life of battery and stability of the product .



Technical parameters

Operating voltage: 3VDC (2 . AA, 5 batteries)

Operating Current: Typically 0.015mA, max 300.0mA

Cable length: 1.0M

Connector Spec: 1 / 2 "(BSP/NPT 1/4" 3/8" 3/4" 1")   Optional

Valve Body material : Brass  (  Stainless steel 304  , Nickel plated Brass ) Optional

Ambient temperature: -20℃ to 80℃

Working pressure: 1.0Mpa

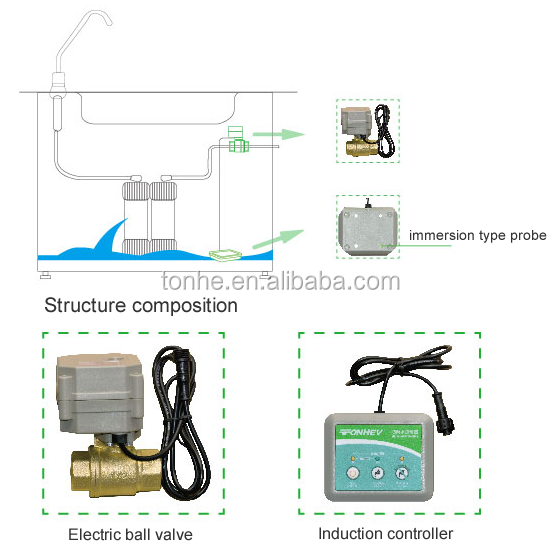

Leakage detection:  Put the metal face of sensor controller down the place most likely leaky places, such as near the water purifier



DN20 CR201 with indicator brass sensor water leak detection system





Design Features

1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.

2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4 Good sealing performance.


DN20 CR201 with indicator brass sensor water leak detection system
Application

Water meter , water leak detection system and water treatment etc equipment

HAV and fire works. Automatic drain system

Irrigation ect small control equipment




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length


DN20 CR201 with indicator brass sensor water leak detection system

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


DN20 CR201 with indicator brass sensor water leak detection system

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .


DN20 CR201 with indicator brass sensor water leak detection system


DN20 CR201 with indicator brass sensor water leak detection system
DN20 CR201 with indicator brass sensor water leak detection system


DN20 CR201 with indicator brass sensor water leak detection system

Packaging & Shipping

 DN20 CR201 with indicator brass sensor water leak detection system

DN20 CR201 with indicator brass sensor water leak detection system



FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.

DN20 CR201 with indicator brass sensor water leak detection system
DN20 CR201 with indicator brass sensor water leak detection system



Packaging Details
