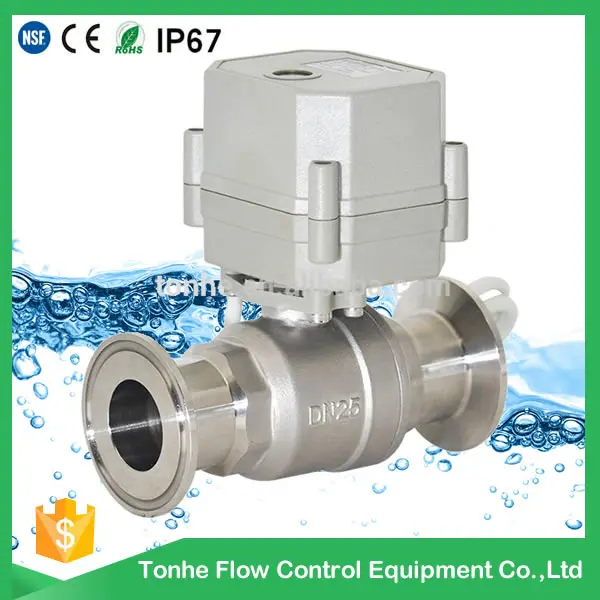

DN25 1 inch 110-230v motorized sanitary electric ball valve

  • 1-49 Pieces
    $38.00
  • 50-999 Pieces
    $37.00
  • >=1000 Pieces
    $36.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
8 day(s) after payment received
Contact Supplier
Samples - $38.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Tonhe
Model Number:
sanitary electric ball valve
Application:
General
Material:
Stainless Steel
Temperature of Media:
Normal Temperature
Pressure:
Low Pressure
Power:
Manual
Media:
Water
Port Size:
DN25 1''
Structure:
Ball
Type:
Normally Colsed
Certificate:
CE, NSF61,Rohs, IP67
Body material:
stainless steel
Color:
Customer's Request
Torque:
2N.M
Voltage:
AC110V-230V
Working current:
≤500MA
Open/close time:
≤5S
Seal Material:
EPDM & PTFE
Product name:
DN25 1 inch 110-230v motorized sanitary electric ball valve

Packaging & Delivery

Selling Units:
Single item
Single package size:
14X8X9 cm
Single gross weight:
1.0 kg
Package Type:
1pcs/case, 20pcs/carton
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 20 21 - 100 >100
Est. Time(days) 8 40 To be negotiated
Video Description
Product Description

dn25 Electric motor operated Sanitary ball valve with manual override ISO 9001 CE
2-way stainless steel motorized actuator water ball valve for water leak detection , DC5V/DC12V/D24V/AC/DC9-35V/AC100-240V , IP67, CE , metal gears, PPO actuator housing , 100000 working life , operating time 5s .



Technical Parameters:

Valve size -------------------  1“ DN25

Valve Body material -------  Stainless steel

Actuator material ----------  Engineering Plastics

Sealing material ------------  EPDM & PTFE

Rated voltage --------------  C110V-230V

Wiring control methods ------- CR2-02 CR305 normally clised

Working current -----------  ≤500MA

Life time  -------------------  70,000 times

Protection class  -----------  IP67

Open/close time    --------- ≤5 S

Actuator rotation  ---------- 90°

Max. torque force  --------- 2Nm

Cable Length --------------  0.5m, 1.5m (Optional)

Manual override   ---------- No

Indicator   ------------------Yes

Maximum working pressure --------- 1.0MPa

Circulation medium -------------------  Fluid, Air

Environment temperature ----------  15℃~50℃

Liquid temperature ------------------   2℃~90℃




Valve can with manual override and indicator :









Detailed information









Application

Water meter , water leak detection system and water treatment etc equipment

HAV and fire works. Automatic drain system

Irrigation ect small control equipment




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length




Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.




TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .










Packaging & Shipping





FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
