DN25 NSF61 CR502 normally closed stainless steel motorized electric ball valve 12v

  • 1-99 Pieces
    $37.00
  • 100-999 Pieces
    $36.00
  • >=1000 Pieces
    $35.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Contact Supplier
Samples - $37.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Tonhe
Model Number:
motorized valve
Application:
General
Material:
Stainless Steel
Temperature of Media:
High Temperature
Pressure:
High Pressure
Power:
motorized valve
Media:
Water
Port Size:
DN25 1"
Structure:
Ball
Type:
Normal Colse
Certificate:
CE, NSF61,Rohs, IP67
Body material:
stainless steel
Color:
gray, black, blue
Torque:
2N.M
Voltage:
DC12/24V
Working current:
≤500MA
Open/close time:
≤5S
Seal Material:
EPDM & PTFE
Product name:
DN25 CR502 normally closed motorized electric ball valve 12v

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X13X10 cm
Single gross weight:
0.8 kg
Package Type:
10piece/Carton
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 25 26 - 100 101 - 1000 >1000
Est. Time(days) 10 25 35 To be negotiated
Video Description
Product Description

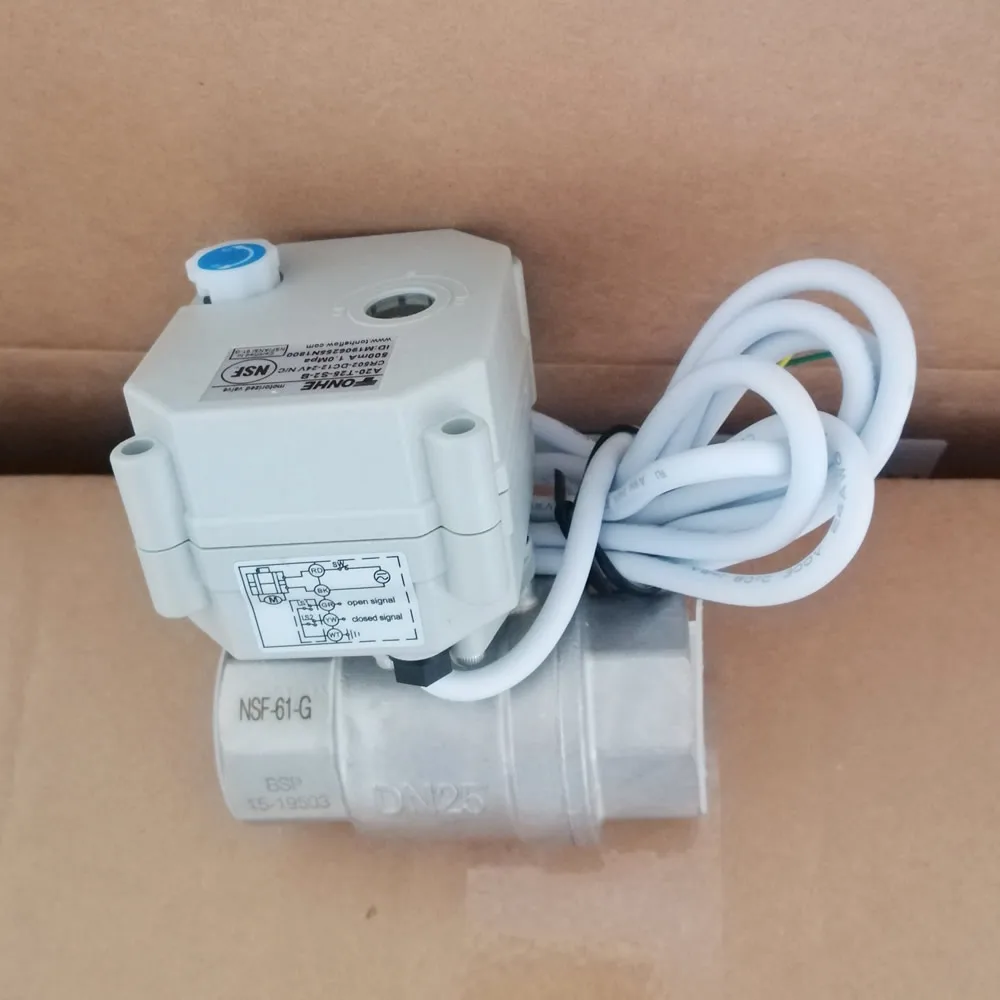

DN25 NSF61 CR502 normally closed stainless steel motorized electric ball valve 12v
2-way stainless steel motorized actuator water ball valve for water leak detection , DC5V/DC12V/D24V/AC/DC9-35V/AC100-240V , IP67, CE , metal gears, PPO actuator housing , 100000 working life , operating time 5s .



Technical Parameters:

Product size NPT/BSP  1" NPT/BSP
 (Optional )

Maximum working pressure 1.0MPa

Circulation medium Fluid, air

Rated voltage DC12-24v

Wiring control methods CR5-02 with feedback wire

Working current ≤500MA

Open/close time ≤5S

Life time 100000 times

Valve Body material SS304 NSF approved

Actuator material Engineering Plastics

Sealing material EPDM & PTFE

Actuator rotation 90°

Max. torque force 2 Nm

Cable Length 0.5m,1.5m(Optional)

Environment temperature -15℃~50℃

Liquid temperature 2℃~90℃

Manual override Yes

Indicator Yes

Protection class IP67



Valve can with manual override and indicator :









Detailed information




Application

Water meter , water leak detection system and water treatment etc equipment

HAV and fire works. Automatic drain system

Irrigation ect small control equipment




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

4, valve manual override & indicator ( yes or no)

5, actuator cable length


Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.




TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .











Packaging & Shipping





FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
