DRC Brand Hot Sale MVL1060 CNC Vertical Machining Center Metal VMC Machine Price

FOB Reference Price:Get Latest Price
$15,000.00 - $45,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
MVL1060
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Vertical
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
RC
Voltage:
380V/50Hz
Power(W):
11/15kw
Dimension(L*W*H):
3500x2700x2650 mm
Weight:
7000 kg
Certification:
ISO CE
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Product name:
MVL 1060 Hot Sale CNC Vertical Machining Center Price
Machine Type:
CNC Vertical Machining Center
Product type:
Cnc 3 Axis Machine Center
Travel for X/Y/Z axes:
1000/600/650 mm
CNC system:
FANUC-Oi MF
Spindle speed:
8000 rpm
Spindle specifications:
BT40/150
Spindle power:
11/15kw
Positioning accuracy:
0.008mm
Accuracy of repeated positioning:
0.005mm cnc machining center
Supply Ability
Supply Ability:
40 Piece/Pieces per Month MVL1060Hot Sale CNC Vertical Machining Center Price
Packaging & Delivery
Packaging Details
Seaworth Packing
DRC Brand Hot Sale MVL1060 CNC Vertical Machining Center Metal VMC Machine Price
Port
Dalian
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

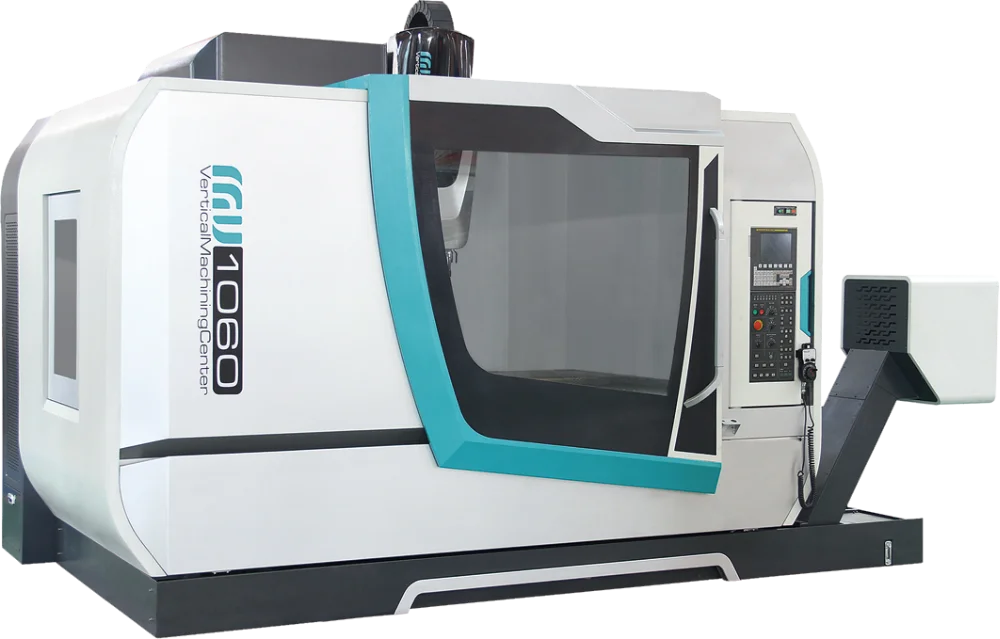

DRC Brand Hot Sale MVL1060 CNC Vertical Machining Center Metal VMC Machine Price


MVL1060 is mainly used in medium-sized parts and molds, the workpiece in a fixture may be for the completion of milling, drilling, boring, rearing and other process of processing, it can be single used and can also be used for multiple opeartions on parts in a production lile. Cutting with powerful, high-speed positioning mechanical and electric intergration, automatic chip control and security protection features.

Machine Type
MVL855
MVL1060
Unit
Worktable ( L x W )
1050x520
1300 x 600
mm
Maximun load of table
700
1000
kg
T-slot
5-18 x 80
5-18 x 120
mm
Axis travel
X/Y/Z axis travel
850/550/600
1000/600/650
mm
Distance from spindle nose to workbench
150-750
150-800
mm
Distance from spindle center to column guide
620
700
mm
Feed system
CNC system
FANUC-0i MF
FANUC-0i MF

Rapid shift of X/Y/Z axis
30/30/20
24/24/20
m/min
Cutting feed speed
12
8
m/min
Automatic tool transform system
Standard tool quantity
Armless 20/ Arm 24
Arm 24
T
Tool length and diameter
Φ80/300
Φ80/300
mm
Tool exchanging manner
Pneumatic
Pneumatic

Tool exchanging time
Armless 5s/ Arm 2.5s
Arm 2.5s
sec
Precision
Positioning accuracy
0.008
0.008
mm
Repeated accuracy
0.005
0.005
mm

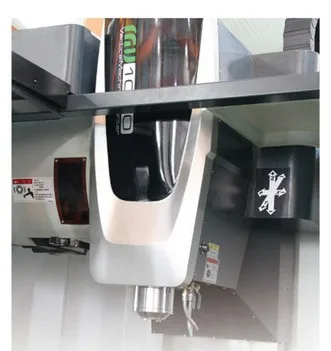

Spindle system
Spindle speed
8000
8000
r.p.m
Spindle specifications
BT40/Φ150
BT40/Φ150

Spindle drive manner
Belt
Belt

Spindle motor power
11/15
11/15
kw
Air pressure
Air demand
≥6
≥6
kg/cm²
Air pressure flux
≥0.3
≥0.3
m³/min
Machine specifications
Integrated weight
5200
7000
kg
Overall dimension
2700x2300x2600
3500 x 2700 x 2650
mm
Standard Configuration
FANUC control system
Water tank cooling system
Automatic lubrication device
Outer protection cover
Spindle blowing device
Handheld air gun
Electric control cabinet
Transformer
Heat exchanger in electric cabinet
RS-232 standard output interface
Working lamp
Three color warning lamp
LCD
Manual pulse generator
Tool
Operating manual
Options
Carousel type or disc type tool changer
Spindle oil cooling device

High spindle speed 10000-15000rpm

Coolant through spindle
Chain type/Sprial type chip removal

Disc type oil-water separator

CNC rotary table ( Forth axis or fifth axis)

Air conditioner in electric cabinet

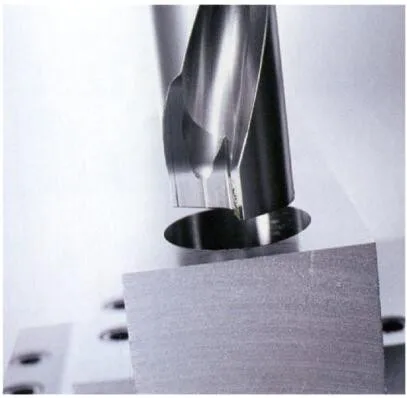

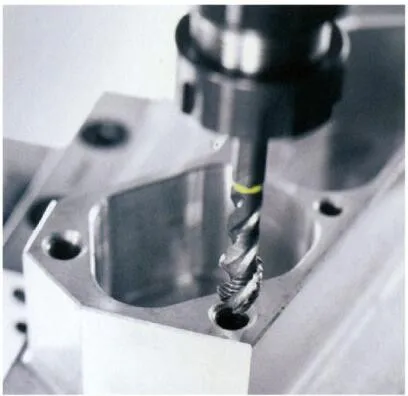

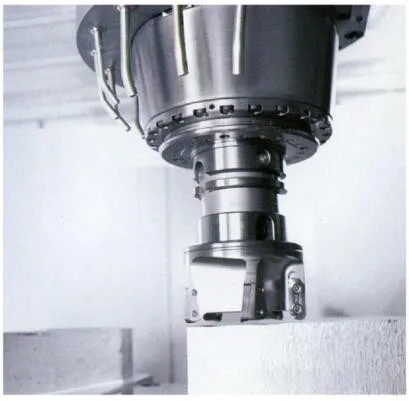

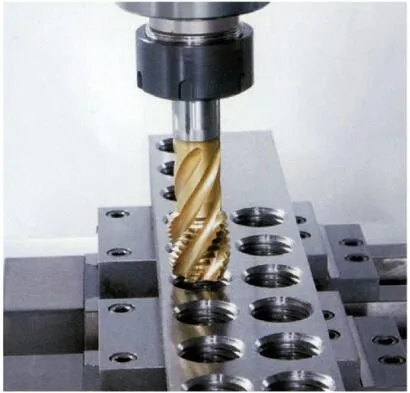

Process Details
Related Products

DRC Brand High Precision IHT516 Cutting Wheel Metal Slant Bed CNC Lathe Machine Price For Sale With Chinese Top10 Manufacturer


Taiwan CNC 1/2 Meter Lathe Machine Price

Newest Design Special Purpose Valve Seat and Guide Machine


After Sale Service

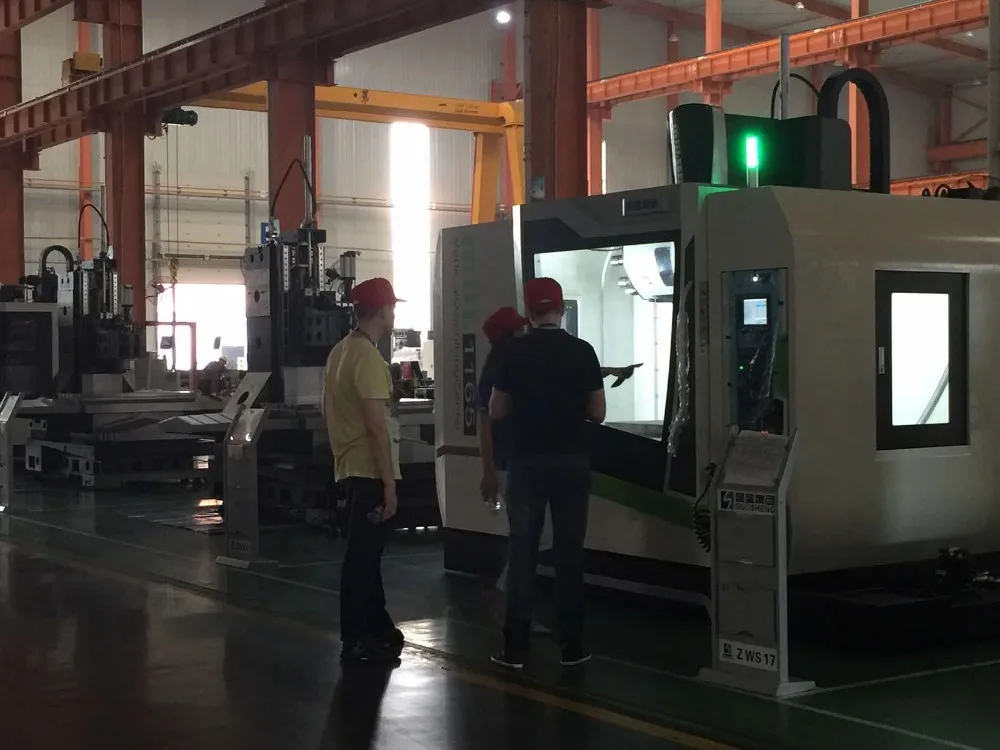

End User & Delivery
Why Choose Us
FAQ

1. What is your minimum order quantity ?
    MOQ is one set .


2. Can your company send the technical personnel to our company and direct our workers for free?
     When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

3. What CNC system do you use?
    Fanuc , Siemens, Mitsubishi , GSK etc. Its depends on your choice.

4. When is the delivery time.
    Generally we would delivery about 60 days after received your prepayments

5. What is the warranty?
1). Our warranty is one year. 1. During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
2). If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.
