Digital Length/Position Counter FC8-6LRNB + Wheeled length sensor MLK-80

  • 1-9 Sets
    $63.00
  • 10-50 Sets
    $62.00
  • >=51 Sets
    $61.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 100 Sets)

More

Graphic customization (Min. Order: 100 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Mypin
Model Number:
FC8-6LRNB+MLK80
Length Controller:
Length Controller
Size:
48H*96W*80Lmm
Display range:
0.01~999999
Accuracy:
0.01m or 0.001m
Power supply:
90-260V AC/DC
Weight:
about 1.3KG
Length counter:
Length counter

Packaging & Delivery

Selling Units:
Single item
Single package size:
16.5X10X10 cm
Single gross weight:
1.35 kg
Package Type:
each pieces packed in box lined with plastic bag,then every 30 or 50 box in carton
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 10 11 - 100 >100
Est. Time(days) 3 7 To be negotiated

Digital Length/Position Controller FH8-6CRNB + Wheeled length sensor MLK-80





Please check the video in Facebook

  https://www.facebook.com/photo.php?v=139667735394314 &saved



Product Description

The set of  Length/Position controller consists of  one digital length/position controller FH8-6CRNB and one wheeled length sensor MLK-80. It's widely used in machinary of printing, packing, textile,plastic & rubber, cable $ wiring, mechnical and any other production line for auto length dection.



By means of the reverse rolling friction between drive gear and the measured objects(such as textile or plastic tape) or the reverse rolling tetween drive gear and the main shaft of machine producing the measured objects, the sensor sends photoelectrical signals to the controller(FH8-6CRNB). The controller will turn the photoelectrical signals to digital signals and display the  the accumulated length..

 .FC8-6LRNB+MLK80



FC8-6LRNB,



Size:48H*96W*80Lmm

Display: dual line 6 bit LED

Counting range: 0.01M~999999M

Coefficien set up range:0.0001~99999.9

Output: relay( AC 250V/3A,DC 30V/3A cos¢=1.

Output mode: R.N,C.F.H,L

Input resistance: ≥10KΩ

Environment:0-50C, 35-85% RH

Aux. power:24V DC +/-5% 30mA max.

power off memory :over 10years(25°c) .

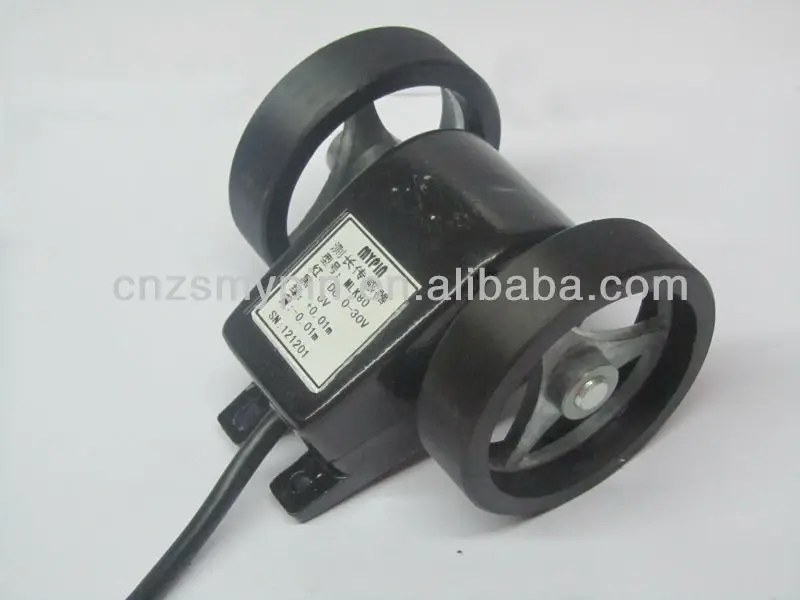

Wheeled length sensor MLK-80

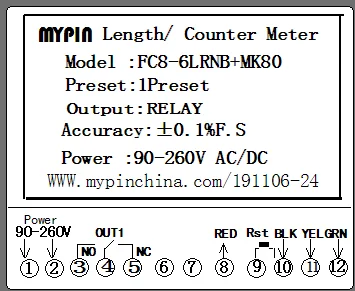

Wiring: Red: 0-30V DC

              Black: 0V(GND)

              Green: positive counting +0.01m

              Yellow: negtive counting  -0.01m

              White: +0.1m

              Blue:   +1m.



 FC8-01FC8-02FC8-03




Packaging & Shipping

packing full.jpg

1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.

2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.

3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.









Our Services



  • We provide 18 months warranty for all Mypin products.
  • OEM / ODM service available to meet up to client's requirements
  • Any questions, please mail or call us any time

Company Information



Main product:Panel Meter

                     Counter

                     Weighing indicator

                     Temperature/Humidity Controller

                     Current/Voltage/Power meter,various sensor indicator

                     Frequency / Tacho / Batch / Length /Linespeed Meter

                     Flow / Level /Pressure Controller

                     Proximity/ Photoelectrical Switch

                     Timer,Timer Relay

                     Sensor Controller

                     Signal adjustor

  They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc.



  Additonally,OEM service,Design service offer, Buyer laber offer.
