Double rows stud Roll forming machine

  • >=1 Sets
    $18,000.00
Model Number:
chain type
Max. Working Width:
1500
Samples:
$500.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Steel Frame & Purlin Machine
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
Condition:
New
Work Pressure:
12Mpa
Production Capacity:
0-15m/min
Place of Origin:
China
Brand Name:
GH
Voltage:
380V/50HZ 3Phase(as Customer's Request)
Power:
4kw
Dimension(L*W*H):
5500*1000*1200mm
Weight:
3T
Certification:
CE/ISO9001
Warranty:
1 Year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Easy to Operate
Raw materials:
Steel
Color:
Blue
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery

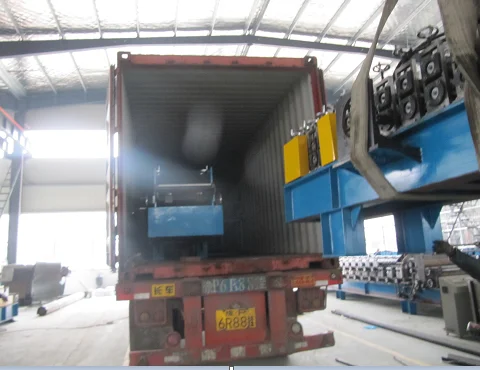

Packaging Details
suitable for sea shipping.
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description
                                                               C purlin roll forming machine（Only for reference）
Maximum production speed: not less than 15 meters per minute excluding cutting and punching);
Bending precision: the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified as following data (or equivalent tolerances);
Bending quality: ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades.
If you have your own special requirements,our machine can be also customized.

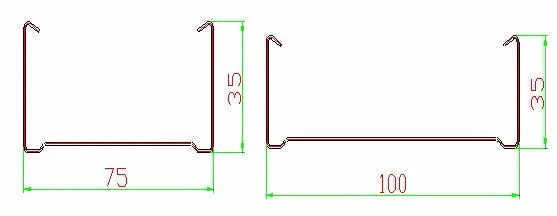

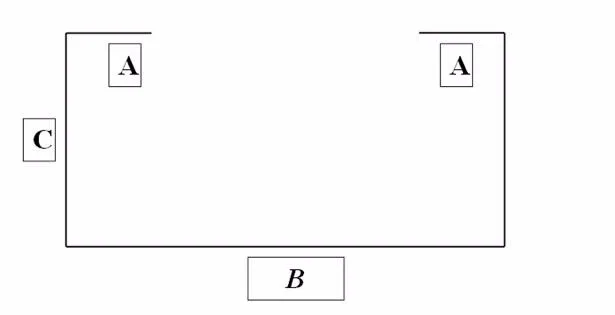

profile as following:

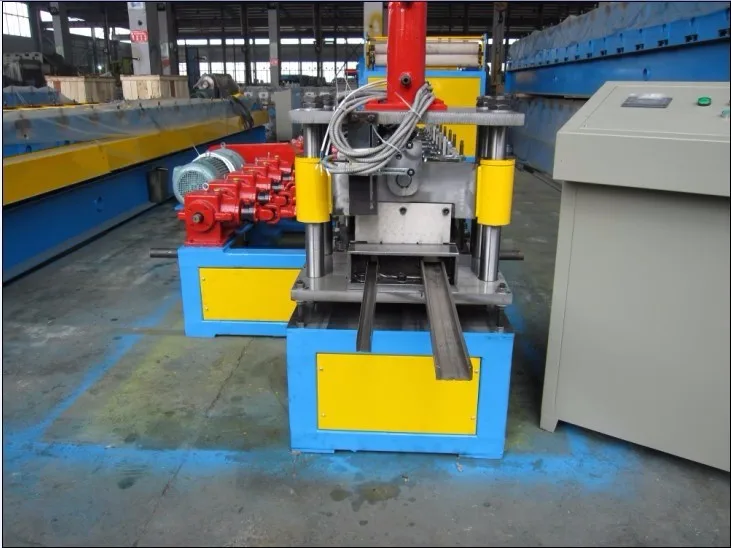

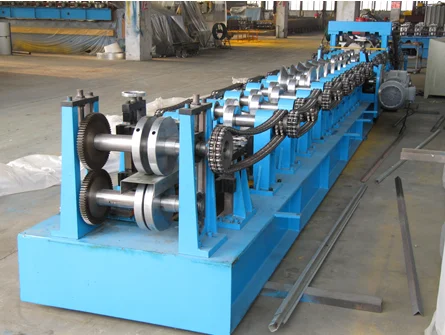

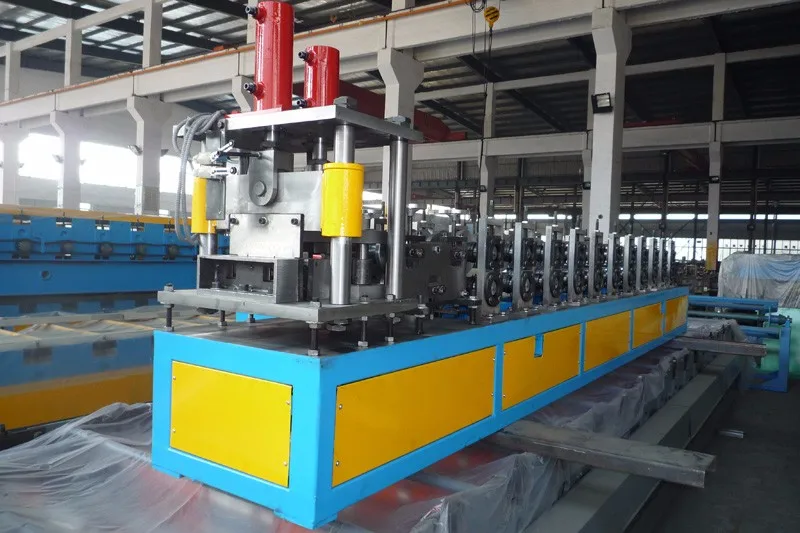

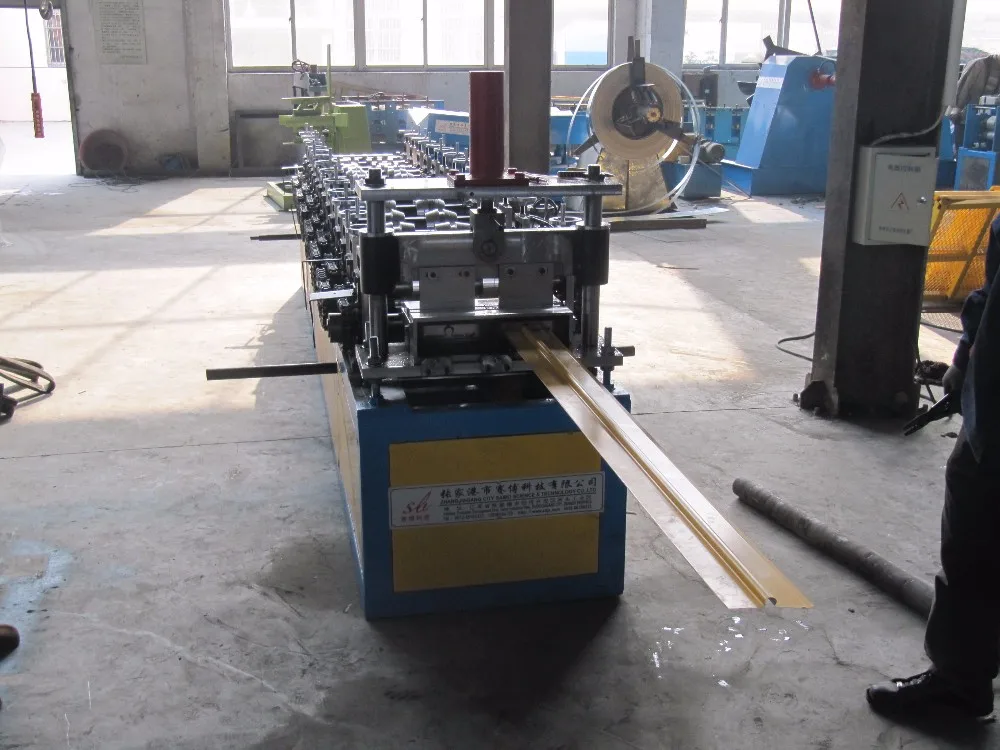

Whole machine:

Main Features

Profile thickness between 0.4-0.8mm carbon steel
Effective width: base on proilr
This machine include two sizes

Detailed Images

3T manual decoiler:

Dimensions: 1700mm*1000mm*800mm
Width of feeding: 500mm
Capability: 3 Ton
Bound of expand &fight: 420mm—510mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

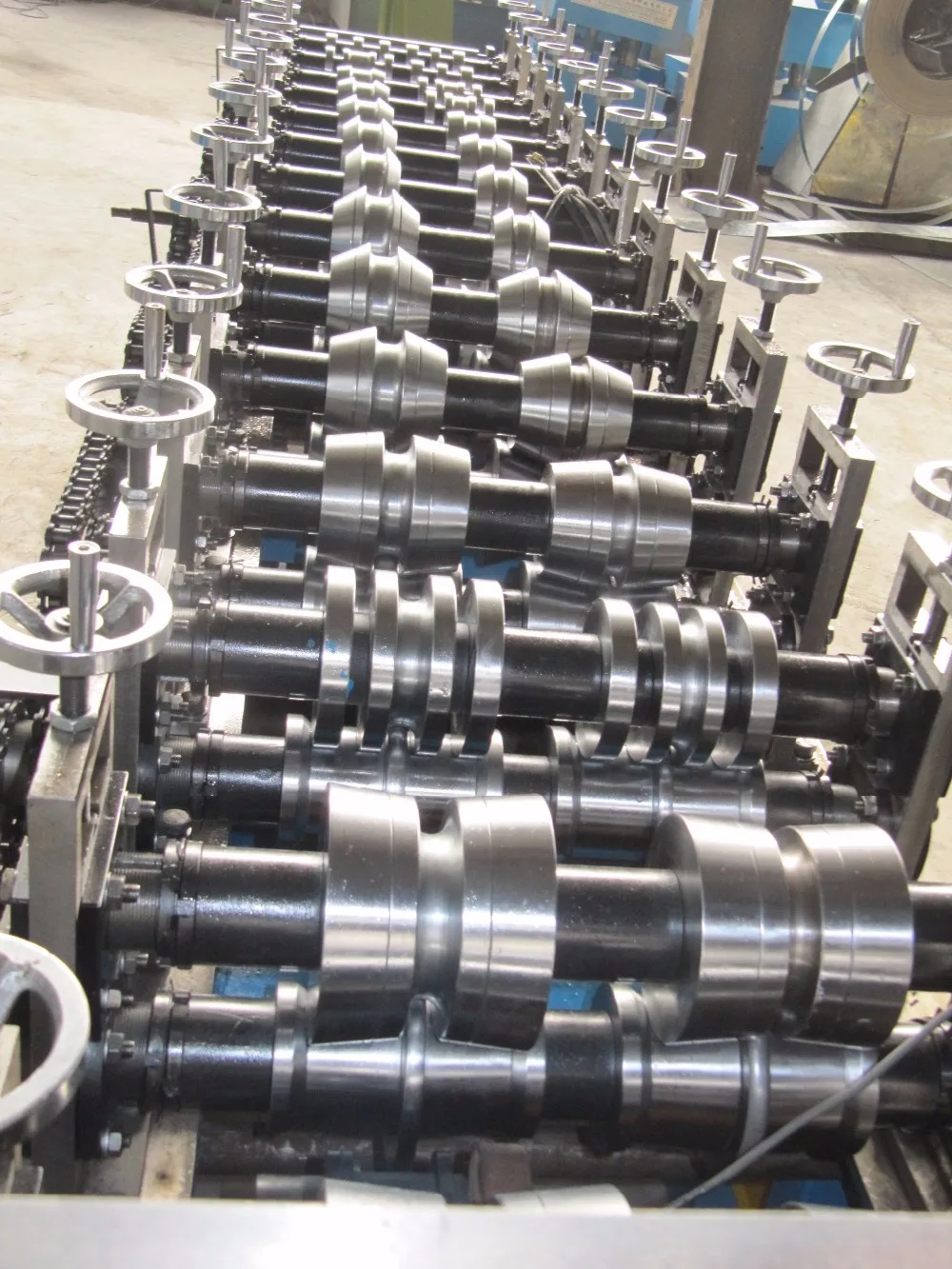

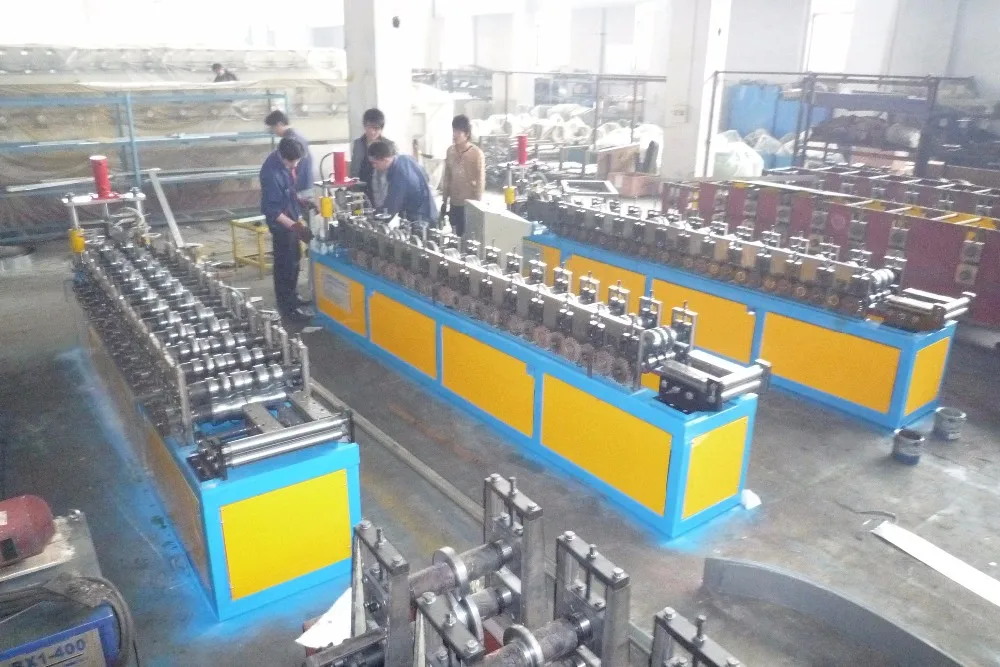

Forming section

Profile steel thickness 1.5mm carbon steel and stainless steel
Main motor power: 4KW, AC motor, side motor to save space (Brand: Guomao which made in China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station:11stations +1 station of rectify
Roller material:SAE1045, hardness and chrome plated surface
Shaft diameter: ￠56mm material: SAE1045
Machine roll forming speed: 0-15m/min
Transmission: by chain, 1.0inch double line

Post cutting :

Hydraulic power: 3KW
Hydraulic working pressure: 10Mpa
Cutting after forming: Cut the sheet after roll forming to required length
Material of blade:Cr12 with heat treatment 58-60°2 sets cutter
Length measuring: Automatic encoder length measuring, brand: Omron
Tolerance of length: 3000mm+/- 1.5mm



out table:

Frame: welding by tube
Size: about 1.0m long*0.3mwide*0.9mhigh
One out table with support roller
Supporter roller: ASTM 1045 with chrome
Diameter of rollers: 55mm
Color: Blue
Quantity: 2 units


Hydraulic station:

Hydraulic power: 3kW
Working pressure: 10Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)

Control carbinet:

1)Programmable setting of profile length and quantity
2)Automatic stopping of the equipment after completion of the cutting programme.
3)Operating system language: English and Chinese
4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview

Package&Delivery
Our Service

Enginer to test machine for clients.

Clents learning to check the products.
