Draw wire digital display BL9468 Pulse Counter

Feedback Ratings
  • 1-19 Pieces
  • 20-199 Pieces
  • >=200 Pieces
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Model Number:
Position Sensor
Digital Sensor, Digital Sensor
Product name:
Draw wire digital display BL9468 Pulse Counter
Overall dimension:
Overall dimension: 96*48*115mm
Display Range:
Power supply:
Display dimensions:
1 relay
display instrument
12 Months

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X12X14 cm
Single gross weight:
2.0 kg
Package Type:
Export carton
Lead Time :
Quantity(Piece) 1 - 20 >20
Est. Time(days) 5 To be negotiated
Related Products
Product Description

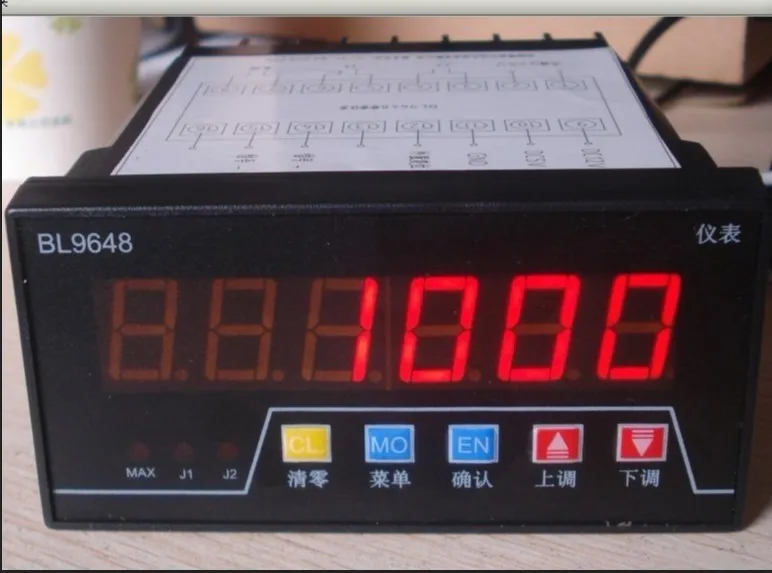

Draw wire digital display BL9468 Pulse Counter

BL9648-type is a display device with six digital, it can control and display position. BL9648 is widely used in industrial
control applications.
◆ internationally accepted standard 96 × 48 × 115mm, 0 .56 inches 6 digitals display.
◆ Enter the 4-20mA ,0-5v ,0-10k, 0-5k mv signals.
◆ Set zero with external switch control
◆ Set two controlled values, two relay outputs can be used for control or alarm.
◆ Optional three kinds of relay output.
◆ Can automatically reset the time delay.
◆ peak display.
◆ can count / measure speed, via the internal parameter settings.
◆ Parameter setting password protection.
◆ Setting value retain after power failure.
◆ Ratio can be set, determines the ratio between input signal and displayed value.
◆ External connect to sensors: angles, linear displacement sensor, can provides 5V (100mA), 12V (100mA) power
◆ Calibration function: Set 9 calibration points, in order to achieve linear differential fill feature.

◆ Power supply: 24VDC
◆ Input impedance: 5K
◆ Magnification range: 0.000 to 999.999
◆ Display range: -999999 to 999999
◆ pulse level: Low:-50V ~ 0.5V High level: 3.5 ~ 50V
◆ contact capacity: AC220V1A DC24V1A
◆ Installation: Snap-
◆ hole size: 92 × 43. 5mm
◆ Ambient temperature: -10 ℃ ~ 50 ℃
Products Show
Our Company

Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. is a professional rotary encoder supplier, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.

Factory Building

9# 302, No. 4361 Hutai Road, Baoshan District, Shanghai

Testing Machine


Testing Machine

Industrial microscope

Testing Machine

Plug and dial

warehouse: common type rotary encoders are all in stock can send our in 2-3 days.





Semifinished product


Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Generally it is 2-4 days after full payment if the goods are in stock. or it is 7-12 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: We accept T/T, Paypal, Western union or money gramm.

Q: What's your warranty ?

A: 12 months. If the items you purchased from  our company are not with perfect quality or can't work normally, you can ship back for replacement or refund.

Q: What's your shipment method?

A: We ship by Express FEDEX, UPS, DHL, EMS, ARAMEX. All express freight is charged in your end.
