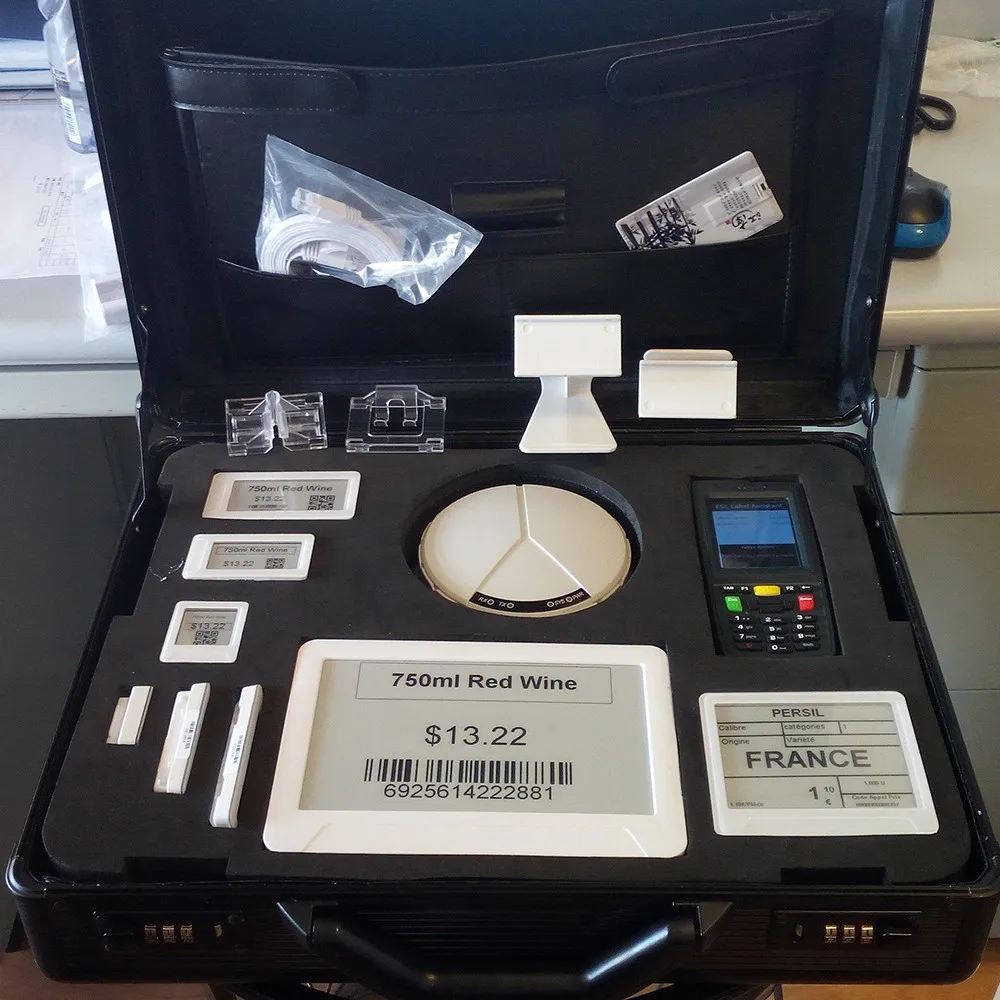

ESL demo kit A, with all sizes e-ink tags, Electronic price tag completed solution demo

Feedback Ratings
$1,000.00 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Label Model Option (Min. Order: 1 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai
Brand Name:
SunpaiTag
Model Number:
Demo Kit A
Order product:
Electronic shelf label demo kit
Item:
1.54, 2.13, 2.9, 4.2, 7.5 inch, base station, handheld reader
ESL Software Language:
English, French, Spanish, Russian, French, German, Portuguese, Korean
Software Support Database:
CSV, EXCEL, mySQL, SQL Server, Oracle, ODBC
ESL Support OS:
Windows 7/server 2003/server 2008/ win 10/
ESL Support PC Hardware:
2 core / 2g memory / 40g hard drive

Packaging & Delivery

Selling Units:
Single item
Single package size:
45X38X14 cm
Single gross weight:
5.5 kg
Package Type:
Exporting Carton
Lead Time :
Quantity(Piece) 1 - 20 >20
Est. Time(days) 10 To be negotiated
ESL Description

How it works

Electronic shelf label:
Display price and merchandise information on the shelves.

Base station:
Exchange the data between the server and price tags.

Handheld reader:

Bind the merchandise bar-code and price tag ID.


Through the ESL server(Software) connecting base station.

And reading customer database automatically.
The base station will send signals to tags by 2.4 g wireless.

Remark:

The base station can over 200~400 square meters open area. Connect tags quantity is no limited.

IT company can integrate ESL with POS, or other system. We can provide Webservice SDK.

E-ink Label
Specification
Model
LT154A, LT213A, LT290A, LT420C, LT750A
Display Size
1.54 inch, 2.13 inch, 2.9 inch, 4.2 inch, 7.5 inch
Display Color
Black and white
Page Cache
3
Battery Type
Lithium CR2450
Battery Life
3~5 years(update 1 time per day)
Working Temperature
0~45℃
Warrenty
24 months
Base station DB316B
Specification
Power Supply
DC 6V 2.3A
Power
800 mA
Interface
10/100M Ethernet
Communication Distance
Diameter 15 m
Communication Frequency
2.4Ghz
Transmit Power
15dBm
Receiver Sensitivity
-85dBm
Working Temperature
-10~55℃
Warrenty
24 months

Optional for Test: Handheld reader HT303


Handheld reader is for binding label ID and merchandise bar-code mainly. Also you can do it in software manually.

Price is 500$.


If you do not need it in demo order, please contact:
Whatsapp / Wechat: +86 17321233616
Skype: sunpai005

Customer Photos

France Vegetable Store

LT213A: 700 pcs;

LT290C: 50 pcs;

LT420C: 100 pcs;

LF825N-S: 100 pcs;

Base station(POE): 2 pcs;

Handheld reader: 1 pcs.

Israel 200㎡ Supermarket

LT290C: 500 pcs;

Base station: 1 pcs;

Handheld reader: 1 pcs.

Indonesia Supermarket

LT213A: 300 pcs;
Base station: 1 pcs.
Packing & Delivery
Model
QTY
Description
Delivery
LT154A
2
1.54 inch label, black white color
Gross Weight
1.4 kg
LT213A
2
2.13 inch label, black white color
Carton Size
45 * 38 * 14 cm
LT290A
2
2.9 inch label, black white color
Time
Within 1 week
LT420A
1
4.2 inch label, black white color
Shipping Method
Express
LT750A
1
7.5 inch label, black white color
DB316B
1
Base station (Access Point)
Software
1
ESL software, Webservice SDK, Manual
Leave your information please
PRA1-0.895m
1/4
Rail
Detailed address,
Zip code,
Phone number,
Contact person,
Email.


Then we can delivery asap after your payment.
PRC1-0.895m
1/4
Rail
PRU101
2
Rail stopper
PH502A
1
Bracket
PH503A
1
Bracket
PH504L
1
Short mount clip
PH505
1
Wall mount frame
PH506
1
Sucker Stand
PD290
1
Desk mount for 2.13 and 2.9 inch label
PD420
1
Desk mount for 4.2 inch label
PU901A
1
Bracket for promotion
PU902
1
View angle block
PS401
1
Ice plug
PU801
1
Removal tool
LAN
1
Cable for base station
Team & Contact

Team

Factory

Exhibition

Order Contact


Winnie Jiang


Whatsapp / Wechat: +86 17321233616

Skype: sunpai005

Email: winnie.jiang@sunpaitag.com


Sunpai Office: Room 1512, No.145, Lane 1399, Husong Road, Songjiang District, 201615 Shanghai P.R.C.

Dear Sir/Madam,


If you like my introduction and would like to test this new technology product demo kit for new retail market.

Please place an order on Alibaba directly and pay. Alibaba will insure this order go on as safe.


I will help you to install and use the ESL system by remote after you receiving it. And answer you any question.


The demo kit order cost you paid, can be refunded in big quantity order.

Looking forward to have business with you!


Best,

Winnie
