ESL electronic price tag price tag e ink demo kit

Feedback Ratings
$600.00 / Set | 2 Sets (Min. Order)
Material:
ABS
$600.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
SunpaiTag
Model Number:
Demo Kit N
Order Product:
ESL electronic price tag demo kit
Items in demo kit:
2.13, 2.9, 4.2 inch label 2 pieces each size, and a base station
Screen Material:
E-Paper Display
Display Battery:
Lithium CR2450
Display Battery Life:
3-5 years
Displaying Communication Frequency:
2.4 Ghz
Applications:
Supermarket, Store for display price
Demo includes accessories:
Base station, Handheld reader, System software
E-paper price display Usage:
Price display for supermarket

Packaging & Delivery

Selling Units:
Single item
Single package size:
32X22X12 cm
Single gross weight:
1.4 kg
Package Type:
Exporting Carton
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 20 >20
Est. Time(days) 7 To be negotiated
Video Description
ESL Description

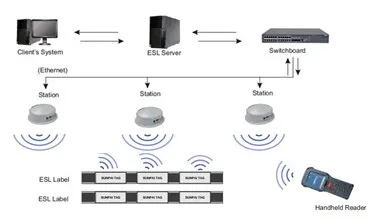

How it works

Electronic shelf label:
Display price and merchandise information on the shelves.

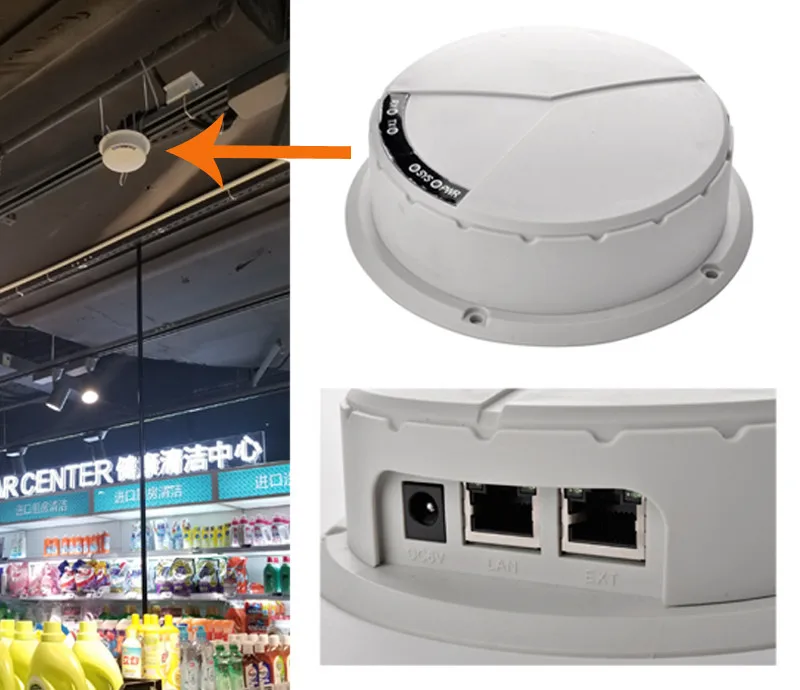

Base station:
Exchange the data between the server and price tags.

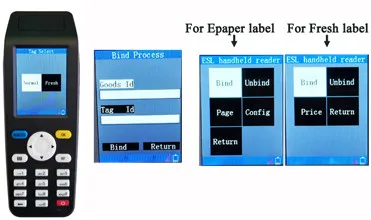

Handheld reader:
Bind the merchandise bar-code and price tag ID.

Through the ESL server(Software) connecting base station.
And reading customer database automatically.
The base station will send signals to tags by 2.4 g wireless.
Remark:
The base station can over 200~400 square meters open area. Connect tags quantity is no limited.
IT company can integrate ESL with POS, or other system. We can provide Webservice SDK.
Electronic price tag Specification
Model
LT213C, LT290A, LT420C
Display Size
2.13inch, 2.9inch, 4.2inch
Display Color
BWR, BW, BWR
Dimension
66*36 mm, 85.9*43 mm, 99*85.5 mm
Page Cache
3
Battery Type
LithiumCR2450
Battery Life
3~5 years(update 1 time per day)
Working Temperature
0~45℃
Warrenty
24 months
Specification
Power Supply
DC 6V 2.3A
Power
800mA
Interface
10/100M Ethernet
Communication Distance
Diameter 15m
Communication Frequency
2.4Ghz
Transmit Power
15dBm
Receiver Sensitivity
-85dBm
Working Temperature
-10~55℃
Warrenty
24 months

Optional: Handheld reader HT304


If you want to add this product to the ESL electronic price tag price tag e ink demo kit.

Please contact me to remark the order on alibaba. And need to pay more 200$.


Whatsapp / Wechat: +86 17321233616

Skype: sunpai005

Customer Application

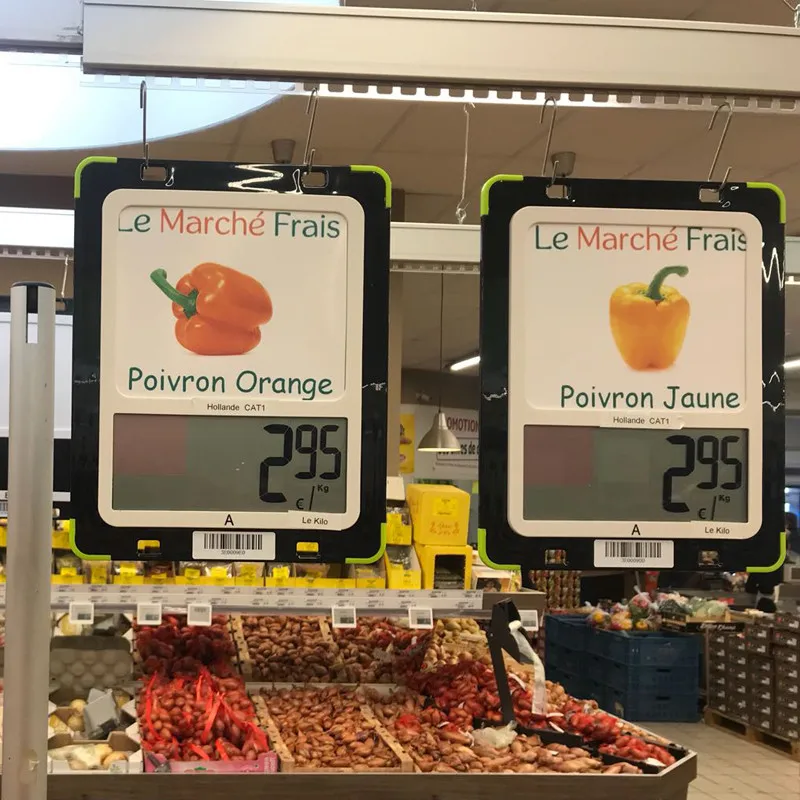

France Vegetable Store

LT213A: 700 pcs;
LT290C: 50 pcs;
LT420C: 100 pcs;
LF825N-S: 100 pcs;
Base station(POE): 2 pcs;
Handheld reader: 1 pcs.

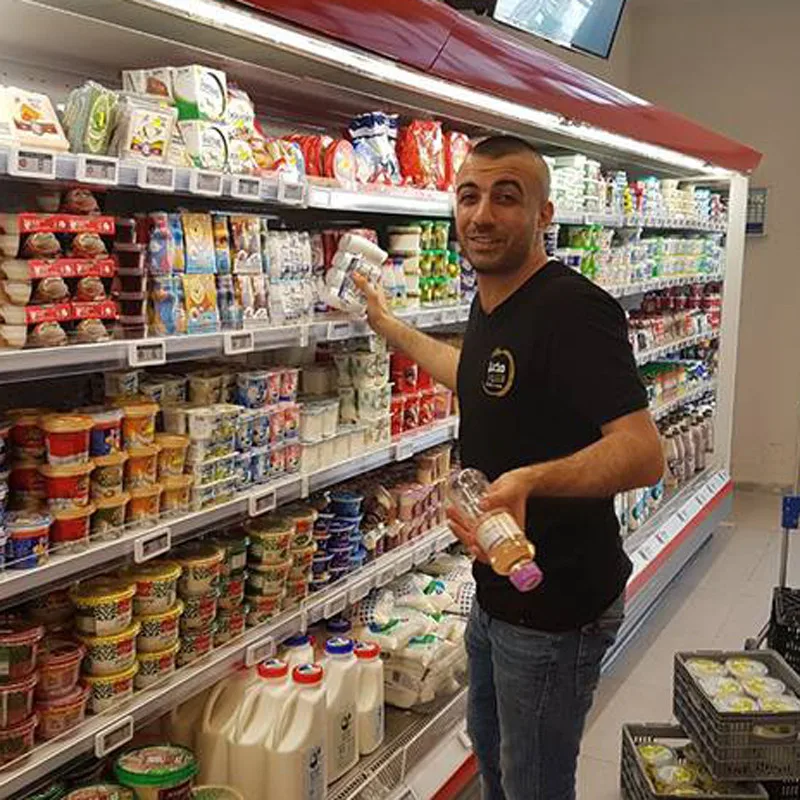

Israel 200㎡ Supermarket

LT290C: 500 pcs;
Base station: 1 pcs;
Handheld reader: 1 pcs.

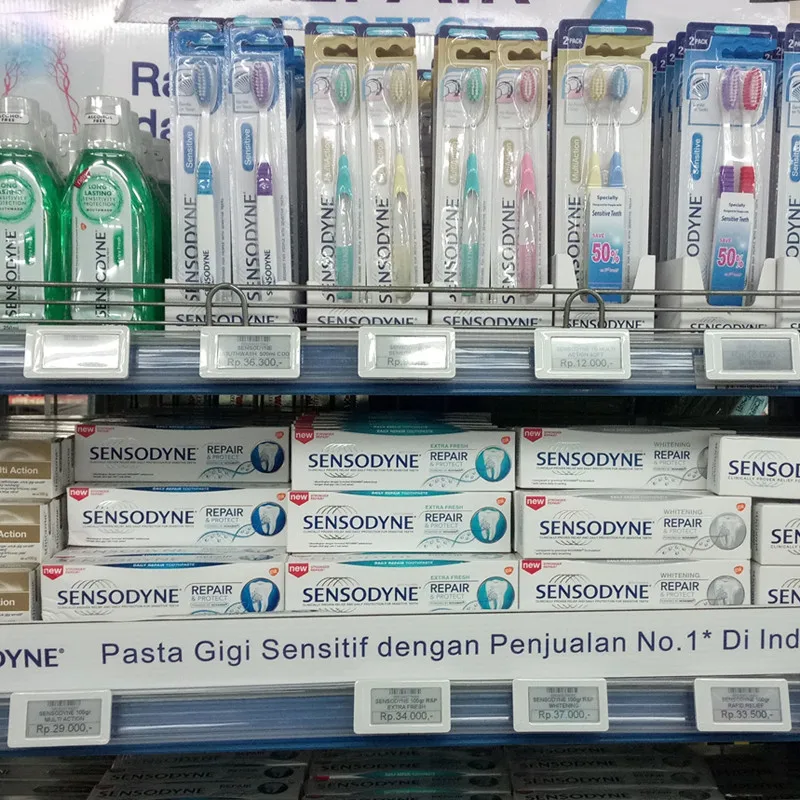

Indonesia Supermarket

LT213A: 300 pcs;
Base station: 1 pcs.

Packing & Delivery

You can buy this ESL electronic price tag price tag e ink demo kit directly on Alibaba.

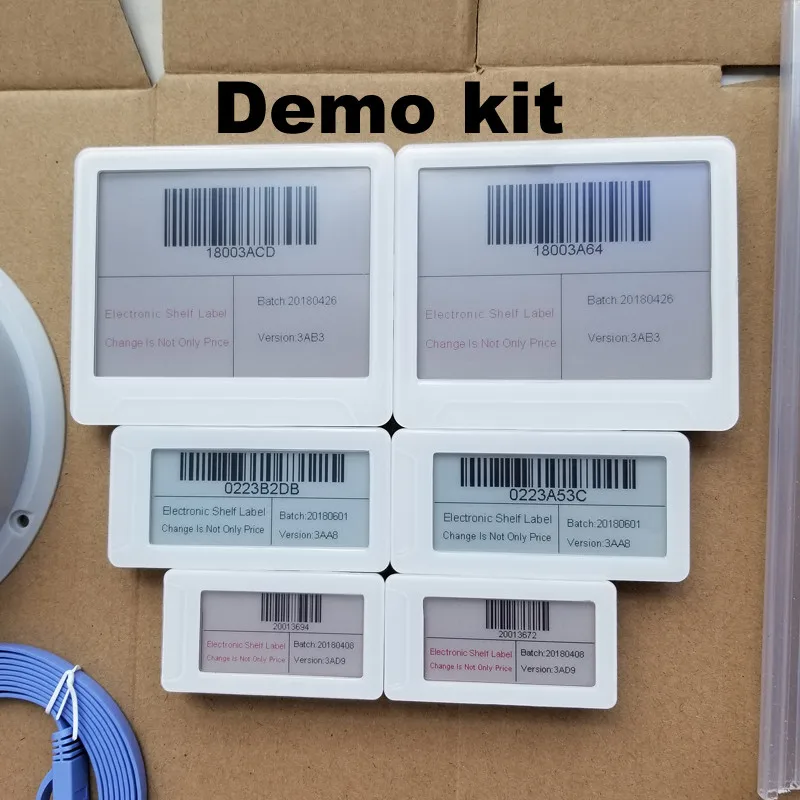

Below is the real product list we will send you.

Model
QTY
Description
Delivery
LT213C
2
2.13 inch label, black white red color
Gross Weight
1.4 kg
LT290A
2
2.13 inch label, black white red color
Carton Size
32 * 22 * 12 cm
LT420C
2
4.2 inch label, black white red color
Deliver Time
Within 1 week
DB316B
1
Base station (Access Point)
Shipping Method
DHL, Fedex, .....
Software
1
ESL software, Webservice SDK, Manual
Leave your information please
PRA1-0.895m
1/4
Rail
Detailed address,
Zip code,
Phone number,
Contact person,
Email.


Then we can delivery asap after your payment.
PRC1-0.895m
1/4
Rail
PRU101
2
Rail stopper
PH502A
1
Bracket
PH503A
1
Bracket
PH504L
1
Short mount clip
PH505
1
Wall mount frame
PH506
1
Sucker Stand
PD290
1
Desk mount for 2.13 and 2.9 inch label
PD420
1
Desk mount for 2.13 and 2.9 inch label
PU901A
1
Promotion bracket
PU902
1
View angle block
PS401
1
Ice plug
PU801
1
Removal tool
LAN
1
Cable for base station
Team & Contact

Team

Factory

Exhibition

Order ESL electronic price tag demo kit Contact

Winnie Jiang

Whatsapp / Wechat: +86 17321233616
Skype: sunpai005
Email: winnie.jiang@sunpaitag.com

Sunpai Office: Room 1512, No.145, Lane 1399, Husong Road, Songjiang District, 201615 Shanghai P.R.C.
Dear Sir/Madam,

If you like my introduction and would like to test this new technology product demo kit for new retail market.
Please place an order on Alibaba directly and pay. Alibaba will insure this order go on as safe.

I will help you to install and use the ESL system by remote after you receiving it. And answer you any question.

The demo kit order cost you paid, can be refunded in big quantity order.
Looking forward to have business with you!

Best,
Winnie
