Eddystone iBeacon IoT Bluetooth Gateway Kit

$269.00 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Model Number:
G1 iBeacon IoT Bluetooth Gateway Kit
Brand Name:
Minew
Place of Origin:
Guangdong, China
Scanning & concurrently process:
200 BLE devices per second
Range:
up to 300 meters in open space
Battery (inside gateway):
3000mAh, rechargeable (coming soon Q4/2017)
Storage temperature:
-40℃ to 85℃
Size:
150x150x36mm
Net Weight:
180g (without battery)
Accessory:
1x USB cable, mental fixing and screws
Power supply (Vcc):
Max. 5.5 Volts, DC
Voltage ripple:
+/- 2%

Packaging & Delivery

Selling Units:
Single item
Single package size:
32X23X40 cm
Single gross weight:
2.0 kg
Package Type:
Gift box of Eddystone iBeacon IoT Bluetooth Gateway Kit
Lead Time :
2
Product Description

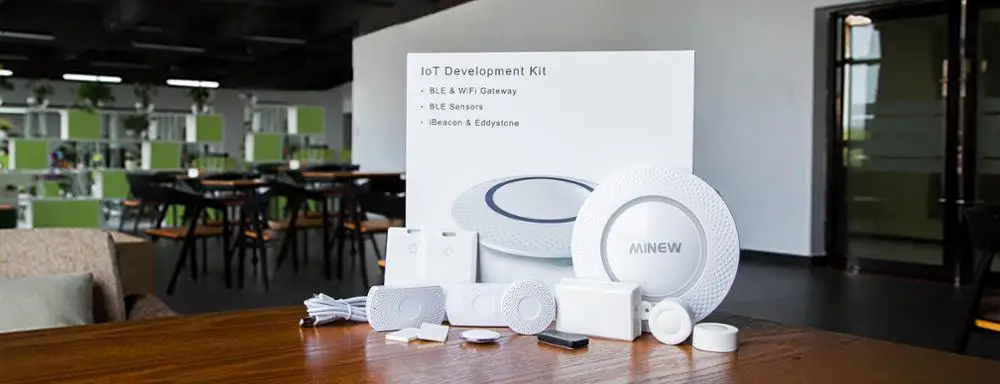

Minew Eddystone iBeacon IoT Bluetooth Gateway Kit

Minew Eddystone iBeacon IoT Bluetooth Gateway Kit is a Bluetooth 5.0 low energy (BLE) to Wi-Fi connectivity gateway without the uses of smartphones or apps. This Kit collects data from iBeacon, Eddystone, BLE sensor and other BLE devices, and then sends to the local TCP server or remote cloud server by HTTP / MQTT / mbed (ARM) protocol over Wi-Fi / Ethernet / Cellular. Easy to work with and best choose for IoT trial test.

Model Number
Quantity
Sensor
Chipset
Max Range
G1 Gateway
1pc
/
Bluetooth 5.0, nRF52832
300m
S1
2pcs
Temperature & Humidity Sensor


Bluetooth 5.0, nRF52832
100m
E6
1pcs
Light Sensor
50m
E8
2pcs
Accelerometer Motion Sensor
100m
D15N
1pc


/



Bluetooth 5.0, nRF52832
90m
i3
1pc
200m
C7
2pcs
100m
i7
2pcs
30m
E7
2pcs
/
Bluetooth 4.0, nRF51822
100m
Cloud Platform
1pc
Free Cloud Platform Dashboard for Development Test

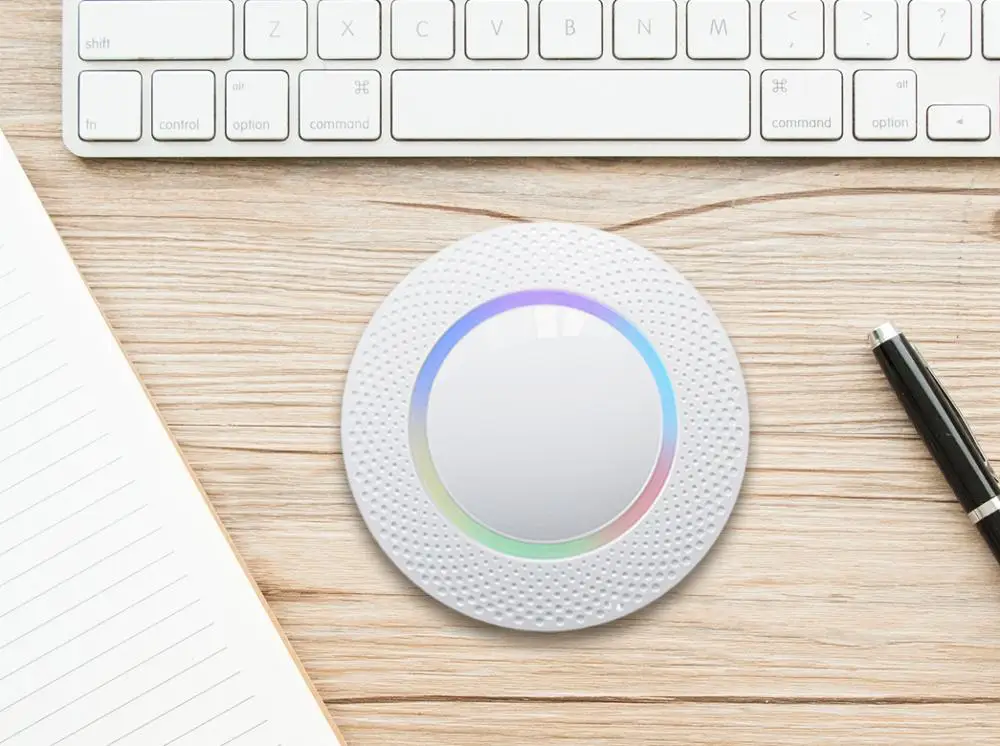

G1 BLE WiFi Gateway

- G1 is a Bluetooth 5.0 low energy (BLE) to Wi-Fi connectivity gateway without the uses of smartphones or apps.
- It collects the data from iBeacon, Eddystone, BLE sensor and other BLE devices, and then sends to the local TCP server or remote cloud server by HTTP / MQTT / mbed (ARM) protocol over Wi-Fi / Ethernet / Cellular.
- The user is easy to configure the gateway via a very simple web UI.

General:

● Input: DC 5.0V, 1A, micro-USB
● Supports 802.3af PoE standard
● Supports firmware upgrade Over-the-Air
● Operating temperature: -25℃ to 65℃
● Reads multiple BLE devices in the same time
● Supports TCP/HTTP/MQTT/mbed(ARM)
● Built-in RTC and NTP support
● RGB LED string as the status indicator
● Based on OpenWrt 15.05

Wi-Fi:

● Up to 150 Mbps PHY data rate
● With 3dBi flexible FPC antenna
● 100 meters range in open space
● 1T1R 2.4GHz frequency band
● IEEE 802.11b/g/n
● Web based UI for configuration
● Connects to the local server or remote cloud

BLE:

● Bluetooth 5.0 hardware nRF52832
● With a power amplifier
● With 3dBi flexible FPC antenna
● 300 meters range in open space
● Rx sensitivity -108dBm
● Bi-directional (reads data / sends command)

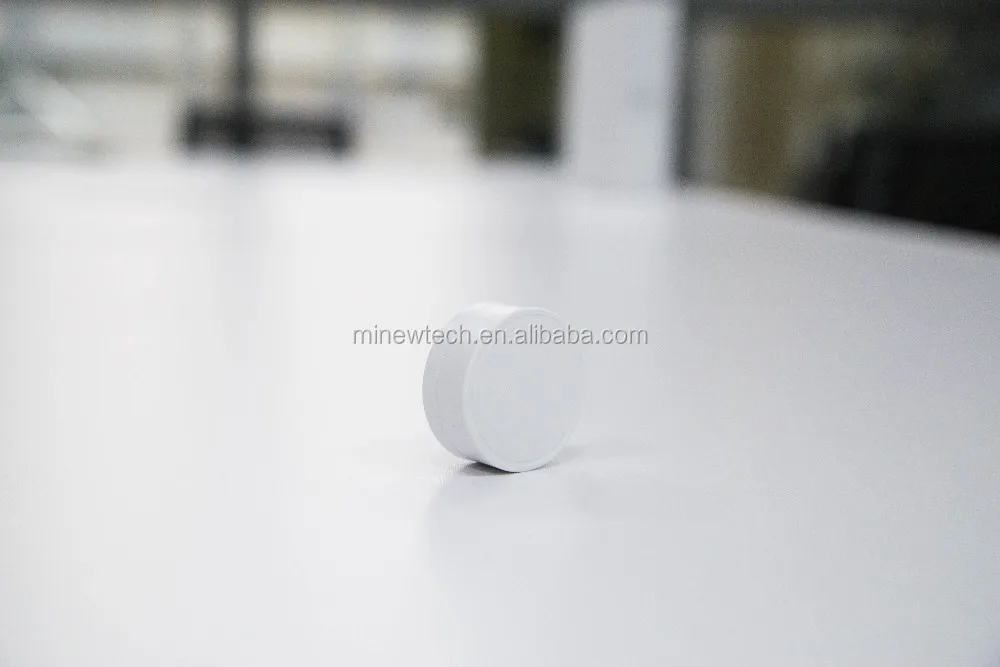

S1 Temperature Humidity Sensor

- Over 100 meters broadcasting range
- Over 3 years battery life time
- Ultra-low power consumption chipset nRF52832
- High-accuracy digital temperature and humidity sensor inside
- Very fast start-up and measurement time
- Excellent security mechanism

E6 light sensor illuminance sensor beacon

- Included a light sensor
- Included an anti-dismantlement switch
- The max. 50 meters advertising distance
- Ultra-low power consumption chipset nRF52832
- Small size, ultrasonic assembling technology
- Easy to print the logo on the center of top case;

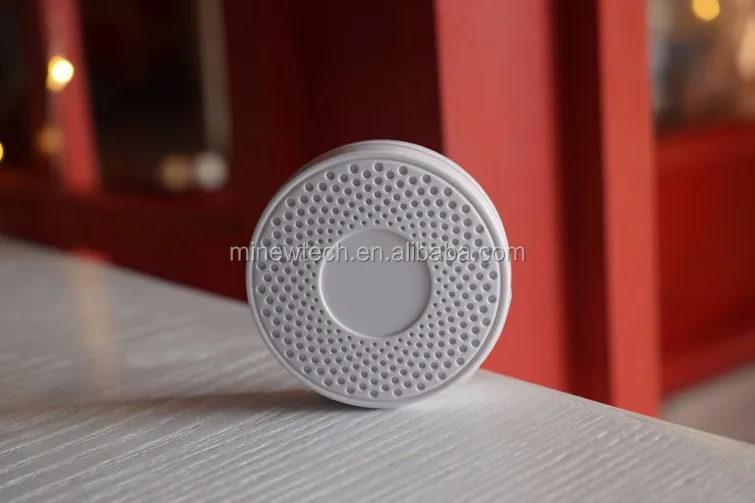

E8 Accelerometer Eddystone Beacon

- Programmed MiniBeacon Plus standard firmware

- 3-axis accelerometer sensor inside
- Included 1pc 1000mAh coin battery
- The max. 100 meters advertising distance
- Ultra-low power consumption chipset nRF52832 with ARM core
- Easy to print the logo on the center of top case;

D15N keychain beacon

 Programmed MiniBeacon standard firmware
- Included 1pc CR2025 coin battery
- The max. 90 meters advertising distance
- Ultra-low power consumption chipset nRF51822 with ARM core
- Easy to print the logo on the center of top case;

i3 Long Range The robust MiniBeacon

- Powered by 2pcs AA batteries, alkaline
- Omni-directional PCB antenna
- The max. 200 meters advertising distance
- Waterproof IP65
- Ultra-low power consumption chipset nRF51822 with ARM core

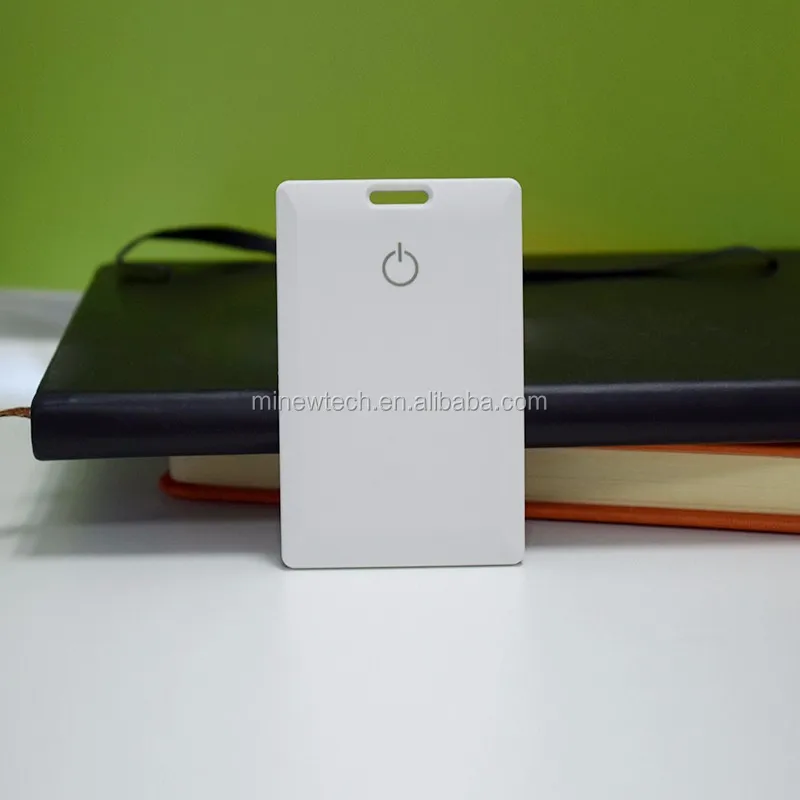

C7 card beacon (RFID/ NFC optional)

- Programmed MiniBeacon standard firmware
- Powered by Lithium polymer battery
-The max. 100 meters advertising distance
-Ultra-low power consumption chipset nrf52832 with ARM core
- Easy to print the logo on the waterproof case;

I7 beacon

- Programmed MiniBeacon Plus standard firmware
- Included 1pc 1000mAh coin battery
- The max. 100 meters advertising distance
- Ultra-low power consumption chipset nRF52832 with ARM core
- Easy to print the logo on the center of top case;

 E7 Waterproof Beacon

- Programmed MiniBeacon standard firmware
- Included 1pc 1000mAh coin battery
- The max. 100 meters advertising distance
- Ultra-low power consumption chipset nRF51822 with ARM core
- Easy to print the logo on the center of top case;

Application

● iBeacon / Eddystone / other BLE tag receiver
● BLE sensor reader / receiver
● Asset tracking
● Access control management
● Advertisement promotion
● Indoor location and position
● Industrial automation

Certifications

Detailed Images
Packing & Delivery

Packing

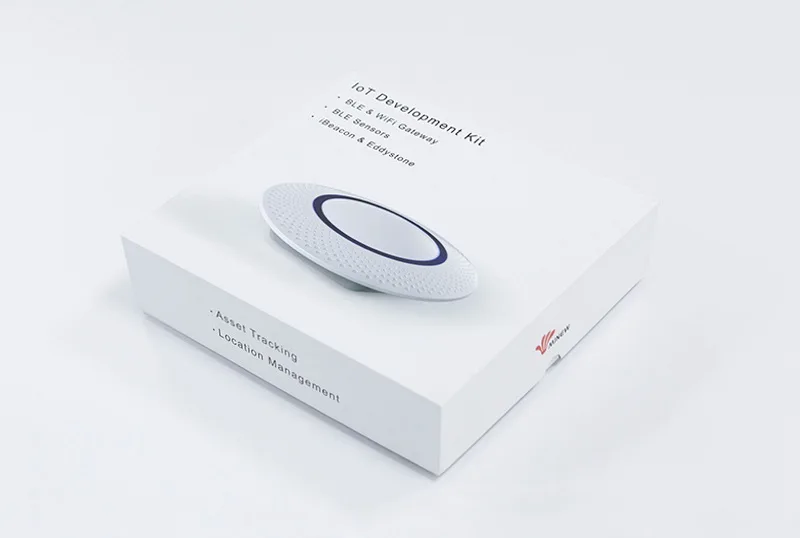

Gift Box Package

Delivery
According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case.

Fast Express like DHL,UPS, TNT, FedEx are all available here.
Or if our customers have their own Express account, freight forwarder in China, we are happy to contact their Express people or freight forwarder to pick up products from our factory..

Our Company

Founded in 2007, Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.


We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.


We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:
1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.


Factory Facilities
• Plenty of production lines
• Flexibility Capacity: 20K per day
• Over 150 professional stuff
• 100% tested


Warmly welcome the OEM and ODM projects.

FAQ

1.Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

2.Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.

3.Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

4. What's the warranty of the product?
Re: we supply 1 year warranty from the shipping date
