Electric Stacker with AC Driving System CDY10-AC

FOB Reference Price:Get Latest Price
US $3,500-4,300 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
100 Piece/Pieces per Month
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Condition:
New, New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
yi-lift
Model Number:
CDY10-AC
Type:
Powered Pallet Truck
Power Souce:
AC Motor
Rated Loading Capacity:
1000kg
Max. Lifting Height:
2000/2500/3000/3300/3600mm
Min. Lifting Height:
90mm
Fork Length:
1150/1220mm
Fork Width:
185mm
Overall Dimensions:
1898*806*1550/1800/2050/2200/2350mm
Certification:
CE/ISO9001
After-sales Service Provided:
No overseas service provided
Color:
Yello/Red
Travel Speed:
3.5/4 km/h
Lift Speed:
130/230 mm/s
Lowering Speed:
130/230 mm/s
Gradeability:
5%/7%
Drive Motor:
AC 0.95kw
Lift Motor:
DC 2.5 kw
Battery Voltage:
24v
Battery Capacity:
210Ah
Packaging & Delivery
Packaging Details
Export Packing
Delivery Time
Shipped in 30 days after payment
Video Description

Electric Stacker with AC Driving System CDY10-AC


Capacity:1000kg,Lifting Height:2000-3600mm


1.Mechanical steering-Economic,comfortable,more reliable.


2.AC driving system-Quite,without carbon brush and free maintenance


3.Electric lifting-Rapid,efficient,electricity limit switch is STD.


4.Short wheel base-Small turning radius,suitable for narrow space.


5.Energy conservation


6.AC controller-Stepless.strong power,multiple automatic protection.


7.Intelligent control-Regenerative braking,antomatic energy recovery.







Model CDY10-AC
Mast type  2-Stage STD
Load capacitykg1000
Load centermm600
Wheel basemm1285
Operating type Walkie
Wheels
Wheels type PU
Wheel quantity
Driving wheel/Balance wheel/Bearing wheel
 1/1/4
Dimension
Standard lift heightmm2000/2500/3000/3300/3600
Lowered fork heightmm90
Fork size(length/width/thickness)mm1150(1220)/185/55
Overall lengthmm1898
Overall widthmm806
Max extend heightmm2385/2885/3385/3685/3985
Mast lowered heightmm1550/1800/2050/2200/2350
Min.Turning radiusmm1475
Min.Aisle width for pallets 800×1200mm2045
Min.Aisle width for pallets 1000×1200mm2084
Min.ground clearancemm30
Performance
Travel speed,laden/unladenkm/h3.5/4
Lift speed,laden/unladenmm/s130/230
Lowering speed,laden/unladenmm/s130/230
Gradeability,laden/unladen%5/7
Electrical configuration
Drive motor / Lift motor /Steering motor KWAC0.95/DC2.5
Battery voltageV24
Battery capacityAh210
Brake Electromagnetic / Regenerative
Controller CURTIS 1230
Weight
Battery weightkg190
Service weight with batterykg1010



Product Category



More Products





Company Information

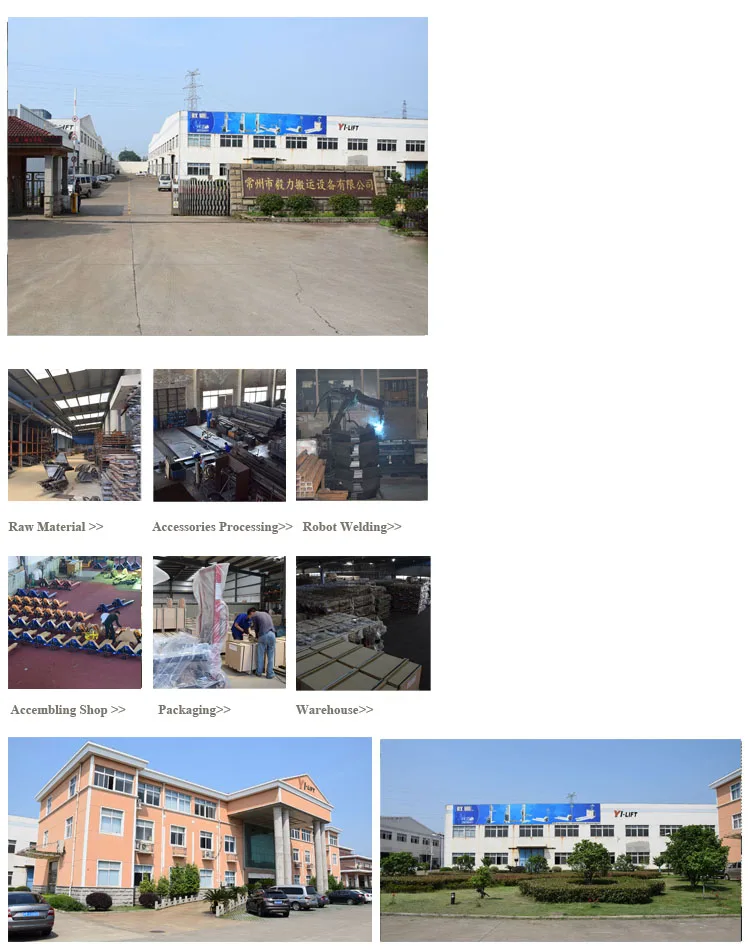

OUR FACTORY

ChangzhouYi-Lift material handling equipment co.,Ltd. is a professional logistic and industrial equipments manufacturer in China for more than 30years. The product range covers manual and electric pallet trucks, stackers, mobile and stationary lift tables, weighing trucks, roller skates and all kinds of trolleys. OEM request is also welcomed.



 we are an ISO9000 quality certified company which ensures all products and service is complied with standard quality system. Most of our products are also granted CE or GS certificates by TüV Rheinland Group.


MAIN
MARKETS

South America, Europe, Oceania, etc.

All of our products are welcomed by customers, wholesaler or retailor.

Brother Companies

Changzhou Yi-Lift Material Handling Equipment Co., Ltd.  has many brother companies in both ASIA and EUROPE, such as CAMBOTRUCK CO., LTD ( In Asia), and HPT B.V. (In Europe)







Apart from that, our company also has a dazzling number of distributors in many countries, such asNetherlandsEgyptUnited Arab EmiratesCambodia, etc.
