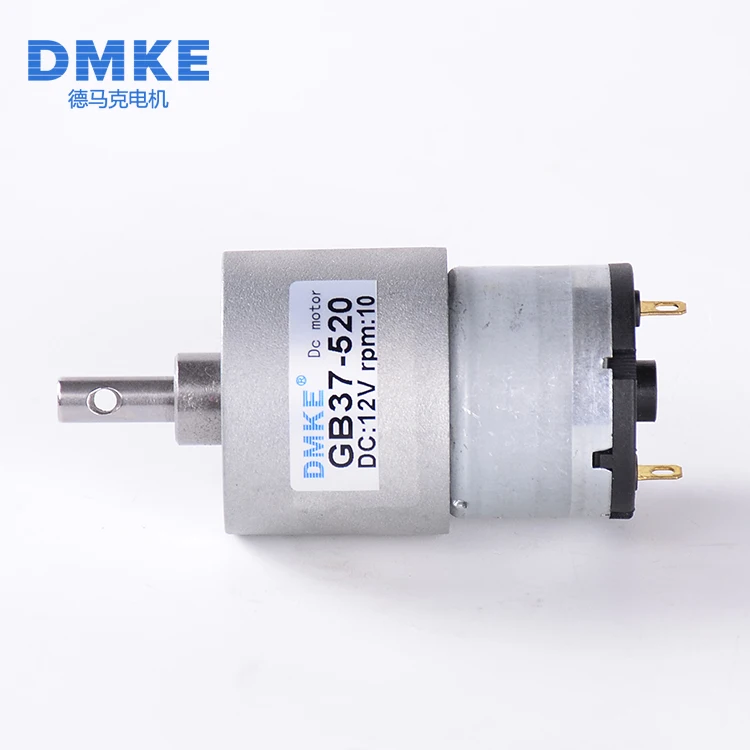

Electric-drive curtain air switch 12v 24v brush dc motor with gear

FOB Reference Price:Get Latest Price
$3.00 - $7.90 / Piece | 1 Piece/Pieces (Min. Order)
Voltage(V):
12v 24v
Output Power:
3w 5w 2w 6w
Speed of Revolution:
10rpm 120rpm
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
DMKE
Model Number:
Gb37-520-12V-10
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification:
CE, ROHS, VDE
Type:
brush dc motor
Torque:
3kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Speed(RPM):
100rpm
Continuous Current(A):
0.03A
Efficiency:
IE 2
Shaft Diameter:
6mm
key words:
12v brush dc motor
Material:
Steel
Motor type:
12v dc motor
Name:
12v micro dc motor
Motor diameter:
37mm
Application:
Automatic Product
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs 12v brush dc motor packed with 1inner carton &1 outside carton
Port
GUANGZHOU
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Video Description

Electric-drive curtain air switch 12v 24v brush dc motor with gear

micro dc motor

Product Description

 Feature:

A. Low speed, high torque, the maximum allowable load 10.0kg.cm

B. In line with the EU environmental protection and energy saving requirements, the minimum current up to 60mA

C. Military design requirements, ultra-low mute, the lowest noise up to 60dB

D. Equipped with encoder, the number of pulses 11ppr

E. Reduction ratio: 6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810

4545



Type Micro dc gear motor
Material Stainless steel
Advantage Small dimension,low noise, low price, long life, With High toruqe,Ce,  Rohs
Application

 Scissors machine, crane machine, electric-drive toy, projector, intelligent robot, automatic valve,  strongbox, dryer drying machine, automatic door-lock, intelligent cleaner,ATM bank automatic system, intelligent lock, lampblack machine, liquid crystal display screen, electric curtain, tie-yarn machine, massager, coffee machine, entertainment machine, automation Majang machine, automation machine, automation Majang machine, etc.



MODELVOLTAGENO LOADAT MAXIMUM EFFICIENCYSTALL
SPEEDCURRENTSPEEDCURRENTTORQUEOUTPUTTORQUECURRENT
vr/minAr/minAmN.mkg.cmwmN.mkg.cmA
 DK-37B520-50121100.04940.181471.51.45100910.31.6
 DK-37B520-15012210.03170.113533.60.37185318.90.4
 DK-37B528-9012770.07620.323143.22.04160716.41.7
 DK-37B528-2102431.50.04250.26176.31.61299030.51.0



Note: Above are only some typical models. For more information or a customized motor, Pls contact us.



Gear lengthReduction Ratio
17.810
21.5203040
2450607090
26.5120150210270
29450540630810

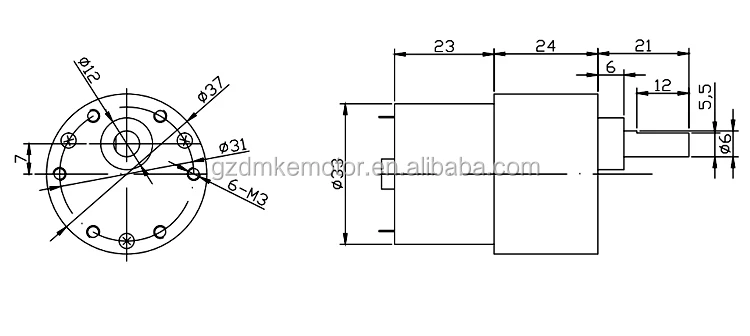

Size for gear ratio from  10-30:

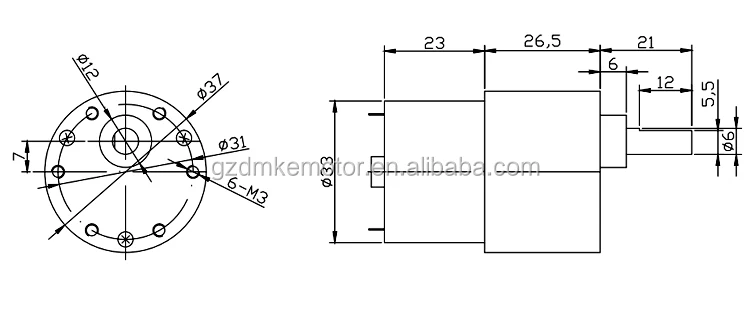

Size for gear ratio from  56-90:

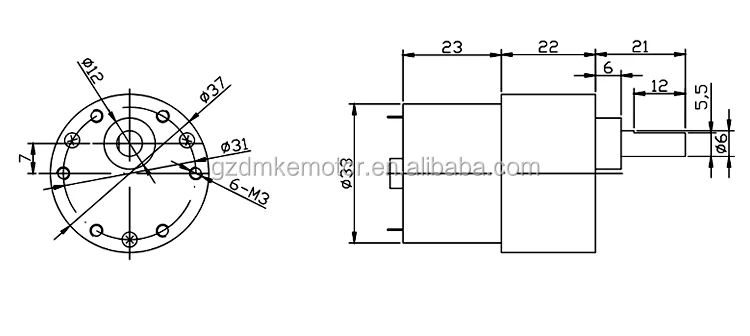

Size for gear ratio from  169-270:

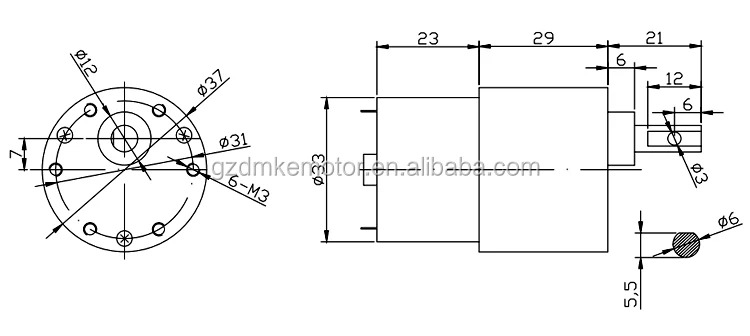

Size for gear ratio from  506-810:


DSC_2835

DSC_2834





DSC_2841



Application


Customer picture.jpg

Why DMKE



A.Certificates passed:CE,ROSH,LVD,EMC,ROSH tests passed for most of our 12v brush dc motor  and can supply reports.



B.Fast feedback for customers:24 hours reply for all customers' inquiries.



C. Competitive prices.



D. Quality guarantee:We have shipped much motors to Italy, Spain, and other European and USA customers with high quality.



E. Fast and Timely delivery:Usually 10-15 days for goods production.



F. Professional Technical support and After-sale service.



G.Customized service for kind of motor according to your requirement.

Main Products

rated product-6.jpg

Company Information
Factory pictures-2 (1).jpg


FAQ

Q1: What kind motors you can provide?

A1: For now, we mainly provide permanent magnet brush dc motors, brushless dc motor, dc gear motor, micro dc motor, ac gear motor, planetary gear motor,12v brush dc motor  with diameter range in 42~110mm.



Q2: Is there a MOQ for your motors?

A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 10% to 30% difference based on different style.



Q3: Could you send me a price list?

A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it’s really difficult for us to provide a price list. If you can share your detailed specification and order qty, we’ll see what offer we can provide.



Q4: Are you motors reversible?

A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.



Q5: Is it possible for you to develop new motors if we provide the tooling cost?

A5: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make our evaluation to see if we can arrange or not.



Q6:How about your delivery time?

 A6: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.
