Expanded Metal Filter Element in Tubes and Sheets

  • 1000-9999 Pieces
  • >=10000 Pieces
Aluminum Alloy
- +
Color Steel
- +
- +
All 4 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
99 day(s) after payment received
sise (Min. Order: 10000 Pieces)
Contact Supplier
Samples - $5.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
100X20X50 cm
Single gross weight:
60.0 kg
Lead Time :
Quantity(Piece) 1 - 1000 >1000
Est. Time(days) 99 To be negotiated
Product Description

Expanded metal filter element is expanded and stretched into various hole patterns, with special technology, there is no any welds and joints on the surface, so it is more rigid and solid than the welded wire mesh. In some filtering applications, the environment is harsh, the expanded metal filter element has more durable life than the welded filter element.

In the filter element applications, the expanded metal sheet is commonly made into tube shapes for filtering solid, water and other goods.

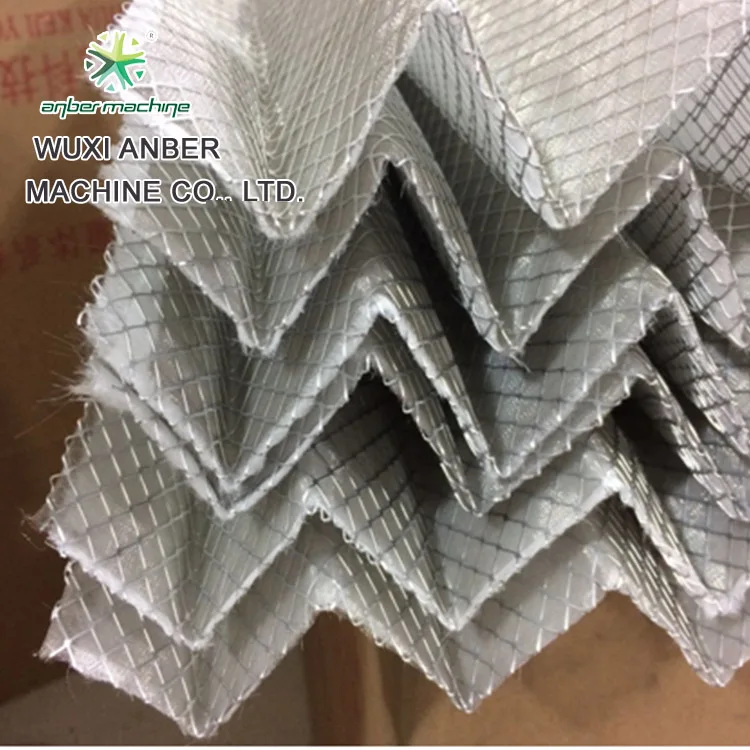

The expanded metal sheet can also be used as support mesh of the filter element, such as knitted wire mesh, carbon filter elements and other materials of filter elements.

Specifications of expanded metal filter element

• Material: stainless steel sheet, aluminum sheet and steel expanded metal sheet

• Surface treatment: hot-dipped galvanized and electric galvanized

• Hole patterns: diamond holes

• Filter element shape: tube or sheet

Features of expanded metal filter element

• Solid and rigid. The production technology make it no welds and joints on the surface, so it is solid and rigid than the welded wire mesh filter element.

• Corrosion and rust resistance. Galvanized, aluminum and stainless steel expanded metal sheets are all corrosion and rust resistance.

• Acid and alkali resistance. The stainless steel expanded metal sheets have outstanding chemical and biological stability to be used in harsh environment.

• Durable and long lasting. The expanded metal filter element adopt high quality materials, which ensure the perfect condition and long service life.

Schematic diagram

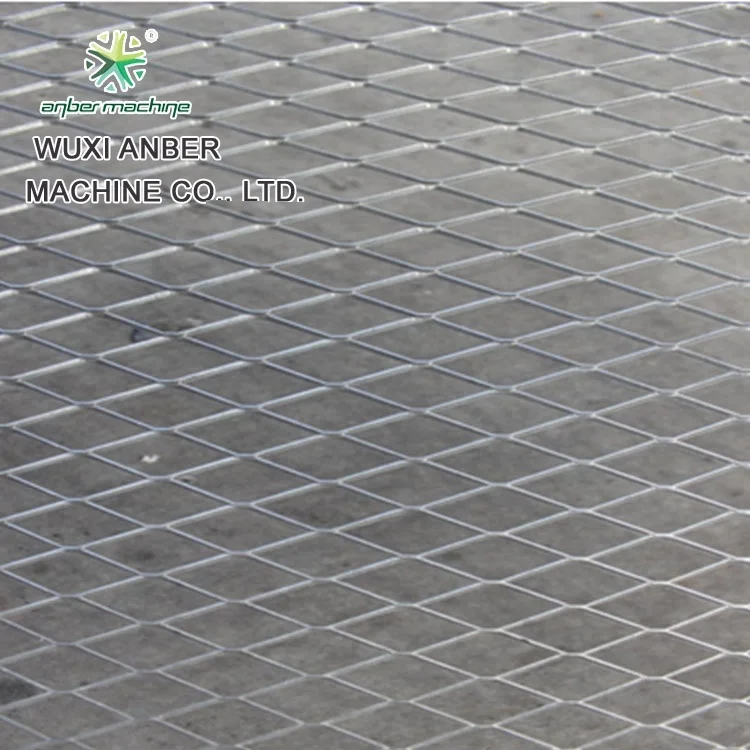

MARK NO: EM-12.5/7.5/1.0-M
Material: Mild steel
Max. Width of material(mm): 1250
Thickness(mm): 1.0
LWD(mm): 12.5
SWD(mm): 7.5
Strand width(mm): 1.0
Weight: 2.10 kg/m2
Nom. Open Area: 73.33 %
Expansion factor: 3.75
Mesh type: Flattened expanded mesh

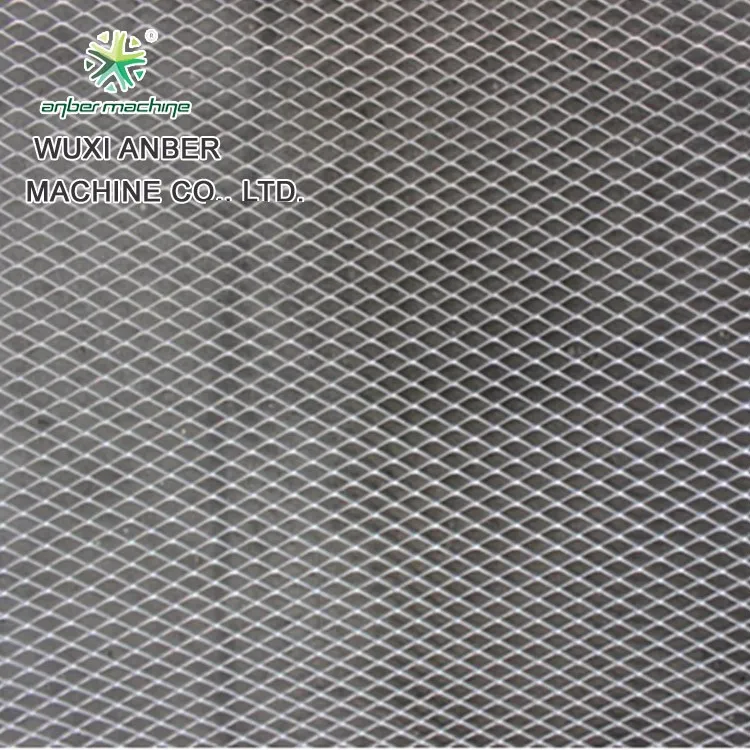

MARK NO: EM-16.5/10.5/1.0-M
Material: Mild steel
Max. Width of material(mm): 1250
Thickness(mm): 1.0
LWD(mm): 16.5
SWD(mm): 10.5
Strand width(mm): 1.0
Weight: 1.5 kg/m2
Nom. Open Area: 80.95 %
Expansion factor: 5.25
Mesh type: Raised expanded metal mesh

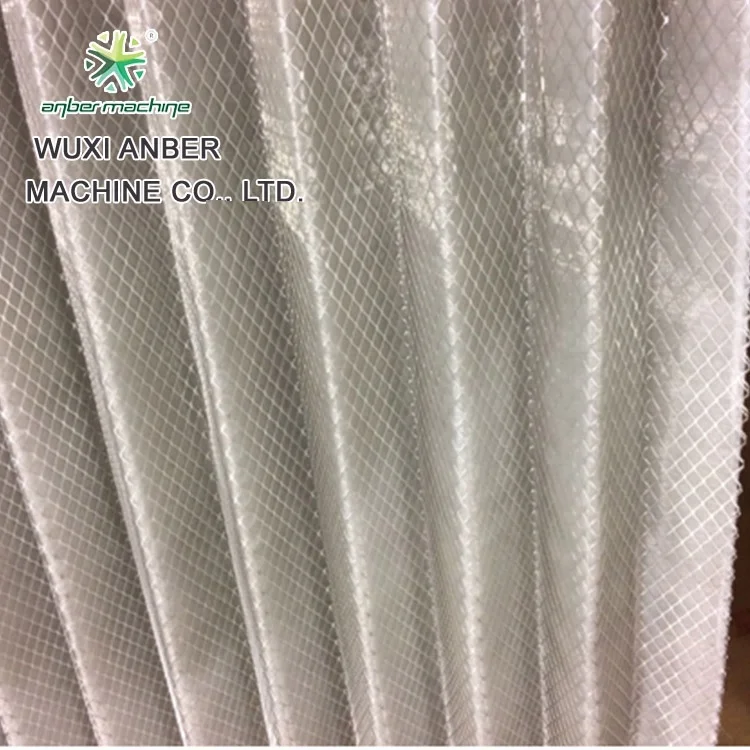

MARK NO: EM-20/13/1.0-M
Material: Mild steel
Max. Width of material(mm): 1250
Thickness(mm): 1.0
LWD(mm): 20
SWD(mm): 13
Strand width(mm): 1.0
Weight: 1.21 kg/m2
Nom. Open Area: 84.62 %
Expansion factor: 6.50
Mesh type: Raised expanded metal mesh

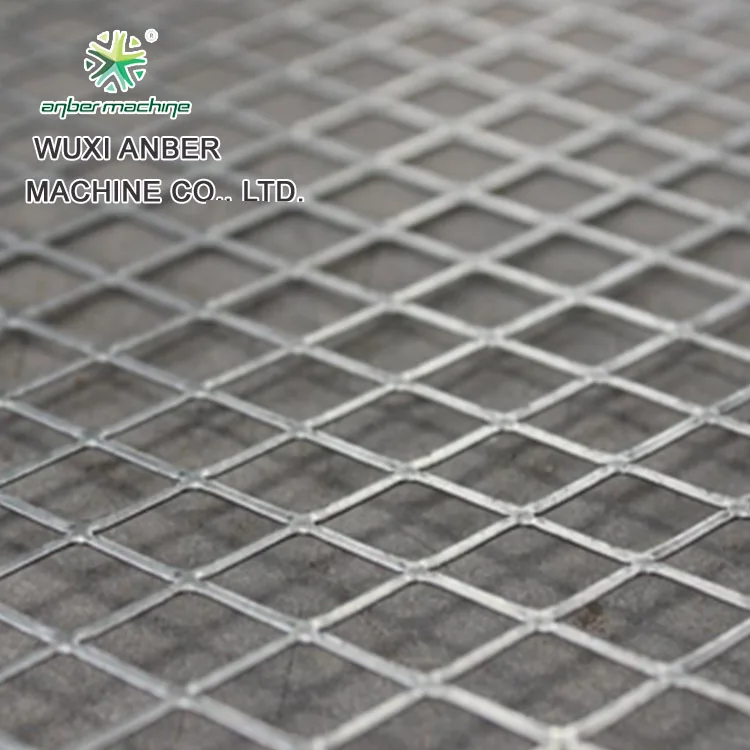

MARK NO: EM-8.0/4.0/0.6-M
Material: Mild steel
Max. Width of material(mm): 1250
Thickness(mm): 0.6
LWD(mm): 8.0
SWD(mm): 4.0
Strand width(mm): 0.6
Weight: 1.41 kg/m2
Nom. Open Area: 70.00 %
Expansion factor: 3.33
Mesh type: Hexagonal expanded metal mesh

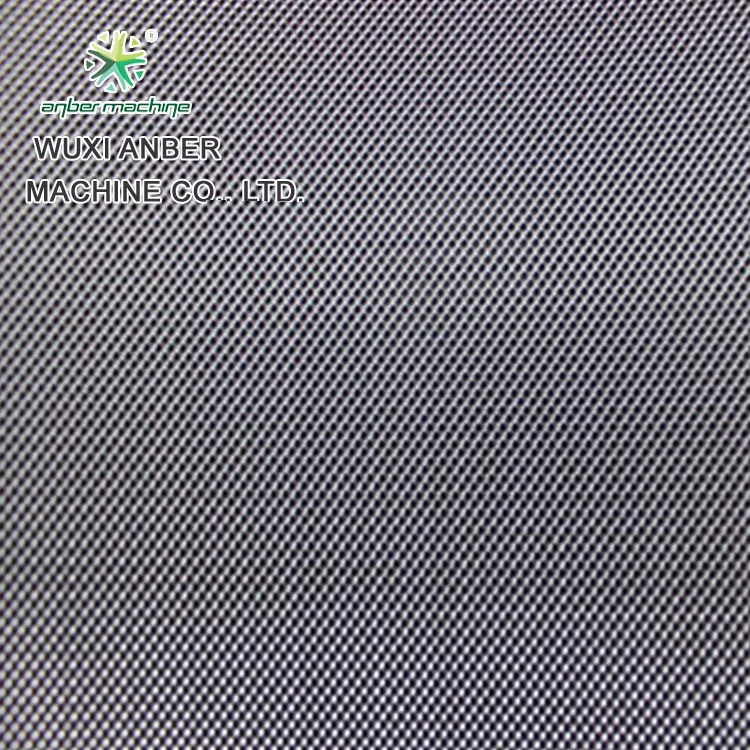

MARK NO: EM-6.4/3.4/0.3-M
Material: Mild steel
Max. Width of material(mm): 1250
Thickness(mm): 0.3

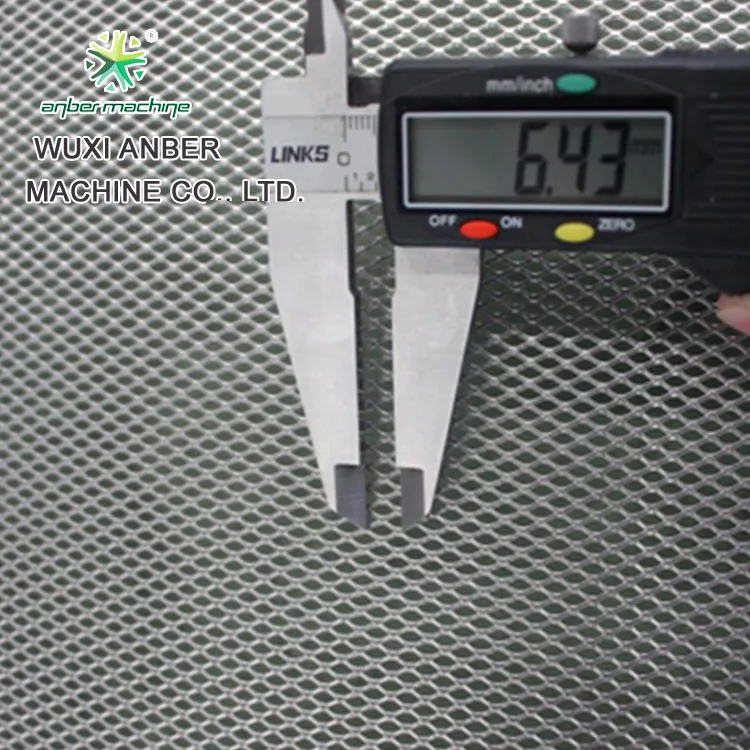

LWD(mm): 6.4
SWD(mm): 3.4
Strand width(mm): 0.3
Weight: 0.42 kg/m2
Nom. Open Area: 82.35 %
Expansion factor: 5.67
Mesh type: Hexagonal expanded metal mesh

MARK NO: EM-2.0/1.5/0.3-A
Material: Aluminum
Max. Width of material(mm): 1250
Thickness(mm): 0.3
LWD(mm): 2.0
SWD(mm): 1.5
Strand width(mm): 0.3
Weight: 0.94 kg/m2
Nom. Open Area: 60.00 %
Expansion factor: 2.50
Mesh type: Aluminum expanded metal mesh


• Expanded metal filter element can be made into tubes for filtering solid, water and other goods,

• The expanded metal filter elements are also good support mesh of other filter elements, such as knitted mesh filter elements, carbon filter elements and other filter elements.

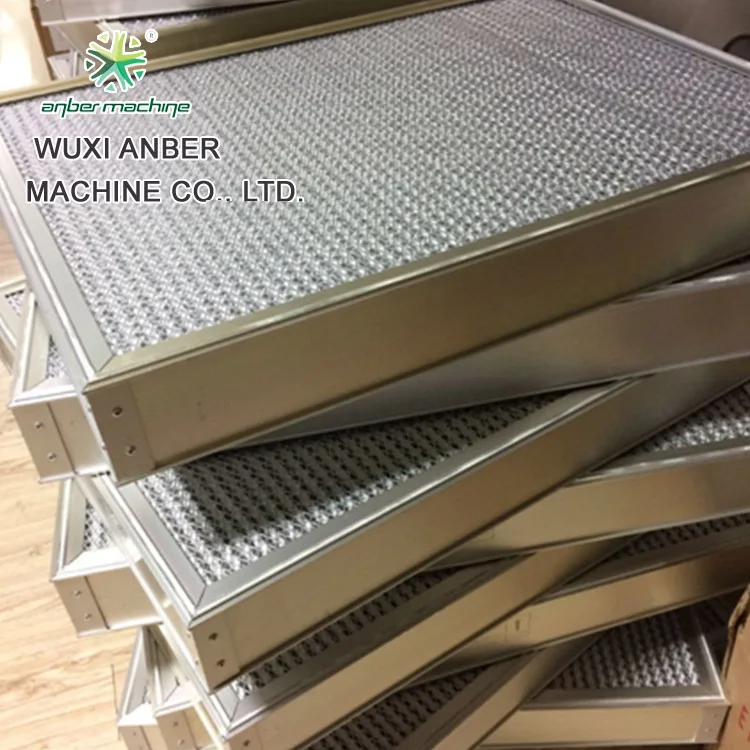

Expanded metal filter panel

Expanded metal filter sheet

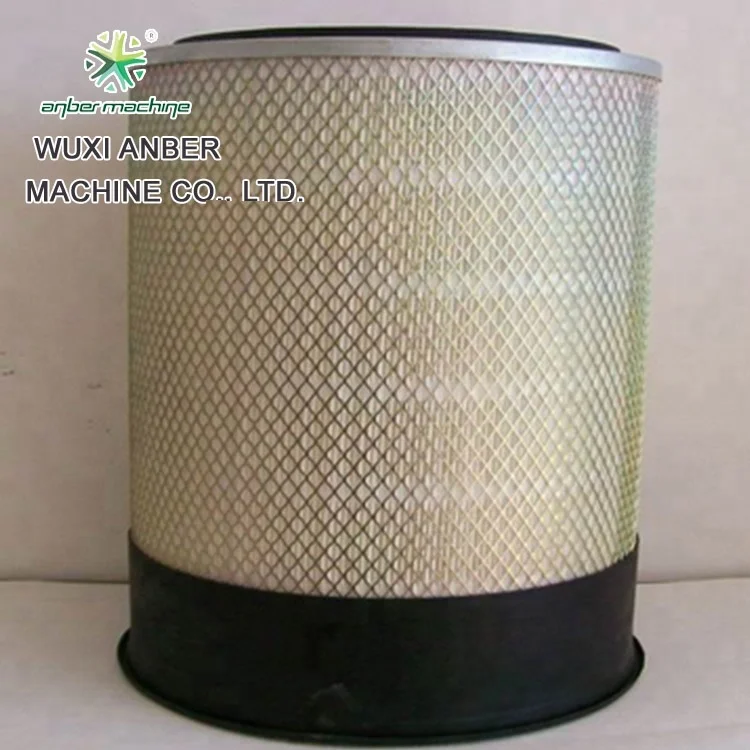

Expanded metal filter element tube


Our Company

Expanded metal is truly a versatile product. Ferrous and non-ferrous metal sheet can be expanded into a wide range of mesh styles. There are standard expanded metal styles and numerous variations in strand width and opening sizes can be produced to create whatever architectural or industrial pattern is required. Expanded metal is also produced in a flattened form which is created by rolling standard or raised expanded metal.

Expanded metal mesh has a diverse range of properties, which makes it so versatile and appealing for many uses and applications throughout a variety of industries. Expanded Metal Mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanded metal machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.

Expanded Metal Mesh Production Process

1. Sheets or coils or metal are fed into the expanded metal machine. A little metal can create a lot of mesh, adding value and saving resources and money.

2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.

3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.

4. Using the unique shearing and stretching process means very little waste is created. the metal is sheared and then stretched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.

Our manufacturing expanded metal mesh is used in below industry:

Building Construction

Machine Guard Manufacturers

Auto mobile Industry

Air Condition Industry

Agricultural Machinery

Food Processing Industry

Filter Industries

Wuxi Anber Machine Co.,Ltd is a professional manufacturer and trader specialized in research ,development and production of wire mesh machine. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Expanded metal mesh machine is one of our hot-sale products.

The expanded metal mesh machineis devided into the light type expanded metal mesh machine, middle type expanded metal mesh machine and heavy duty metal mesh machine.

1. Light type expanded metal machine:




new type : high speed expanded metal mesh machine




2. Middle type expanded metal mesh machine:



3. Heavy duty expanded mesh machine:






We also can produce accessory machines for the expanded metal mesh machine, such as decoier, recoiler, two-roller flattening machine, four-roller flattener machine, expanded mesh leveling machine, three-in-one expanded mesh leveling, slitting and cutting mahicne. Besides, if you have some special requirement, we can design the full production line especially for you.
