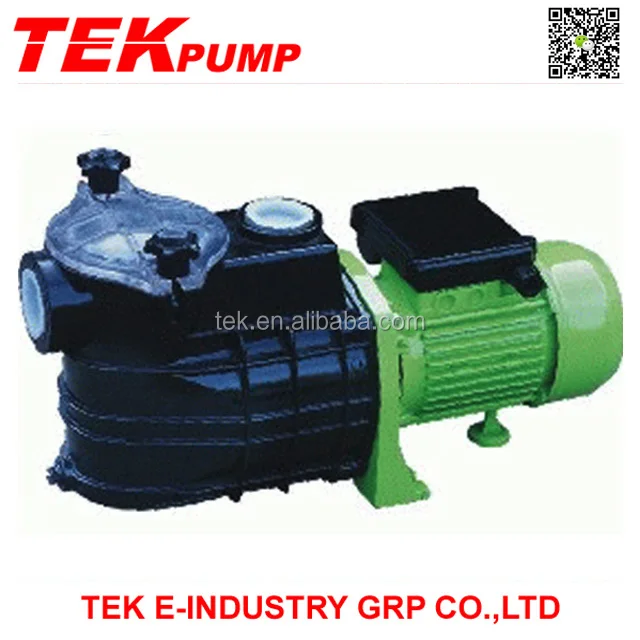

FCP-750 Swimming Pool Circultion Pump

Feedback Ratings
  • 1-99 Pieces
    US $100.00
  • 100-999 Pieces
    US $80.00
  • 1000-9999 Pieces
    US $70.00
  • >=10000 Pieces
    US $60.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
TEK
Model Number:
FCP-750
Theory:
Centrifugal pump
Structure:
Multistage Pump
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
High Pressure
Application:
Water Supply
Frequency:
50Hz/60HZ
Certificate:
CE,CCC,ISO9001
Material:
Fiberglass reinforced technopolymer
Color:
Green
Warranty:
1 Year
Voltage:
220v/50hz...)
Impeller:
PPO
Type:
Watering
Packing:
Carton Packing
Protection class:
IP44

Packaging & Delivery

Selling Units:
Single item
Single package size:
53X22X29 cm
Single gross weight:
11.0 KG
Package Type:
Carton Box
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 20 To be negotiated

FCP-750 Swimming Pool Circultion Pump



PUMP BODY:
Made from fiberglass reinforced technopolymer, with UIN ISO 228/1 gas threaded suction and delivery openings.
PUMP BODY COVER: aluminium, serving also as mechanical seal horsing.
IMPELLER: . plastic PPO
MOTOR SHAFT: AISI 314 stainless steel,
MECHANICAL SEAL: ceramic and graphite,
MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction motor of suitable size, which is quiet, closed and externally ventilated, suitable for continuous duty. The thermal cutout replay (motor protector ) is incorporated in all single phase motors. Three phase motors require an adequate external motor protector, with connections according to current standards.
INSULATION: Class B (Class F)
PROTECTION: IP 44.
Product Power: 0.25-2.2KW


-- View technical --



Model

Power

Q.Max

H.Max

S.Head

Ampere

R.P.M

Pipe Dia

L×W×H

N.W

kW

HP

(l/min)

(m)

(m)

1~220V

3~380V

(mm)

(mm)

(kg)

FCP-250

0.25

0.33

170

8

9

1.8

-

2850

11/2"×11/2"

420×180×245

6

FCP-330

0.33

0.4

180

10

2.1

-

6.5

FCP-370

0.37

0.5

190

11

2.7

-

525×215×285

6.5

FCP-550

0.55

0.75

200

14

3.6

-

8

FCP-750

0.75

1

220

16

4.5

-

10

FCP-1100

1.1

1.5

300

17

7.5

2.7

2"×11/2"

590×225×290

16

FCP-1500

1.5

2

430

18

9.6

3.5

2"×2"

18

FCP-2200

2.2

3

500

20

13.5

5

610×225×290

21
