FCP Series Swimming Pool Pump FCP-1100

Feedback Ratings
  • 1-99 Pieces
    US $140.00
  • 100-999 Pieces
    US $120.00
  • 1000-9999 Pieces
    US $100.00
  • >=10000 Pieces
    US $80.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
TEK
Model Number:
FCP-1100
Theory:
Self-Priming Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Electric, 1.1 kw
Standard or Nonstandard:
Standard
Fuel:
Electric
Pressure:
Middle
Application:
Clean Water
Ferquency:
50Hz/60Hz
Q.Max:
170-500l/min
H.Max:
8-20m

Packaging & Delivery

Selling Units:
Single item
Single package size:
60X23X30 cm
Single gross weight:
17.0 KG
Package Type:
Carton Box
Lead Time :
Quantity(Piece) 1 - 100 >100
Est. Time(day) 20 To be negotiated

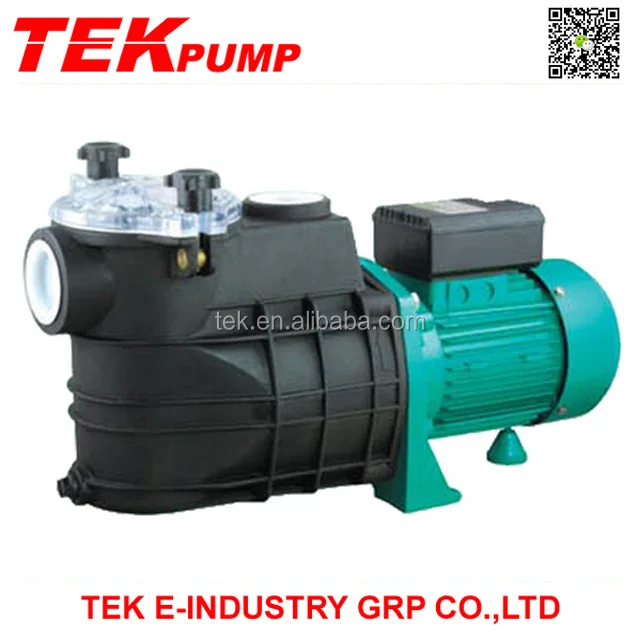

FCP Series Swimming Pool Pump FCP-1100



PUMP BODY,
Made from fiberglass reinforced technopolymer, with UIN ISO 228/1 gas threaded suction and delivery openings.
PUMP BODY COVER, aluminium, serving also as mechanical seal horsing.
IMPELLER . plastic PPO
MOTOR SHAFT, AISI 314 stainless steel,
MECHANICAL SEAL,ceramic and graphite,
MOTOR
The pumps are coupled to an asynchronous, high efficiency TEK induction motor of suitable size, which is quiet, closed and externally ventilated, suitable for continuous duty. The thermal cutout replay (motor protector ) is incorporated in all single phase motors. Three phase motors require an adequate external motor protector, with connections according to current standards.
INSULATION,Class B (Class F)
PROTECTION, IP 44.

Product Power, 0.25-2.2KW



Model

Power

Ampere

Q.Max

H.Max

S.Head

Speed

Pipe Dia

L×W×H

N.W

kW

HP

1~220V

3~380V

(l/min)

(m)

(m)

R.P.M

(mm)

(mm)

(kg)

FCP-250

0.25

0.33

1.8

-

170

8

9

2850

40×40

420×180×245

6

FCP-330

0.33

0.4

2.1

-

180

10

9

2850

40×40

420×180×245

6.5

FCP-370

0.37

0.5

2.7

-

190

11

9

2850

40×40

525×215×285

6.5

FCP-550

0.55

0.75

3.6

-

200

14

9

2850

40×40

525×215×285

8

FCP-750

0.75

1

4.5

-

220

16

9

2850

40×40

525×215×285

10

FCP-1100

1.1

1.5

7.5

2.7

300

17

9

2850

50×40

590×225×290

16

FCP-1500

1.5

2

9.6

3.5

430

18

9

2850

50×50

590×225×290

18

FCP-2200

2.2

3

13.5

5

500

20

9

2850

50×50

610×225×290

21



FCP 2.jpgFCP data 2.jpg
