FH series 6 digits LED digital counter meter(MYPIN)
1, Widely used in Machinery/Electronic/Food/Package industry for counting, length, batch counting.
Receive signals from various switches/encoder for height, position, angle, etc..
measurement. Count no. /length value presetable. When for batch.
counting, Accumulate counte value/current batch count value & batch no. will displays at the
same time. Several outputs settable.
2, Accuracy: 0.01%, dual line 4/6/8 digit display. Resolution 0.0001. Photo isolation for input &
3, Input: 4 modes(add counting, substract counting, add & substract counting, phase
difference input) for various waveform pulse/raster/ proximity switch/
photoelectrical switch/contact switch/encoder (PNP/NPN), etc..
4, Output: 8 modes—reset until counting to delay time, Reset one c.ount to presetn value, keep
count value and output & hand reset, count to output & continue counting, high alarm value
output, low alarm value output).
Up to 3 alarm outputs with various control modes for selection.
5, Auxiliary power: 12V/24V/30mA, All datas are keeped by FLASH EEPROM in case of power-
6, Communication: standard RS232/RS485 interface, MODBUS RTU protocol.
realize remote control by direct connection with PC/PLC/other equipment..

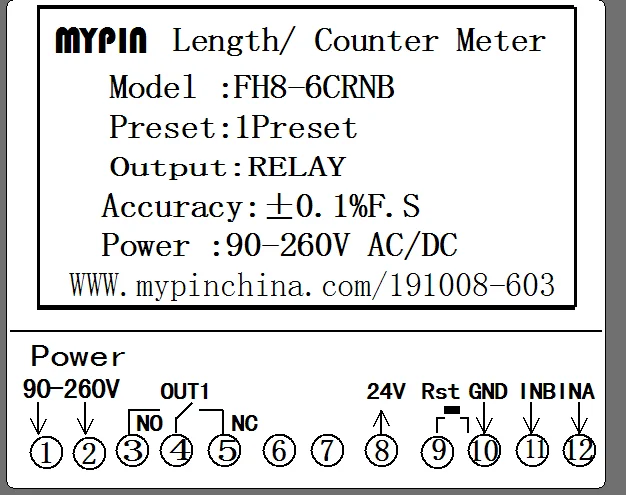

Model: FH8-6CRNB Counter /Length Meter
input: switch ,pulse ,encoder.square ware .sine ware etc,
output: 1-relay,contact: 250VAC/3A or 30VDC/3A consistive load
power supply: 90-260Vac/dc
size: W 96* H 48* L80mm
Weight: < 0.28Kg
1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.
2.Items are usually shipped within 3 to 15 business days after payment has been received, which
according to the quantities.
3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients
