FMUSER 4 in 1 H.264 High Definition HD IPTV Live Streaming Video Encoder Video Converter Adapter with wifi-FBE204-H.264

Feedback Ratings
$789.00 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FMUSER
Model Number:
FBE204-H.264
Supporting protocol:
HLS / RTSP / HTTP / UDP / RTMP protocol
Video Compression:
H.264,Main Profile / High Profile / Baseline Profile
Audio Compression:
MP3 & AAC-LC/HE audio compression
Streaming resolution:
720, 720P, 1080P
Video Inputs:
4 x H D M I 1.3a version
Video pre-processing:
Noise reduction, Sharpen, Filtering
Output:
RJ45, 100/1000M Full
DC Power input:
12V or 5V by Micro-USB
Package Dimension:
540mm(W)*390mm(D)*145mm(H)
Package Weight:
4.8KG

Packaging & Delivery

Selling Units:
Single item
Single package size:
54X39X14.5 cm
Single gross weight:
4.8 kg
Package Type:
Paper box
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Description

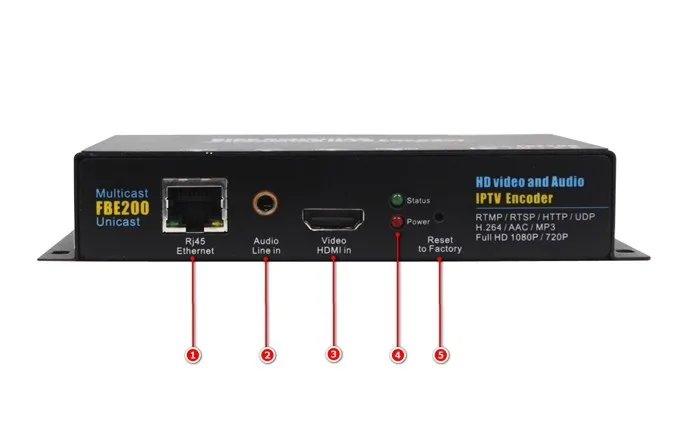

1. RJ45 100M / 1000M IP Output
2. 3.5mm Stereo Audio Line in
3. H D M I Video in
4. Status LED / Power LED
5. Reset to Factory

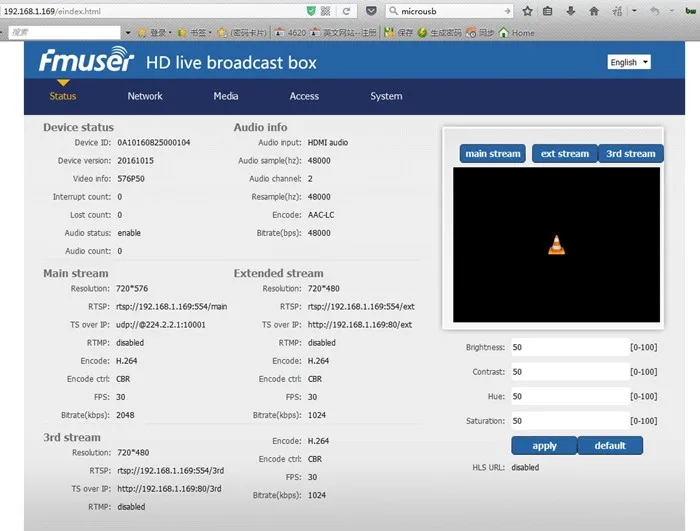

Network management system is applied to control and manage parameters and setting, etc. It centralizes encoders through network easy.

Overview


In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms. The 4IN1 FMUSER FBE204 encoder is designed to address the increasing demand for video delivery to internet and mobile devices.

FMUSER FBE204 is high integration and cost-effective design make this device widely used in variety of digital distribution systems, such as construction of professional broadcast level IPTV&OTT system, hospitality IPTV application, Remote HD multi-window video conference, Remote HD education and Remote HD medical treatment ,Streaming Live Broadcast etc.

The 4IN1 FMUSER FBE204 H.264 IPTV Streaming Encoder supports 4 audio and 4 H D M I video collection by input simultaneously for option. You can choose to use the H D M I or 3.5mm stereo for audio line in.

Each channel of H D M I input supports 3 IP streams output with two different resolutions(one higher resolution, one lower resolution) for adaptive bitrate , each group of IP stream supports two kinds of IP protocols output (RTSP / HTTP/ Mulitcast / Unicast / Rtmp ).

4IN1 FMUSER FBE204 IPTV Encoder can deliver H.264 encoding video streams with more channels of independent IP output to various servers for IPTV & OTT application, such as Adobe Flash Server(FMS), Wowza Media Server, Windows Media Server , RED5,and some other servers based on UDP / RTSP / RTMP / HTTP / ONVIF protocols. Of course it support VLC decode.

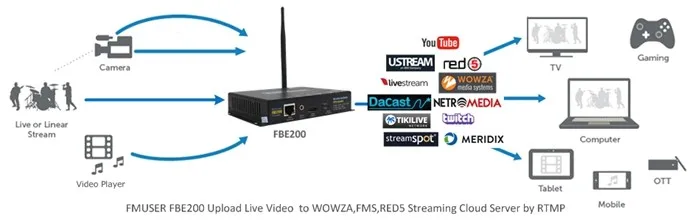

FBE204 is compatible with most of streaming platforms, Live Broadcast On Any Streaming Service like WOWZA,FMS,Red5,Youtube Live, Facebook live, Ustream, Livestream, Twitch, Meridix, Streamspot, Dacast, Tikilive, Netrmedia...

We also have SDI versions, 1way or 16 in 1 encoders in professional 19' 3U Rack chassis, please feel free to contact us if you need them.

If you want to promote your own brand, we can also do OEM for you.

**We reserve the right to upgrade the appearance or functions of the product without extra notice.

Features


--Video Compression support H.264 / Main Profile / High Profile / Baseline Profile
--Audio Compression support MP3 & AAC-LC/HE audio compression
--Bitrate CBR / VBR16Kbit/s--12Mbit/s
--Streaming resolution up to 720, 720P, 1080P
--GOP frame rate settings supported
--insertable of logo and Scroll Caption(OSD)
--Adjustable of audio gain
--Capable of image parameter settings
--Each Program Support up to 3 TS over IP stream out
--Switchable of audio output mode: Left, right and Stereo
--Configurable of Multi-rate, Multi-resolution, Multi-protocol
--Providing HLS / RTSP / HTTP / UDP / RTMP protocol
--Support ffmpeg
--Support ONVIF Network Video Protocol
--Web-based management
--Full-duplex mode 1000M / 100M
--Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications
--Support multiple equipments display at the same time on one computer
--Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode.

Applications

--Digital TV Broadcasting System
--RJ45 Digital TV Programs Transmission
--Hotel TV System
--Head-end system of Digital TV branch network
--CATV Broadcasting system
--Edge side of Digital TV backbone network
--IPTV and OTT headend system

IP output over RTP / RTSP / RTMP / HTTP -- Transfer through internet or LAN

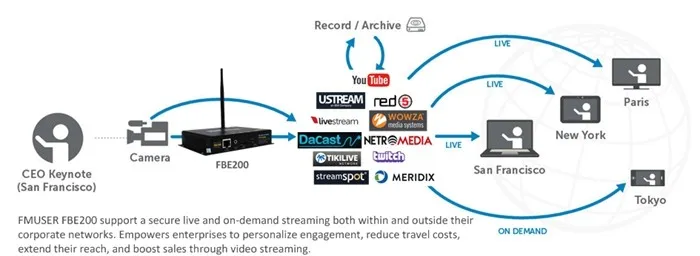

FMUSER FBE200 support a secure live and on-demand streaming both within and outside their corporate networks. Empowers enterprises to personalize engagement, reduce travel costs, extend their reach, and boost sales through video streaming.

Broadcast Streaming Solutions, Powering Leading-Edge Broadcasting.
Deliver traditional broadcast channels over the top while also creating leading-edge broadcasting channels to power mobile journalism and citizen participation.

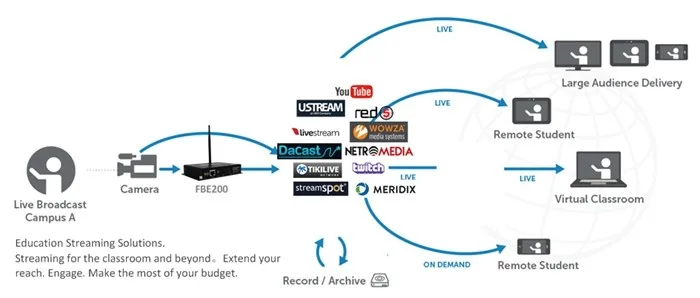

Education Streaming Solutions.
Streaming for the classroom and beyond.Extend your reach. Engage. Make the most of your budget.

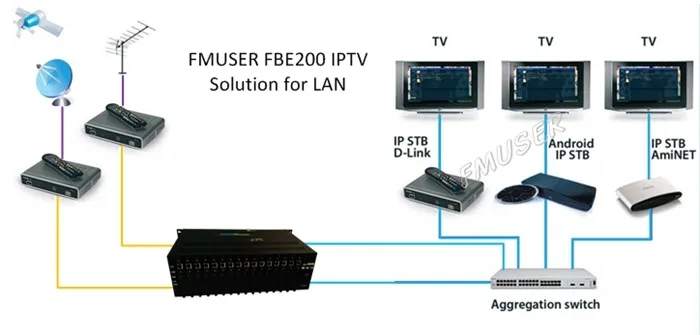

IP output over UDP (Unicast / Multicast) -- Transfer trough LAN

Specifications

*VIDEO Encoding

--Video Compression: H.264 / AVC or HEVC High Profile Level 1.5

--Video Inputs: 4 x H D M I 1.3a version (support HDCP protocol, or 4 x SDI for option)

--Resolution:

-----H D M I / SDI main stream:

1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480,

720x404, 704x576, 640x480, 640x360, auto

-----H D M I / SDI sub-stream:

1280x720, 800x450, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480,

640x300, 352x288, 320x240, 320x180, auto

--Bit-rate: 16kbps~12Mbps, CBR/VBR

--Video pre-processing: Noise reduction, Sharpen, Filtering


*AUDIO Encoding

--Audio Inputs: 4 x 3.5mm Stereo Audio input

--Audio compression: AAC, MP3

--Sampling rate: Adaptive, selectable of re-sample.

--Sampling accuracy: 24-bit

--Bit Rate: 48k,64k,96k,128k,160k,192k,256k

--Re-sample:32k, 44.1k


*IP Encapsulation output

--Transport protocol: TS over IP output, RTSP / HTTP / UDP or RTMP protocol

--For each H D M I (SDI) to IP output (HTTP / RTSP / UDP / RTMP protocol) 3 group out with higher resolution(up to 1080P) for large screen application.

--Output :4 x RJ45 Ethernet interface, 100/1000M Full


*GENERAL OPTION

--Power supply Voltage: 110VAC±10%, 50/60Hz; 220VAC±10%, 50/60Hz

--DC Power input: 12V or 5V by Micro-USB

--Consumption: less than 40W

--Operating temperature: 0--45°C (operation), -20--80°C (storage)

--Dimensions: 480mm(W)*250mm(D)*45mm(H)

--Package Dimensions: 540mm(W)*390mm(D)*145mm(H)

--Package Weight: 4.8KG

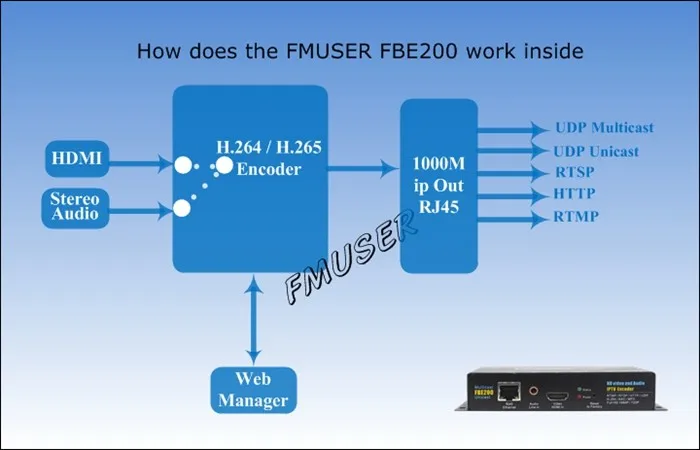

Schematic Diagram
Package Includes

1pcs FMUSER FBE204 IPTV streaming encoder 4 X H D M I in

4pcs H D M I Cable

4pcs 3.5mm to RCA female (L-R)

1pcs 110V / 220V Power Cable

1pcs User Manual

Our Company

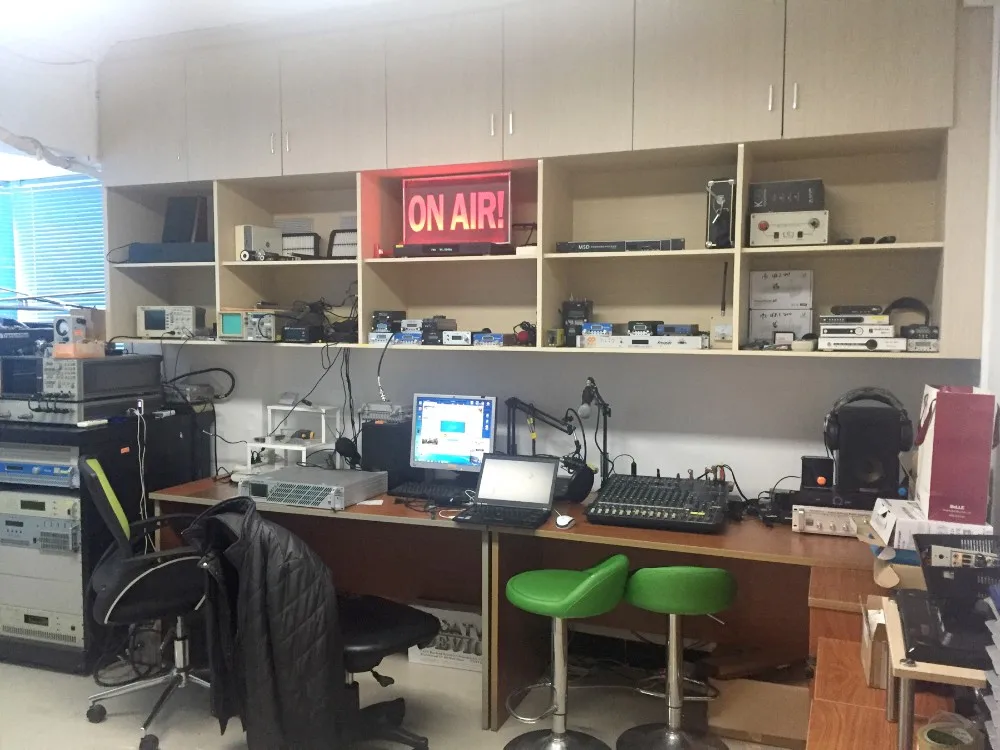

FMUSER International Group INC. is a modern high-tech manufacturer specializing in designing, engineering, manufacturing, and marketing of high quality FM/TV transmitters and related accessories. We are one of the biggest suppliers of low power transmitters in China.


With over 6 years of experience in the field of FM/TV broadcasting, we won great reputation by our high quality products at very competitive price and excellent service. We've done business with customers from over 100 countries and regions all over the world. Currently our biggest market is in American countries, European countries and African countries. Meanwhile we look forward to expand our business and would like to have distributors in other areas too.

We manufacture FM transmitters, Analog/Digital TV transmitters, which are used for FM/TV stations. Our regular products ranges from 0.2w~10kw, we do OEM for customers beyond this range. Except from transmitters, we also provide other related products for FM/TV broadcasting stations, such as antenna, cable, connector, power splitter, audio processor, console(mixer), microphone, monitor speaker and so on.

We also provide project solutions for customers. We have worked with customers in projects like tunnel transmitting, city/country radio station building, animal monitoring, stadium broadcasting, multi-language conferences. We have excellent R&D team and project management team, with which we believe we are the best choice for you.

Payment & Delivery

We accept payment through many methods, paypal, T/T, western union, Money Gram, Alipay, cash etc.
We also work with multiple shipping companies to deliver goods to our customers at the earliest time.
