FMUSER FBE200 H.264 LAN HD IPTV Video Encoder Support HLS M3U8 RTSP RTMPS UDP ONVIF for Youtube Facebook Wowza Live Streaming

Feedback Ratings
$158.00 / Piece | 1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FMUSER
Model Number:
FBE200-H.264-LAN
Supporting protocol:
HLS / RTSP / HTTP / UDP / RTMP / RTMPS protocol
Video Compression:
H.264, Main Profile / High Profile / Baseline Profile
Audio Compression:
MP3 & AAC-LC/HE audio compression
Streaming resolution:
720, 720P, 1080P
Video Inputs:
1 x H D M I 1.3a version (support HDCP protocol, or 1xSDI for option)
Video pre-processing:
Noise reduction, Sharpen, Filtering
Output:
RJ45, 100/1000M Full
DC Power input:
12V or 5V by Micro-USB
Package Dimension:
165mm(W)x112mm(D)x70mm(H)
Package Weight:
0.65KG

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X12X7 cm
Single gross weight:
0.7 kg
Package Type:
Paper box
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 3 To be negotiated



FMUSER H.264 HD IPTV Encoder LAN Interface Support HLS M3U8 ffmpeg VLC, HTTP RTSP RTMP RTMPS UDP ONVIF for Youtube, Facebook, Wowza Live Streaming

FBE200-H.264-LAN

Overview

In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms. The FMUSER FBE200 encoder is designed to address the increasing demand for video delivery to internet and mobile devices.



FMUSER FBE200 is high integration and cost-effective design make this device widely used in variety of digital distribution systems, such as construction of professional broadcast level IPTV&OTT system, hospitality IPTV application, Remote HD multi-window video conference, Remote HD education and Remote HD medical treatment ,Streaming Live Broadcast etc.



The FMUSER FBE200 H.264 IPTV Streaming Encoder supports 1 audio and HD video collection by input simultaneously for option. You can choose to use the HD or 3.5mm stereo for audio line in.



Each channel of HD input supports 3 IP streams output with two different resolutions(one higher resolution, one lower resolution) for adaptive bitrate , each group of IP stream supports two kinds of IP protocols output (RTSP / HTTP/ Mulitcast / Unicast / RTMP / RTMPS).



FMUSER FBE200 IPTV Encoder can deliver H.264 encoding video streams with more channels of independent IP output to various servers for IPTV & OTT application, such as Adobe Flash Server(FMS), Wowza Media Server, Windows Media Server, RED5,and some other servers based on UDP / RTSP / RTMP / RTMPS / HTTP / ONVIF protocols. Of course it support VLC decode.



FBE200 is compatible with most of streaming platforms, Live Broadcast On Any Streaming Service like WOWZA, FMS, Red5, Youtube Live, Facebook live, Ustream, Livestream, Twitch, Meridix, Streamspot, Dacast, Tikilive, Netrmedia...



We also have SDI versions, 4 in 1 or 16 in 1 encoders in professional 19' Rack chassis, please feel free to contact us if you need them.



If you want to promote your own brand, we can also do OEM for you.



**We reserve the right to upgrade the appearance or functions of the product without extra notice.





Features
--Video Compression support H.264, Main Profile / High Profile / Baseline Profile
--Audio Compression support MP3 & AAC-LC/HE audio compression
--Bitrate CBR / VBR16Kbit/s--12Mbit/s
--Streaming resolution up to 720, 720P, 1080P
--GOP frame rate settings supported
--Insertable of logo and Scroll Caption(OSD)
--Adjustable of audio gain
--Capable of image parameter settings
--Support up to 3 stream at a same time
--Switchable of audio output mode: Left, right and Stereo
--Configurable of Multi-rate, Multi-resolution, Multi-protocol

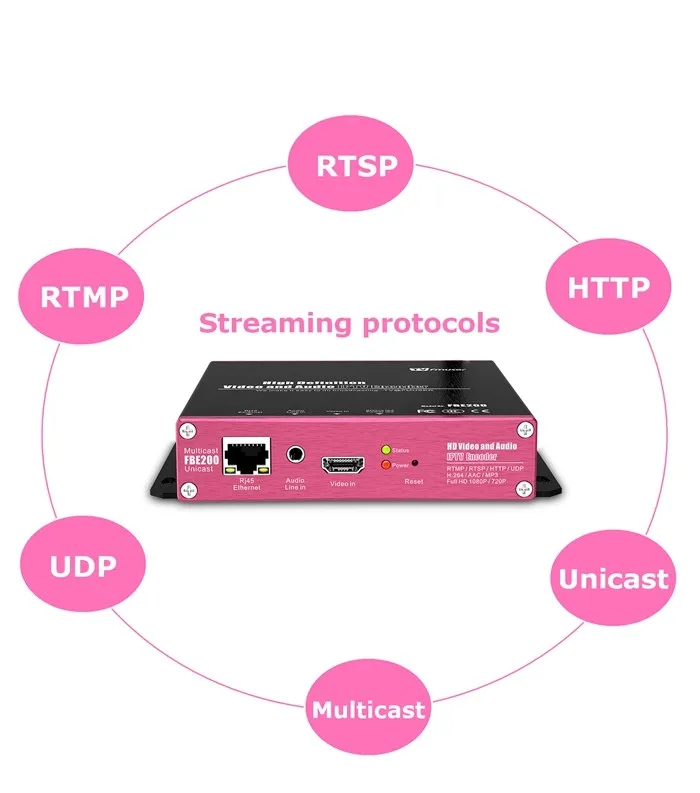

--Providing  RTSP / HTTP / UDP / RTMP / RTMPS protocol
--Support ffmpeg
--Support ONVIF Network Video Protocol
--Web-based management
--Full-duplex mode 1000M / 100M
--Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications
--Support multiple equipments display at the same time on one computer

--Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode.



Applications
--Digital TV Broadcasting System
--RJ45 Digital TV Programs Transmission
--Hotel TV System
--Head-end system of Digital TV branch network
--CATV Broadcasting system
--Edge side of Digital TV backbone network
--IPTV and OTT headend system
--Digital Signage
--Video Conference
--Replace HD Video Capture Card
--Hotel TV system
--Streaming Live Broadcast
--Teaching/Campus Broadcast
--Recording System

--NVR,Net Video Recorder







IP output over RTP / RTSP / RTMP / RTMPS / HTTP  -- Transfer through internet or LAN






FMUSER FBE200 support a secure live and on-demand streaming both within and outside their corporate networks. Empowers enterprises to personalize engagement, reduce travel costs, extend their reach, and boost sales through video streaming.







Broadcast Streaming Solutions, Powering Leading-Edge Broadcasting.

Deliver traditional broadcast channels over the top while also creating leading-edge broadcasting channels to power mobile journalism and citizen participation.







Education Streaming Solutions. Streaming for the classroom and beyond. Extend your reach. Engage. Make the most of your budget.






IP output over UDP (Unicast / Multicast)  --  Transfer trough LAN





Other Applications:














Schematic diagram









Technical Specifications



*VIDEO Encoding
--Video Compression: H.264 / AVC / High Profile Level 1.5
--Video Inputs: 1 x HD 1.3a version (support HDCP protocol, or 1 x SDI for option)
--Resolution:
-----HD / SDI main stream:
1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480,
720x404, 704x576, 640x480, 640x360, auto
-----HD / SDI sub-stream:
1280x720, 800x450, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480,
640x300, 352x288, 320x240, 320x180, auto

--Bit-rate: 16kbps~12Mbps, CBR/VBR

--Video pre-processing: Noise reduction, Sharpen, Filtering

--Video encoding: supports HLS M3U8 ffmpeg VLC



*AUDIO Encoding
--Audio compression: AAC, MP3
--Sampling rate: Adaptive, selectable of re-sample.
--Sampling accuracy: 24-bit
--Bit Rate: 48k, 64k, 96k, 128k, 160k, 192k, 256k

--Re-sample: 32k, 44.1k



*IP Encapsulation output
--Transport protocol: TS over IP output, RTSP / HTTP / UDP or RTMP / RTMPS protocol
--For each HD (SDI) to IP output (HTTP / RTSP / UDP / RTMP / RTMPS protocol) 3 group out with higher resolution(up to 1080P) for large screen application.
--Output : RJ45 Ethernet interface, 100/1000M Full



GENERAL OPTION
--Power supply Voltage: 110VAC±10%, 50/60Hz; 220VAC±10%, 50/60Hz
--DC Power input: 12V or 5V by Micro-USB
--Consumption: less than 40W
--Operating temperature: 0--45°C (operation), -20--80°C (storage)
--Dimensions: 146mm(W)x140mm(D)x27mm(H)
--Package Dimensions: 165mm(W)x112mm(D)x70mm(H)

--Package Weight: 0.65KG





Panel Introduction:

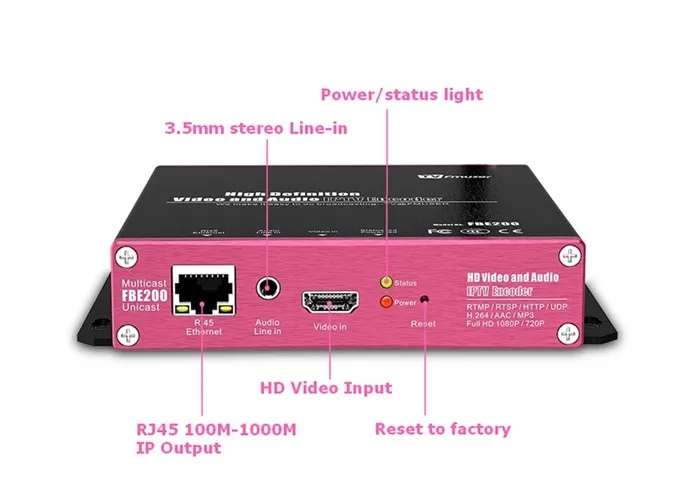

Front Panel

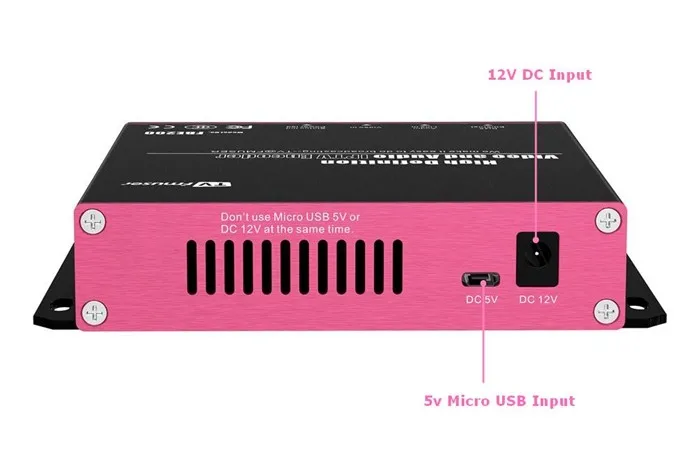

Back Panel



Network Management System



Network management system is applied to control and manage parameters and setting, etc. It centralizes encoders through network easy.









About Latency/Delay, we have done a test:

Computer #1 ouputs HD to Fmuser FBE200 encoder.

Computer#2 uses VLC to play the video from encoder. VLC sets 300ms of cache.
Latency results under different protocols:
RTSP :240ms -250ms
UDP:240ms-250ms
HTTP: 2000ms-3000ms
RTMP/RTMPS: depends on the cloud platform server ,sometime it is over 1-2 minutes

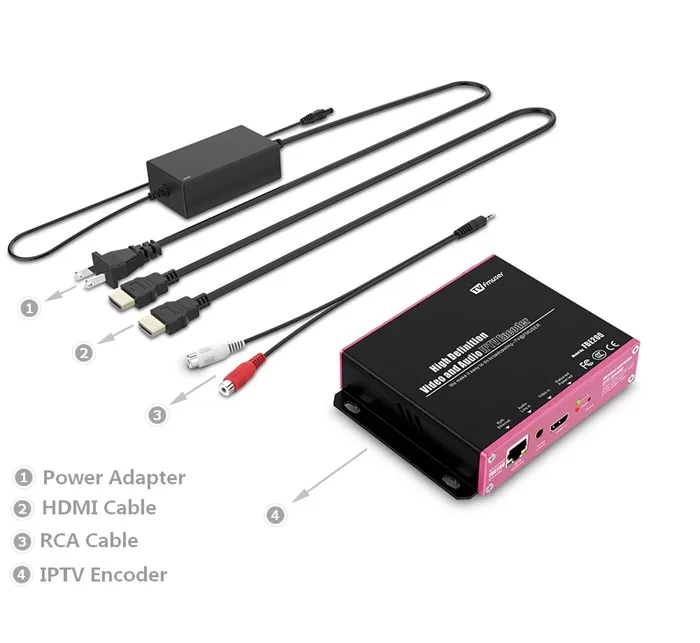

Packing List

1pcs  FBE200  IPTV streaming encoder HD in
1pcs                HD Cable
1pcs                3.5mm to RCA female (L-R)
1pcs               110V / 220V to 12V Power supply
1pcs               User Manual
