FMUSER H.264 H.265 HD HEVC IPTV Encoder Support HLS M3U8 HTTP RTSP RTMPS UDP ONVIF for Youtube Facebook Wowza Live Streaming

Feedback Ratings
$262.00 / Piece | 1 Piece (Min. Order)
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
Supporting protocol:
HLS / RTSP / HTTP / UDP / RTMP / RTMPS protocol
Video Compression:
H.264 / H.265, Main Profile / High Profile / Baseline Profile
Audio Compression:
MP3 & AAC-LC/HE audio compression
Streaming resolution:
720, 720P, 1080P
Video Inputs:
1 x H D M I 1.3a version (support HDCP protocol, or 1xSDI for option)
Video pre-processing:
Noise reduction, Sharpen, Filtering
RJ45, 100/1000M Full
DC Power input:
12V or 5V by Micro-USB
Package Dimension:
Package Weight:

Packaging & Delivery

Selling Units:
Single item
Single package size:
17X12X7 cm
Single gross weight:
0.7 kg
Package Type:
Paper box
Lead Time :
Quantity(Piece) 1 - 10 >10
Est. Time(days) 3 To be negotiated


FMUSER H.264/H.265 HD HEVC IPTV Video Encoder Support WiFi, HLS M3U8 ffmpeg VLC, HTTP RTSP RTMP RTMPS UDP ONVIF for Youtube, Facebook, Wowza Live Streaming


In a fast changing and highly competitive TV market, operators and TV service providers must deliver access to content on all screens, anytime, anywhere, while also reducing complexity and driving efficiency across all platforms. The FMUSER FBE200 encoder is designed to address the increasing demand for video delivery to internet and mobile devices.


FMUSER FBE200 is high integration and cost-effective design make this device widely used in variety of digital distribution systems, such as construction of professional broadcast level IPTV&OTT system, hospitality IPTV application, Remote HD multi-window video conference, Remote HD education and Remote HD medical treatment, Streaming Live Broadcast etc.


The FMUSER FBE200 H.264 /H.265 IPTV Streaming Encoder supports 1 audio and HD video collection by input simultaneously for option. You can choose to use the HD or 3.5mm stereo for audio line in.


Each channel of HD input supports 3 IP streams output with two different resolutions(one higher resolution, one lower resolution) for adaptive bitrate , each group of IP stream supports two kinds of IP protocols output (RTSP / HTTP/ Mulitcast / Unicast / RTMP / RTMPS).


FMUSER FBE200 IPTV Encoder can deliver H.264/ H.265/ encoding video streams with more channels of independent IP output to various servers for IPTV & OTT application, such as Adobe Flash Server(FMS), Wowza Media Server, Windows Media Server, RED5 and some other servers based on UDP / RTSP / RTMP / RTMPS / HTTP / HLS / ONVIF protocols. It also supports VLC decode.


FBE200 is compatible with most of streaming platforms, Live Broadcast On Any Streaming Service like WOWZA, FMS, Red5, Youtube Live, Facebook live, Ustream, Livestream, Twitch, Meridix, Streamspot, Dacast, Tikilive, Netrmedia...


We also have SDI versions, 4 in 1 or 16 in 1 encoders in professional 19' Rack chassis, please feel free to contact us if you need them.


If you want to promote your own brand, we can also do OEM for you.


**We reserve the right to upgrade the appearance or functions of the product without extra notice.




--Video Compression support H.264 / H.265, Main Profile / High Profile / Baseline Profile
--Audio Compression support MP3 & AAC-LC/HE audio compression
--Bitrate CBR / VBR16Kbit/s--12Mbit/s
--Streaming resolution up to 720, 720P, 1080P
--GOP frame rate settings supported
--Insertable of logo and Scroll Caption(OSD)
--Adjustable of audio gain
--Capable of image parameter settings
--Support up to 3 TS over IP stream out
--Switchable of audio output mode: Left, right and Stereo
--Configurable of Multi-rate, Multi-resolution, Multi-protocol
--Providing M3U8 HLS / RTSP / HTTP / UDP / RTMP / RTMPS protocol
--Support  ffmpeg , HLS
--Support ONVIF Network Video Protocol
--Web-based management
--Full-duplex mode 1000M / 100M
--Support wifi connection for RTMP / RTMPS upload
--Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, Mobile/ web, Set top box applications
--Support multiple equipments display at the same time on one computer

--Support Microsoft standard flow driven architecture (WDM architecture), support Microsoft WMENCODER, compatible with Windows VFW software architecture and WDM mode.


--Digital TV Broadcasting System
--RJ45 Digital TV Programs Transmission
--Hotel TV System
--Head-end system of Digital TV branch network
--CATV Broadcasting system
--Edge side of Digital TV backbone network

--IPTV and OTT headend system




IP output over RTP / RTSP / RTMP / RTMPS / HTTP / HLS  -- Transfer through internet or LAN



FMUSER FBE200 support a secure live and on-demand streaming both within and outside their corporate networks. Empowers enterprises to personalize engagement, reduce travel costs, extend their reach, and boost sales through video streaming.




Broadcast Streaming Solutions, Powering Leading-Edge Broadcasting. Deliver traditional broadcast channels over the top while also creating leading-edge broadcasting channels to power mobile journalism and citizen participation.




Education Streaming Solutions.Streaming for the classroom and beyond. Extend your reach. Engage. Make the most of your budget.




IP output over UDP (Unicast / Multicast)  --  Transfer trough LAN



Other Applications:





Schematic diagram




Technical Specifications


*VIDEO Encoding
--Video Compression: H.264 / AVC or H.265 / HEVC High Profile Level 1.5
--Video Inputs: 1 x HD 1.3a version (support HDCP protocol, or 1 x SDI for option)
-----HD / SDI main stream:
1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480,
720x404, 704x576, 640x480, 640x360, auto
-----HD / SDI sub-stream:
1280x720, 800x450, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480,
640x300, 352x288, 320x240, 320x180, auto
--Bit-rate: 16kbps~12Mbps, CBR/VBR

--Video pre-processing: Noise reduction, Sharpen, Filtering

--Video encoding: supports HLS M3U8 ffmpeg VLC


*AUDIO Encoding
--Audio compression: AAC, MP3
--Sampling rate: Adaptive, selectable of re-sample.
--Sampling accuracy: 24-bit
--Bit Rate: 48k, 64k, 96k, 128k, 160k, 192k, 256k

--Re-sample: 32k, 44.1k


*IP Encapsulation output
--Transport protocol: TS over IP output, RTSP / HTTP / UDP or RTMP / RTMPS protocol
--For each HD (SDI) to IP output (HTTP / RTSP / UDP / RTMP / RTMPS / HLS protocol) 3 group out with higher resolution(up to 1080P) for large screen application.
Output : RJ45 Ethernet interface, 100/1000M Full

--Power supply Voltage: 110VAC±10%, 50/60Hz; 220VAC±10%, 50/60Hz
--DC Power input: 12V or 5V by Micro-USB
--Consumption: less than 40W
--Operating temperature: 0--45°C (operation), -20--80°C (storage)
--Dimensions: 146mm(W)x140mm(D)x27mm(H)
--Package Dimensions: 165mm(W)x112mm(D)x70mm(H)
--Package Weight: 0.65KG

Panel Instruction:

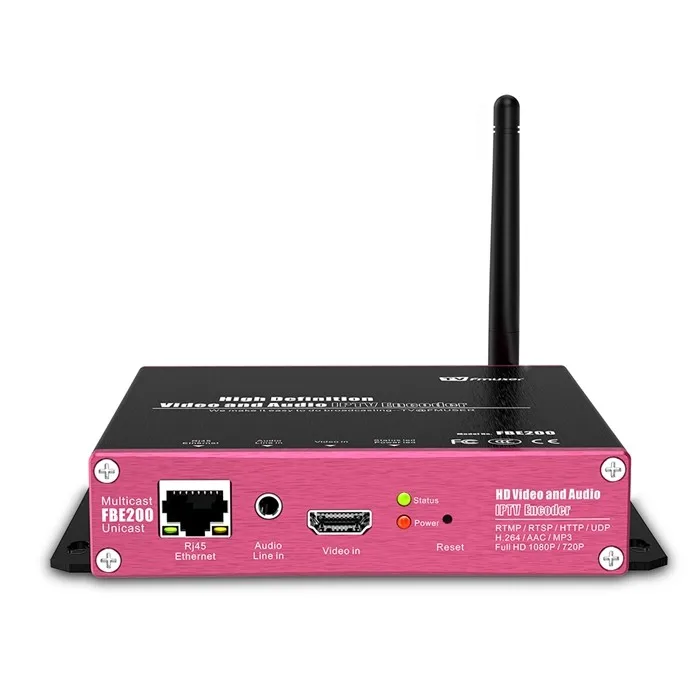

Front Panel:

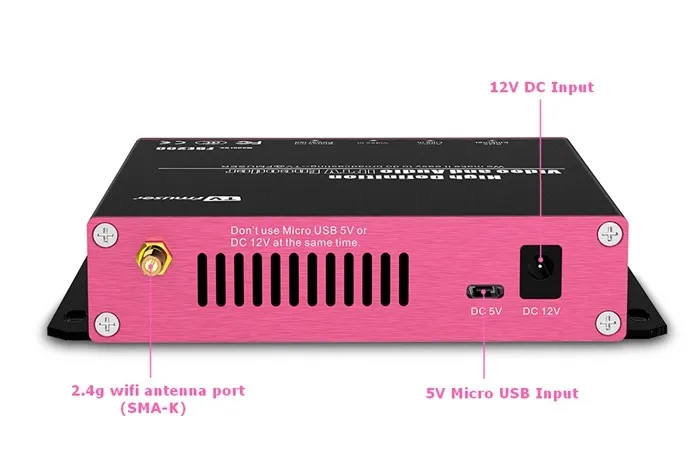

Back Panel:


Network Management System


Network management system is applied to control and manage parameters and setting, etc. It centralizes encoders through network easy.




About Latency/Delay, we have done a test:

Computer #1 ouputs HD to Fmuser FBE200 encoder.

Computer#2 uses VLC to play the video from encoder. VLC sets 300ms of cache.
Latency results under different protocols:
RTSP :240ms -250ms
HTTP: 2000ms-3000ms
RTMP/RTMPS: depends on the cloud platform server ,sometime it is over 1-2 minutes

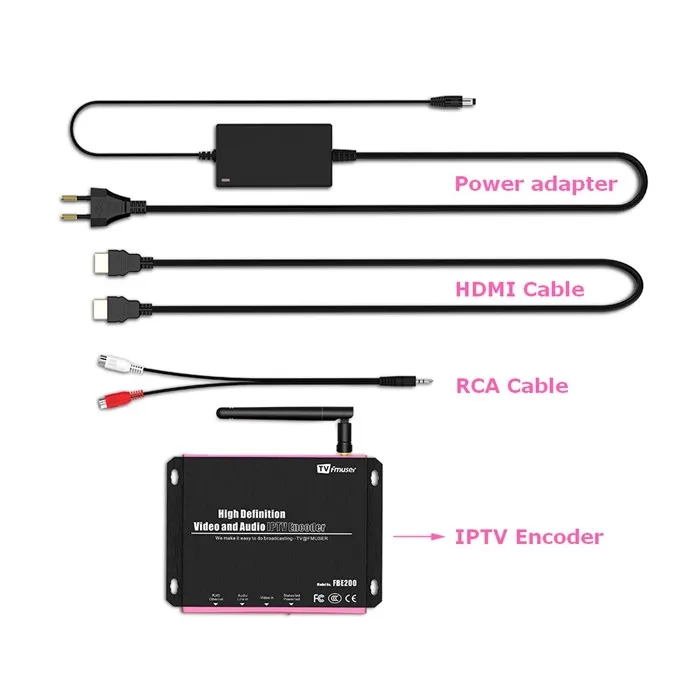

Packing List

1pcs  FBE200    H.265 IPTV streaming encoder HD in
1pcs                   Wifi antenna
1pcs                   HD Cable
1pcs                  3.5mm to RCA female (L-R)
1pcs                  110V / 220V to 12V Power supply
1pcs                  User Manual
