Product Description

Description

the full auto mesh welding line produces the welded mesh panel for wire diameter of 3-5mm, and the roll welded mesh for wire diameter of 2.5-5.0mm.

Working condition

Ambient air temperature range -5℃~ 45℃
Power voltage: within ±10% (electrical mesh frequency is rated value)
Power frequency: ≤±1% (electrical mesh voltage is rated value)
Working environment: all equipment should be put in a ventilated, rainproof, moisture proof and dust proof place and away from the violent vibration and bumpy occasions.

Item
Machine requirement
Remark




              Collector

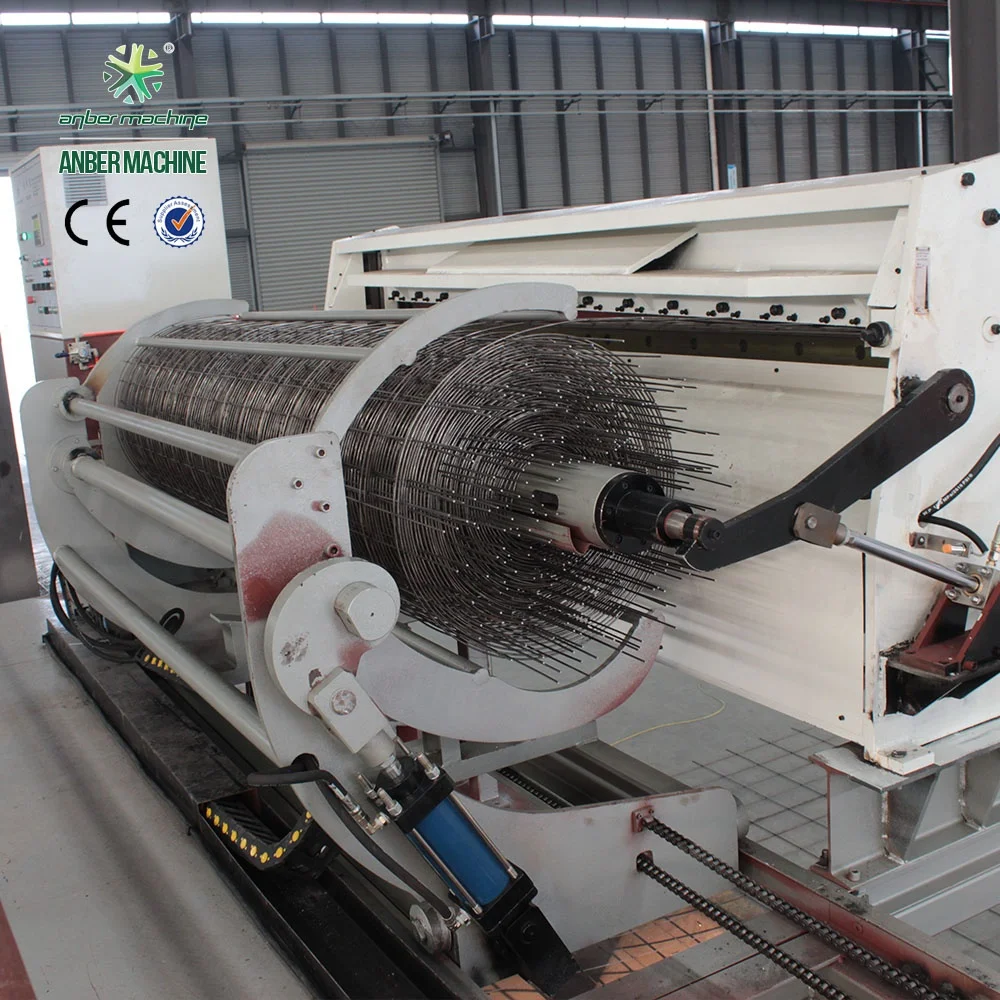

Welding mesh max length: (panel) 4000mm; (roll)20-50m
Max width:2500mm
Roller: 6-2.5m×2m
Roller: 140mm
Motor: 1.5w
Weight: 1.8T

Welding system
Transformer: 125KVA×4
Welding speed: 55-70 strokes/min
Line wire + cross wire: 3-5mm



Electricity
Voltage:380V
Frequency:50HZ
Outer transformer capacity: ≥350KVA
Distance from the transformer to welding machine: ≤50m
Cable 3×150mm²+1×75mm²

Water
Water quality: Closed loop with distilled water or tap water hardness of 450 or less

Water quality fluent transformer
Water consumption: 0.3Mpa, 3 m³/min
Water pump lift: 10m


Air
Air pressure: 0.5-0.7Mpa (air source: 0.8Mpa)
Air consumption: 2m³/min
Air pump: flow: ≥1m³/min, pressure: 0.8Mpa
Air tank capacity: ≥ 0.5m³

The full production line needs 3 workers, the pay-off needs one, check the material and the feeding the wires; electric cabinet needs one to response for the full production line, one to unload the welded mesh.

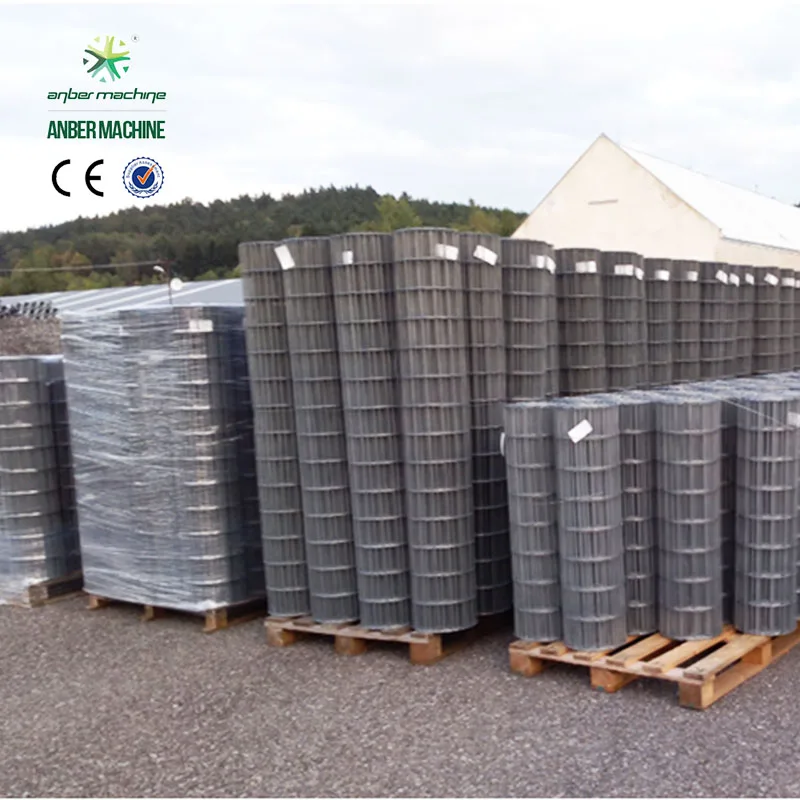

Finished product

Details about it

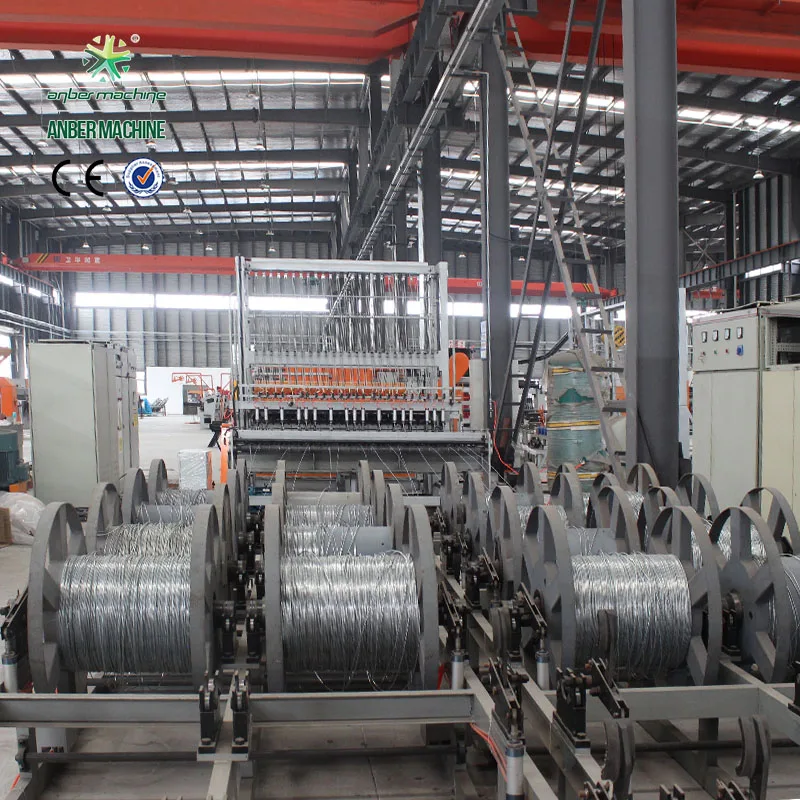

1. Spooler wire pay-off

Pay off system is consisted of seat, pay-off axle seat and pay off shaft. There are 24 pay-offs. Pay off system is used to decoil the line wire coil and has function of rotation outlet. It is working once aiming pony roll inside hole to pay off system.

Pay off (ID*OD): 425×800mm
Loading weight:160kg.
Machine size: L×W×H=6000 mm ×4000 mm×1105mm
Weight: 2375Kg×2 = 4750kg

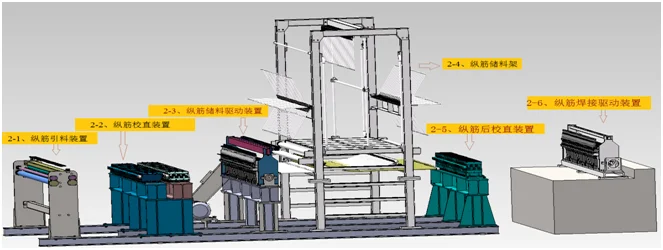

2. Line wire straightening and accumulator





2.1 Wire assembling device

The wire assembling device is installed between the wire-pay off and the straightening device. There are two mainly function. The first is that vertical line pass the oblique straightening device in a moderate way,it is not easy to interfer each other easily.The second is that device is equipped with weak current alarm device that through power failure detection to determine whether the wire pay-off needs filing for outage detection.
Total equipment size: 2795 mm ×380 mm×1135mm;
Weight: 335Kg;

2.2 Straightening system


Straightening system is composed of front X-type straightening and back straightening system, used to straightening the line wires from the pay off. X-type straightening consists of 2 groups of total 48 vertical straightening seats. Horizontal straightening consists of 1 group of 17 horizontal straightening seats. Each straightening seat consists of 5 straightening wheels and each wheel has the function of adjusting down pressing volume. Each a group of 5 has function of whole tight pressing and release.
Overall size: L×W×H/ L×W×H = 2875×725×990mm/ 2875 ×450×1017mm
Weight: 880kg/590kg (total weight1470Kg)
Remark: use the same basement 125 I type steel.

2.3 Line wire feeding device

Line wire feeding device is composed of device I and device II. Device I is used for sending straightening line wire to buffing area of storage. Device II is used for sending line wire straightening to mesh welding machine. Line wire feeding device is composed of support, roller, shaft, pneumatic system. Cylinder system makes pressing wheel down and with roller on drive shaft together press wire tightly and transport forward. Transport motor adopts 7.5KW 4 grade general motor. By reducer, link wheel and drive shaft connects and ensure with the speed of feeding wire and come true synchronous control feeding. Feeding speed is 26.6m/min(adjustable).
Motor: 7.5kw, 1440rpm /4.4kw, 1500rpm (servo motor), three-phrase 380/50Hz.
Total size: L×W×H/ L×W×H = 3042×1187×1661 mm/ 3645×535×713 mm;
Weight: 1130kg/610kg (total weight 1740kg);

2.4 Accumulator

Because of line wire connection and welding discontinuity, the system is used for buffering and storage of line wire. Line wire storage uses big radius bend to buffer and send line wire synchronous average speed to welding machine. With the mode of double wire control, set-up or cut-off an electric circuit should be tested in a big circle setting electric shock device and depending on setting up or cutting off, judge if it need to be continued to feed material. Separation rod is made of stainless steel. It is composed of body frame, two sides, up, down separation materials racks.
Total size: L×W×H= 2880×2020×3075mm
Weight: 980kg

3. Cross wire feeding system

(cross wire from coil, for choose)

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

This part is mainly composed of the cross wire feeding device, 1st straightening device, accumulator, the guide bending seat and the cross wire two straightening equipment.

Name
Parameter

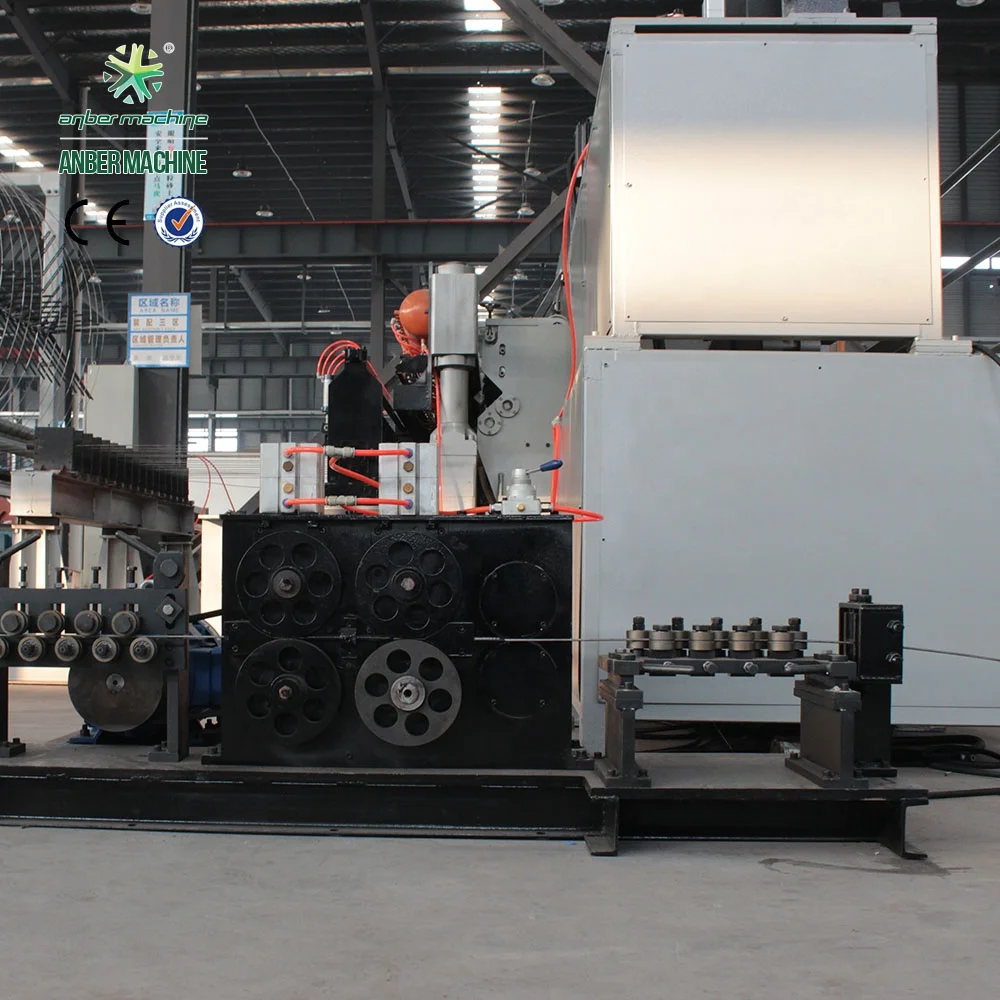

First straightening
Motor
7.5kw, 970rpm, 3 phase
Machine size (L×W×H)
1650×1170×744mm
Weight
500kg

Accumulator
L×W×H
5000×1780×2850mm
Weight
650kg

Second straightening system
Motor
4kw, 1440rpm, 3 phase
Machine size (L×W×H)
1952×900×2536mm
Weight
650kg

4. Cross wire feeding device

Cross wire feeding device mainly put pre-cut across wire of setting length to feeding device. The magnetism tube of feeding device rotates and feeds. Quantity of feeding depends on adjusting magnet, and then through the wire-blocking wheel rotates to feed to welding machine. It is composed of body frame, feeding device, magnetism tube feeding device, motor reducer drive system, pneumatic device, etc.
Motor: 0.37kw/1390rpm, 3 phase, 380V/50Hz;
Total size: L×W×H= 3170×2000×2130mm;
Weight:1200kg;

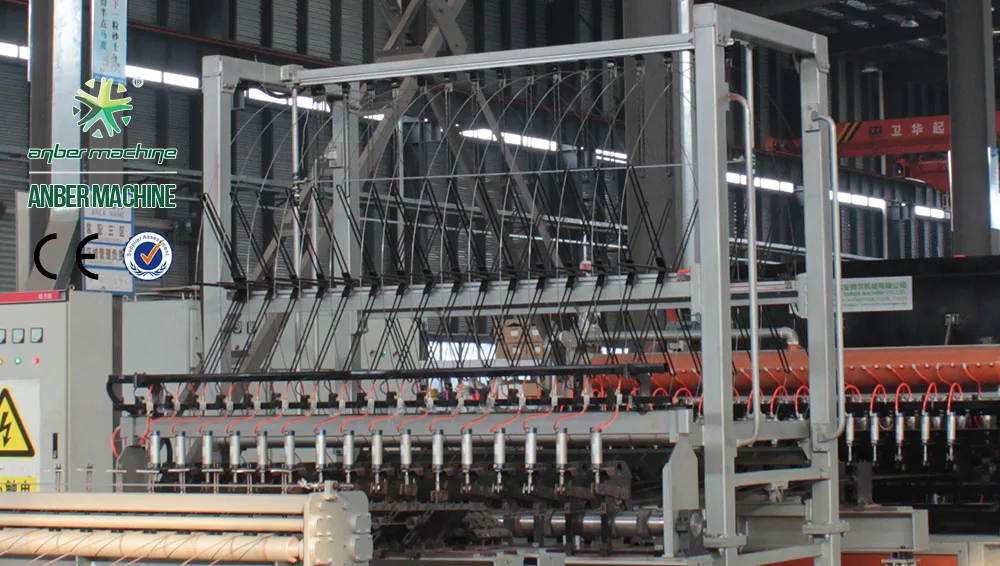

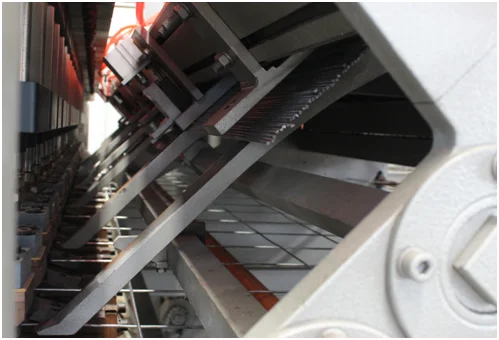

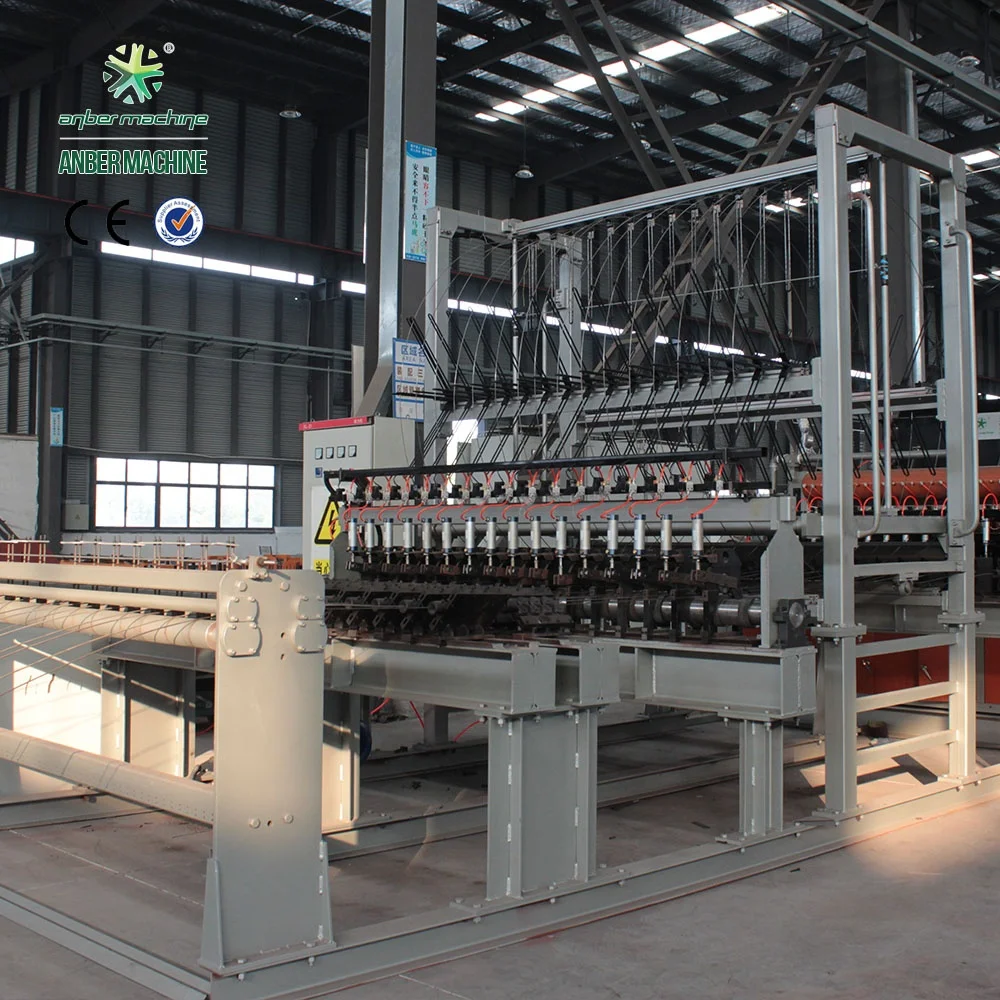

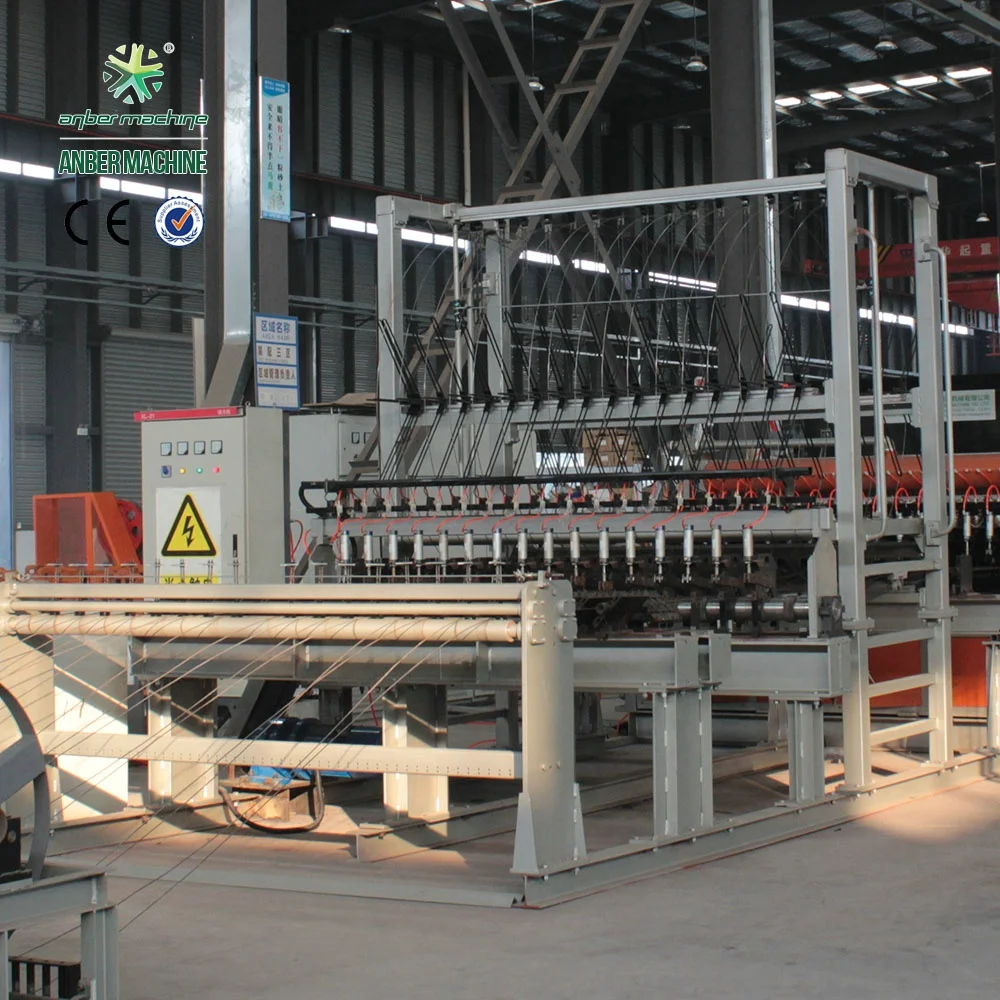

5. Mesh welding machine

The mesh welding machine use 6 A.C. transformers, the main transverse wire with electrodes on the conductive block into the transformer of the cathode, the electrode block installed on the motor seat mechanism and the positive phase of the transformer, the movable welding electrode contact line wire and cross to form the current loop and under the action of cylinder pressure, it will welded firmly. The machine contains the frame, left and right column, upper and lower electrode, welding transformer, pneumatic mechanism, device composition and so on.
Overall size: L×W×H= 3245×1300×2120mm
Weight: 3280kg

6. Mesh cutting machine

Shearing machine is used to cut welding mesh(setting length). It is mechanical shearing machine with cutting width 2500mm and composed of body, cutter frame,(V-shaped belt, gear wheel, eccentric gear, etc)drive system, back stop material device, press material device, support material(pneumatic system),safe protection, etc.

Mesh width: 2500mm;
Speed: 47n/min;
Motor: 7.5kw/1430pm, 3 phase, 380V/50Hz;
Total size: L×W×H= 3124×2100×1180mm;
Weight: 2100kg;

7. Mesh stacking

(Mesh blanking and convey equipment)
