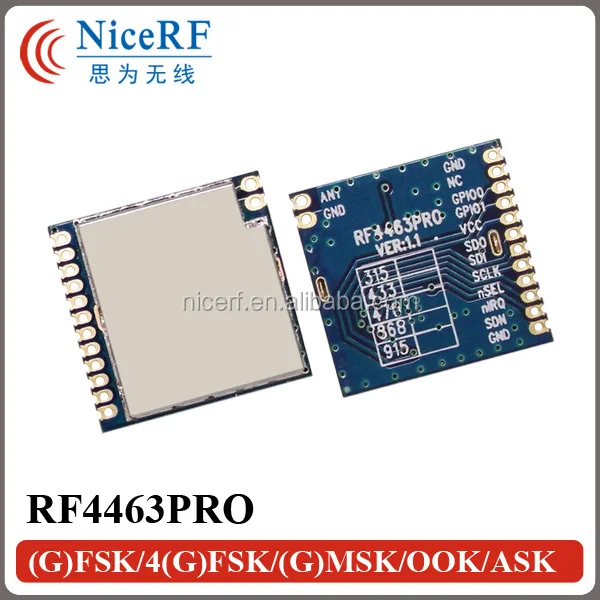

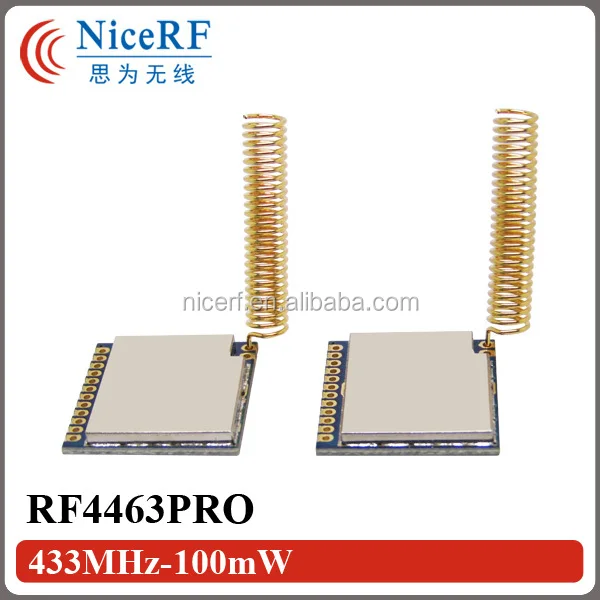

RF4463PRO FSK 1.4KM Long Range RF Transceiver 433/470/868/915MHz Low Cost RF Transceiver Module
RF4463PRO module adopts Silicon Lab Si4463 RF chip, which is a highly integrated wireless ISM band transceiver chip. Extremely high receive sensitivity (-121 dBm) and +20 dBm output power ensure that the covering of the range and improve the data link performance. Built-in antenna diversity and the hopping function can be used to aggressively improve the performance.
Features: *FrenquencyRange:433/470/868/915(Customizable 142-1050MHZ) *Sensitivity up to -126dBm *Maximum output power:20dBm *10mA@receiver status *Data transfer rate:0.1-1000kbps *(G)FSK, 4(G)FSK, (G)MSK OOK and ASK modulation mode *1.8-3.6 V power supply *Ultra-low consumption shutdown mode *Digital received signal strength indicator(RSSI) *Timed wake-up function *Antenna automatic matching and bi-direction switch control *Configurable packet structure *Preamable detection *64/128 bytes transmit and receive data register (FIFO) *Low power detection *Temperature sensor and 8 bits analog-to-digital converters *Working temperature range:-40 ~ +85°C *Integrated voltage regulator *Frequency hopping *Power-on reset function *Puilt-in crystal adjustment function
Applications: *Remote control *Remote meter reading *Home security alarm and remote keyless entry *Industrial control *Home automation remote sensing *Individual data records *Toys control *Sensor network *Tire pressure monitoring *Health monitoring *Wireless PC peripherals *Tag reading and writing
Working voltage range
High performance mode
Low power mode
Output power range
NiceRF Wireless Technology Co., Ltd is a technology leading company, who has combined RD, produce, QC, QA and sales. Our company focused on the application development of RF and sensor module, devoted to provide the most excellent performance RF and integrated digital sensor module to our customers. Meanwhile, we can customize the RF and sensor class ODM and OEM project as well.
a)Why module can not communicate properly?
1)Check the band, channel, rate, NET ID is set to the same;
2)The power connection error, the module is not working;
3)Module is enabled (CS high);
4)The antenna connection is not correct;
5)Module is damaged.
b)Why far transmission distance?
1)Power supply ripple is too large;
2)The antenna types do not match, or not properly installed;
3)The surrounding environment is harsh, strong interference sources;
4)Surrounding co-channel interference;
c)Why is receiving data correctly?
1)Improper parameter settings;
2)Module data interface is bad.
