GFG Series High Efficient Boiling Dryer

FOB Reference Price:Get Latest Price
US $1,000-100,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
20 Set/Sets per Month
Port:
shanghai
Overview
Quick Details
Condition:
New
Type:
Fluid Bed Drying Equipment
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YIQIU
Model Number:
GFG
Voltage:
220-440v
Power(W):
7.5-45kw
Dimension(L*W*H):
Variable
Weight:
100-10000KG
Certification:
ISO9001:2008 CE
Warranty:
ONE YEAR
After-sales Service Provided:
Engineers available to service machinery overseas
Stirring power:
0.55-1.5kw
Stirring speed:
11rpm
Packaging & Delivery
Packaging Details:
wooden case or as your request
Delivery Detail:
within40 days after receiving your advanced payment
Product Description

GFG Series High Efficient Boiling Dryer

WORKING PRINCIPLE:
The purified and heated air is introduced from the bottom by the draft fan and passed through the screen plate. The fluidization is formed through stirring and negative pressure in the working room. The moisture will be rapidly evaporated and exhausted so the material can be dried very fast.

FEATURES:
1. The structure of fluidization bed is round so it is smooth inside without cleaning dead corners.
2. There is a stirring device inside of the hopper which can avoid agglomeration of wet material.
3. The granule is discharged by tipping over the hopper. The discharged system can be designed as per customer       requirements.
4. The dryer is operated at the negative pressure and seal conditions. The air is filtered before enters to the dryer. Therefore, it is simple in operation and convenient in cleaning.
5. The drying speed is fast and the temperature is uniform. The drying time is normally 20~30 minutes for each batch.
APPLICATION:
This dryer is widely used for the following materials:
1. Damp granules and powder materials in pharmaceutical, foodstuff, feed, chemical, and agrochemical industries.
2. Granules made by extruder, oscillating granulator, and high speed mixing granulator.
3. Special large granule and small blocks that having adhesive property.
4. The material that changes volume during drying process; such as konjak.

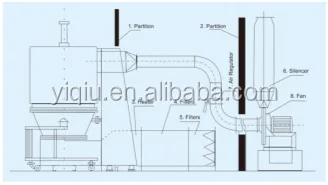

SCHEMATIC STRUCTURE:
1. Partition    3.Heater     4.Filters     5.Silencer      7.Air Regulator     8. Fan

TECHNICALPARAMETERS:

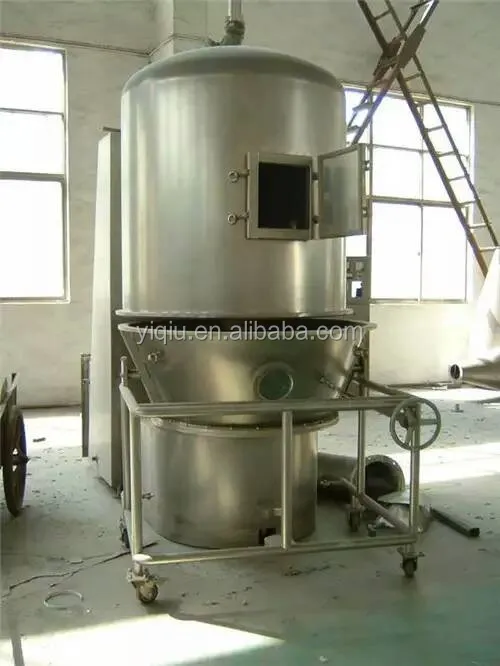

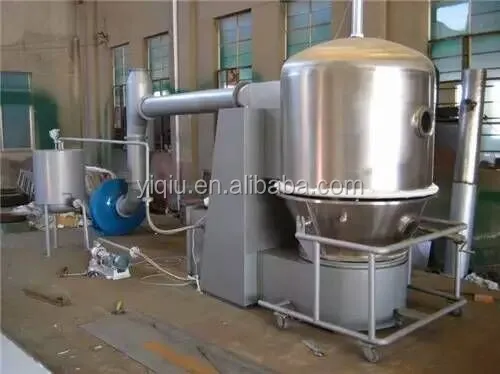

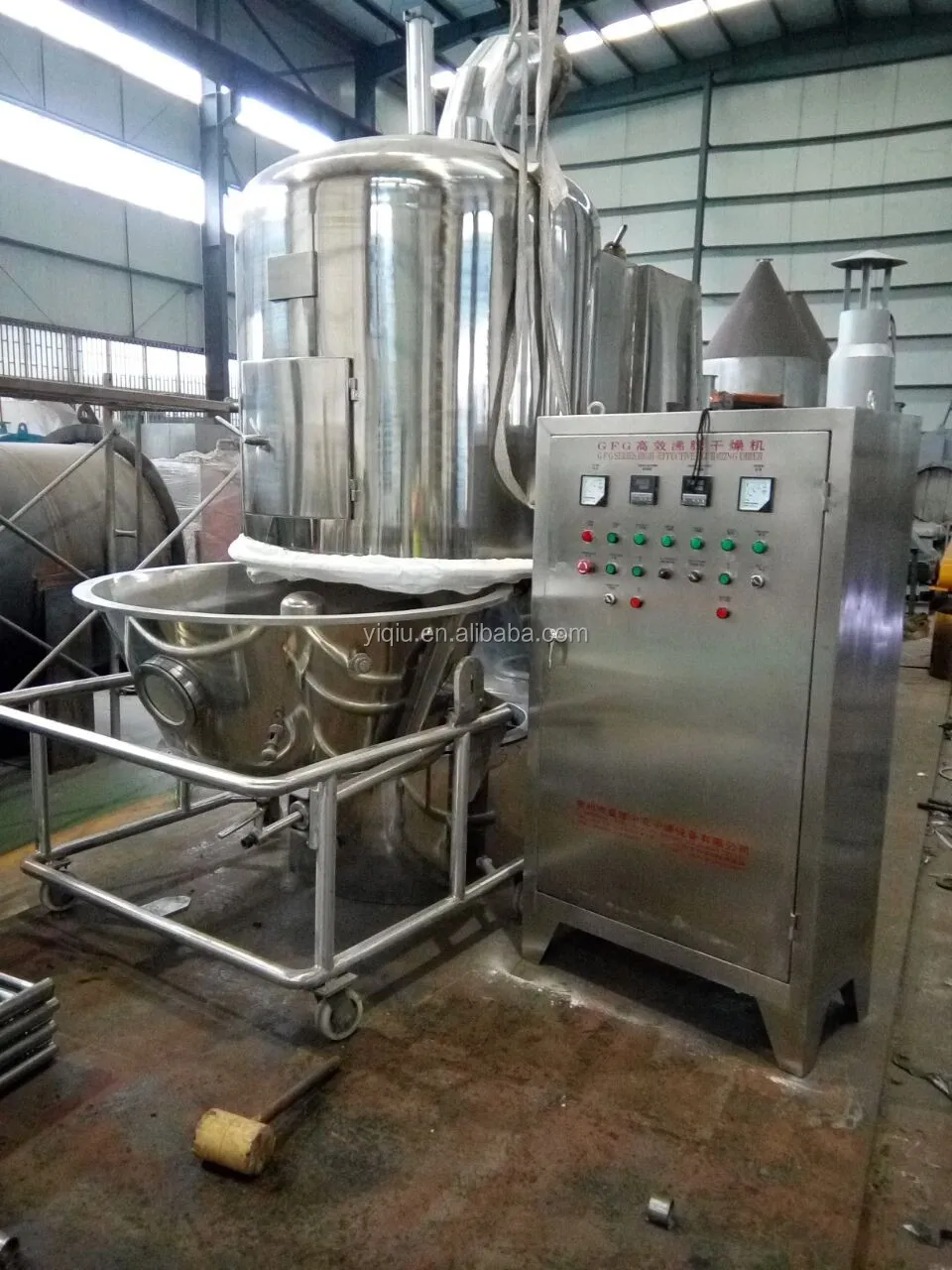

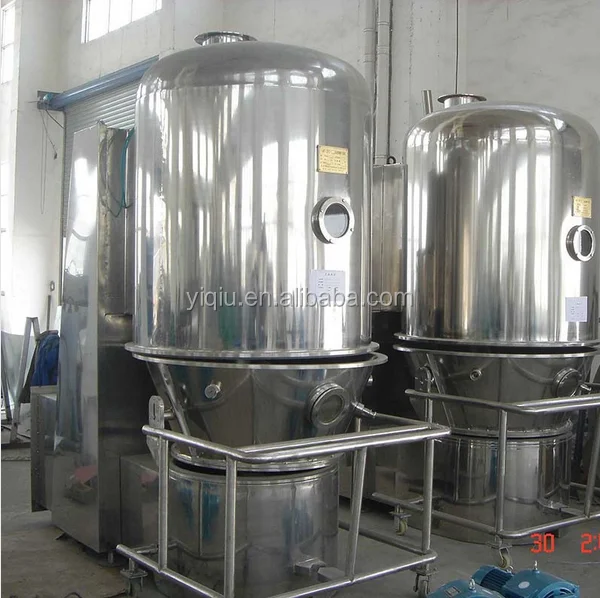

Product pictures:

.

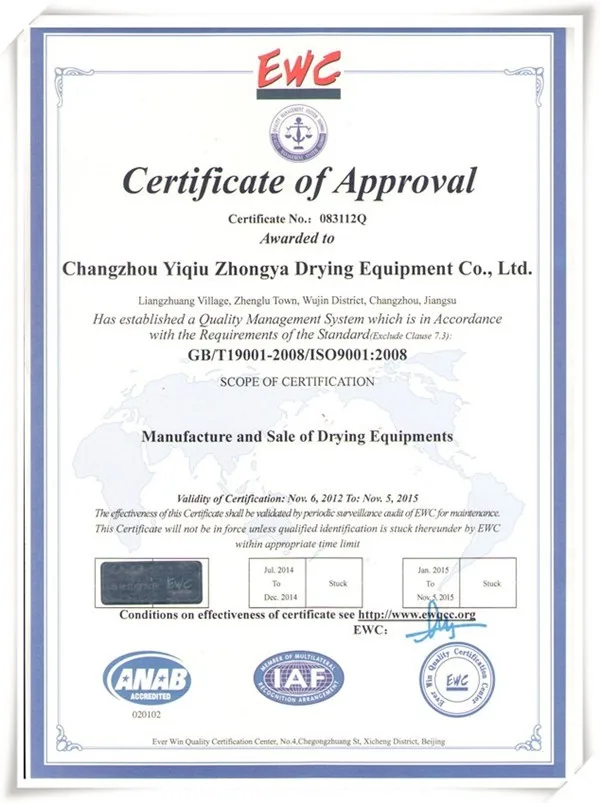

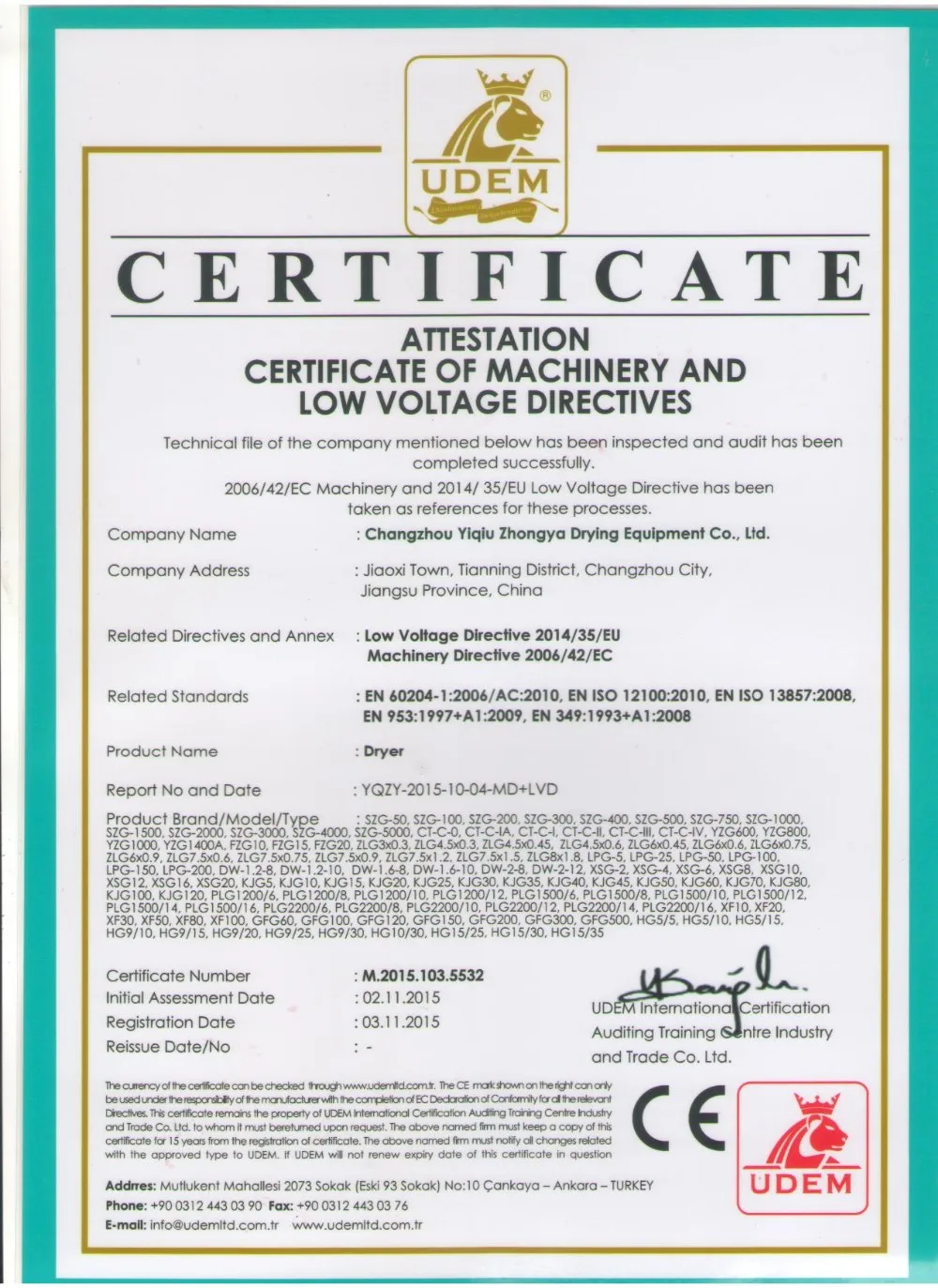

Certifications
Detailed Images

Machine Parts

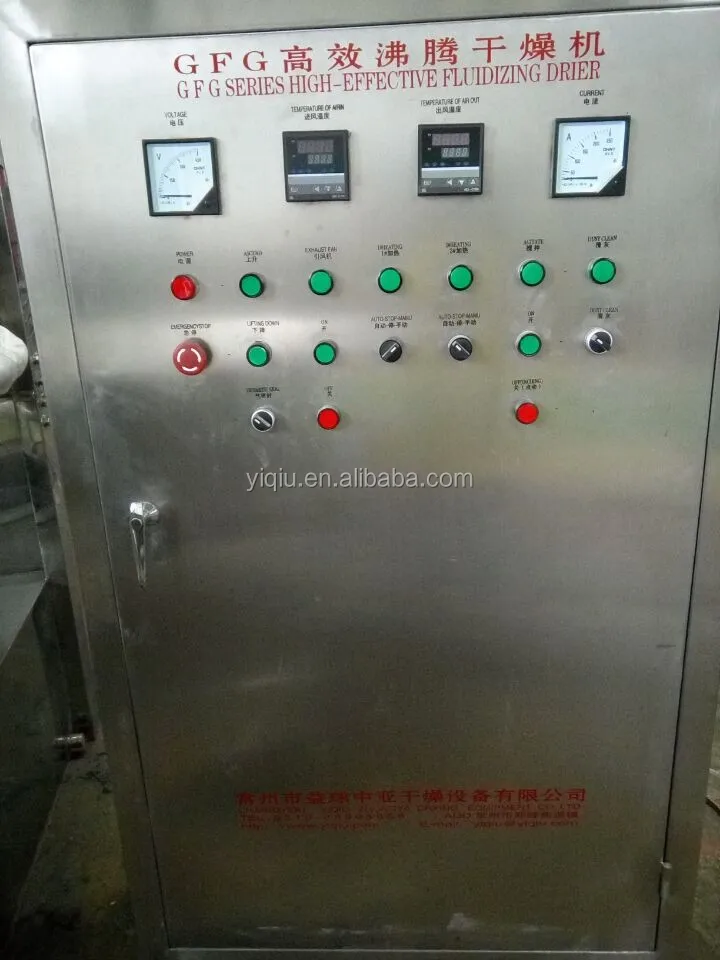

Name: Electric control cabinet

Brand: Siemens

Original: Germany

According to the requirements of the electrical wiring will switch equipment, measuring instruments and protection of electric equipment and auxiliary equipment in a closed or semi-closed metal cabinet or on BingFu, its decorate should meet the requirements of power system normal operation, easy maintenance, does not endanger the safety of the person and the surrounding equipment control cabinet.

Main Features

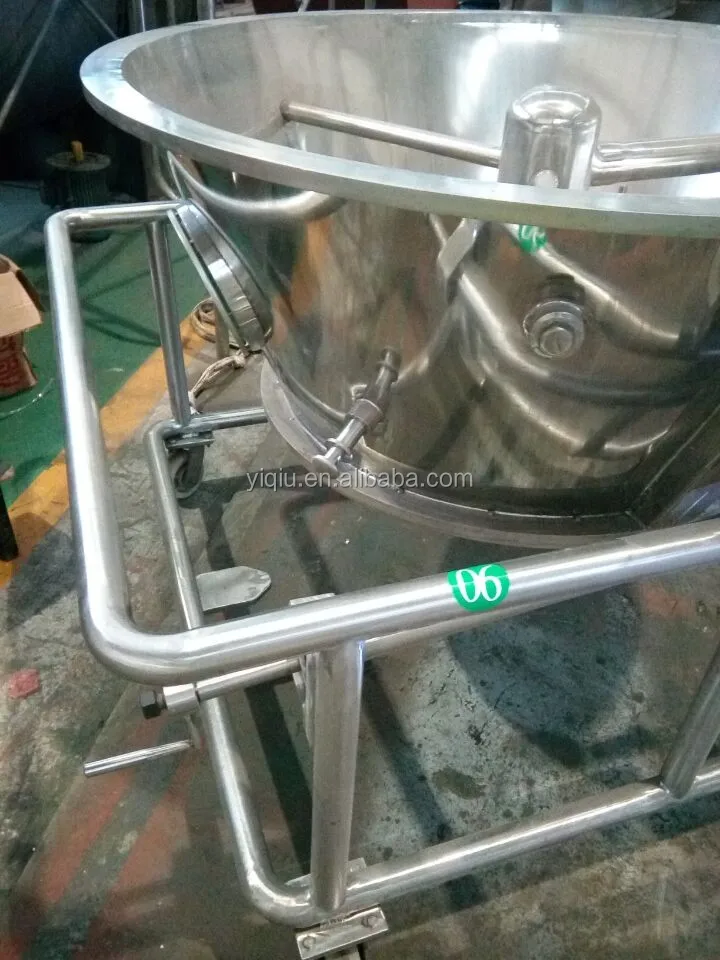

Name: Stock bin
Brand: YIQJIU
Original: China
Rapid stir material, use made of SUS304.

Machine Parts

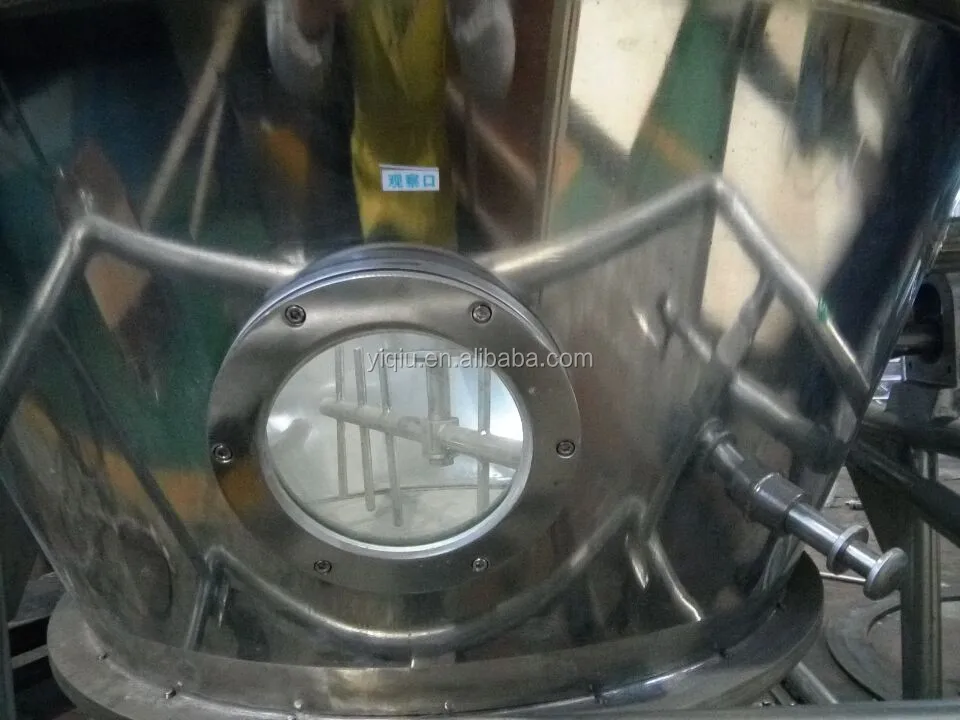

Name: Stock bin observe the mouth
Brand: YIQIU
Original: China

Help to observe the operation of the material inside.

Main Features

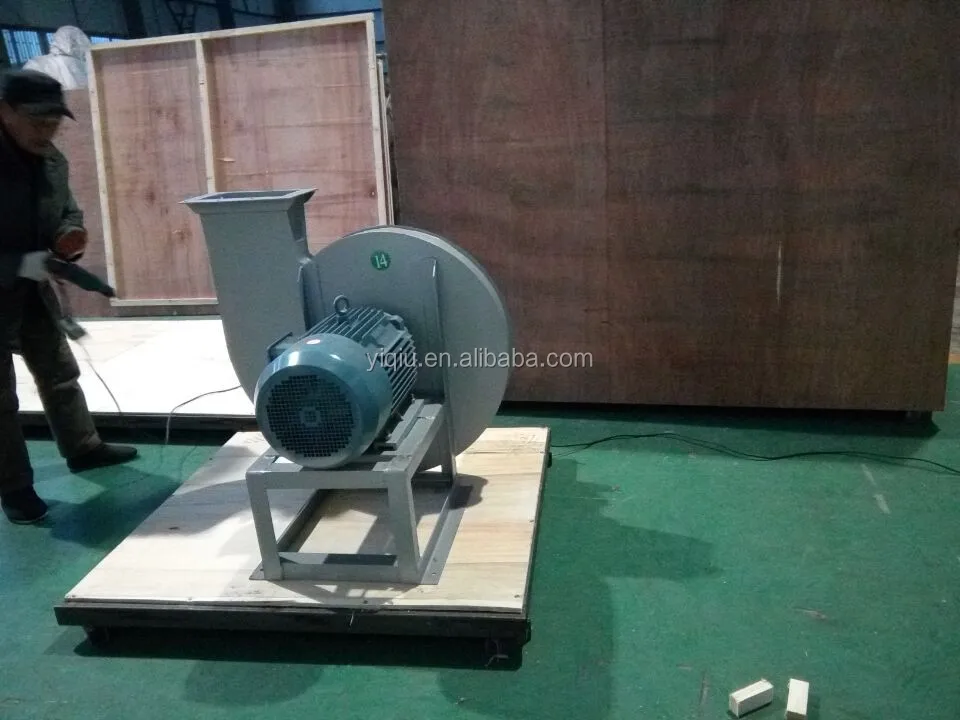

Name: Induced draft fan
Brand: YIQIU
Original:China
High efficiency, high performance, low noise, good fan performance, is extremely ideal efficient energy-saving fan.

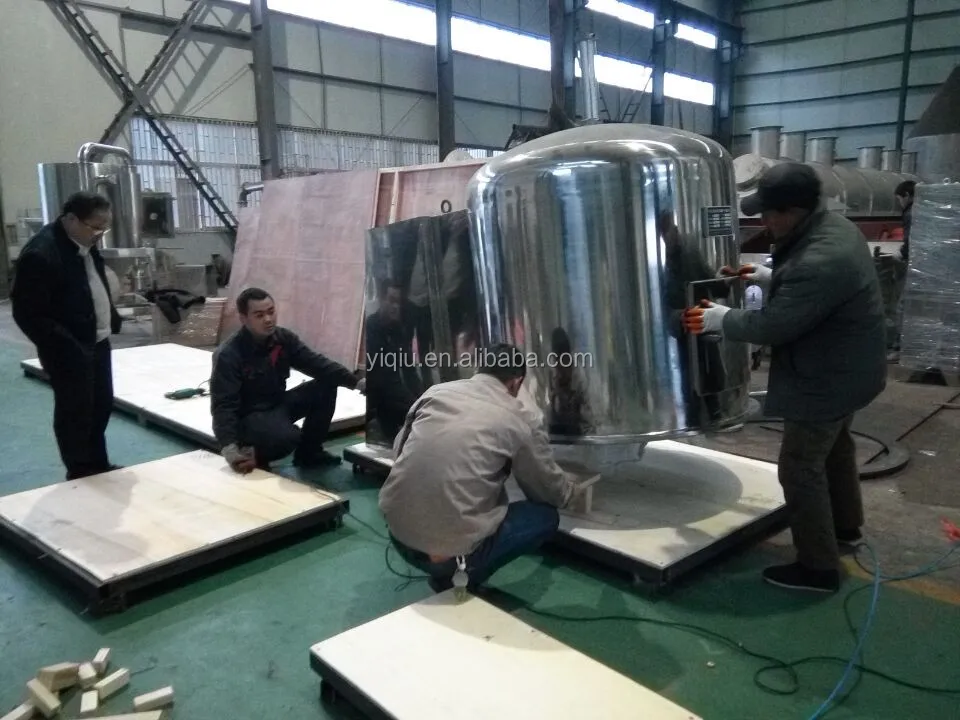

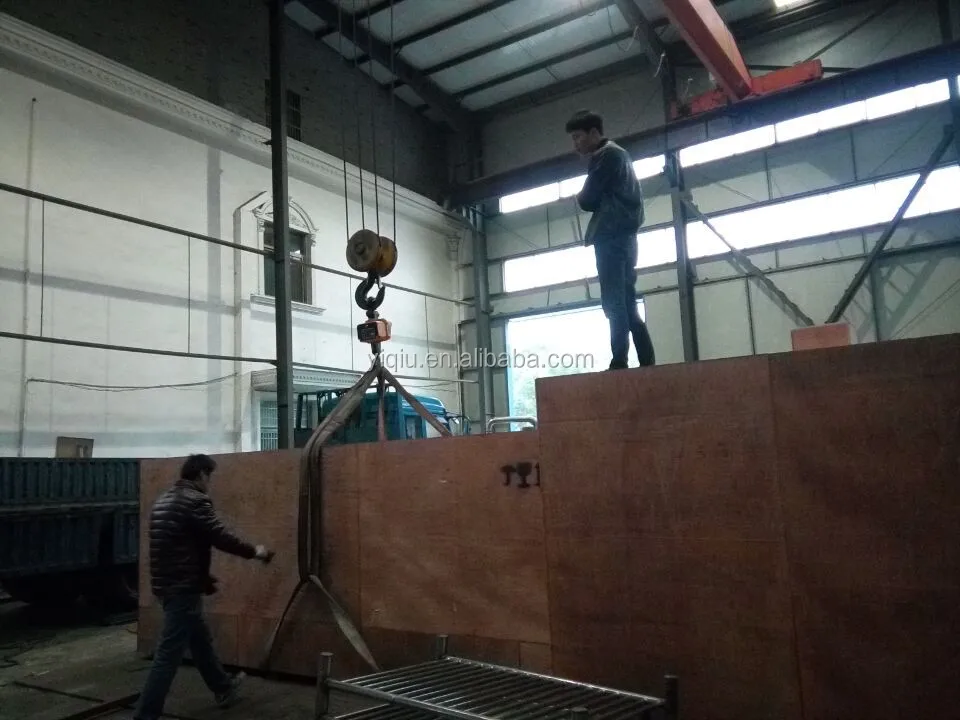

Packing
Related Products

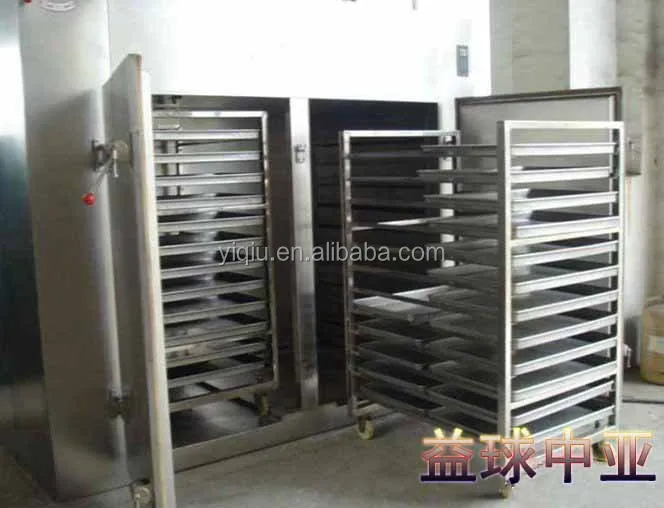

CT-C  hot air circulation oven

91.8% Response Rate

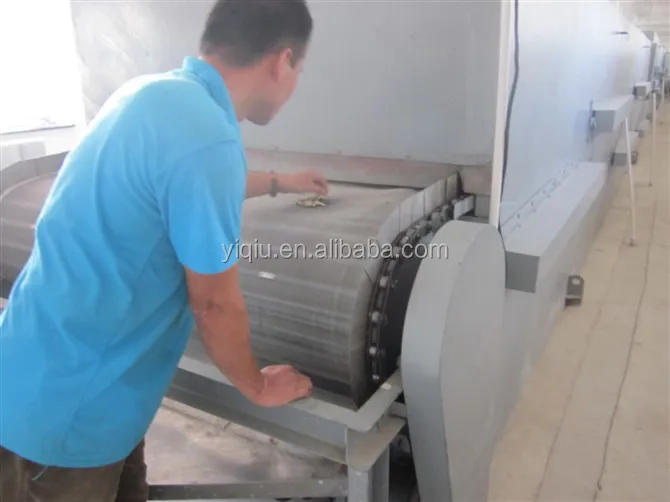

DW Series Mesh-belt Dryer
