GFJ-15kw Industrial Liquid Chemical Mixer

FOB Reference Price:Get Latest Price
US $3,000 - 250,000 / Set | 1 Set/Sets Industrial Liquid Chemical Mixer (Min. Order)
Supply Ability:
200 Set/Sets per Month Industrial Liquid Chemical Mixer
Port:
Shanghai port
Seller Support:
Payment protection
On-time shipment
Product quality protection
Payment:
More

Quick Details

Condition:
New
Mixer Type:
Agitator
Product Type:
Paint
Application:
Liquid with Suspended Solids
Additional Capabilities:
Coating
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Tonghui
Model Number:
GFJ-15
Max. Loading Capacity:
800L
Voltage:
220V/380V/400V/415V
Power(W):
15kw
Dimension(L*W*H):
as machine type
Certification:
CE
Warranty:
12 months
Rotation Speed:
0-1450rpm, Inverter
Diameter of disk:
300mm
Lifting height:
1000mm, Hydraulic
Pump power:
1.5kw
Capacity:
400-800L
Weight:
1000kg
Clamping:
Belt clamping, Screw clamping
Color:
Customizable

Packaging & Delivery

Packaging Details: Industrial Liquid Chemical Mixer: International package with moisture-proof.
Delivery Detail: Industrial Liquid Chemical Mixer: 30 working days
Product Description

Product Introduction

      High-speed Disperser is to dissolve, disperse and mix materials with different viscosity. Through the very high peripheral tip speed of the toothed disc, the strong shearing, crashing and friction forces generated between the materials and toothed disc disperse, dissolve and mix the materials efficiently. The large stress forces break down the agglomerates into the liquid or paste suspension.
     1. Introduction

* For paint, coating, pigment, inks, dye and adhesive;
* It can mix, disperse, dissolve two or more kinds of liquid and powder materials;
* Hydraulic lifting system for production;
     2. Option selection
1) Hydraulic lifting system for production;
2) Siemens/ Danfoss Frequency converter optional;
3) Ex-proof system can be customized as requirement;
4) Vacuum production high speed disperser is available;
5) Customized equipment is available.

6) Different kinds of dispersion disks
7) Two types: Stand type and Platform type

Detailed Images

Machine Part

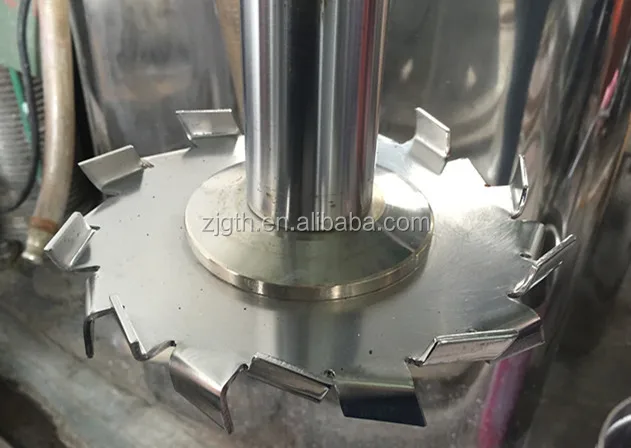

Name: Single-layer Dispersing disc
Material: SUS304/ SS316
The tip speed needs to reach 18~25m/s.
Sizes of this dispersing disc can be customized.

Machine Part

Name: Double-layer Dispersing disc
Material: SUS304/ SS316

The tip speed needs to reach 18~25m/s.

The effect of double-layer is better than signle type, but it needs to increase the main motor power.

Sizes of this dispersing disc can be customized.

Machine Type

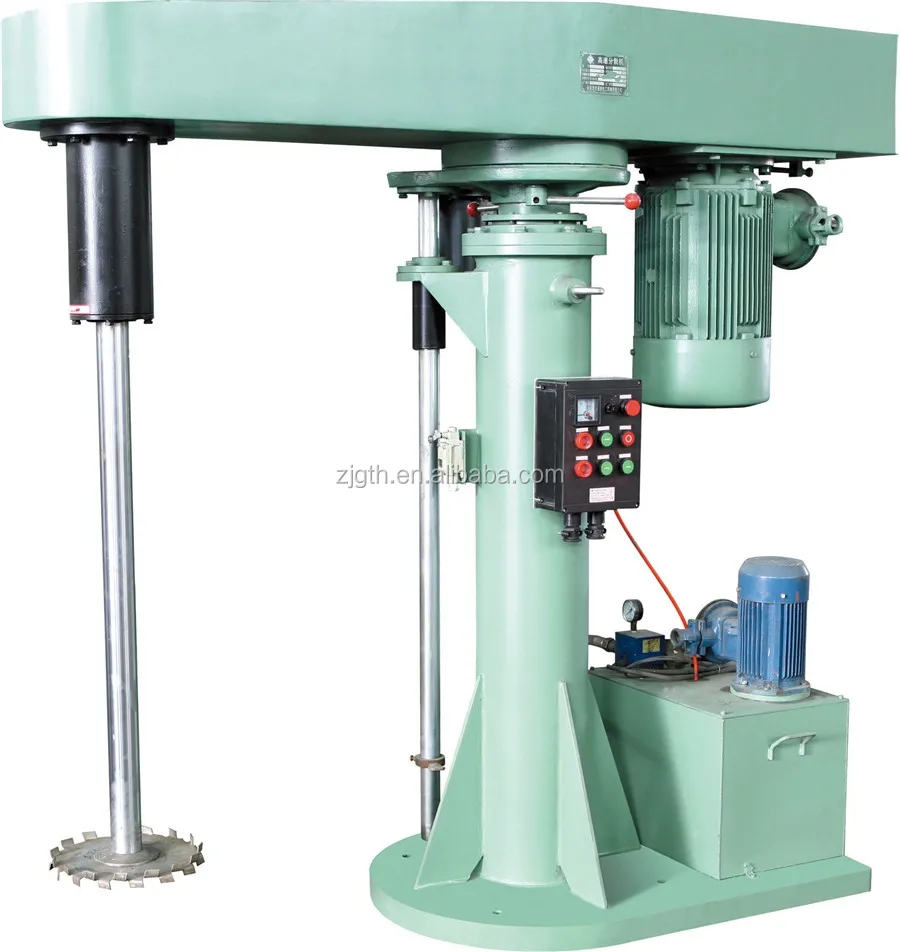

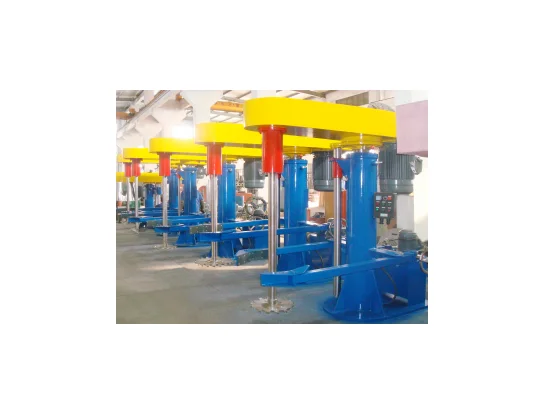

Name: Stand floor type

It's suitable for the disperser with 1.5~75kw motor power.

It has three options of holding device: none, belt holding device and screw holding device.

Machine Type

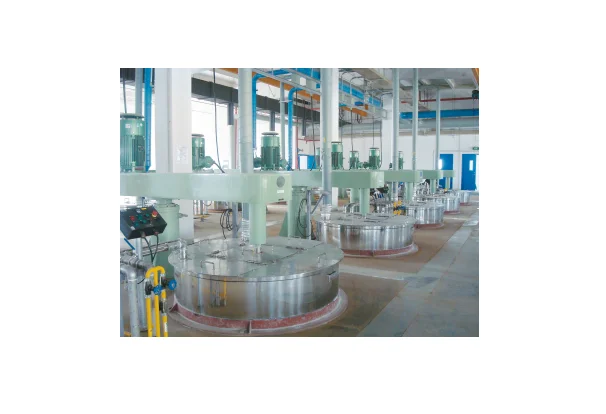

Name: Platform Type

It's suitable for the disperser with 22~200kw motor power.

And it can be used for one machine with one tank, or one machine with two tanks with rotation motor.


Technical Parameter
Type
Motor
Speed
Disc
Lift
Pump
Capacity
Weight
GFJ-1.5
1.5kw
0-1450rpm
150mm
800mm
0.55kw
50L
350kg
GFJ-4
4kw
0-1450rpm
200mm
800mm
0.55kw
200L
400kg
GFJ-5.5
5.5kw
0-1450rpm
250mm
900mm
0.75kw
400-600L
800kg
GFJ-7.5(11)
7.5kw/11kw
0-1450rpm
250mm
900mm
0.75kw
400-600L
820kg
GFJ-22(30)
22kw/30kw
0-1450rpm
350mm
1200mm
1.5kw
600-1000L
1500kg
GFJ-37
37kw
0-1200rpm
400mm
1200-1500mm
1.5kw
1000-2000L
1580kg
GFJ-45/75
45-75kw
0-1200rpm
450mm
1500-2000mm
2.2kw
1000-2500L
2100kg
Why Choose Us

Pre-Sales Service

Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments.
1> Select equipment model;
2> Design and manfacturer products according to clients' special requirements;
3> Train technical personnel for clients;

After-Sales Service

Provide considerate services to minimize clients' worries:
1> Assist clients to prepare for the first project;
2> Instell and debug the equipment;
3> Train the first-line operators;
4> Take initiative to eliminate the trouble rapidly;
5> Provide technical replacement;
6> After-sales team will solve problems via operating and provide technical instruction;
