GROW K200-3.3+R502 Fingerprint Control Board and R502 Round Fingerprint Module

  • 1-9 Pieces
    $19.00
  • >=10 Pieces
    $18.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
19 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Brand Name:
GROW
Model Number:
K200-3.3+R502
Product name:
K200-3.3 +R502 Fingerprint control board
Fingerprint capacity:
120
Circuit board size:
45 * 25mm
Color:
Voltage:
5 --6 VDC
Standby current:
5 uA
Service:
OEM
Interface size:
1.25mm pitch
Application:
Fingerprint
Place of Origin:
CN;ZHE

Packaging & Delivery

Selling Units:
Single item
Single package size:
13X8X9 cm
Single gross weight:
0.1 kg
Package Type:
Standard Export Carton Package
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 19 To be negotiated
Video Description



Product Description


K200-3.3 Technical Parameters
·Fingerprint capacity: 120
·Power supply: 4*AA battery or DC5V
·Stand-by mode current: less than 5 uA
·Output: DC5--6V,500mA



K200-3.3 VCC and VT is for 3.3V, suitable for R502,R503 fingerprint module.






K200-3.3 Operation Instruction
1.Press SET button shortly,system in administrator register status and blue indicator light flash fast, press two times for each fingerprint, fingerprint register successfully when hearing music.Fingerprint can be registered continuously,and it can register 20 pieces administrator fingerprint. If no need for adding fingerprint, waiting for 6seconds or press the SET button to exit.

2.When back to factory default, press SET button until hear “Di-Di-Di” beep and release the button,means initialization operation successful.

3.Register User Fingerprint: Press the administrator fingerprint until hear the music and blue indicator light flash fast, means can add user fingerprint.Press two times for each user fingerprint, fingerprint register successful when hearing music. Fingerprint can be registered continuously, it can register 100 pieces user fingerprint.

4.Delete User Fingerprint:Press the administrator fingerprint when hear the music and blue indicator light flash fast, move the finger until hear “DiDiDi” long deep, than all user fingerprints are deleted.

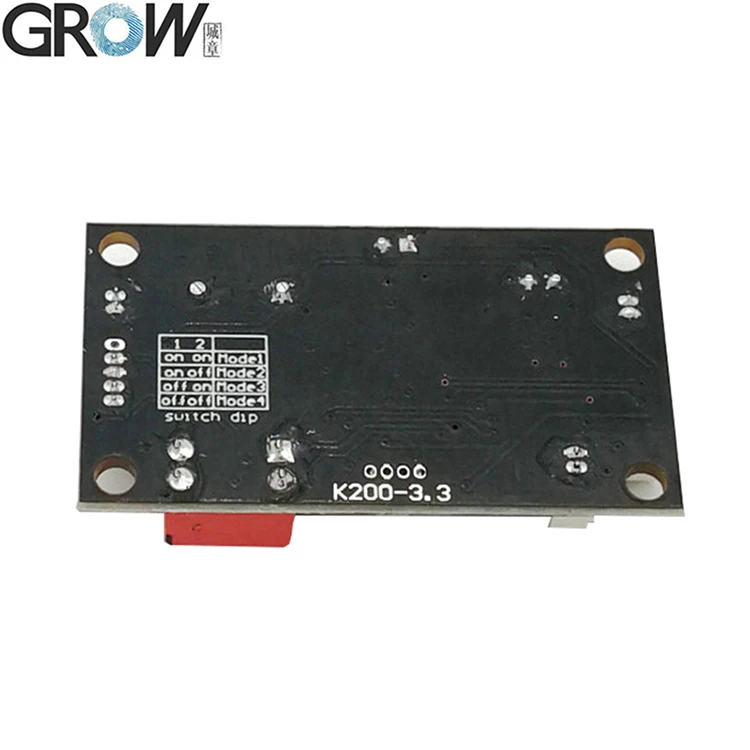

5.Mode selection,setby the toggle switch:
a) 1:ON, 2:ON Output DC5V and keep 0.5 second; stop 5 seconds,then minusvoltage outputted and keep 0.5 seconds.
b) 1:ON, 2:OFF Output DC5V and keep 5 second
c) 1:OFF, 2:ON Output DC5V and keep 1 seconds
d) 1:OFF, 2:OFF Keeping output DC5V until removing the finger



6.OPEN(P3):
a) 1:ON, 2:ON Output DC5V and keep 0.5 second; stop 5 seconds,then minusvoltage outputted and keep 0.5 seconds.
b) 1:ON, 2:OFF Output DC5V and keep 5 second
c) 1:OFF, 2:ON Output DC5V and keep 1 seconds
d) 1:OFF, 2:OFF No Output

Note:
1. When the voltage is less than DC4.7V, the red light lightens, means the low voltage warning.
2. In the “D” mode,when need to register user fingerprint,after press the administrator fingerprint successfully,lifting the finger then press the same administrator finger again until hear the music and blue indicator light flash fast,then it can register user fingerprint.

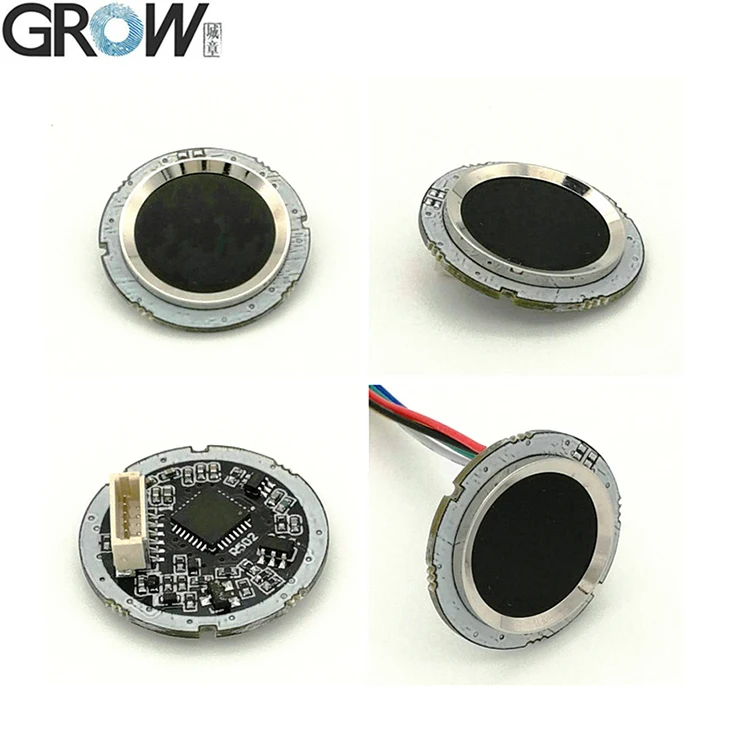

R502 Specifications

·Interface:RS232 (TTL)
·Resolution:508 DPI
·Voltage:DC 3.3V
·Working current(Fingerprint acquisition):18mA
·Standby current(finger detection): Typical touch standby voltage: 3.3V, Average current: 2uA
·Fingerprint capacity:200
·Sensing Array:192*192 pixel

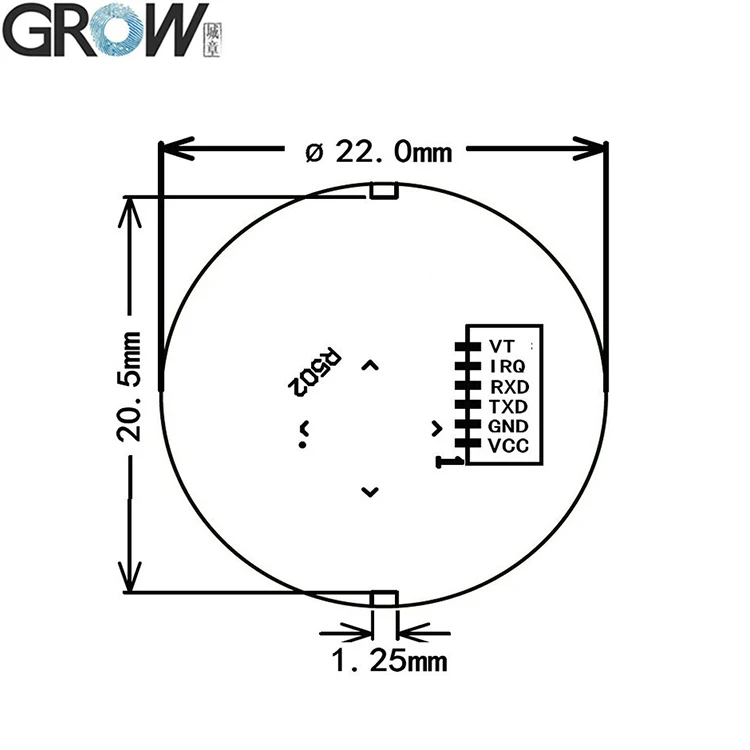

·Fingerprint reader module size: diameter 22mm
·Effective collection areadiameter 15mm
·Connector: MX1.0-6pin
·LED Color: Bule and Red
·ScanningSpeed:< 0.2 second
·Verification Speed:< 0.3 second
·Matching Method:1:1; 1:N
·FRR (False Rejection Ratio):≤0.01%
·FAR (False Acceptance Ratio):≤0.00001%
·Antistatic capacity:15KV
·Abrasive resistance intensity:1 million times
·Peak power consumption:60 mA
·Work environment:-20°C ---55°C
·Work Humidity:0-90%
·Communications baud rate (UART):(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)




Images



K200-3.3-E

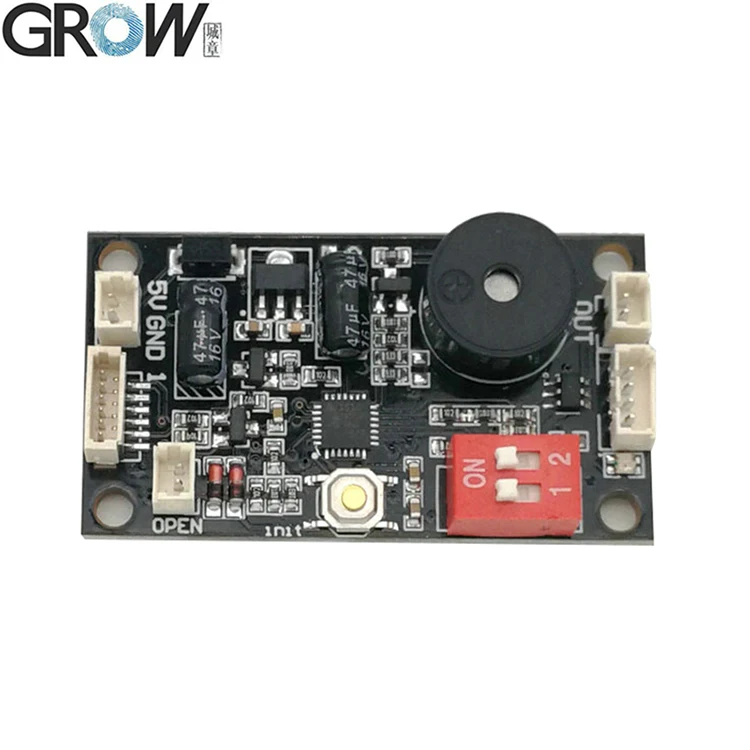

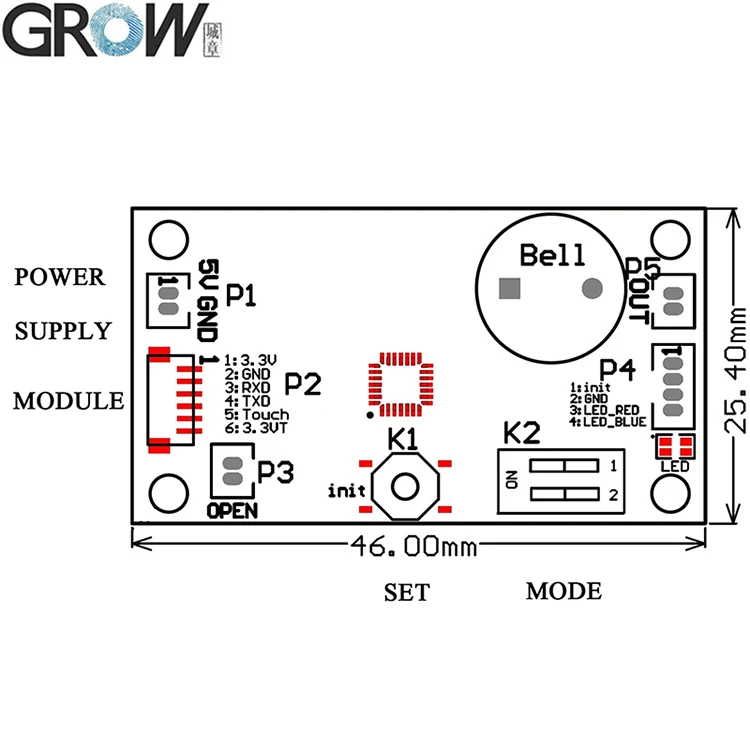

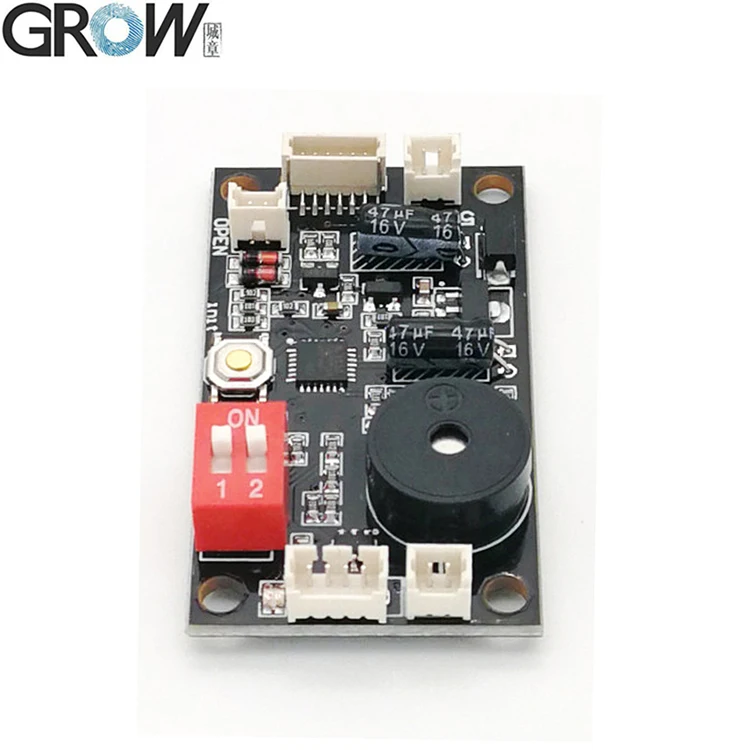

K200-3.3 Circuit board diagram

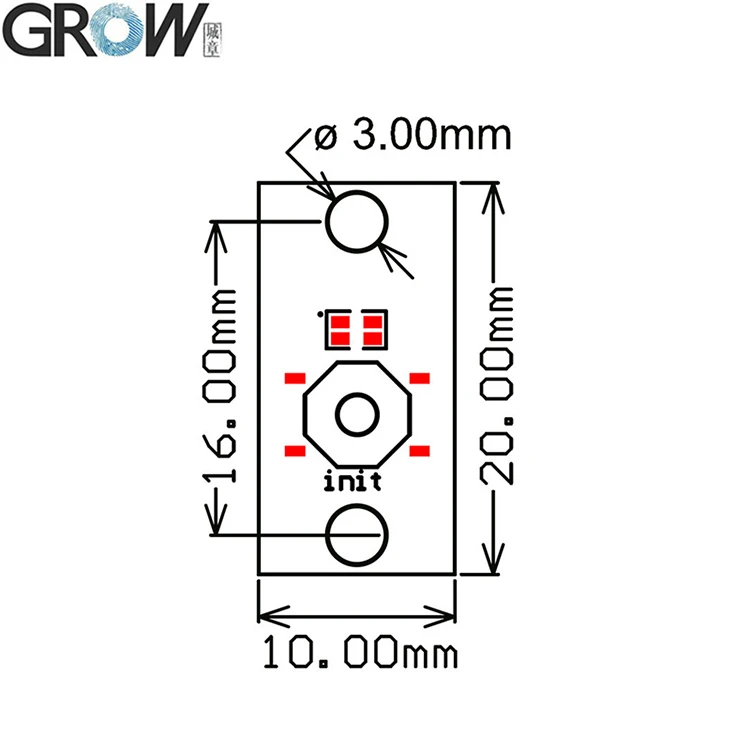

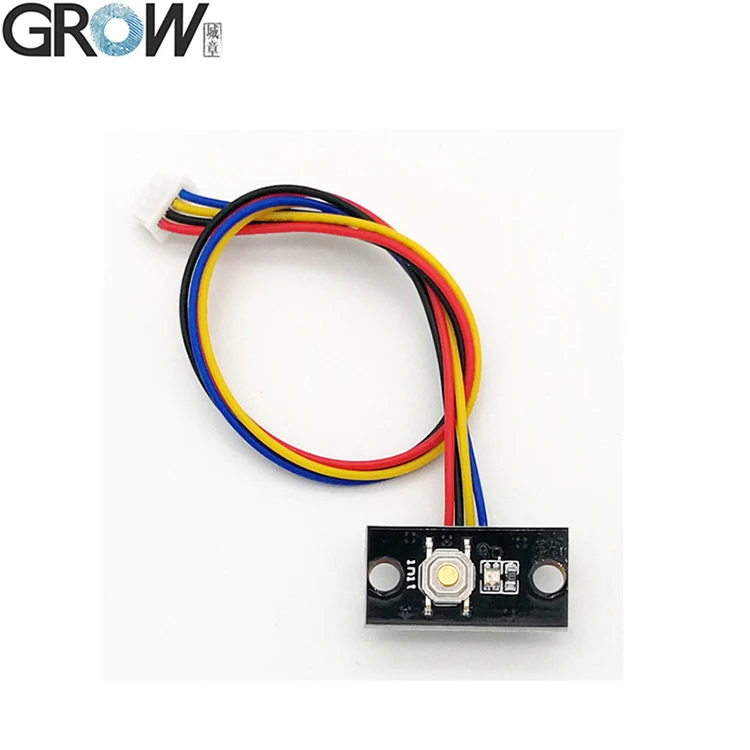

Set Button circuit board diagram
