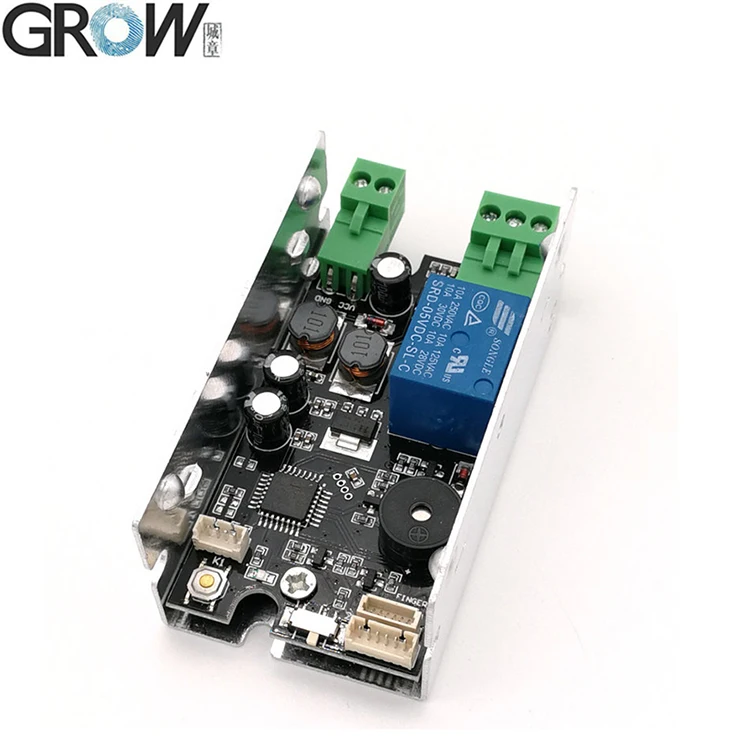

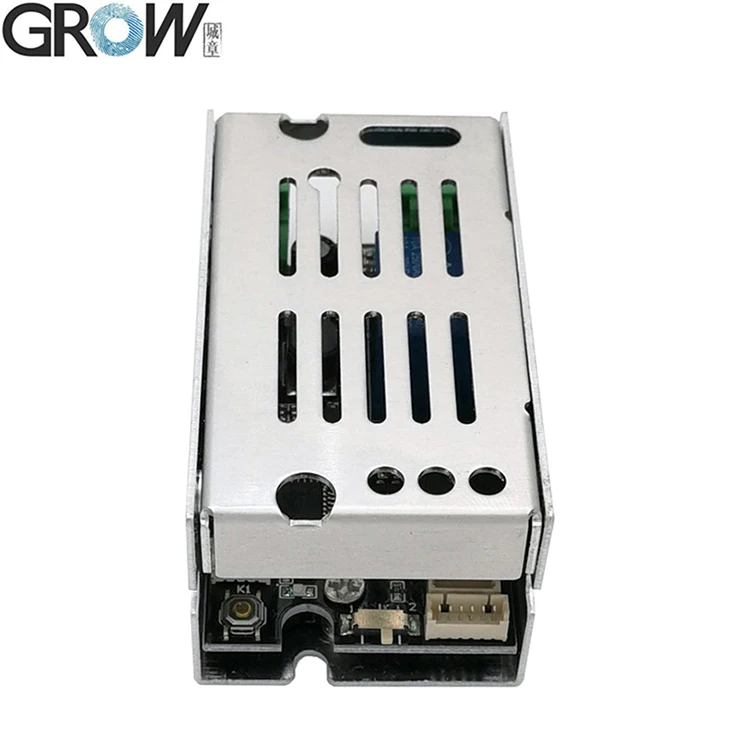

GROW K215-V1.2 Fingerprint Access Control System Control Board For Car Door System

  • 1-9 Pieces
    $8.00
  • >=10 Pieces
    $7.00
Type:
Fingerprint Control Board
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
19 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Brand Name:
GROW
Model Number:
K215-V1.2
Product name:
K215-V1.2 Fingerprint Control Board
Stand-by current for control board:
40mA
Power supply:
DC10--30V
Fingerprint capacity:
200
Place of Origin:
CN;ZHE

Packaging & Delivery

Selling Units:
Single item
Single package size:
13X8X9 cm
Single gross weight:
0.1 kg
Package Type:
Standard Export Carton Package
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 19 To be negotiated
Video Description



Product Description

22_04

Technical Parameters
·Power supply: DC10--30V,
·Stand-by current for control board: 40mA
·Fingerprint capacity: 200





Operation Instruction

1. Press SET button shortly,system in register state and blue indicator light flash fast, place your finger in the collection area, fingerprint register successful when hearing music;Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting 8 seconds.
2. When back to factory default, press SET button until hear "Di" long beep and music, this means initialization operation successful.
3. Mode Selection Usage:when chose 2, operating time of the relay is 10s after pass fingerprint. When chose 1, relay operated when fingerprint passed, and then relay released when fingerprint passed again, relay operated and released circularly. Relay released when power off.



K215-V1.2 has a wide range of use, which can be used in automobile control, access control and other occasions.

K215 can be connected with ALL OF GROW MODULE fingerprint module, like R300,R301T,R302,R303,R303T,R306,R305,R307,R308,R501,R502,R503 fingerprint module.



K215-V1.2 Test video on Youtube: https://youtu.be/bRQP0JuzqYo





Images


186

K215-V1.2 Circuit Board Diagram






Contact Us


Related Products

K215-V1.2 can be used together with R503 capacitive fingerprint module

2

K215-V1.2 can be used together with R501 capacitive fingerprint module
