GROW K215-V1.2+R501 Fingerprint Access Control System With Fingerprint Module For Car

  • 1-9 Pieces
    $22.00
  • >=10 Pieces
    $21.00
Type:
Fingerprint Access Control
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
19 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Brand Name:
GROW
Model Number:
K215-V1.2+R501
Service:
OEM
Product name:
K215-V1.2+R501 Fingerprint control board
Power supply:
DC10V--30V
Fingerprint capacity:
200
Color:
Standby current:
40mA
Place of Origin:
CN;ZHE

Packaging & Delivery

Selling Units:
Single item
Single package size:
13X8X9 cm
Single gross weight:
0.15 kg
Package Type:
Standard Export Carton Package
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 19 To be negotiated



Product Description
 22_04



K215-V1.2 Technical Parameters
·Power supply: DC10--30V,
·Stand-by current for control board: 40mA
·Fingerprint capacity: 200





K215-V1.2 Operation Instruction

1. Press SET button shortly,system in register state and blue indicator light flash fast, place your finger in the collection area, fingerprint register successful when hearing music;Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting 8 seconds.
2. When back to factory default, press SET button until hear "Di" long beep and music, this means initialization operation successful.
3. Mode Selection Usage:when chose 2, operating time of the relay is 10s after pass fingerprint. When chose 1, relay operated when fingerprint passed, and then relay released when fingerprint passed again, relay operated and released circularly. Relay released when power off.



K215-V1.2 has a wide range of use, which can be used in automobile control, access control and other occasions.

K215 can be
connected with R300,R301T,R302,R303,R303T,R306,R305,R307,R308,R501,R502,R503 fingerprint module,



K215-V1.2 Test video on Youtube: https://youtu.be/bRQP0JuzqYo









R501 Specifications

SPECIFICATION

Model

R501

Type

Capacitive Fingerprint Module

Interface

UART(TTL)

Resolution

508 DPI

Voltage

DC 4.2-6V

Fingerprint Capacity

200

Sensing array

190*190 pixel

Fingerprint module size

Diameter 36(mm)

Effective collection area

Diameter 15.5 (mm)

Scanning Speed

< 0.2 second

Verification Speed

< 0.3 second

Matching Method

1:1; 1:N

FRR

0.001%

FAR

≤0.1%

Work environment

-20C ---60C

Work Humidity

10-85%

Anti-static capacity

15KV

Abrasive resistance intensity

1 million times

Communications baud rate (UART):

(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)




Images


K215-V1.2-G

K215-V1.2-EK215-V1.2-B

K215-V1.2 Circuit board diagram

K215-V1.2-J

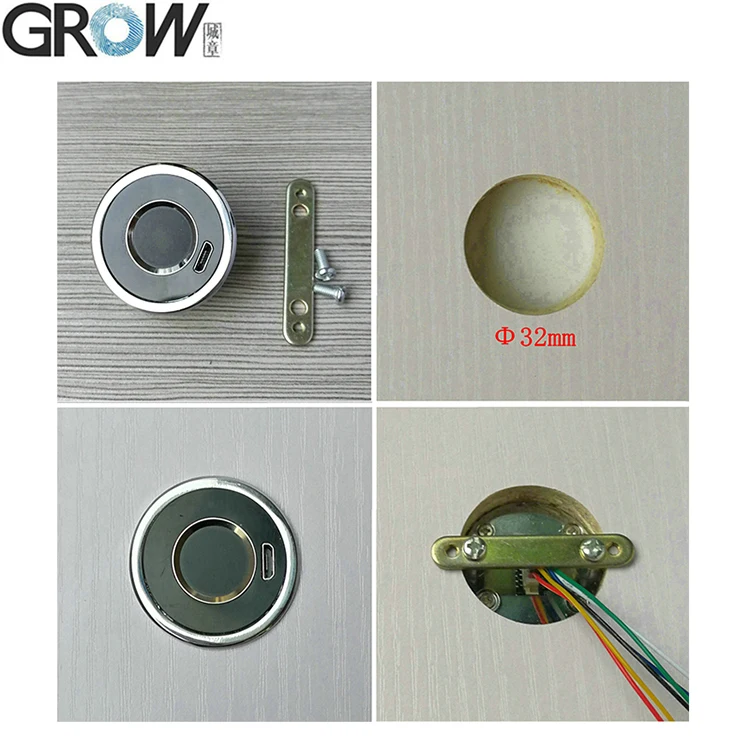

R501-8R501-4R501-7
