GROW R306 FPC1011F3 Chip Factory Capacitive Fingerprint Sensor Reader

Feedback Ratings
  • 1-9 Pieces
    $37.00
  • >=10 Pieces
    $36.00
Type:
Fingerprint Module
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Brand Name:
GROW
Model Number:
R306
Product name:
R306 Fingerprint Sensor
Voltage:
DC 4.2-6.0V
Matching Method:
1 :1; 1: N
Fingerprint reader module size:
20 * 32 (mm)
Interface:
USB 2.0 and RS232 (TTL)
Fingerprint capacity:
1000(Default)
Resolution:
363 DPI
Antistatic capacity:
15KV
Abrasive resistance intensity:
1 million times
Place of Origin:
CN;ZHE

Packaging & Delivery

Selling Units:
Single item
Single package size:
13X8X9 cm
Single gross weight:
0.1 kg
Lead Time :
Quantity(Piece) 1 - 50 >50
Est. Time(days) 7 To be negotiated



Product Description





R306 Capacitive Fingerprint Module



Description
·Communication interface : USB and UART
·1:N Identification (One-to-Many)
·1:1 Verification (One-to-One)
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured
·Fingerprint Identify Downloaded Feature with Captured fingerprint
·Security Level setting
·Able to set BaudRate/ Device ID/Device Password
·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android


Specifications
·Interface:USB 2.0 and UART(3.3V-TTL logic)
·Fingerprint chip: FPC1011F3
·Resolution:306 DPI
·Work Current: <55mA
·Voltage: DC 4.2-6.0V
·Fingerprint capacity:1000
·Dimension: 45*32 (mm)
·Fingerprint reader module size: 20.4 * 33.4 (mm)
·Effective collection area: 12 * 15 (mm)
·Peak Power Consumption: 60mA
·ScanningSpeed: < 0.2 second
·Verification Speed: < 0.3 second
·Matching Method: 1:1; 1:N
·FRR (False Rejection Ratio): ≤0.01%
·FAR (False Acceptance Ratio): ≤0.00001%
·Work environment: -20°C ---55°C
·Work Humidity: 10-90%
·Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)



Files
·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual

You can download the R306 user manual from this website link:
https://www.dropbox.com/sh/epucei8lmoz7xpp/AAAmon04b1DiSOeh1q4nAhzAa?dl=0


Images

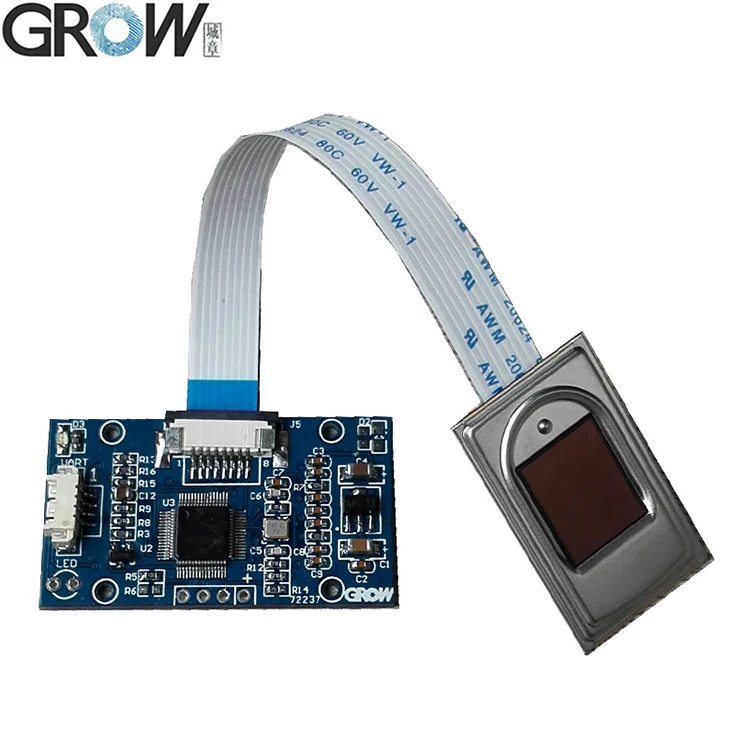

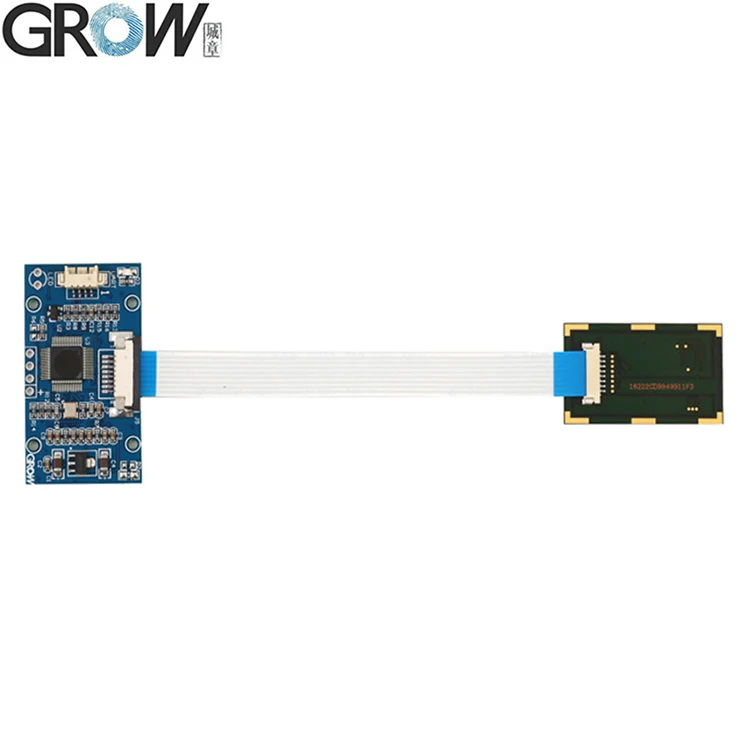

R306 fingerprint module circuit board diagram



Package Listing









If need to install the bracket, please click here:

https://www.alibaba.com/product-detail/GROW-Bracket-of-Semiconductor-Fingerprint-Access_60539953260.html?spm=a2700.icbuShop.prewdfa4cf.10.59bf5ab2mpPpoC

CE Certificate
