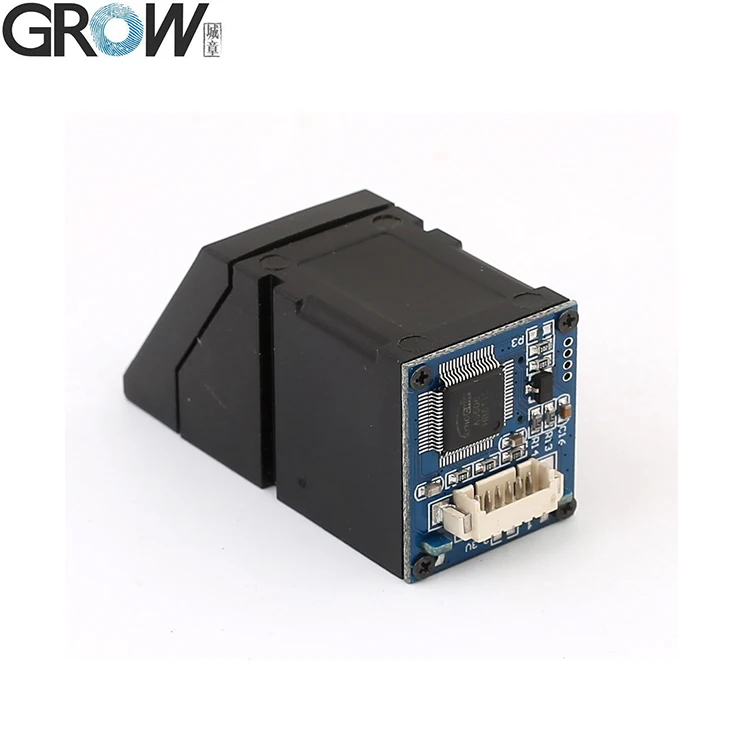

GROW R307 Fast Speed Optical Fingerprint Reader Module Sensor

  • 1-9 Pieces
    $8.90
  • >=10 Pieces
    $8.60
Type:
Fingerprint Module
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
6 day(s) after payment received
Samples: $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $10.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Brand Name:
GROW
Model Number:
R307
Product name:
R307 Optical Fingerprint Module
Interface:
USB2.0/UART(TTL logical level)
Usage:
Indoor, home and office use
Sensor Life:
100 million times
Backlight:
Blue
Dimension:
52*20*22mm
Matching Method:
1 : N
Security level:
5 (1,2,3,4,5(highest)
Voltage:
5 VDC (or 3.3V)
Place of Origin:
CN;ZHE

Packaging & Delivery

Selling Units:
Single item
Single package size:
13X8X9 cm
Single gross weight:
0.100 kg
Package Type:
Standard Export Carton Package
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 6 To be negotiated
Video Description



R307 Optical Fingerprint Sensor

Description

1. Integrated image collecting and algorithm chip together, ALL-in-One
2. Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
3. Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
4. Low power consumption, low cost, small size, excellent performance
5. Professional optical technology, precise module manufacturing technics
6. Good image processing capabilities, can successfully capture image up to resolution 500 dpi
7. Have finger detection function.



Specifications

·Type: Optical
·Interface: USB2.0/UART(TTL logical level)
·Resolution: 500 DPI
·Work Current: Typical ≤75 mA
·Voltage: DC 4.2-6.0V (or 3.3V)
·Fingerprint capacity: 1000
·Dimension: 52 *20*22 (mm)
·Image Capture Surface: 15*11 (mm)
·Backlight: Blue
·Sensor Life: 100 million times
·Static Indications: 15KV
·Character file Size: 256 bytes
·Template Size: 512 bytes
·Security Level: 5 (1,2,3,4,5(highest))
·Scanning Speed: < 0.3 second
·Verification Speed: < 0.2 second
·Matching Method: 1:N
·FRR (False Rejection Ratio): ≤0.1%
·FAR (False Acceptance Ratio): ≤0.0001%
·Operating Environment Temperature: -20°C ---50°C
·RS232 communications baud rate: 9600BPS~115200BPS changeable



Files

·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual

You can download the R307 user manual from this website link:





Images

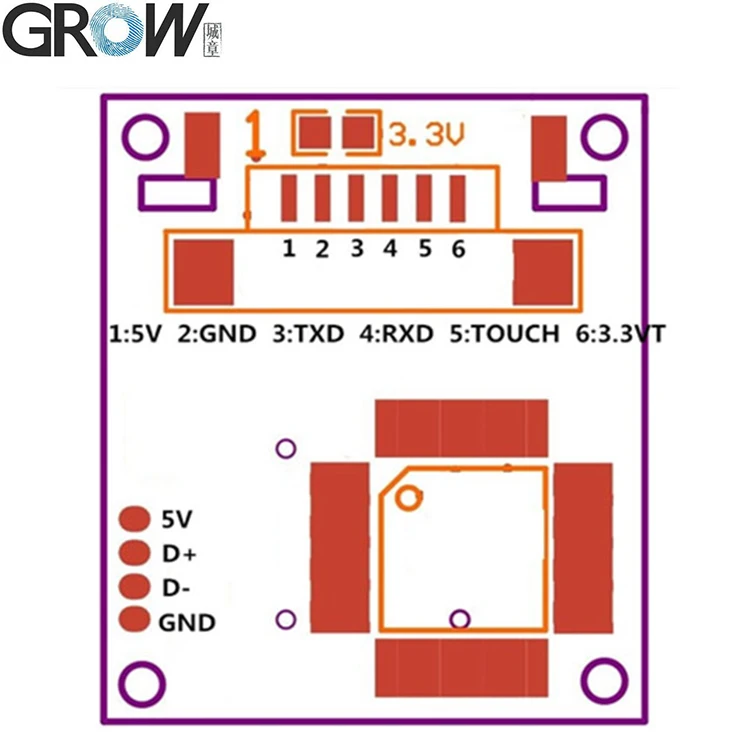

R307 fingerprint module circuit board diagram

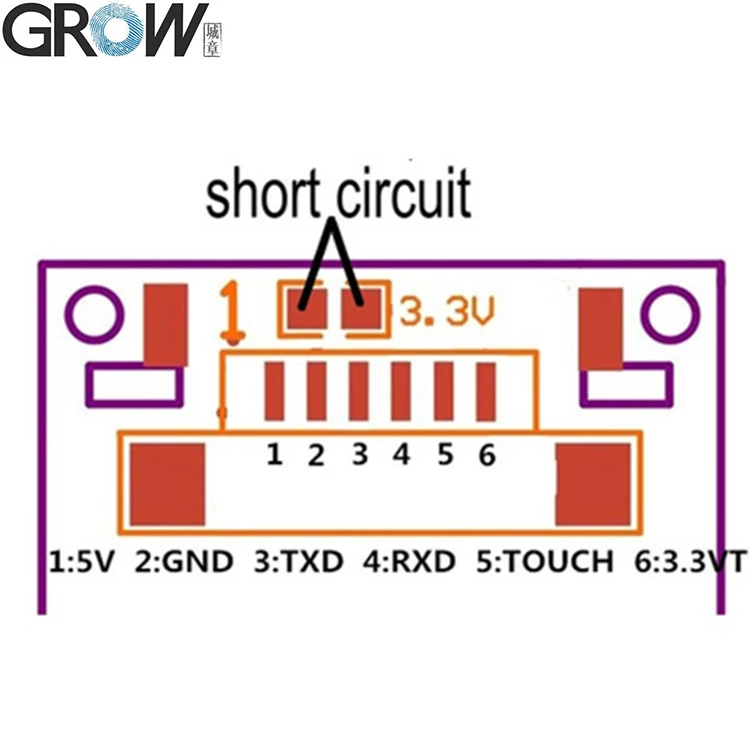

3.3VDC power can be selected to supply when short circuit as the following drawing.
Attention: Operating carefully, otherwise the R307 will be damaged when wong connection.

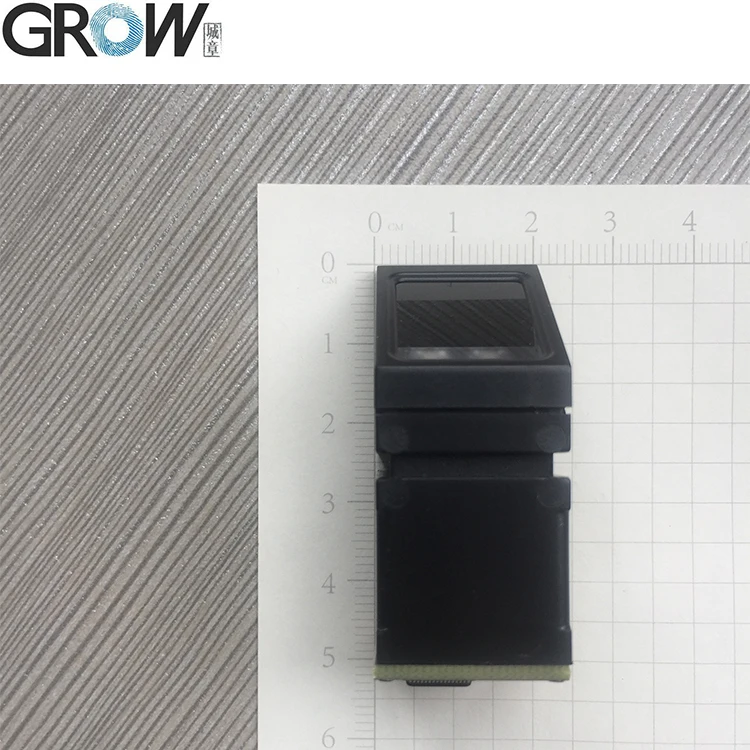

R307 fingerprint module size chart
