Germany QNix 4500 Coating Thickness Gauge For all paint and automobile applications

  • 1-4 Pieces
    $980.00
  • >=5 Pieces
    $930.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Germany
Brand Name:
QNix
Model Number:
Qnix 4500
Measuring range:
Fe & NFe: 0~3000 um
Probe Type:
Integrated
Display Metric:
From 0~999 in um, from 1000 um in mm
Dimensions (L x W x H in mm):
100 x 60 x 27 (gauge with integrated probe)
Minimum Measuring Area:
Diameter 25mm
Minimum Substrate Thickness:
Fe: 0.2 mm; NFe: 0.05 mm
Temperature Range:
0 - 50 Degree (32 ~122 °F)
Power Supply:
2 x Batteries: 1.5 V (Type AA alcaline)
Application:
Coating thickness gauge for paint and automotive industry

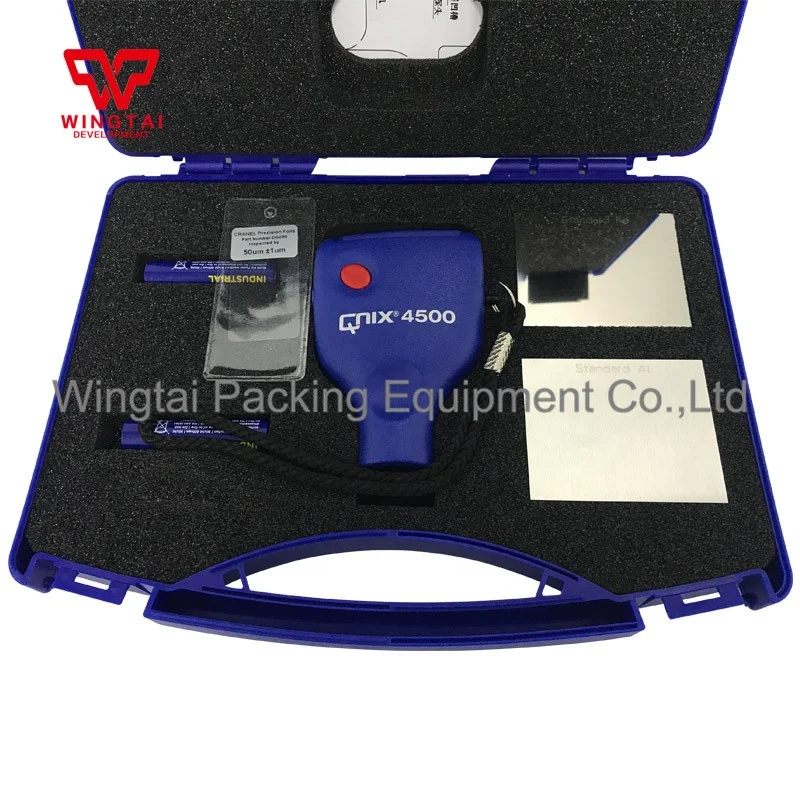

Packaging & Delivery

Selling Units:
Single item
Single package size:
18X26X5 cm
Single gross weight:
1.1 kg
Package Type:
Inner : Plastic Box ; Outer : Paper Carton Box
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 5 >5
Est. Time(days) 5 To be negotiated

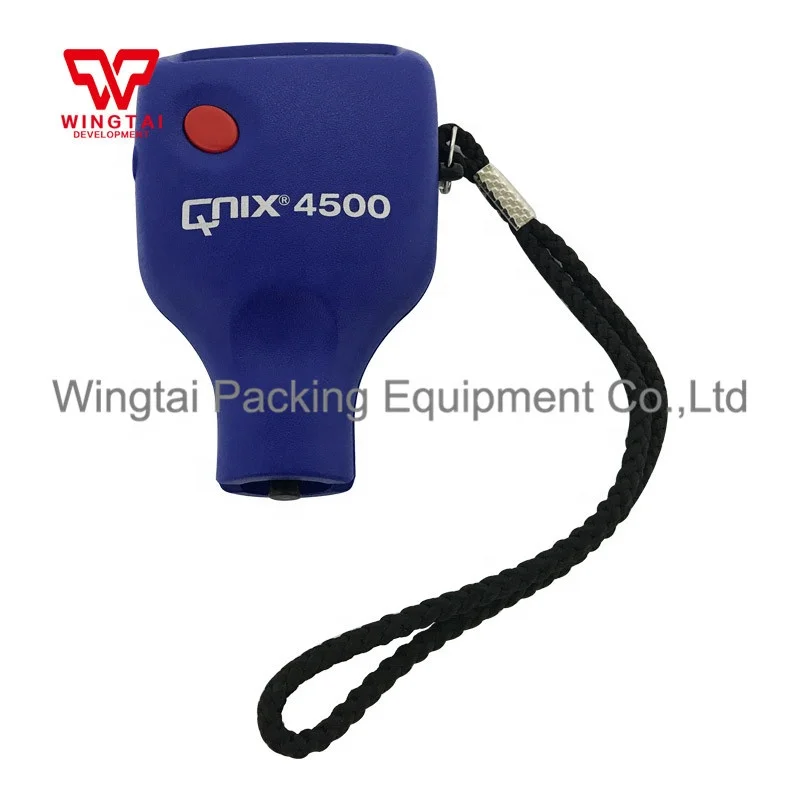

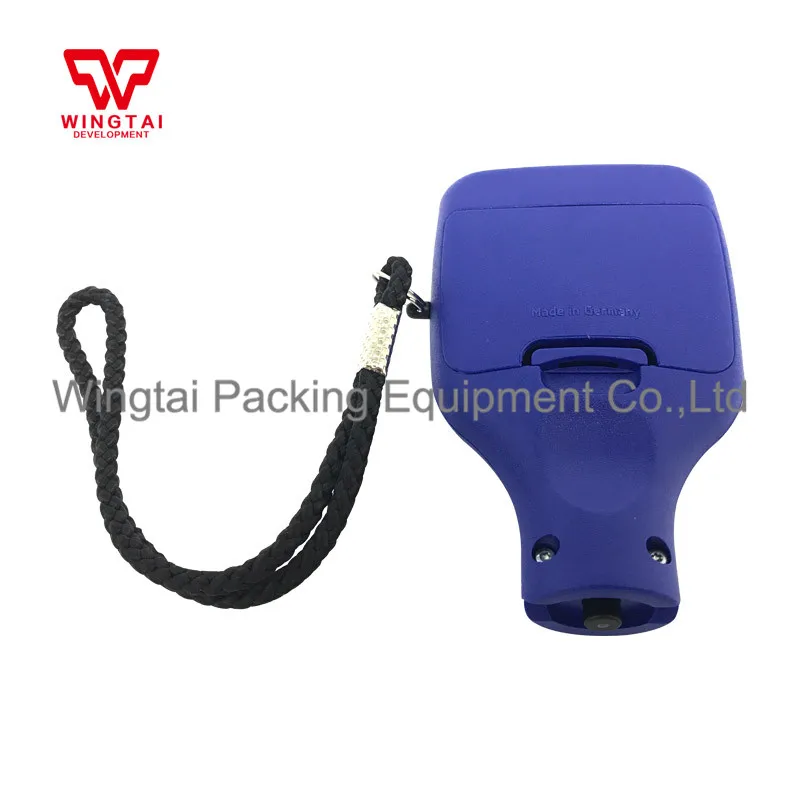

QNix 4500: The global bestseller for standard applications.

A handy and robust gauge for easy and fast coating thickness measurements – for all paint and automobile applications.





Product Description

QNix® 4500--our best selling coating thickness gauge for paint and automotive industry

Place of Origin: Germany

Brand: QNix



Description:

With the QNix® 4500, precise measurements on steel, iron and non-ferrous metals are simply perfect. Switch between the measuring procedures by simply pressing the button.

No calibration required. High precision over the entire measuring range: Fe3000μm and NFe 3000μm.



The sensitive QNix® 4500 measuring probe is fully integrated into this extremely small, light and handy gauge-optionally available as Cabel Probe. Its readable LCD informs about readings, battery condition, mode of operation and serial number.





Product Advantages:



1. Gauge for standard applications-easy,safe and fast measurements.

2. One-hand operation. Only one button.

3. No calibration.

4. Automatic On/Off.

5. High precision over the entire measuring range: Fe 0-5000μm and NFe 0-3000μm.

6. Broad spectrum of use for non-destructive measurements on steel, iron and non-ferrous metals such as aluminum, zinc, copper and brass.

7. Proven technology: Hall sensor and Eddy Current technology.

8. Acoustic signal confirms taking of a measurement.

9. Wear-proof ruby probe tip for long-term use.

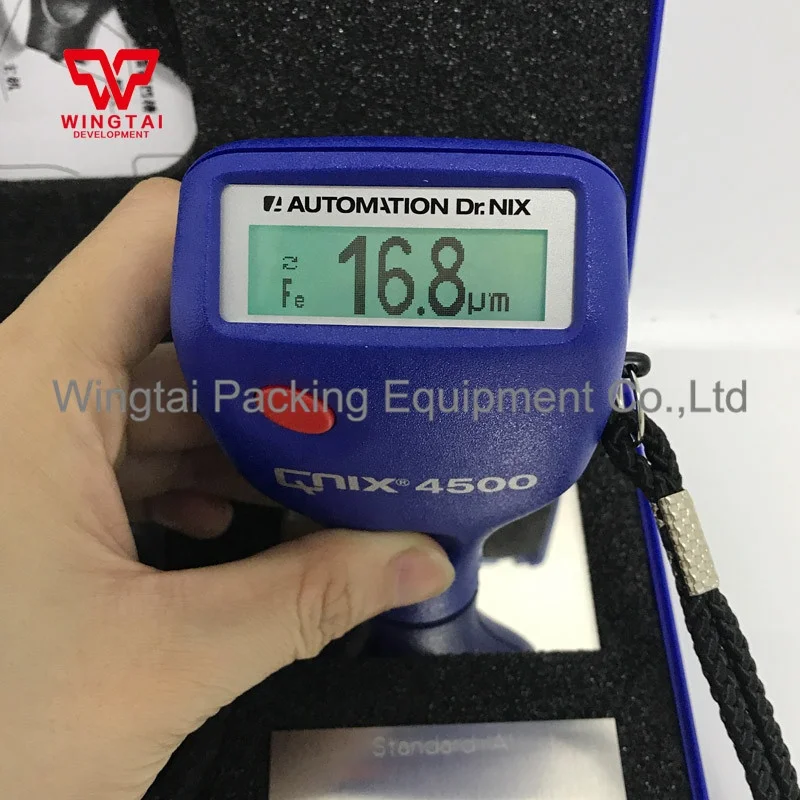

Optimal LCD-Display:

1. Large clear numbers for optimum readability.

2. Precise display of readings, battery condition, mode of operation and serial number.

3. Backlit display.





Technical Data:



Measuring PrincipleTwo magnetic measuring principles:
Fe: Magnetic-Flux/Hall Effect ref Fe*
NFe: Eddy Current (QNix 4500 only)
Standards & RegulationDIN EN ISO 2808, ISO 2178, ASTM B 499,
ASTM D 7091
(QNixR 4500 only: ISO 2360)
Probe Typeintegrated or - optional - Cable Probe with 1 m cable
Measuring RangeFe: 0.0 – 3000 um
NFe: 0.0 – 3000 um (QNix 4500 only )
Metric System µm/milYes
Measuring IntervalSingle measurement: 850 ms
Display Metricfrom 0.0 – 999 in um, from 1000 um in mm
Resolution1 μm in the range up to 999 um,
0.01 mm in the range from 1 mm

Accuracy referred to

Automation reference standard

 4200420045004500
3mm5mm3/3mm5/mm
 Fe<2mm1111
 Fe>2mm1212
 NFe<2mm  11
 NFe>2mm  12
 1 = +/- (3%* + 2um) ; 2 = +/- (5%* + 2um)
Minimum Measuring AreaDiameter 25 mm
Minimum Curvatureconvex: 5mm, concave: 25mm

Minimum Substrate Thickness

Fe: 0.2 mm
NFe: 0.05 mm (QNix 4500 only)
DisplayGraphic-LCD
Temperature Range0 - 50 temperature (32 – 122 °F)

Permitted Storage

Temperature

-10 - 60 temperature (14 – 140 °F)

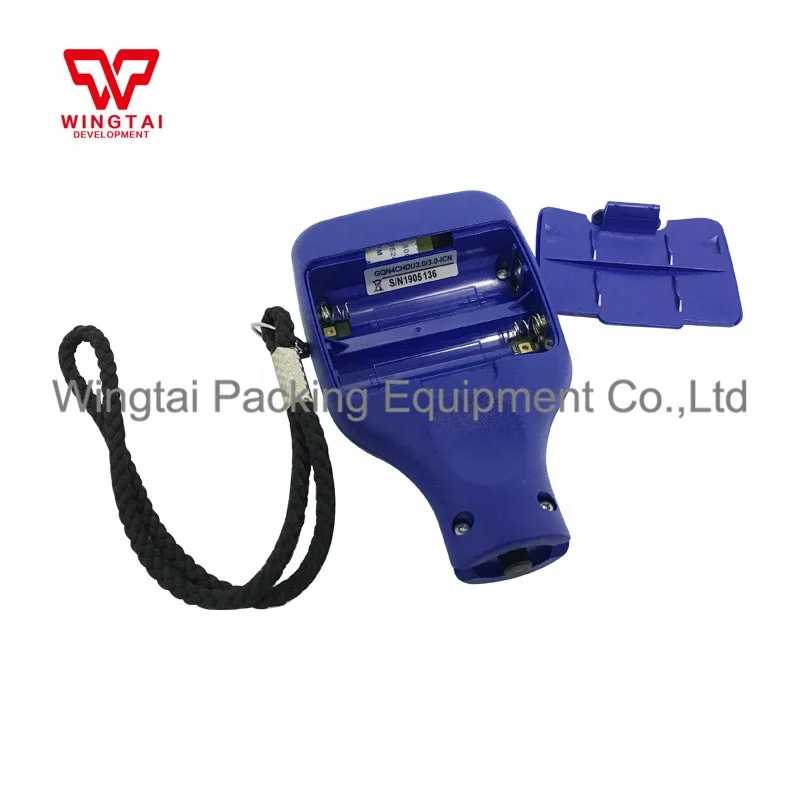

Power Supply2 x Batteries: 1.5 V (Type AA alcaline)
Dimensions
(L x W x H in mm)
100 x 60 x 27 (gauge with integrated probe)



(1) * of the measurement

(2) Fe* : Measuring of non-ferromagnetic coatings on ferromagnetic substrate, for example measuring on steel- or iron-substrates.

(3) NFe* : Measuring of non-ferromagnetic and electrically non-conductive coatings (insulating coatings) on non-ferromagnetic and electrically conductive substrate, for example measuring on aluminum-, zinc-, brass- and certain stainless ( high-grade ) steel-substrates.
