Gms hpr breakout board,mtk evaluation board,1Hz,9600BPS,Enable pin to shutdown the module

Feedback Ratings
US $26.00 / Piece | 5 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
D/C:
2015
Package:
SMD
Model Number:
Gms hpr board
Brand Name:
GlobalTop
Place of Origin:
Guangdong, China (Mainland)
MediaTek MT3339 Chipset:
L1 Frequency, C/A code, 66 Channels
Smart Antenna:
Finely Tuned Ceramic Antenna
Small Dimension:
16x16x6.2 mm
High Sensitivity:
-165 dBm, TCXO Design
Position Accuracy:
<3.0M 50% CEP
Multi-path Compensation:
E-GSM-900 Band Rejection
UART (TTL):
1PPS Support
protocol support:
NMEA 0183 and PMTK
Compliance:
E911, RoHS
package:
SMD

Packaging & Delivery

Selling Units:
Single item
Single package size:
5X5X3 cm
Single gross weight:
0.05 KG
Lead Time :
3

Gms-hpr

Gms-hpr is compatible with its predecessor PA6B, offering you not only the same ease of integration like before and small footprints, but also utilizing the GPS chipset “MT3339”.

Gms-hpr features low power consumption which is 45% less than PA6B. It is ideal for use in small-form factor device design and can be integrated easily with maximum degree of flexibility.



Feature

  • MediaTek MT3339 Chipset, L1 Frequency, C/A code, 66 Channels
  • Smart Antenna: Finely Tuned Ceramic Antenna
  • Small Dimension, 16 x 16 x 6.2 mm; SMD
  • High Sensitivity, -165 dBm, TCXO Design
  • Position Accuracy: <3.0M 50% CEP
  • DGPS (WAAS/EGNOS/MSAS) Support
  • Multi-path Compensation ; E-GSM-900 Band Rejection
  • UART (TTL); 1PPS Support
  • NMEA 0183 and PMTK protocol support
  • E911, RoHS Compliance



Specification

Dimension16 x 16 x 6.2 mm, SMD type
GPS SolutionMTK MT3339, 66 Channels
FrequencyL1, 1575.42 MHz ; C/A Code
SensitivityAcquisition -148 dBm
Tracking -165 dBm
Position AccuracyWithout aid: 3.0 m (50% CEP)
DGPS (SBAS(WAAS,EGNOS,MSAS)): 2.5 m (50% CEP)
TTFF (Time to First Fix)Cold Start: <35 Seconds (Typical)
Warm Start: <33 Seconds (Typical)
Hot Start: <1 Seconds (Typical)
Timing Accuracy (1PPS Output)10 ns RMS
ProtocolNMEA 0183, MTK Command
DGPSSBAS [QZSS, WAAS, EGNOS, MSAS]
AGPSSupported (Offline Mode)
Interface1 UART
Baud Rate4800 ~ 115200 bps
Update Rate1 ~ 10 Hz
Power SupplyVCC: 3.0 V to 4.3 V
VBACKUP: 2.0 V to 4.3 V
Current ConsumptionAcquisition: 25 mA
Tracking: 20 mA
Working Temperature-40 °C to +85 °C



Breakout Board-2

BK-G9-11BK-HPR-11SIM68V-11

SIM68VB-11SIM800H-11SIM800L-11

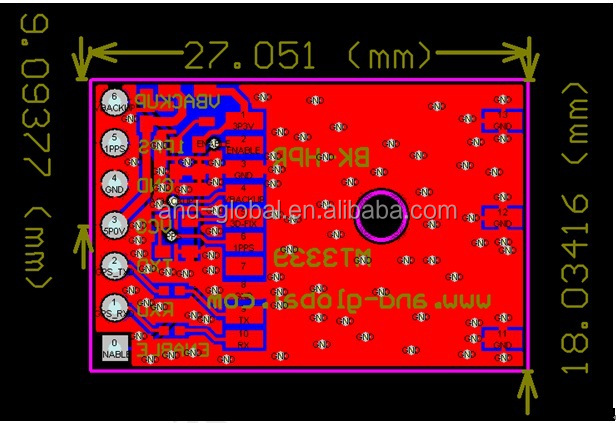

BK-HPR02-11.jpgPCBA dimension: 27*18mm.

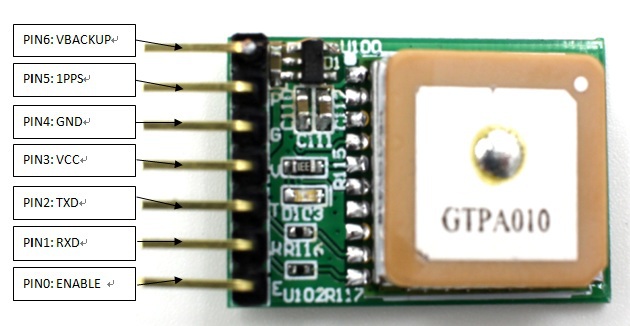

Pin definition

.jpg

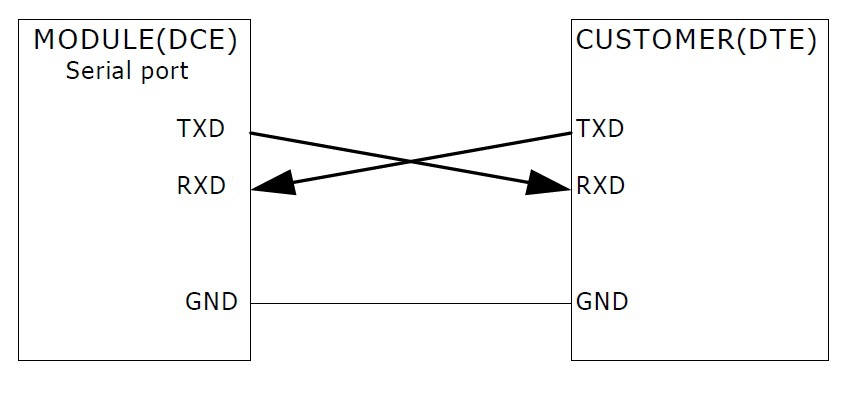

2 How to use TXD and RXD(Default baud rate is 9600bps, For Custom-made firmware 115200bps and 10Hz update rate, please contact us!)

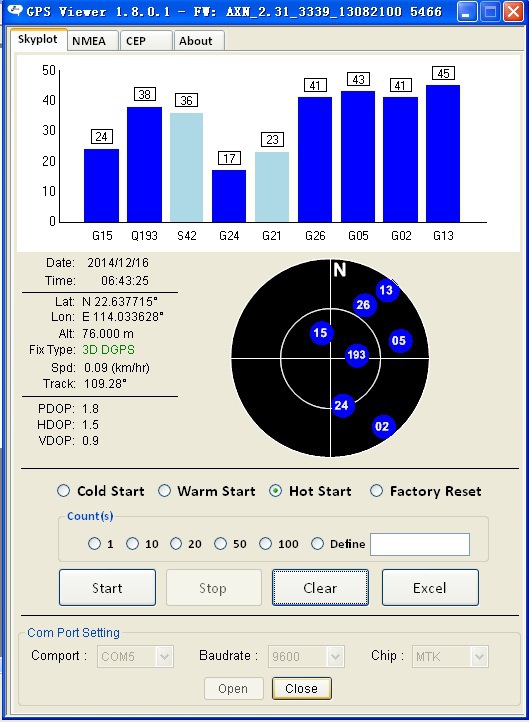

View GPS location status 55.jpg

View GPS location status






More detalis you want, feel free to contact with us,we will reply within 24 hours.
