Good quality stainless steel coil stretch packing machine for wrapping

FOB Reference Price:Get Latest Price
US $1,000-10,000 / Sets | 1 Set/Sets tube coil shrink wrap machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Condition:
New
Application:
Chemical, Food, Machinery & Hardware, Medical, Textiles, Steel coil, Wire coil packaging
Packaging Type:
Bags, Belt, Case, Film, Foil, Pouch
Packaging Material:
Metal, Paper, Plastic, Wood
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
380V
Power:
1.5KW
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Fhopepack
Model Number:
FPH100
Weight:
800kg
Dimension(L*W*H):
1200mm*1400mm*1850mm
Certification:
CE,
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
tube coil shrink wrap machine
Packing material:
stretch film, paper
Material:
Carbon Steel
Other name:
high density tube coil shrink wrap machine
Packing speed:
20-50sec
Keyword:
coil wrapping machine, coil packaging machine
Machine type:
wrapping machine
Warranty:
2 Years
Item:
Automatic & semiauto
Using:
coil packaging
Supply Ability
Supply Ability:
30 Set/Sets per Month tube coil shrink wrap machine
Packaging & Delivery
Packaging Details
Package of tube coil shrink wrap machine:
stretch film, wooden packaging, LCL, coil packaging, bubble film, 20 feet container, paper, bubble film
Port
Shanghai
Lead Time :
35days
Product Details

Good quality stainless steel coil stretch packing machine for wrapping

Product Details of tube coil shrink wrap machine:

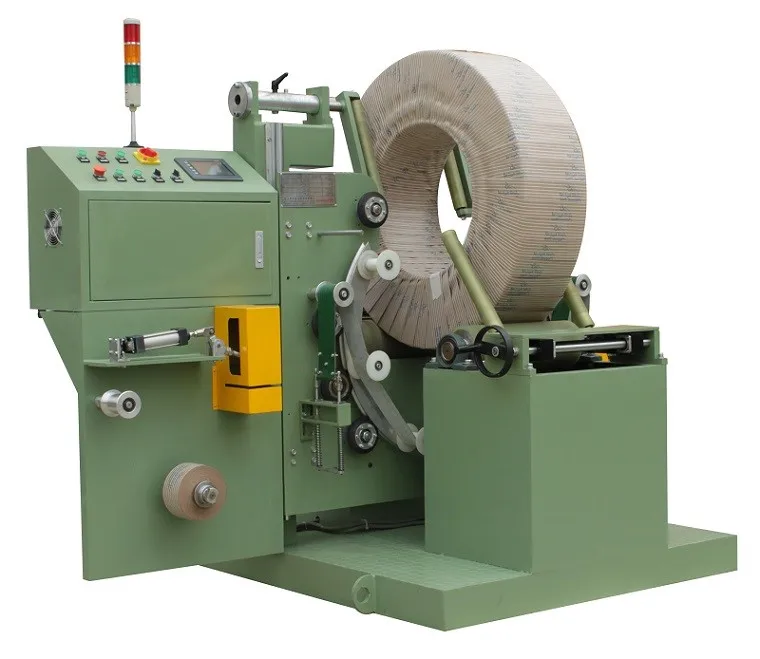

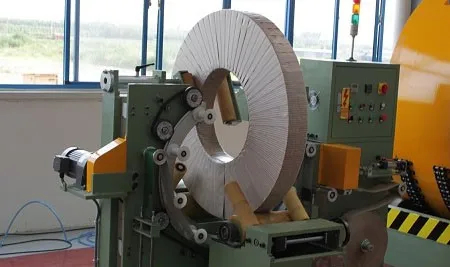

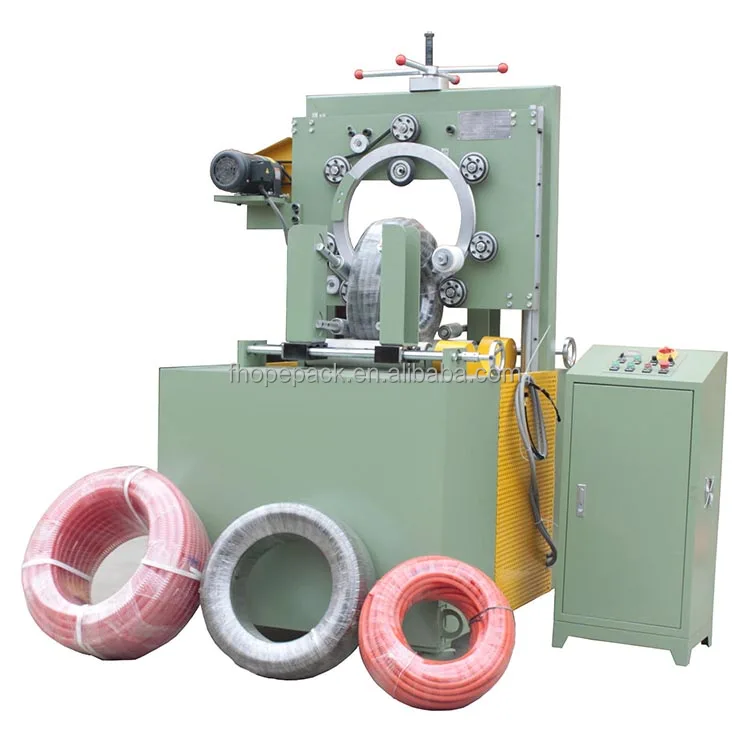

Hose COIL WRAPPING MACHINE

Hose Coil wrapping machine and coil packing machine is a special ring type of efficient equipments for coils through eye packaging. There are different types coil packer which is able to provide a nic packing solution for coils..For soil packing machine or coil wrapping machine, the speed of ring and rollers are adjustable to accommodate materials by inverters. It is the most efficiency equipment for coil objects packaging, which meets the requirement for higher packaging rates and minimal space and lower labor costs.

Product Introduction

long using life with 2 years warranty


Our coil packing machine is excellent for the typical steel factory environment, it provides consistent, repeatable stretch wrapping performance by paper, stretch film.Heavy loading Weight Capacity with tough facture is the "Best in Class" for control feature and capabilities.

Save your labor cost by high packing speed


The ring speed upto 100rpm.

It is able packaging the coil in high speed.
Only 20-35 sec/coil.
That is able save your man power a lot and improving the packaging management.

Nice coil package for protecting and marketing


Overlapping rate is adjustable per your packaging requirement with unit packaging surface.

Good tension control for diferent package.

Different packaging material is avialbe from paper to stretch film, gunny,knit belt...


Easy opeation & Maintainment


The machine can be opearting by Non skill worker.

Bottom panle with PLC with fool style operation.

Easy to access and remove for maintenance,
drastically reducing downtime.


Product Parameters
Name
FPC-300
FPC-600
FPC-1000
Packing material
Compound paper tape/compound woven belt/
anti-rust tape/stretch film
W:90mm ID:54mm OD:500mm

Compound paper tape/compound woven belt/
anti-rust tape/stretch film
W:90mm ID:54mm OD:500mm

Compound paper tape/compound woven belt/
anti-rust tape/stretch film
W:90mm ID:54mm OD:500mm

Coil Size
Width≤300mm
OD≤800mm
ID≥408mm

Width≤600mm
OD≤1400mm
ID≥508mm

Width≤1000mm
OD≤1400mm
ID≥508mm

Packaging speed
20-30sec
20-35sec
25-50sec
Max Loading
500Kg
2000kg
4000kg
Machine Weight
App.800Kg
App.1500Kg
App.1800Kg
Power supply
Per demand
Per demand
Per demand
Video

Click folloing for more video of coil packing machine

Product Details Show
Company information
FAQ

Q1:Are you factory or trading company?
A: We are factory and manufacturer. We provide great product in customize solution and service.


Q2: Where is your factory located? How can I visit your factory?
A: We are located in Shanghai, you can fly to Shanghai Hongqiao airport or Pudong airport. Wecan pick you up from the airport or your hotel.
Welcome to visit us!

Q3:How to place an order to us ?
A: Just contact us via TraderManager, E-mail, Skype, WhatsApp or telephone to confirm the product, Wire the deposit by T/T, then we will start to design and manufacture...

Q4 : What is the payment term?
A: 40% T/T deposit and 60% T/T balance payment before shipping.
For big value, we also can accept L/C.

Q5:How long is the delivery time?
A: About 20- 40 working days. The customize solution may need 60days

Q6 : What is the guarantee and service of machine ?
A: One year free warranty, life-long maintenance. We can provide free high quality service on-line, email, Tel...we also can provide door to door service, this is paid service.


Q7 : How many staff of your factory?

A: There are 100 peoples, including 12 machnical engineer, 8 electrical engineer
