Government project fluorescent troffer fixture school meeting room Recessed mounted led tube Grille Lamp

Feedback Ratings
  • 1-49 Pieces
    US $35.00
  • 50-99 Pieces
    US $32.00
  • >=100 Pieces
    US $23.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OGJG
Model Number:
OG-PLED-220S
Light Source:
LED SMD2835
Install Style:
Recessed mounted
Reflector:
Stainless Steel
Ballast:
Isolated driver
Grid Shape:
H
Voltage:
100-277V
Product Name:
single and double lamp led tube troffer retrofit kit light
Length:
598mm/1198mm
Power:
20w/30w/40w/60w/80w
Input Voltage:
AC100-277V
CCT:
3000k/4000k/5000k/6000k
Material:
cold rolled steel housing+aluminum louver and reflector
CRI:
Ra>83
Beam angle:
120degree
Warranty:
5 Years
Application:
office/corridors/classroom

Packaging & Delivery

Selling Units:
Single item
Single package size:
125X13X45 cm
Single gross weight:
5.5 KG
Package Type:
single and double lamp led tube troffer retrofit kit light Standard export carton with foam inside suitable for long-distant delivery,Sample packed with the export wooden carton.
Lead Time :
5
LED grille lights

single and double lamp led tube troffer retrofit kit light


single and double lamp led tube troffer retrofit kit light
model
OG-PLED-S
material
cold rolled steel housing+aluminum louver and reflector
rated voltage
AC100-277V
voltage
20w/30w/40w/60w/80w
light color
white
CRI
Ra>83
PF
>0.95
THD
<13%
temperature
3000K/4000K/5000K/6000K
light source
LED
LED type
Epistar 2835 LED
Warranty
3 years
Life time
50000hrs
Products Details

There're two designs to choose, can be ceiling / recessed mounted.
Optional: Microwave motion sensor / 2-3 hours Emergency battery back up

Cold rolled steel housing

Aluminum louvers and reflector

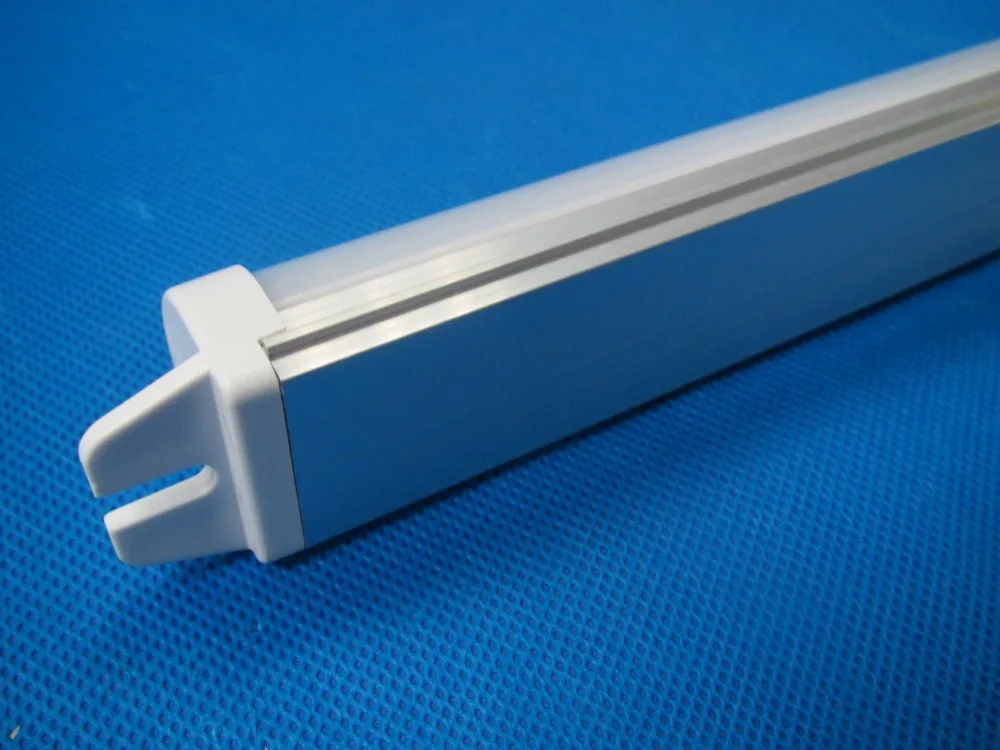

The LED tube use Epistar 2835 LED chips, can be pull out to achieve replacement, so that is easy to maintain.

The unbreakable and non-discoloring PC lens, performs high lumens output and superior lighting efficiency.

The aluminum heat sink, performs superior heat dissipation.

Construction:

Cold rolled steel housing
Aluminum louver and reflector
Aluminum heatsink
Poly carbonate lens
Isolated LED driver
Epistar 2835 LED chips

Electrical control:

Input voltage range: 100-277V AC

Frequency: 50-60Hz

Power factor: >0.95

Harmonic distortion: THD<13%

Optional microwave motion sensor

Optional emergency battery back up

Specification
Model
Wattage
Size(mm)
Lumens
LED quantity
OG-PLED-220(S)
40W
1198*298*50
3800-4400lm
240(2835/0.2W)
OG-PLED-320(S)
60W
1198*598*50
5700-6600lm
360(2835/0.2W)
OG-PLED-420(S)
80W
1198*598*50
7600-7700lm
480(2835/0.2W)
OG-PLED-210(S)
20W
598*598*50
1900-2200lm
120(2835/0.2W)
OG-PLED-310(S)
30W
598*598*50
2850-3300lm
180(2835/0.2W)
OG-PLED-410(S)
40W
598*598*50
3800-4400lm
240(2835/0.2W)
