Green Wing Off Grid Three Phase 5kw 5000w 6kw 6000watt Energy System With 72 cells Home Solar Panelhouse

  • >=1 Watts
    $0.26
Material:
Monocrystalline Silicon
Max. Power:
340W-385W
Number of Cells:
72
Lead Time:
Quantity(Watts) 1 - 10000 >10000
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Bac Ninh, Vietnam
Brand Name:
Green Wing
Model Number:
GW-D156-72-360
Type:
Standard Solar Panel
Size:
1956*992*40mm
Product name:
solar panelhouse
Frame color:
Silvery,black
solar cell:
Mono 156*156 cell
Front cover:
3.2mm High Transmission,Low Iron tempered glass
Frame:
Anodized aluminium alloy
Connector:
MC4 compatible connector
Application Class:
A grade
Keyword:
solar panelhouse
Certificate:
TUV CE ISO UL BIS
OEM Order:
Accptable
Supply Ability
Supply Ability:
1000000 Watt/Watts per Year solar panelhouse
Packaging & Delivery
Packaging Details
26pcs per pallet , in wooden box with pallet , 280pcs per 20ft container , 600pcs per 40HQ container
Port
Haiphong port for solar panelhouse
Lead Time :
Quantity(Watts) 1 - 10000 >10000
Est. Time(days) 7 To be negotiated
Product Description

Green Wing Off Grid Three Phase 5kw 5000w 6kw 6000watt Energy System With 72 cells Home Solar Panelhouse

A solar power system is made up of multiple photovoltaic (PV) panels, a Dc to AC power converter (called inverter) and a rack system that holds the PV panels in place. ... Solar PV panels on the roofs of homes and businesses generate clean electricity by converting the energy in sunlight.

Electrical Specifications (standard test conditions)
Maximum Power -PMAX (Wp)
340
345
350
355
360
365
370
Power Tolerance -PMAX (W)
0~+5
Maximum power point of operating voltage-VMPP (V)
38.2
38.5
38.7
38.8
39
39.3
39.7
Maximum power point of operating current) -IMPP (A)
8.9
8.96
9.04
9.15
9.24
9.3
9.33
Open circuit voltage -Voc (V)
46.2
46.7
47
47.4
47.7
48
48.3
Short circuit current - Isc (A)
9.5
9.55
9.6
9.65
9.7
9.77
9.83
Module Efficiency ηm (%)
17.5
17.7
18.0
18.3
18.6
18.8
19.0
Standard test conditions under Measured Value:( air quality AM1.5, Irradiance 1000W / m2, cell temperature 25 °C)
Mechanical Specifications
Solar cell Type
156mm × 156mm Mono-crystalline
Number of Cells
1 module 72pieces (6 × 12)
Dimensions
1956*992*40mm
77.00*39.06*1.57 inch
Weight
23 kg
Glass
3.2mm, High transparency, anti-reflective coatings toughened glass
Junction Box
Protection level IP 68
Frame
Black/ white, anodized aluminum
Backsheet
Black/ white
Busbar
Black/ white
Cable
4.0 mm², 1200 mm Photovoltaic dedicated cables
Connector
MC4 compatible
Related Products

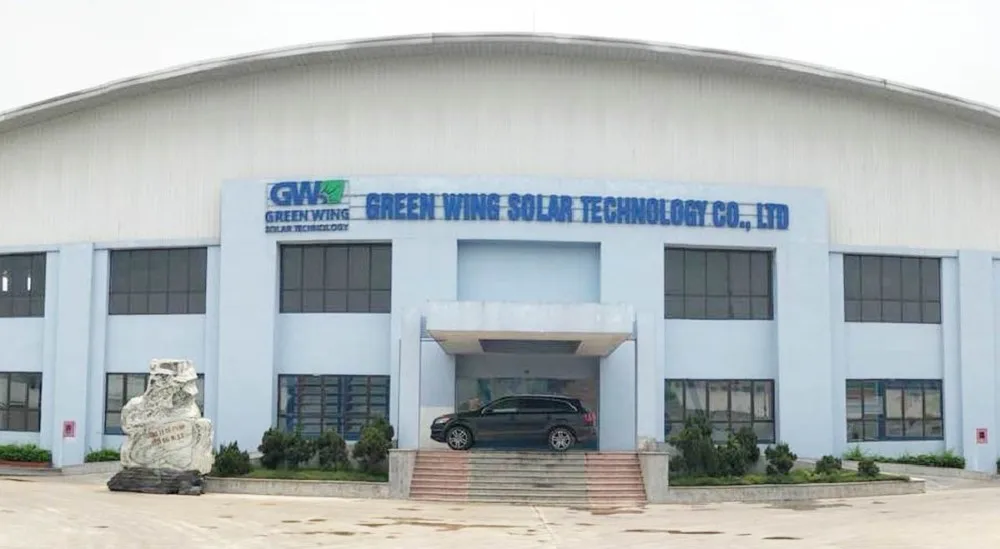

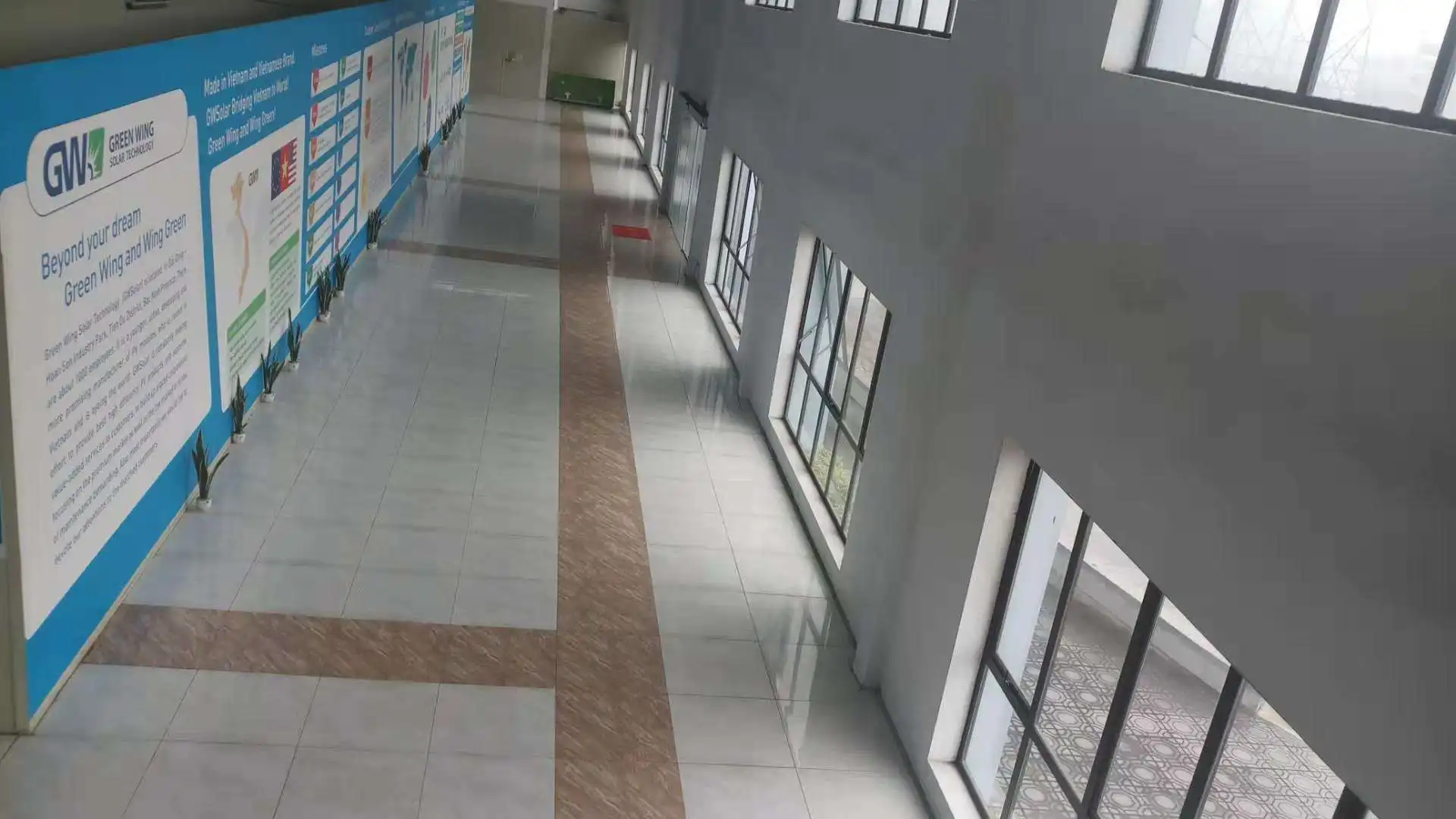

Our Company

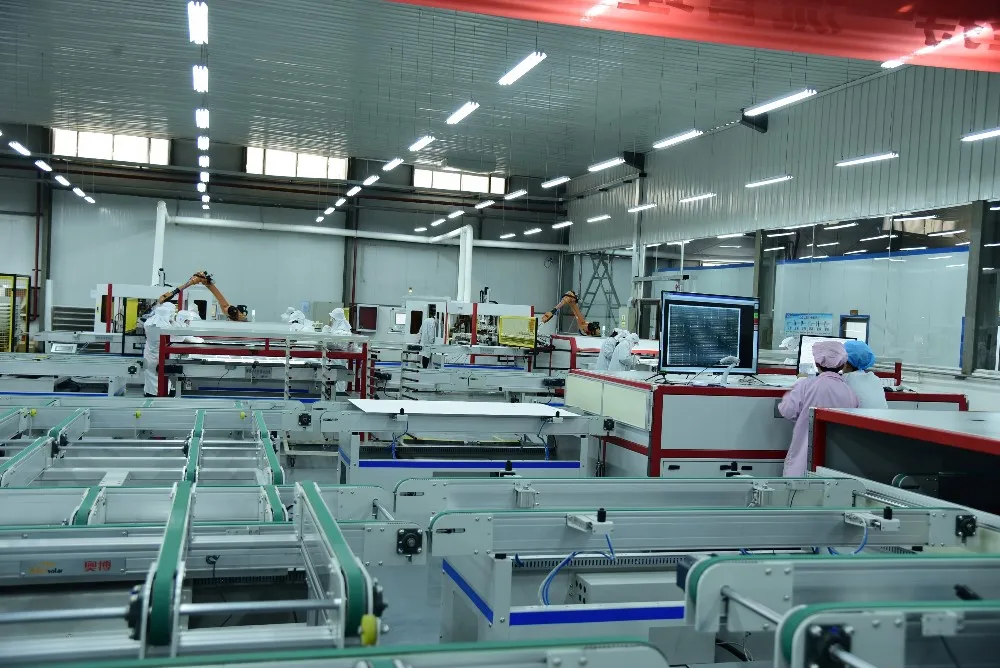

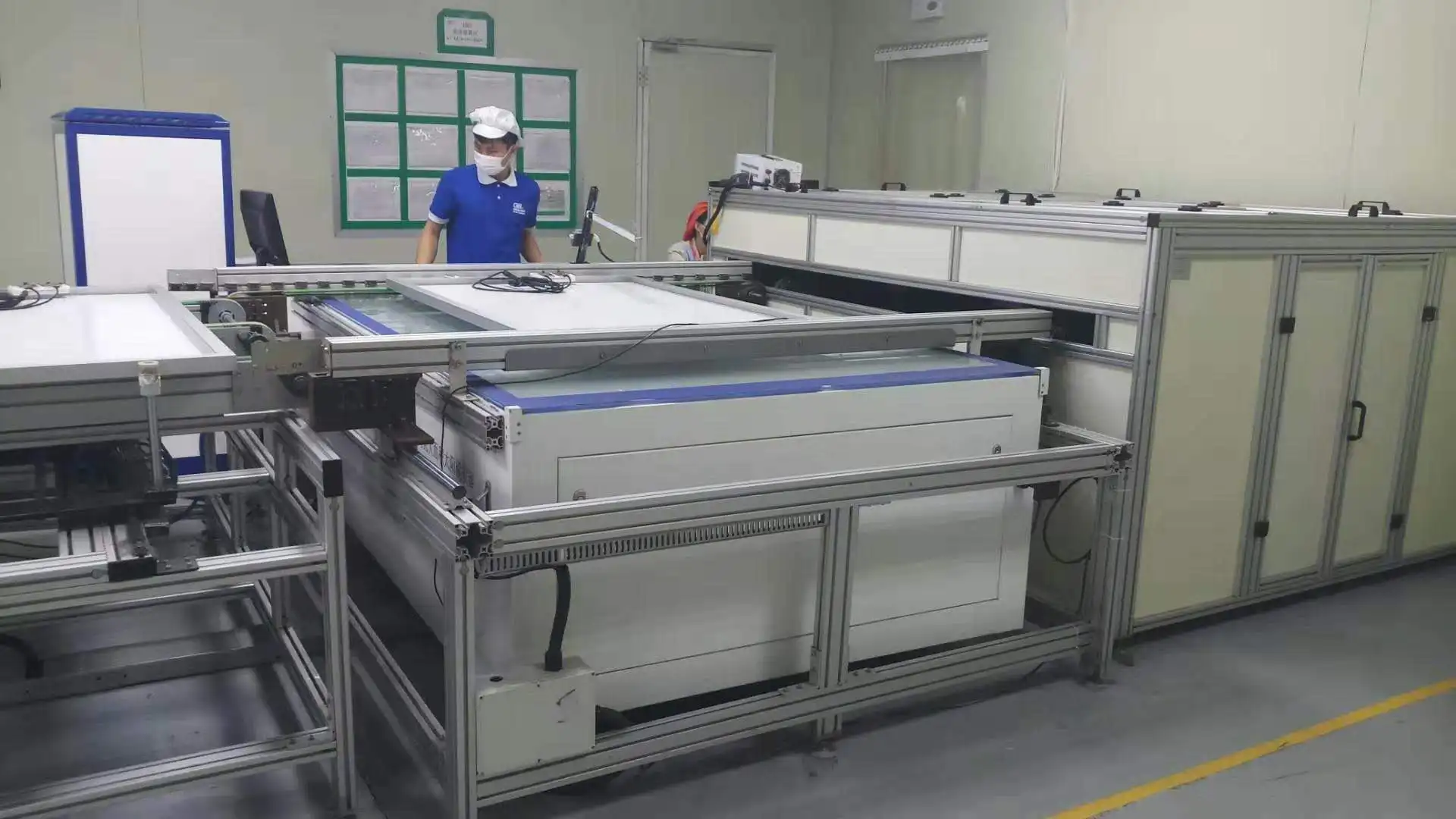

Production Flow

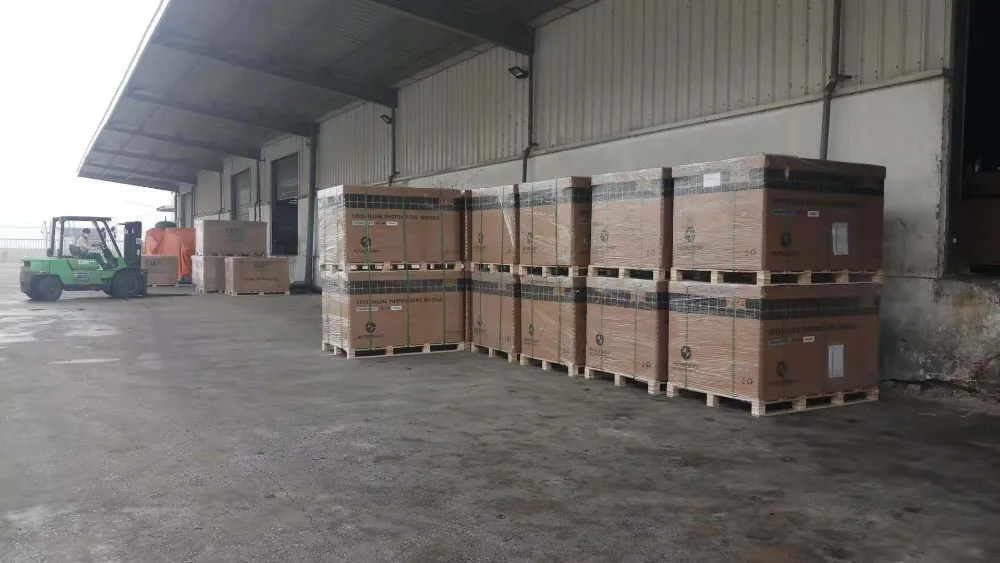

Packing & Delivery

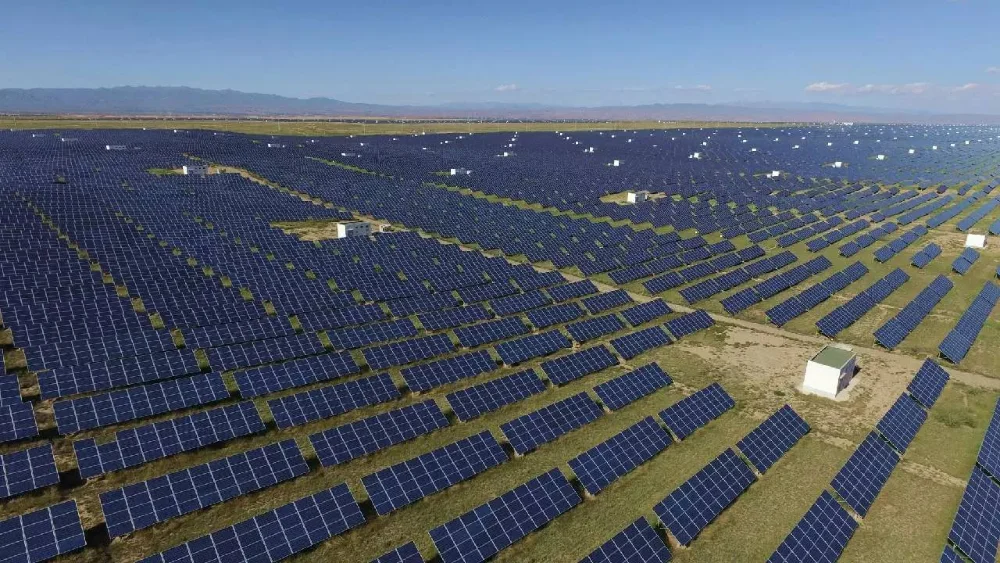

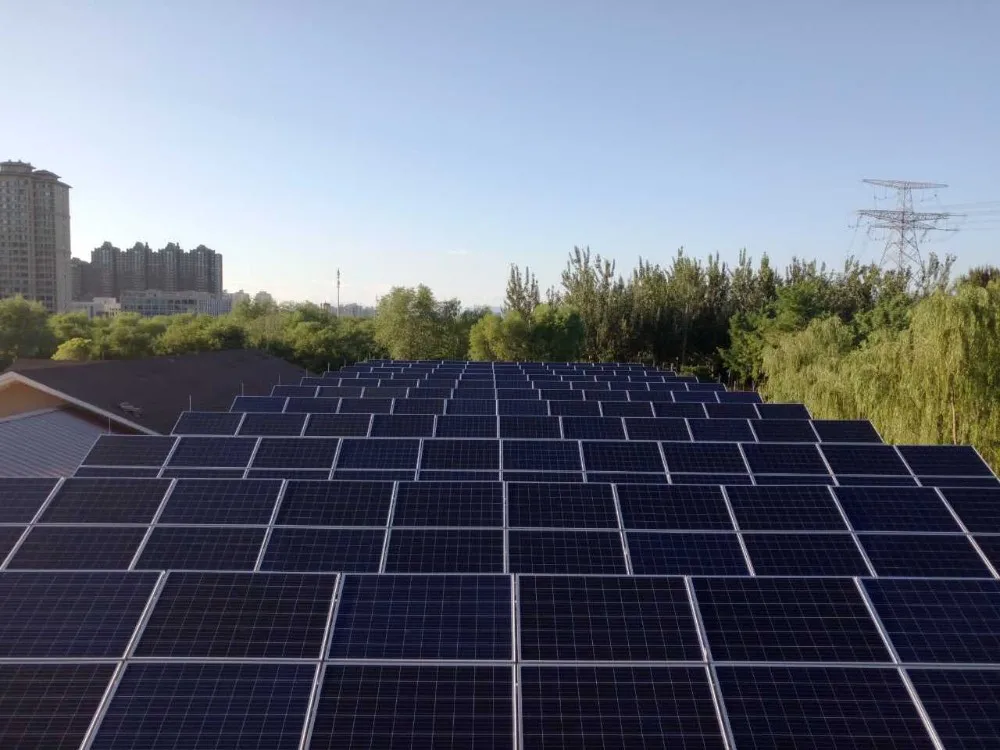

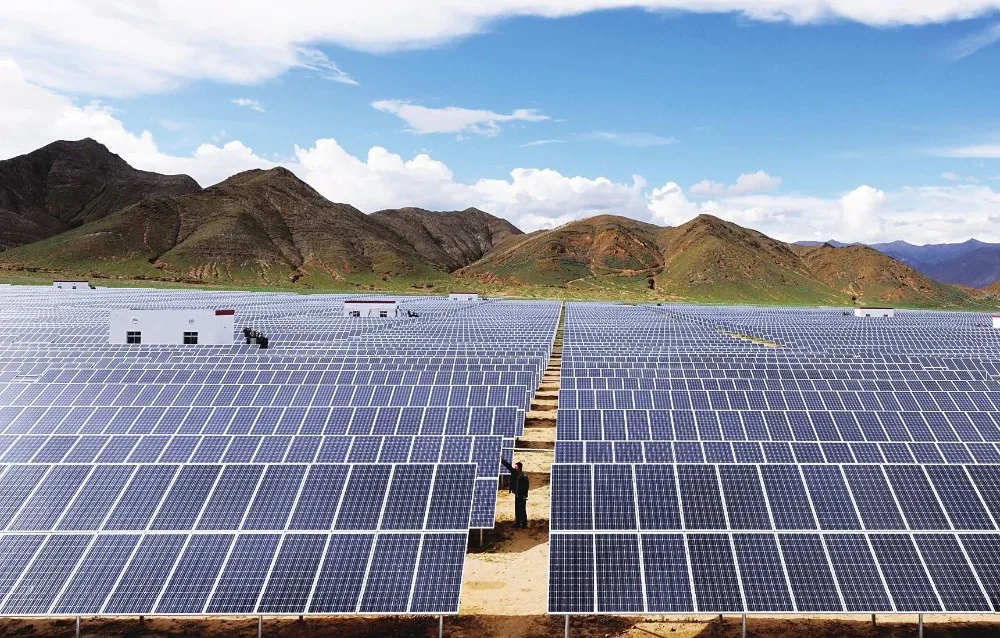

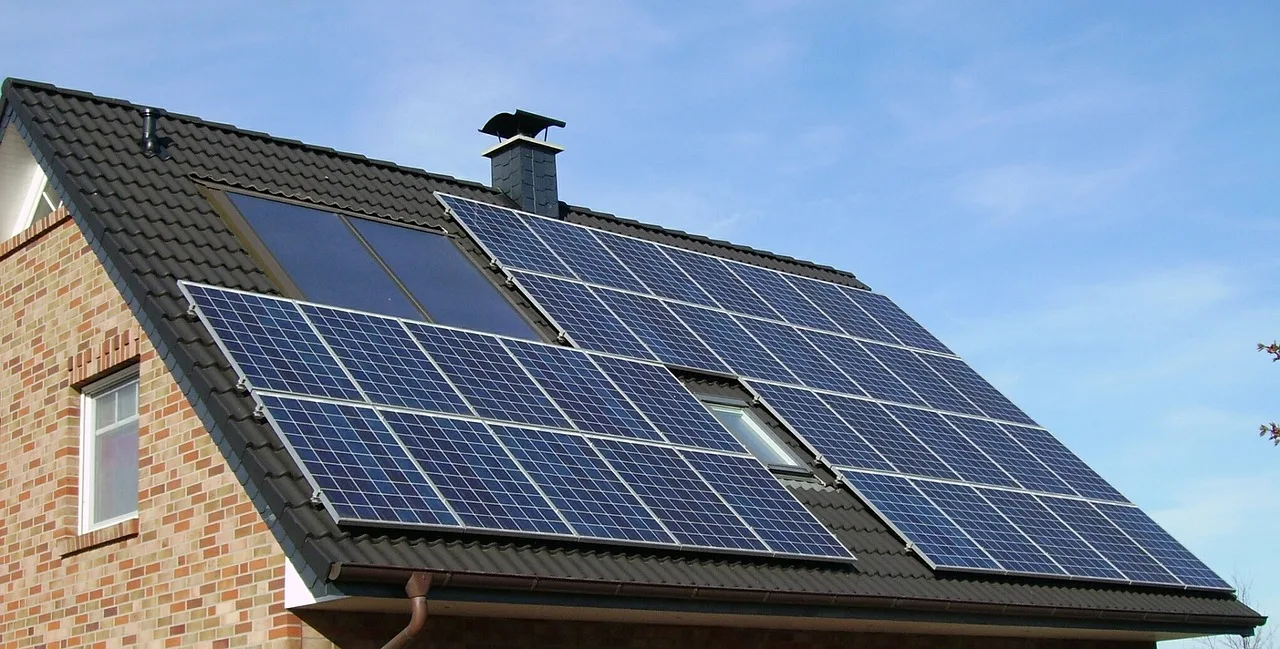

Project Cases
FAQ

Q: Can I have a sample order for Solar Panel for Solar Home System?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: How to proceed an order?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q: Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q: Do you offer guarantee for the products?

A: Yes, we offer 25 years warranty to our products.
