Model HG is chiefly used in paper cutter,screen printing machine,photo
1000 Set/Sets per Week
Packaging & Delivery
One Set One Wooden Case Only or package as the clients' requirement.
1-25 working days
IP55 Insulations class F
Greenco Bearing continuously works 130000 hours without maintenance 12-moth warranty
Ex stock for use world-wide
The G-series side channel blower feature voltage rang motors for 50HZ and 60HZ in protection class IP55(insulation class F) are UL,CE,CCCapproved.this makes them the ideal solution for wide use.they can be used without any modifications or tests in Europe,America and Asia.They are mostly available ex stock.they are available for your requirements anytime.
G-series operating principle

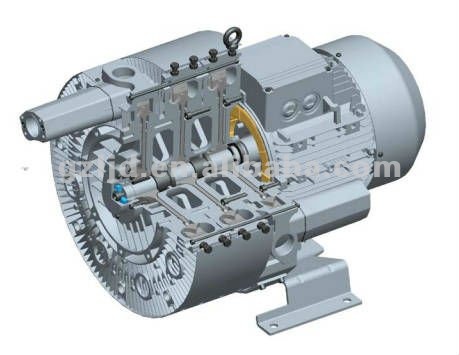

The impellers in the G-series machines are mounted directly on the motor shaft for noncontact compression entirly without friction.Maximum operational reliability,even at high differential pressures.is ensured by the arrangement of the bearings outside the compression chamber.
The gas it taken in through the inlet 1 .As it enters the side channel 2,the rotating impeller 3 imparts velocity to the gas in the direction of rotation.Centrifugal force in the impeller blades accelerates the gas outward and the pressure increase.Everyrotation adds kinetic energy.resulting in the further increase of the pressure along the side channel.The side channel narrow at the rotor,sweeping the gas off the impeller blades and dis-charging it through the outlet silencer 4 where it exits the side channel blower.
Features: 1. Beautiful surface 2. Easy installation 3. Low noise level 4. No vibration, and therefore complete dynamic stability 5. Pulsation-free discharge 6. Minimal maintenance 7. Higher pressure ratio 8. Cooler running bearings 9. Longer grease life 10. Simple maintenance 11. 100%oil-free air 12. Suitable for environmental protection 13. Small dimensions 14 continuous duty
1.Pneumatic conveying systems
2.Lifting and holding of parts by vacuum
4.Aeration of sewage-treatment plants
5.Filling of bags/bottles/hoppers
8.Sorting/enveloping of letters
11.Dental suction equipments
15.Aeration of fish ponds
17.Wsimming pool equipment/whirlpool
Our company are mostly available ex stock.both the quality and price are best.if you are interested in our products,no hestation to contact us.
