HAAS machine tool BT-CAT50 x 45 degree U/T CNC pull stud retention knob with coolant hole

$12.57 / Piece | 5 Pieces (1 lot) (Min. Order)
1 batch = 5 Pieces
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order: 250 Pieces)
Customized packaging (Min. Order: 250 Pieces)

More

Graphic customization (Min. Order: 250 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
SFX
Model Number:
BT-CAT50-45°U/T
Material:
20CrMnTi
Hardness:
HRC40-44 HRC35-40 HRC55-60
Weight:
0.23 Kg
Length:
78.22mm
Neck Dia:
17mm
S:
30mm
L2:
45.2mm
L3:
35.2mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X15 cm
Single gross weight:
1.3 kg

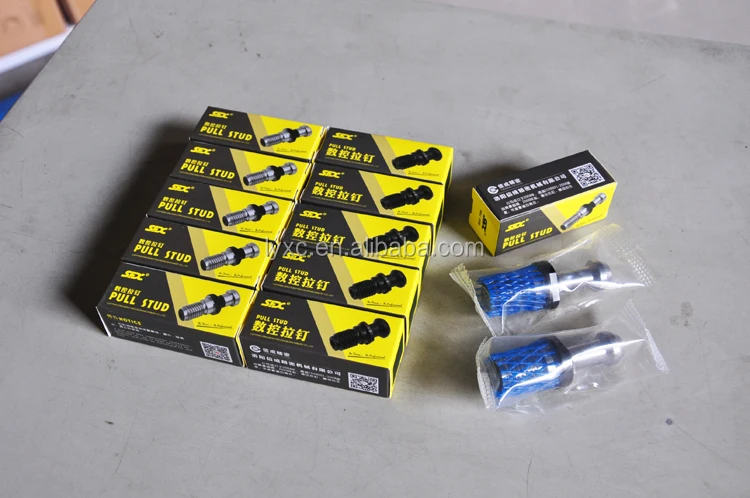

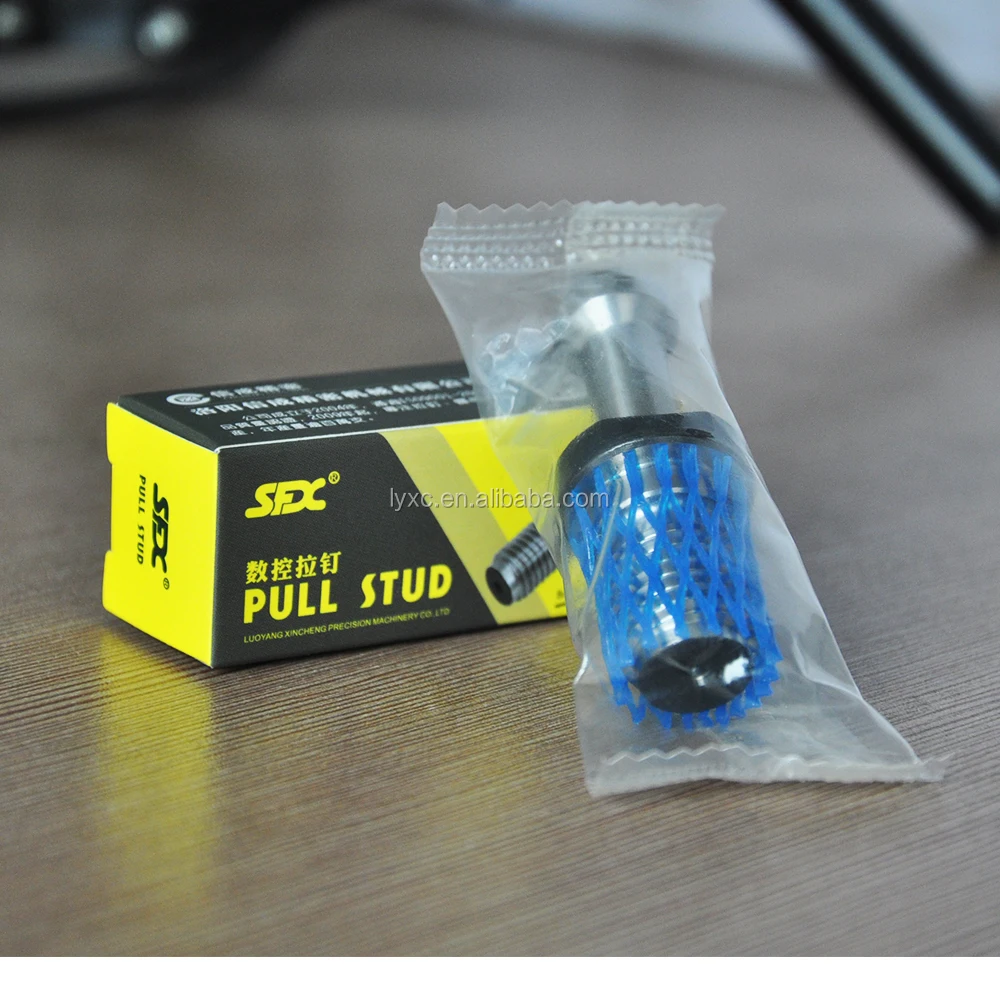

Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 2 To be negotiated
Video Description

 HAAS Machie tool BT-CAT50 x 45° U/T

Retention Knob CNC Pull Stud

With coolant hole

  • L=78.22mm, L2=45.2mm, L3=35.2mm,L5=10mm
  • D1=23mm,D3=38mmm,D4=17mm,D5(Coolant hole)=8.5mm D7(Thread)=1'-8UNC
  • S=30mm
  • α=45°

5pcs=$62.84+Free Shipping by Epacket





Product Features:

1. Each pull stud is tested thoroughly which ensures the quality of the pull stud

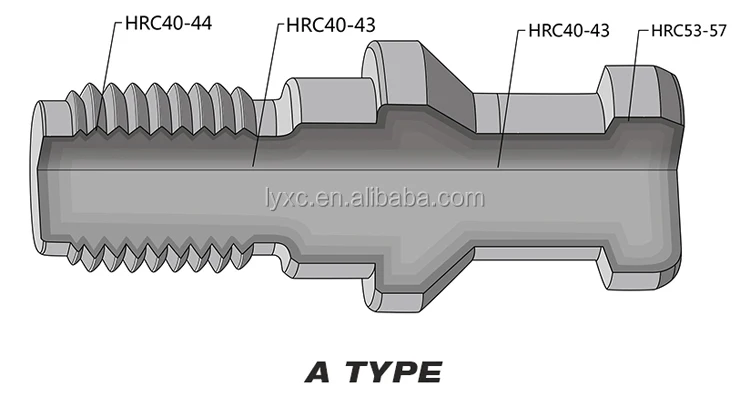

2. Made from fine alloy steel 20CrMnTi with treatment to HRC 53-57

3. Hard outside and soft inside, with higher wear resistance and better toughness

4. High quality black oxide ensures long pull stud life and a non-rusting surface

5. Precision turning on all critical surface

6. Large selection for specific machine models, custom design accepted
