HAE18 SSI 12 bit Mini Magnetic Hall Effect absolute Angle Encoder

Feedback Ratings
  • 1-49 Pieces
    $56.00
  • 50-99 Pieces
    $53.00
  • >=100 Pieces
    $44.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
HAE18U5V12A
Usage:
Position Sensor
Theory:
Hall Sensor
Output:
Digital Sensor
Outer shell diameter:
18mm
Power supply:
DC5V
Bit:
12
Output signal:
Voltage output
Reading clock rate:
≤1MHz
Shield:
Standard 0.3m; Special 0.5m
Starting torque:
≤3Ncm
Protection:
IP65

Packaging & Delivery

Selling Units:
Single item
Single package size:
25X14X13 cm
Single gross weight:
1.3 kg
Package Type:
Standard strong export carton box
Lead Time :
5
Product Description



HAE18 SSI 12 bit Mini Magnetic Hall Effect absolute Angle Encoder





Feature:


  Non-contact sensing technology

 Absolute bit 10,12,14

  Power supply: 3.3V or 5V

  Serial data output SSI(10 bit,12 bit),SPI(14 bit)

 Unitary structure design, high strength

 Environment and vibration resistant, high protection grade

  Compact, small size, shell diameter only 18mm

  Built-in two sets of ball bearings, suitable for industrial environment

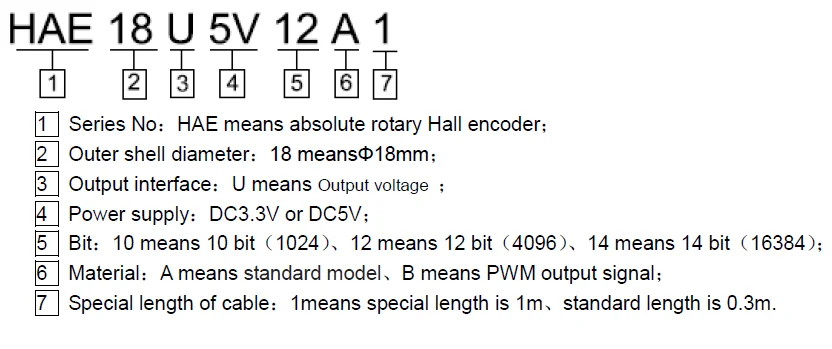

Model Definition:





Electrical System Parameters:



Mechanical Parameters

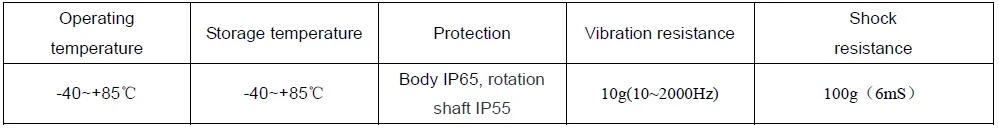

Operating Conditions

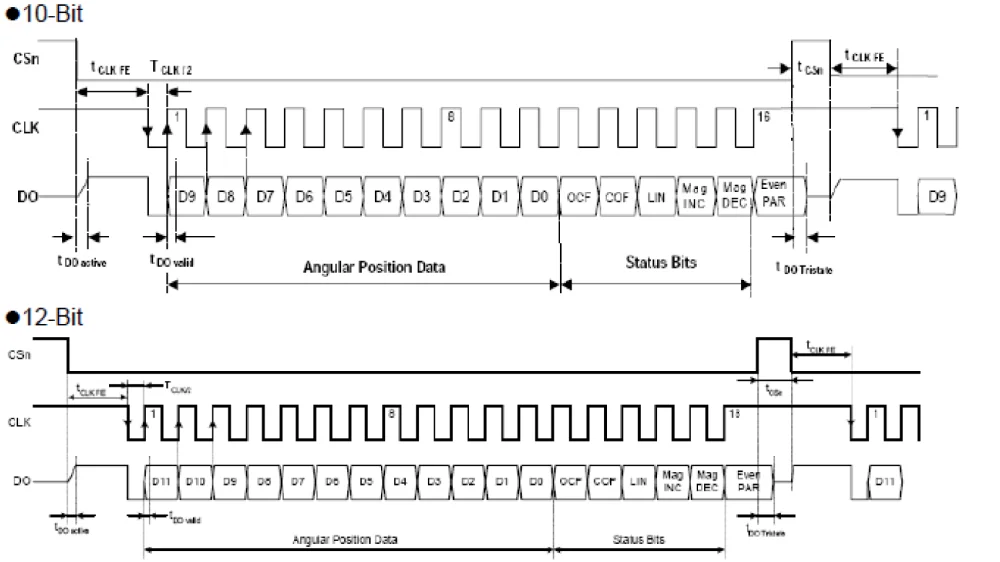

Timing Characteristics





Overall Dimension Diagram


Company Information

     Shanghai Qiyi Electrical & Mechanical Equipment Co., Ltd. has specialized in encoder, sensor, motor and related products for many years, located in Chinese business and port center, Shanghai. CALT brand product ranges: Optical incremental rotary encoder, single-turn and multi-turn absolute encoder, draw-wire position sensor and couplings, and other instruments, which widely used in CNC machinery, textile machinery, steel rolling machinery, linear guide system, hydraulic system, lifting machinery and servo motor, all get a very good reputation! Qiyi company has got independent import and export qualification in 2013, CALT brand products have been exported to Southeast Asia, Europe, America and Russia and other countries and regions in the world.
