HIgh pressure gas pressure regulator

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    $160.20
  • 10 - 49 Pieces
    $150.20
  • >=50 Pieces
    $138.20
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
Yunyi
Model Number:
YR31 Series
Name:
HIgh pressure gas pressure regulator
Material:
stainless steel
input Pressure:
3000psi
Output pressure:
0-200psi, 0-300psi
Thread:
1/4NPT
Cv:
(Cv)0.025 0.06, 0.08
Seat:
PCTFE, Vespel
Package size:
17cm*17cm*17cm
Temperature:
-40℉~+165℉(-40℃~+74℃)
Structure:
Single stage type
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month HIgh pressure gas pressure regulator
Packaging & Delivery
Packaging Details
HIgh pressure gas pressure regulator
Antistatic plastic bags and Corrugated box.
Other package mode also can be customized.
Port
All ports
Lead Time :
7 days
Pressure Regulator
Product Description

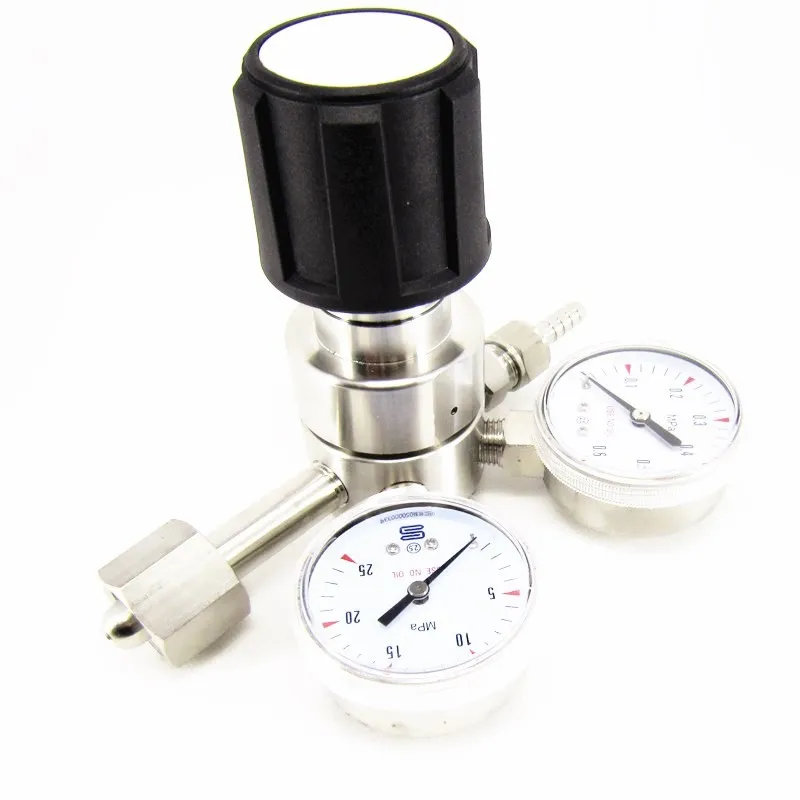

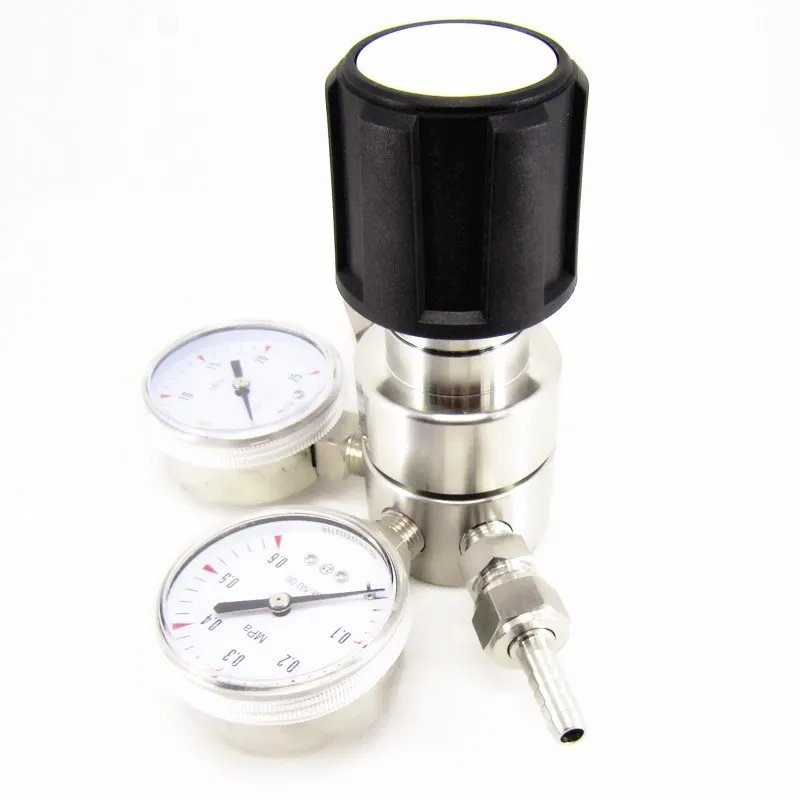

Description of HIgh pressure gas pressure regulator

YR31 stainless steel high pressure regulator, single stage diaphragm type pressure reducing structure, stable output pressure. This pressure regulator applied to pure gases, standard gases and corrosive gases and so on, the maximum input pressure is 6000 psig.

Detailed Image
Specification

Specification of HIgh pressure gas pressure regulator

1. The maximum input pressure: 6000 psi
2. The output pressure: 500psi
3. Safety test pressure: 1.5 times max inlet pressure
4. Applicable temperature: -40℉~+165℉(-40℃~+74℃)
5. Leak rate: 2x10-8 atm cc/sec He
6. CV value: 0.2
7. Package size: 17cm*17cm*17cm
8. Material: Stainless steel

Features

Structure of HIgh pressure gas pressure regulator

1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and with filter
4. Can use panel or wall mounting

Material of HIgh pressure gas pressure regulator

Body: 316L/SS304
Seat: PCTFE, Vespel
Piston: 316L
O-rings: Viton

Application of HIgh pressure gas pressure regulator

Gas Analysis Test
Laboratory
Petrochemical industry
Power Plant Equipment
