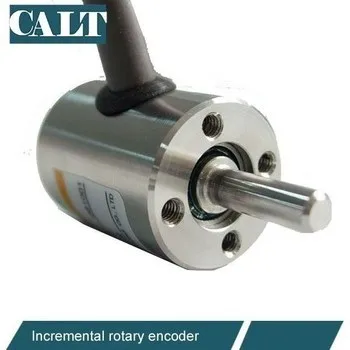

HPE28 28mm outer incremental hall encoder Voltage output DC 5V Hall angle sensor

Feedback Ratings
  • 1-9 Pieces
    $61.00
  • 10-29 Pieces
    $56.00
  • >=30 Pieces
    $50.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Contact Supplier
Samples - $62.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity

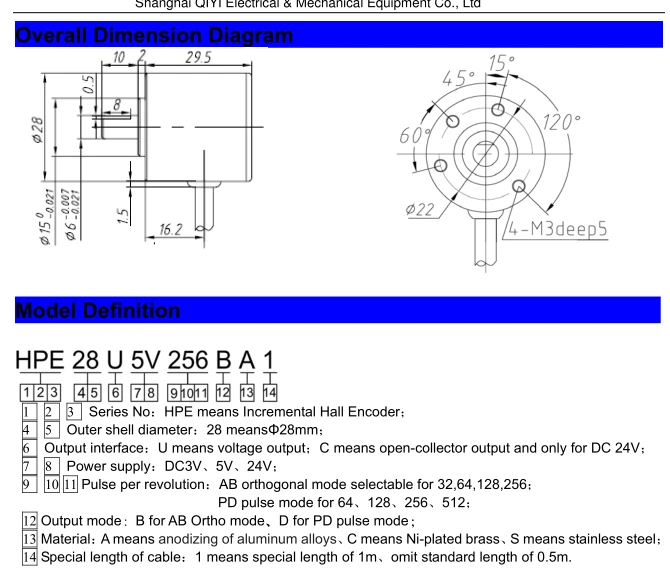

Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CALT
Model Number:
HPE28U5V256BA1
Usage:
Magnetic Sensor
Theory:
Hall Sensor
Output:
Digital Sensor
Outer shell diameter:
28mm
Resolution:
8 bit (256) ,10 bit (1024) ,12 bit (4096)
Outer interface:
Voltage output
Power supply:
DC 5V
Out put mode:
AB Ortho mode or PD pulse mode
Material:
Anodizing of aluminum alloys, Ni-plated brass, stainless steel
Detection angle:
360°
Protection class:
IP65
shaft dia:
6mm
Operating temperature:
-40~+85℃

Packaging & Delivery

Selling Units:
Single item
Single package size:
16X14X12 cm
Single gross weight:
0.3 kg
Package Type:
Standard Strong Export Carton Box According To Your Needs
Lead Time :
Quantity(Piece) 1 - 30 >30
Est. Time(days) 5 To be negotiated
Product Description

Open-collector output DC 24V Hall angle sensor


Non-contact transducing technology
Resolution 32~512P/R
Power supply 24V
Unitary structure design, high strength
Environment and vibration resistant, high protection grade
Built-in two sets of ball bearings, suitable for industrial environment
Related Products

Solid shaft type GHS38 Series.

Widely used in automatic control, automatic measurement, as the angle and speed sensors.


ASIC devices internal, good reliability, long life, anti-jamming performance. Stainless steel shaft has a higher stability and protection.Metal shell is more solid and anti-impact. Bearing load heavy, anti-oil and water

Servo-motor Encoder GSM48 Series.

Widely used in the field of automatic control AC servo unit, particularly suitable for use in servo motor supporting.


Internal ASIC devices, high reliability, long life, strong anti-interference. Wide range of resolutions, and does not require signal conditioning.  With A, B, Z and U, V, W six-channel signal output can be connected with standard line driver (26LS31) RS422, can provide 12 output signal, and is compatible with TTL

Hollow Shaft Type GHH38 Series.

Used in automatic control, measurement, robot X-Y working platform, printing and packaging.

Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

Hollow Shaft Type GHH100 series.

Used in automatic control, measurement, robot X-Y working platform, printing and packaging.

Internal ASIC devices, high reliability, long life, strong anti-interference. more solid metal housing could anti-shock. Outlet end metal interface sets of waterproof protection.

Manual Pulse Generator TM1469 series.

For CNC machine origin correction and signal split.


 Full plastic housing, high dielectric strength, the axis transfer switch and Oil Pollution Prevention seal design.

Draw-wire Position Sensor CESI series.

compact size, rugged construction, easy to install

economic cost, and cost savings for customers
Various signals output optional: push-pull, TTL, open collector and so on


The cylinders, testing machines and other industry has achieved large-scale applications, reliability

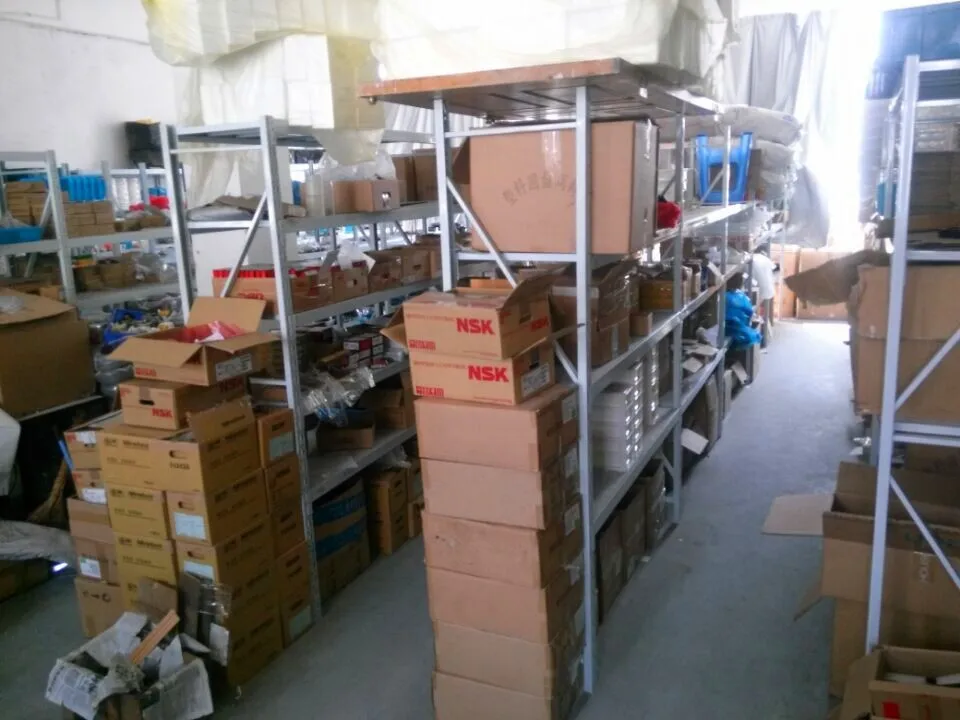

Our Factory
Packing & Delivery

Packing Details  : carton packed for each encoder or items, and then pack with thick carton for shipping.

Delivery Details : 3-4 days after full payment in regular product, and 7-10days for customized type. and according to quantities.

1. Rotary encoder pack box 2 layers.
2. All packed good
3. Encoder module disc in plastic box
4. Ziplock packed for flexible coupling
5. Rotary encoder packed well
6. Packed with good conditions with shipping mark.

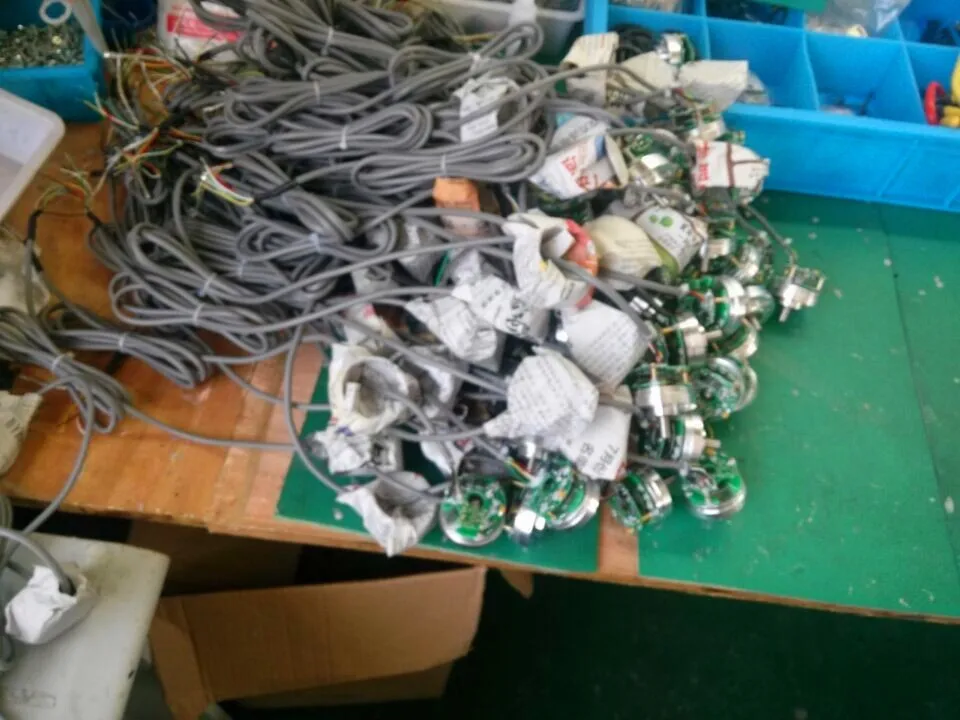

Welcome To Factory
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-8 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.


SERVICE:

ON LINE TALKING OR SEND YOUR REQUEST BY EMAIL DIRECTLY. WE WILL REPLY YOU WITHIN 24 HOURS.
