HPT604 Submersible Water Level Sensor For Arduino Holykell

$135.00 / Piece | 2 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
12 day(s) after payment received
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 10000 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
Holykell
Model Number:
HPT604
Level range:
1M, 2M, 3M, 4M,5M ..500M Water Level Sensor
Power supply:
10~30VDC 12-30V 5VDC
Signal Output:
I2C/ RS585/ 0.5-4.5V/4-20mA/ 0-5v/0-10v
Temperature Compensation:
-10℃~65℃
Working Temp:
-20℃~80℃
Material:
316 SST housing waterproof
Certificate approving:
Exia IICT6 and CE FCC Certificate
Overload pressure:
1.5 times rated pressure
Failure pressure:
3 times rated pressure
Warranty:
18 months
Product Certification certification
CE Certified.
Valid from 2019-01-25 until 2049-12-31

Packaging & Delivery

Selling Units:
Single item
Single package size:
32X17X21 cm
Single gross weight:
3.5 kg
Package Type:
Carton box
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 12 To be negotiated
Video Description

HPT604 Submersible Water Level Sensor For Arduino Holykell

 Holykell Submersible Water Level Sensor for arduino

--Price for 5m range 4-20mA



Submersible Water Level Sensorwater level sensorSubmersible Water Level Sensor for arduinoSubmersible Water Level Sensorwater level sensor

Product Description

 Submersible Water Level Sensor for arduino

HPT604 is a submersible water level sensor ardunio suitable for liquid level and depth measurement. It consists of an imported MEAS TE piezoresistive sensing element encased in 316 SS housing. And adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;Anti-interference is enhanced by 300%, the stability is over 10 years.



 Submersible Water Level Sensor





 You will benefit from Our HPT604 water level sensor ?

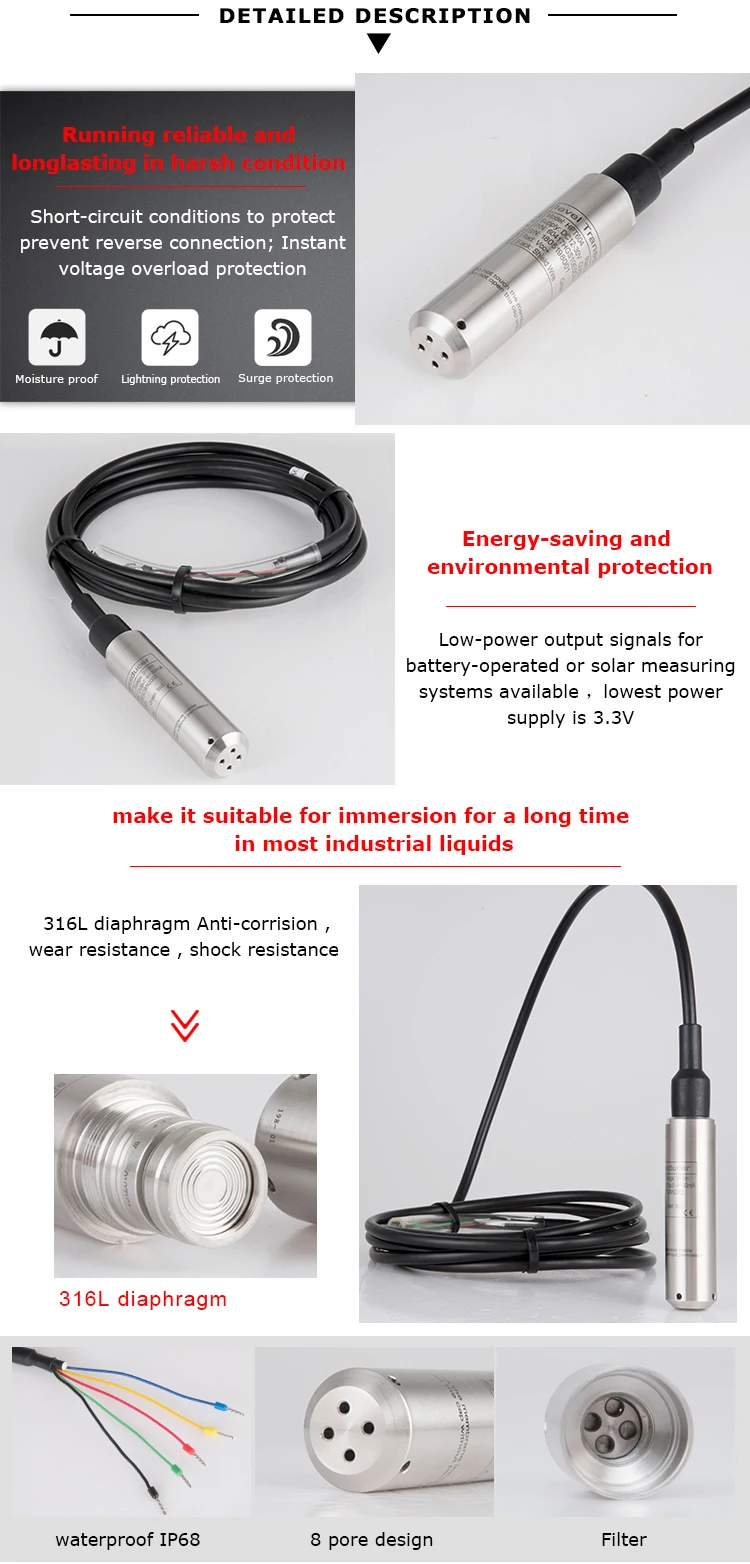

Advantage

Benefit

short-circuit conditions to protect prevent reverse connection; Instant voltage overload protection

running reliable and longlasting in harsh condition

breath atmospher and protect moisture enter transducer

without maintenance, even in the most humid environments.

High accuracy 0.25%,Small temperature drift,automatically compensates for changes in barometric pressure

Stability,keep sensor running longer by reducing downtime and maintenance costs

Low-power output signals for battery-operated or solar measuring systems available ,lowest power supply is 3.3V

energy-saving and environmental protection

Anti-corrision ,wear resistance , shock resistance

make it suitable for immersion for a long time in most industrial liquids

8 pore design Anti-blocking  Prevent plugging rate increases more than 80%

Simple maintenance ,easy to cleaning and installation





1. 5-10 years design life, the lifelong maintenance; Import diffusion silicon core body, ≤1 ms response time; Its service life is 2-3 times of similar products.

2. Adopt the military printed-circuit board and wiring, with good electromagnetic compatibility;

    Anti-interference is enhanced by 300%, the stability is over 10 years.

3. The unique design of 8 hole and The unique filter design, it Can effectively filter out impurities,prevent blockage, prevent shock; Prevent plugging rate increases more than 80%.

4. Automatic temperature compensation, -40 ~ 85℃, autocorrection temperature drift.

5. Five layers of seamless and waterproof dustproof connection design, international level IP68;12 mm waterproof and oil-proof cables, the service life is more than 10 years.



water level sensor



Specificate of submersible water level sensor



Name

HPT604 submersible water level sensor

Measurement Range

0...1…500mH2O  price for  5m 4-20ma

Overload pressure

1.5 times rated pressure

Failure pressure

3 times rated pressure

Accuracy

±0.15%F.S, ±0.25%F.S,    ±0.5%F.S

Stability

Typical value: 0.1%F.S,   Maximum value: 0.2%F.S

Operation temperature

-40~85 or -40~100(Customized)

Compensation temperature

-10~70 or 20~80(Customized)

Medium compatibility

All corrosive medium compatible with 1Cr18Ni9Ti and 316L

Electrics feature

Two-wire type

Three-wire type

Four-wire type

Signal output

4~20mA

0/1~5V

0~10V

0.5~4.5V

0~100mV/V

RS485/EIA485

Power supply

12~36Vdc

10~36Vdc/ac

15~36Vdc/ac

5Vdc

10Vdc

10~30Vdc

Load resistance

(U-10)/0.02(Ω)

>100kΩ

Insulate

>100MΩ@100V

Electrics connector

Waterproof fixed cover + bipolar cycle matrix + sealing ring

+ sealgum + glue feed, etc,five rank sealed.

protection rank: IP68

Pressure junction

Various embedded structures suit to different applications  1/8, 1/4 or 1/2

Response time

≤10 ms (standard); ≤1 ms (Customized)

Pressure form

Gauge pressure: G, Absolute pressure: A

Certification

Explosion proof certification, CE certification. Rosh certification



Order information : Range :0-5m , Output :4-20mA , Power supply:12-30VDC ,Process connection:  Filter  cover  ,Electronic Connector:Directly cable



Submersible Water Level Sensor for arduino

Applications : Lift station monitoring,Tank liquid level,Landfill leachate monitoring
Construction by-pass pumping,Dewatering,Pump control,Slurry tank liquid level
Wastewater,Fuel tank. Fuel tanker
