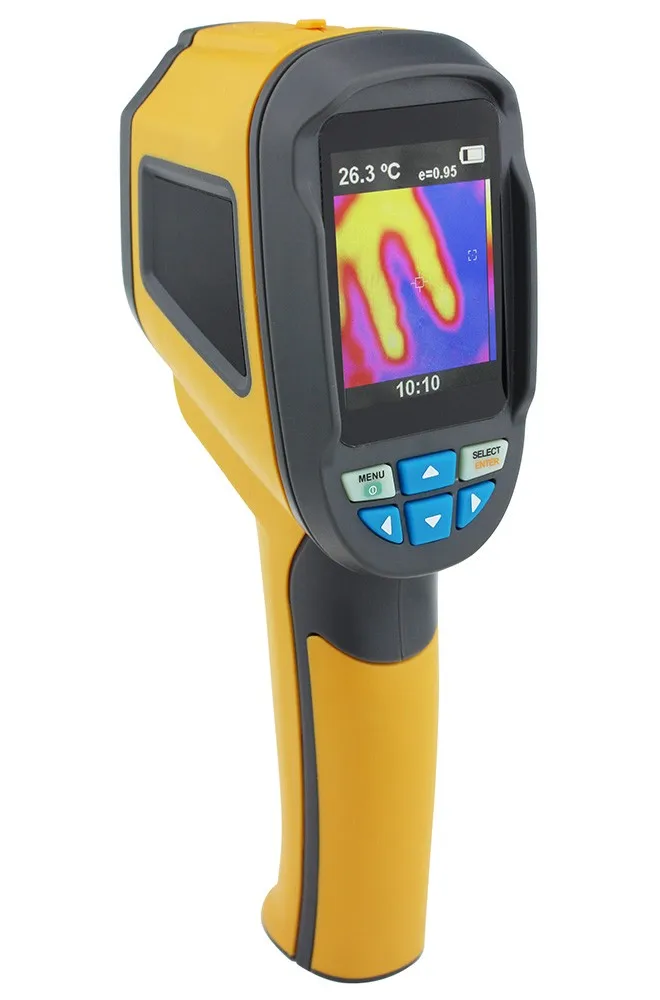

Infrared thermal imaging system can be the human eye can not see the infrared radiation energy converted to electrical signals, and to prepare a different color to express different temperature distribution of visual images show. These visual data signals can be
To assist you in finding the abnormal temperature, which can be found the potential problems of the equipment or system.
1 for the harsh environment of the site application optimization design
2 engineering design, the test can withstand 2 meters (6.5 feet) of the drop - you last time the tool on the ground is what time?
3 dust, waterproof, IP54 protection grade
4 provide quick and clear, sharp images that are needed to find the fault
5 excellent thermal sensitivity (NETD) can be found to be extremely subtle in temperature differences (it is likely to indicate failure)
1 display screen:2.8"color
2 infrared image resolution: 60*60, total pixels: 3600
3 thermal sensitivity: 0.15℃
4 field of view / the shortest focal length: 20°*20°/0.5m
5 temperature measurement range: -20℃~300℃
6 temperature measurement accuracy: ±2% digital/±2℃
7 wavelength range: 8~14 um
8 image frame frequency: 8HZ
9 emission rate: 0.1~1.0 adjustable
10 focus mode: fixed
11 color palette: Iron color / Rainbow / Black / white
12 image storage: SD card (4G)
13 file format: BMP
14 set control: localization unit adjustment / language / date time format / automatic shutdown
We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .
Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system.
If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba
We firmly believe that science and technology is no boundaries
Our mission is to make every effort to contribute to all humanity
